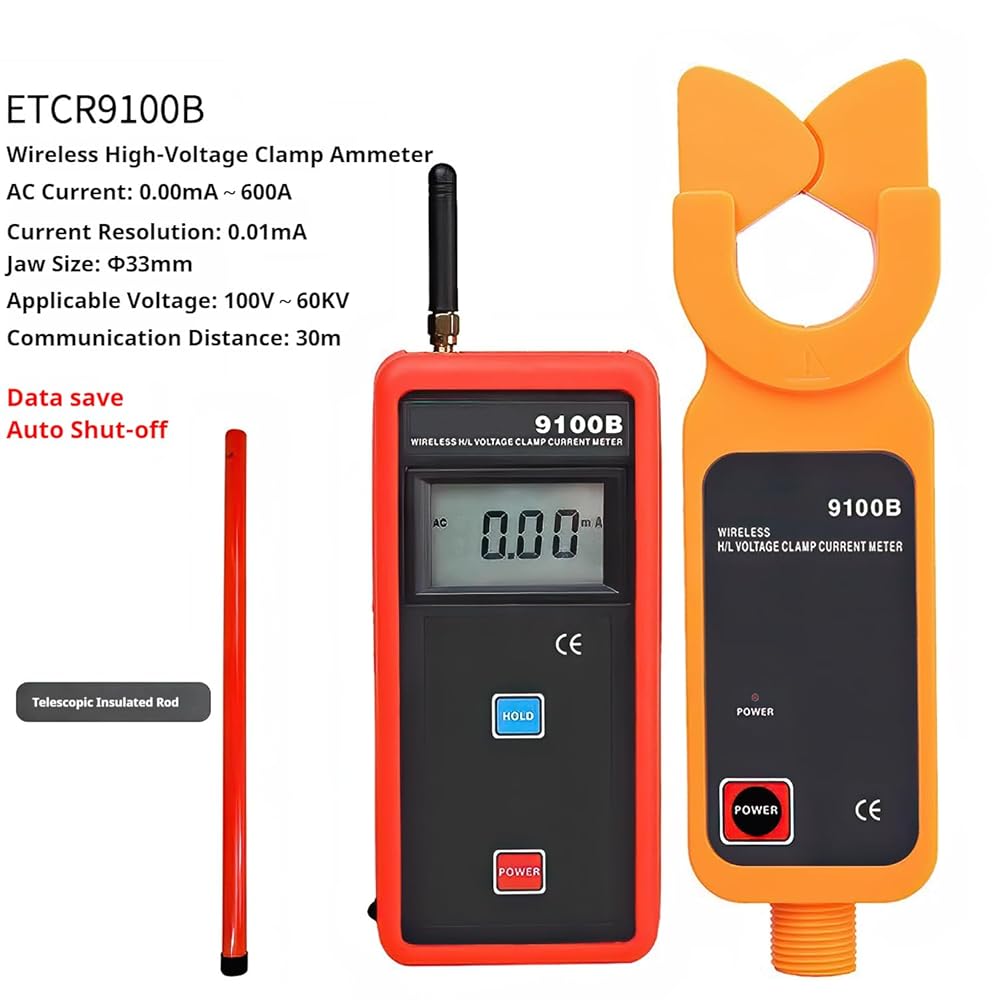

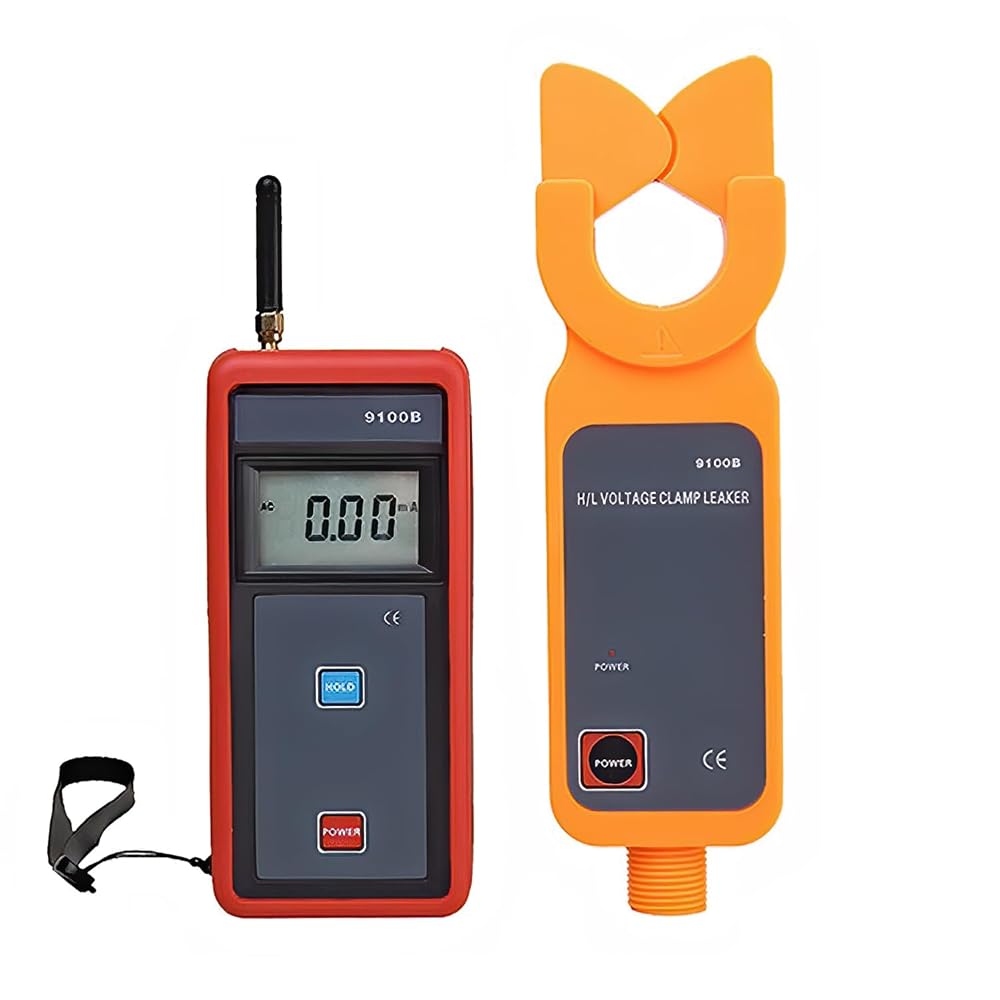

9100B high and low voltage clamp ammeter for low voltage leakage current and current measurement up to 60kV. Range: 0.00mA~600A, jaw size is Φ33mm, special alloy for current clamp, magnetic shield technology, strong anti-interference ability, ensure Measurement accuracy and stability.

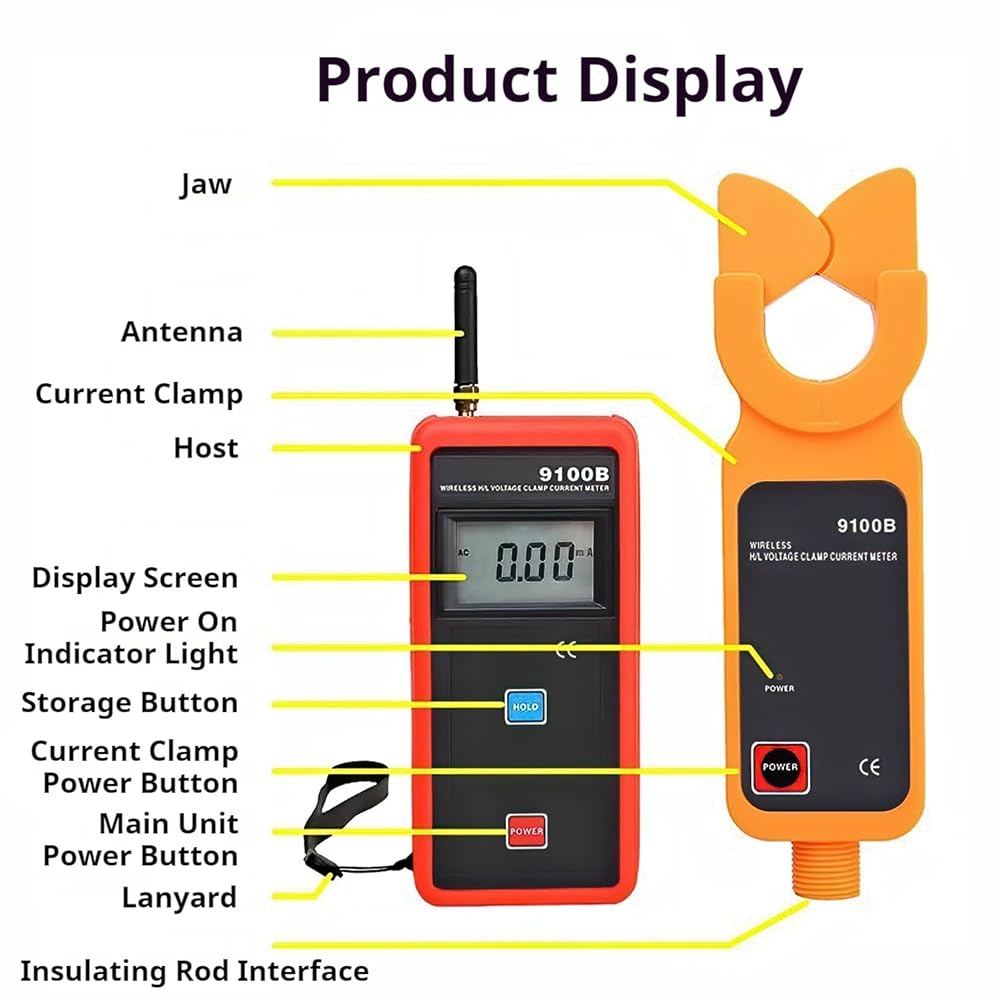

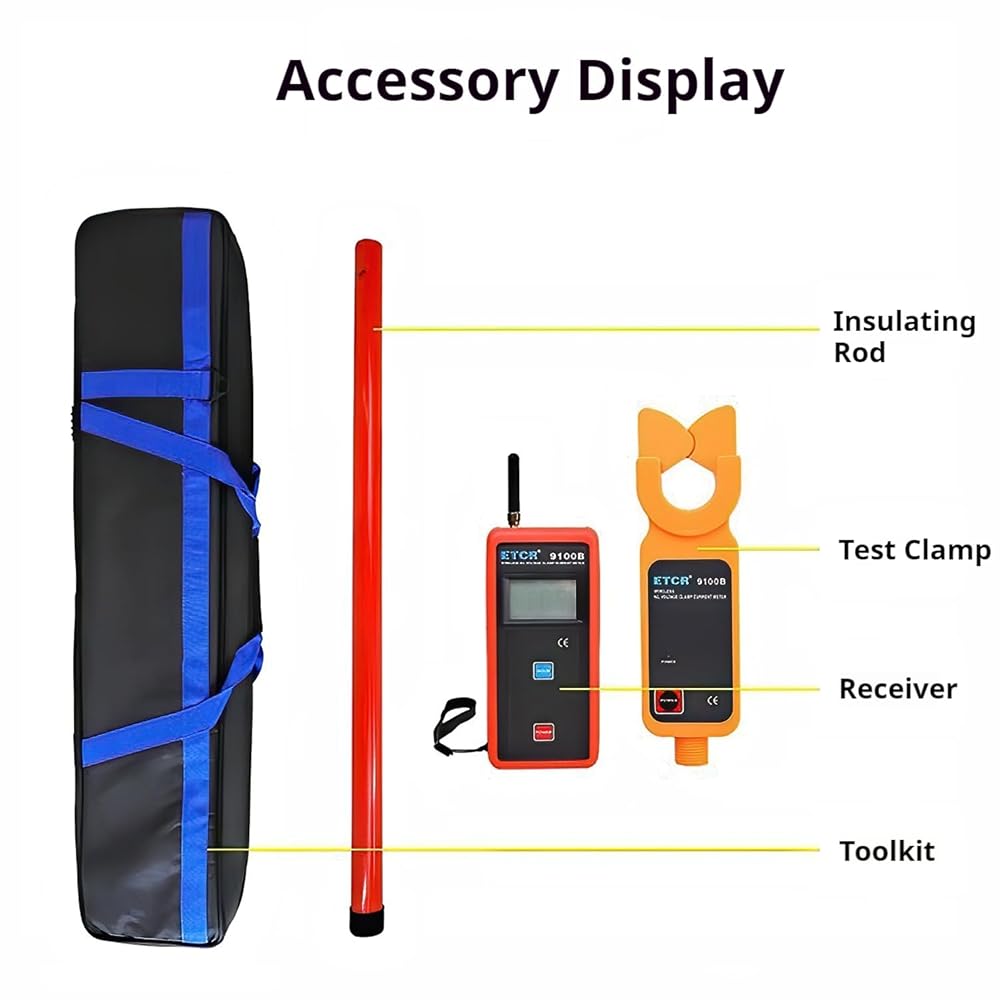

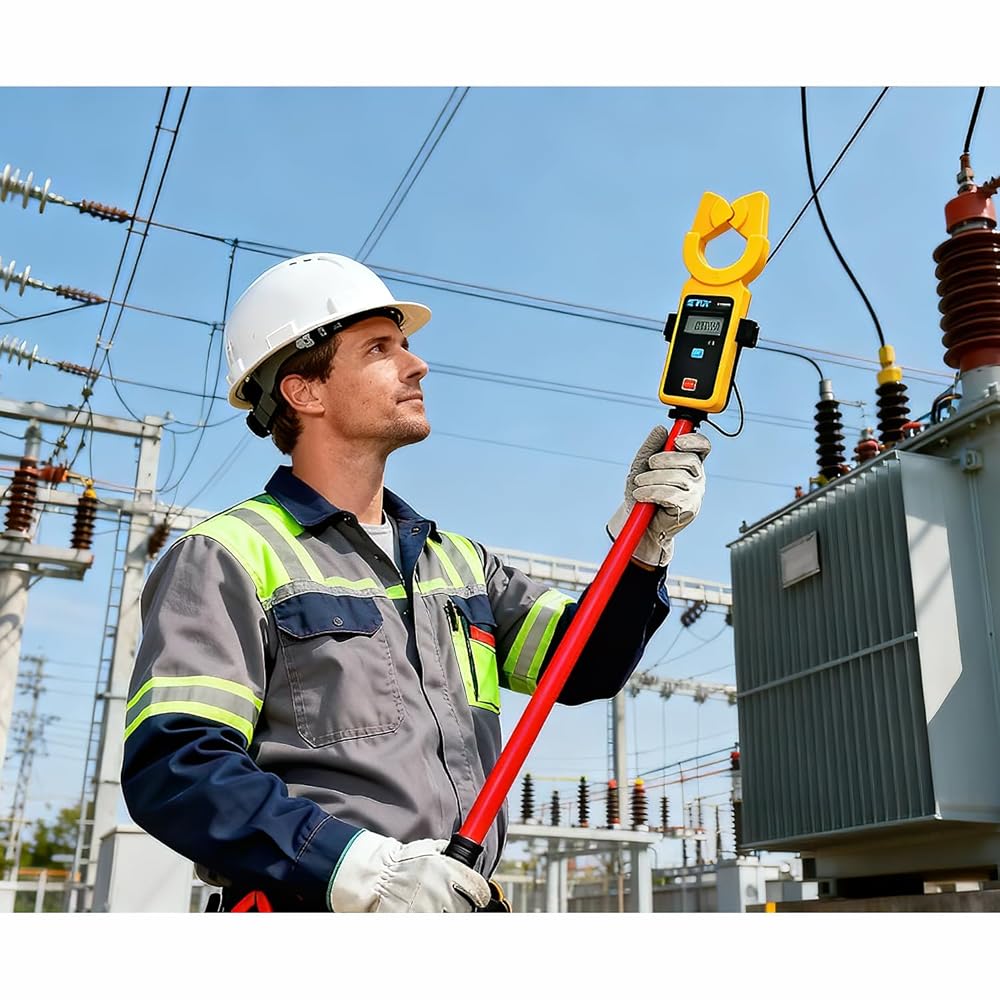

Resolution: 0.01mA; Accuracy: ±1%rdg±5dgt (23°C±5°C, 80%r or less); The ammeter consists of a high-voltage detector, a wireless receiver, and five high voltage insulation rods. The insulation rods are light, with features such as moisture resistance, high temperature resistance, impact resistance, bending resistance, high insulation, and detachability.

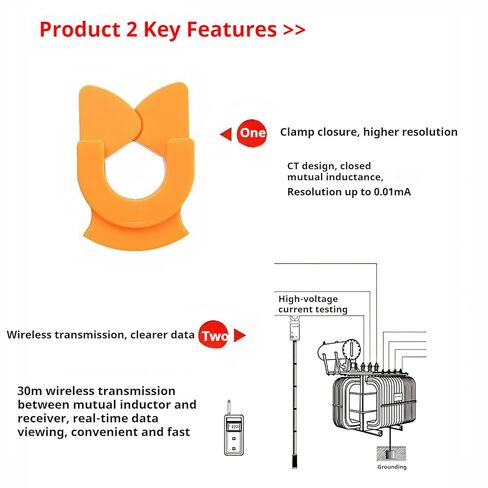

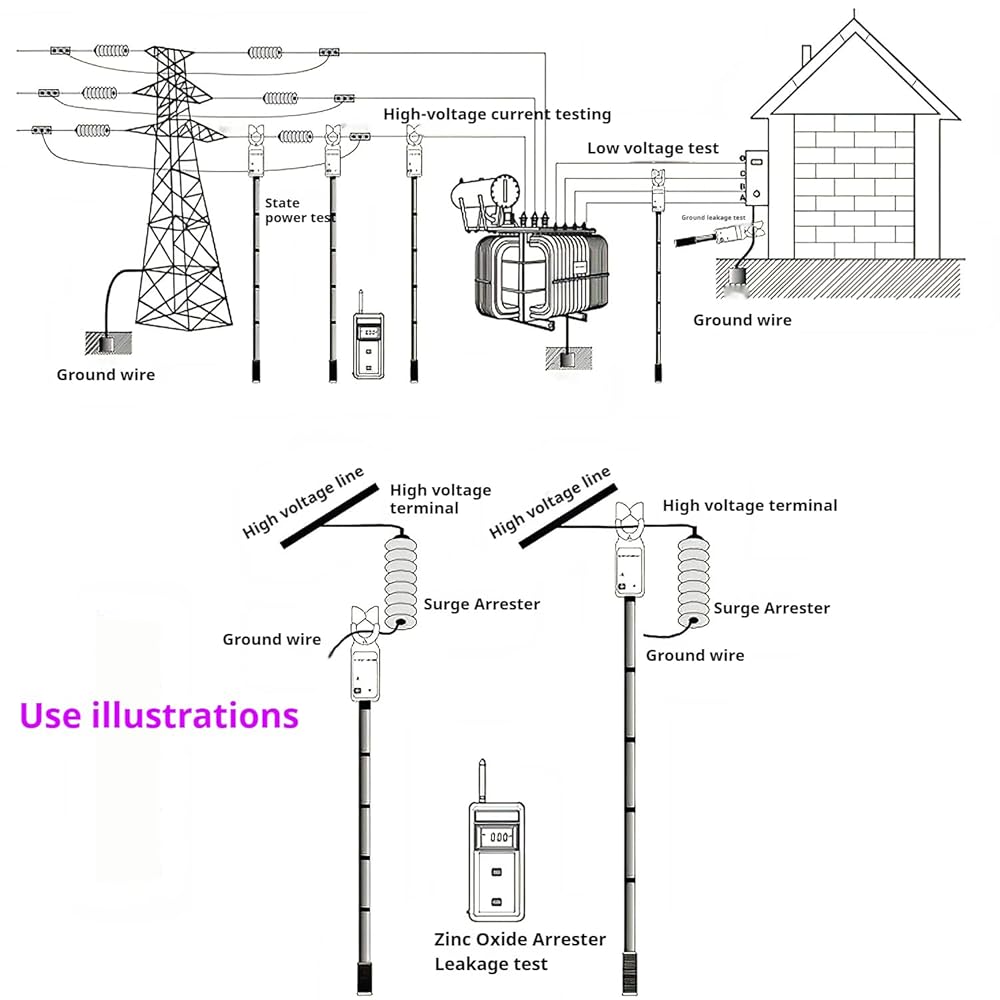

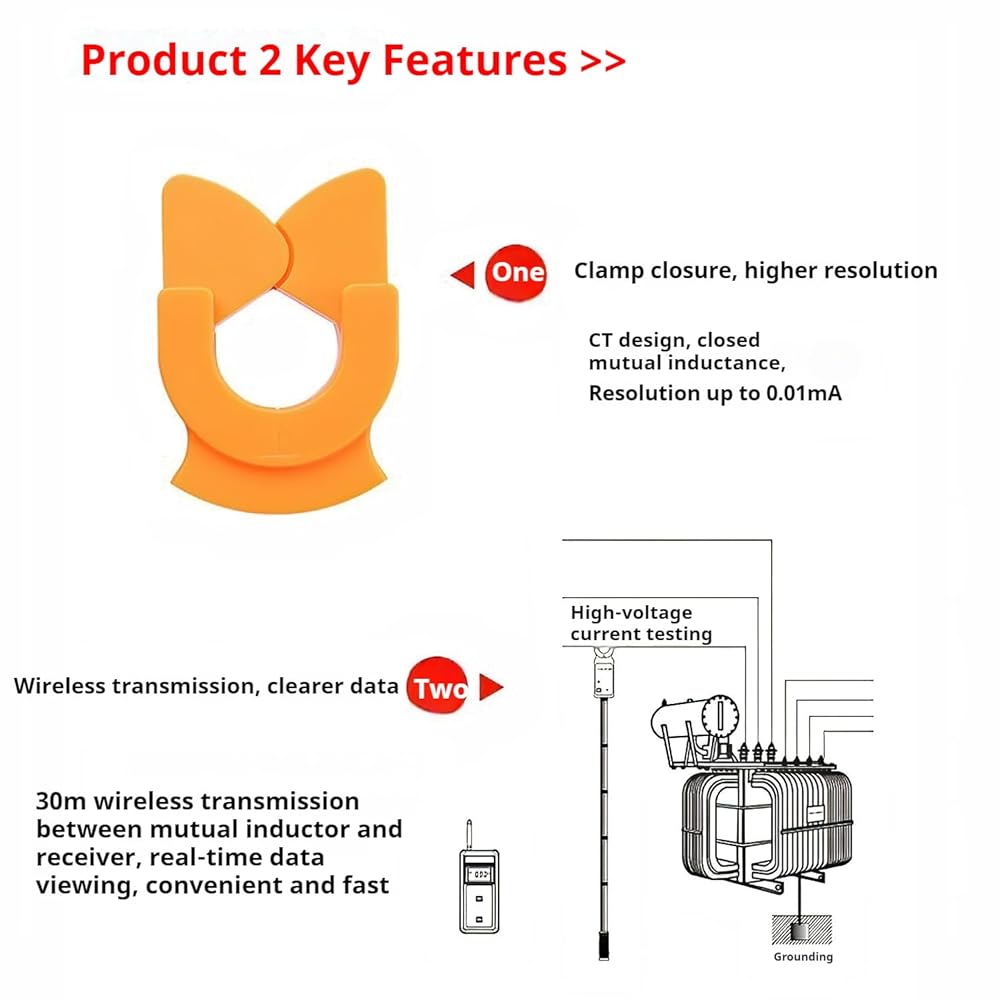

The instrument has wireless transmission (distance 30 meters), data retention, data storage (99 groups) and other functions, it can also be used as high and low voltage ratio tester, that is, the high and low voltage currents of the primary circuit and the secondary circuit are measured separately. Manual calculations can produce the ratio of high and low pressure.
Structure: Anti-drip II; Data Hold: Press HOLD key to hold data in test mode, “HOLD" symbol display; Data review: "MR" symbol indicates that the data can be read up and down; Overflow display: Overrange overflow function: "OLA" symbol display; Line voltage: Line test below 60KV (with 5 sections insulation rod operation)
Measurement method: Clamp CT, non-contact measurement, integral method; Automatic shutdown: automatic shutdown in about 5 minutes; Voltage alarm: When the battery voltage is lower than 4.8V, the battery voltage is low;Insulation strength: Section 5 between insulation rod and high-voltage detector shell: AC 100kV/rms; between high-voltage detector shell and iron core: AC1000V/rms

وصف

Shipping Policy : Battery Not Included During the Shipping
Technical Specifications
* Function: high and low voltage AC leakage current, current measurement

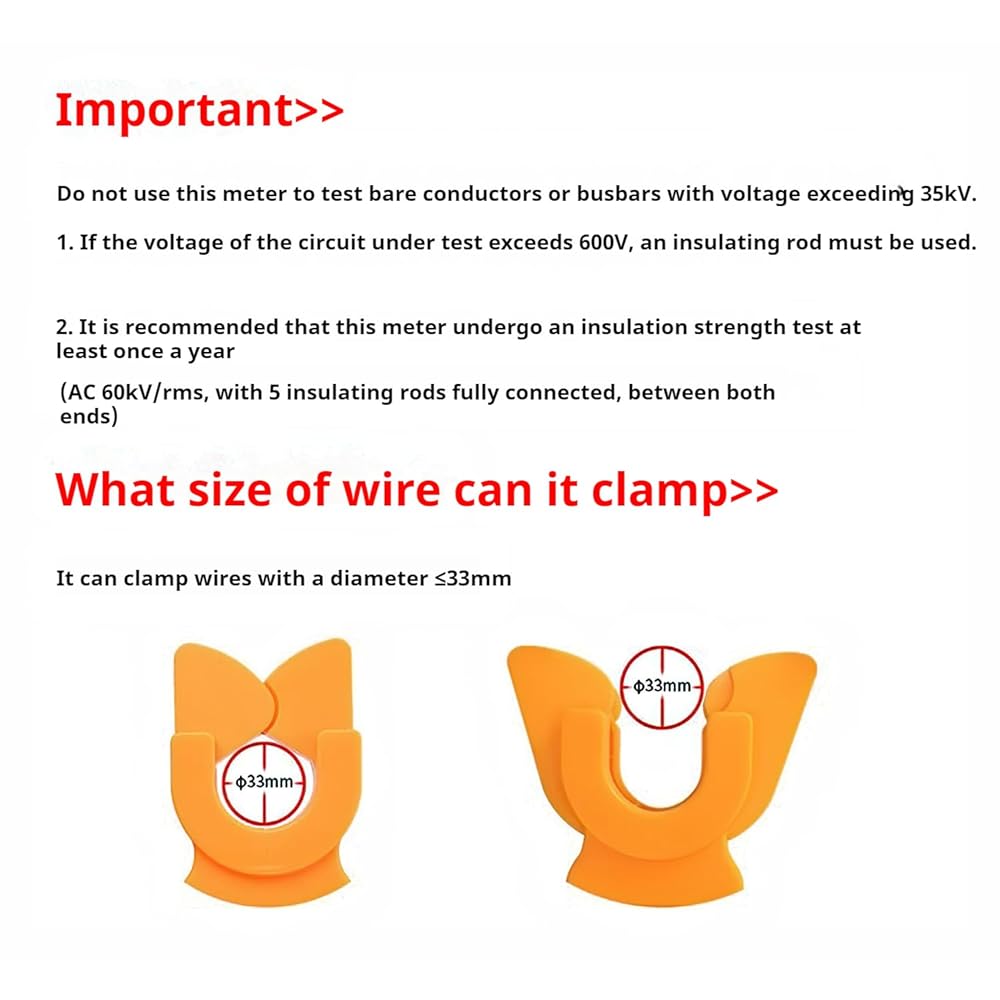

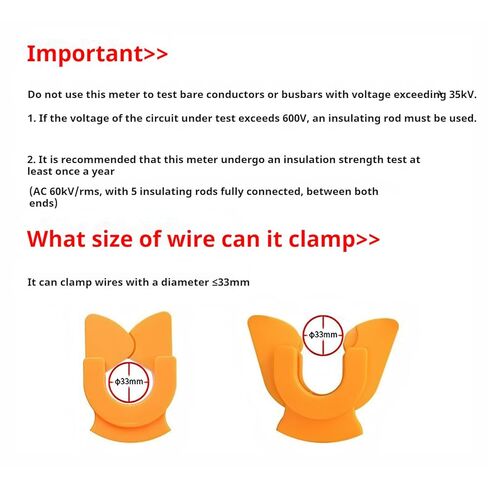

* Clamp size: Φ33mm
* LCD size: 47mm x 28.5mm (with backlight)
* Range: AC 0.00mA～600A
* Resolution: 0.01mA
* Accuracy: ±1%rdg±5dgt (23°C±5°C, 80%r or less)
* Data Storage: 99 Groups
* Automatic shutdown: automatic shutdown in about 5 minutes
* Structure: Anti-drip II
* Transmission: Wireless transmission, the maximum distance of about 30 meters straight line transmission, can penetrate multi-storey building barriers
* No signal indication:”no- -” symbol is displayed dynamically when the receiver does not receive a transmission signal
* Interference: Avoid 315MHz, 433MHz same-frequency signal interference
* Measurement method: Clamp CT, non-contact measurement, integral method
* Frequency: 50Hz, 60Hz automatic identification
* Shift: Automatic shifting
* Data Hold: Press HOLD key to hold data in test mode, “HOLD" symbol display
* Data review: "MR" symbol indicates that the data can be read up and down
* Overflow display: Overrange overflow function: "OLA" symbol display
* Line voltage: Line test below 60KV (with 5 sections insulation rod operation)
* Measurement time: 0.5 seconds/time
* Voltage alarm: When the battery voltage is lower than 4.8V, the battery voltage is low
* Insulation rod size: Outside diameter Φ32mm, 1m/section (5 sections in total)
* Insulation strength: Section 5 between insulation rod and high-voltage detector shell: AC 100kV/rms; between high-voltage detector shell and iron core: AC1000V/rms
* Clamp meter quality: Detector: approx. 335g , total instrument mass: approx. 7Kg (with insulation rod )
* Power supply: DC 6V (7# battery 1.5V x4)（Battery not included in the package）
* Clamp meter size:Host:245mmX68mmX40mm; Receiver:170mm x 75mm x 30mm
