Features:

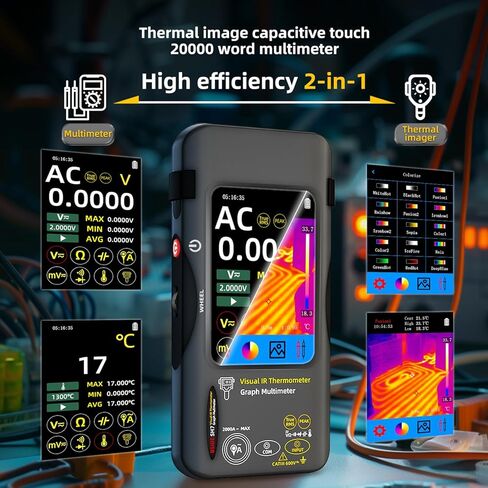

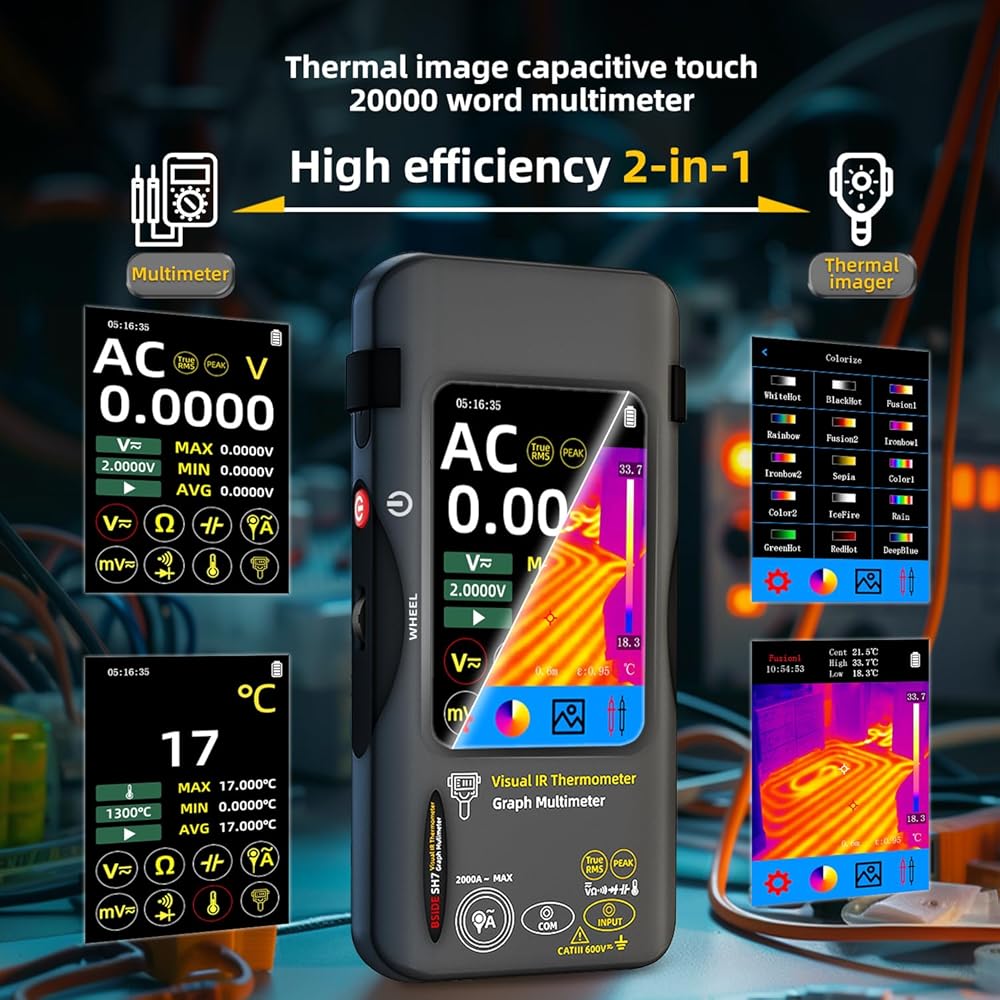

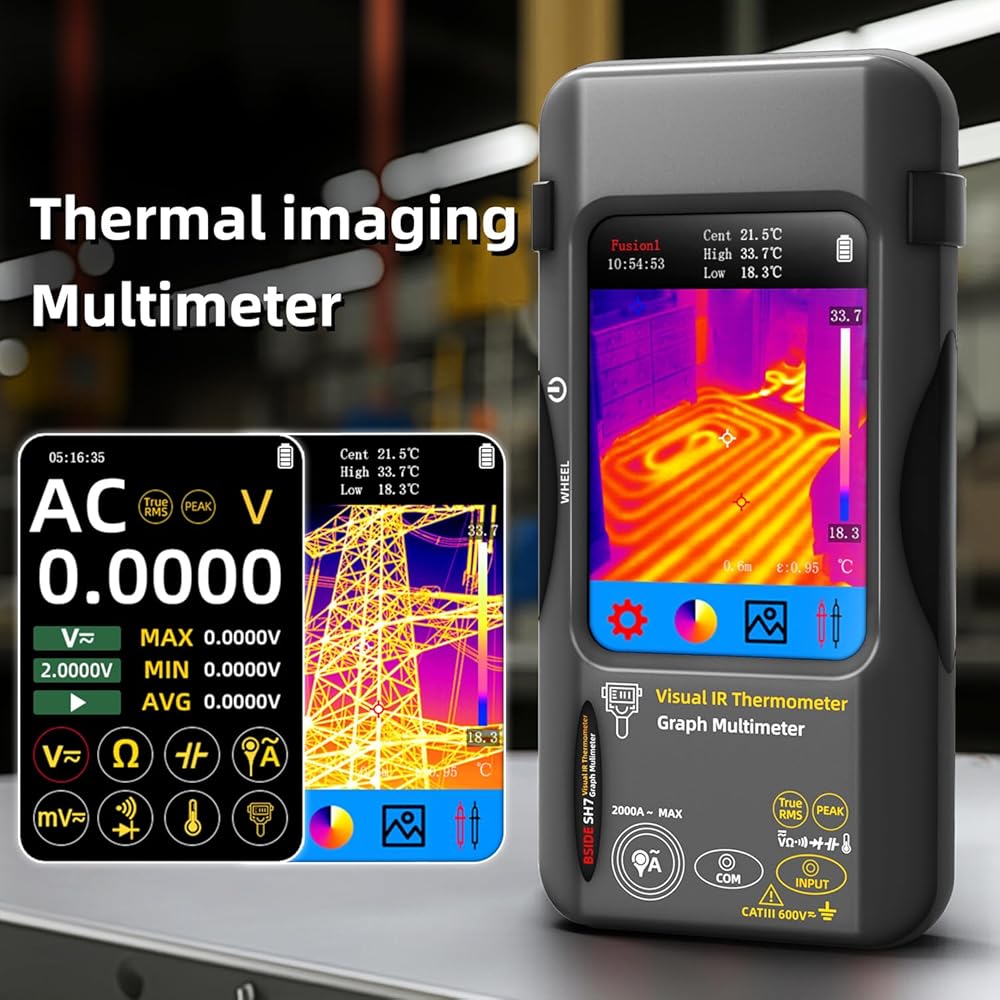

2-in-1 thermal imaging camera multimeter:
320×320 Infrared Thermal Camera

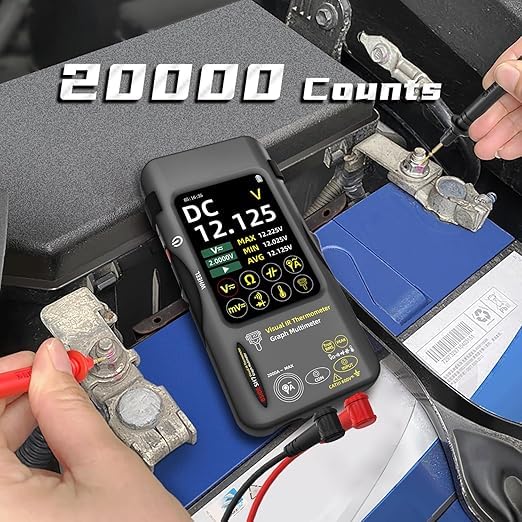

20000 Count Digital Multimeter

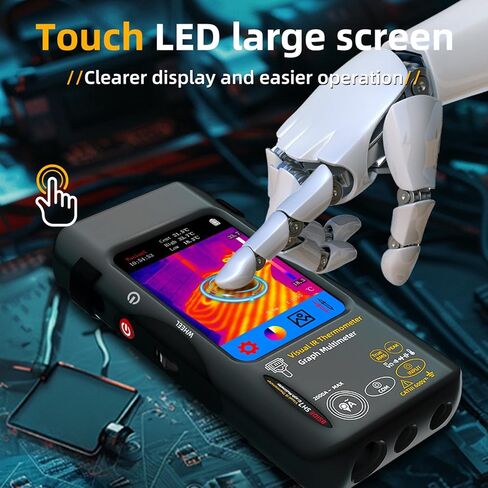

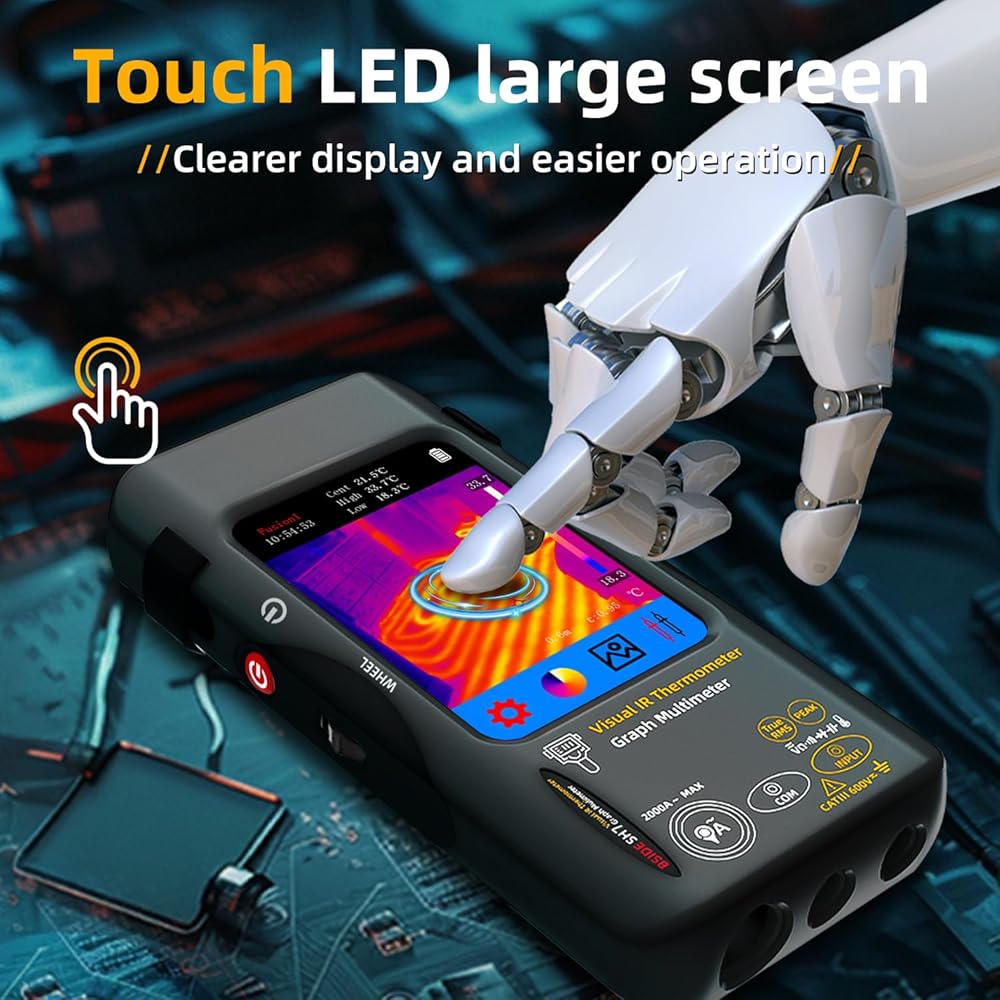

3.98-inch full viewing angle visual touch screen

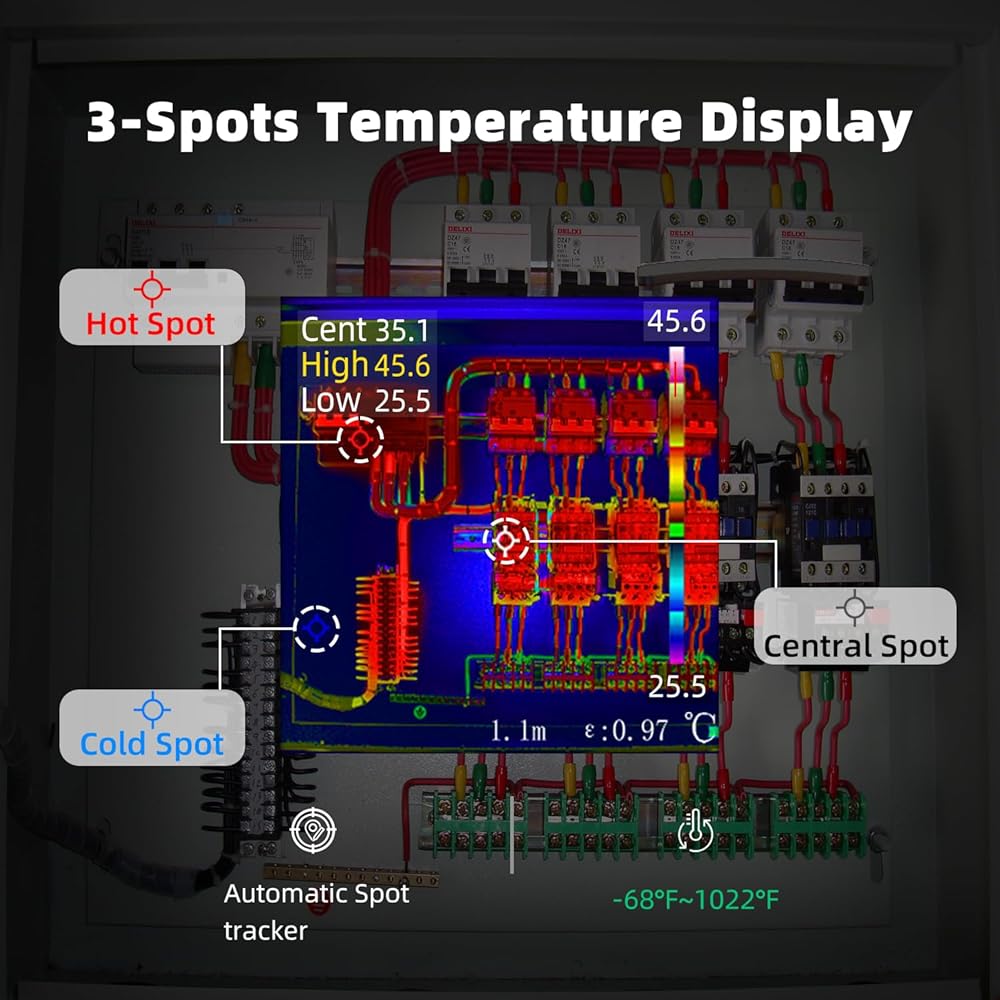

Display the high/low/center temperature
Temperature alarm/warning thresholds can be set, font color alarms
7 language settings: Chinese, English, Japanese, German, Spanish, French, Italian (Russian can be added)
Adjustable emissivity, adjustable backlight, adjustable time and date
Adjustable auto shut-off time, adjustable temperature measurement unit ℉/℃/K
With 15 Thermal Palettes, 2500mAh rechargeable Li-ion battery
Can be used with a flexible current coil to test 2000A AC current.
Thermal imaging camera and multimeter interface can be screenshotted and data can be transferred to a PC for analysis

Specification:
Thermal Camera Mode:

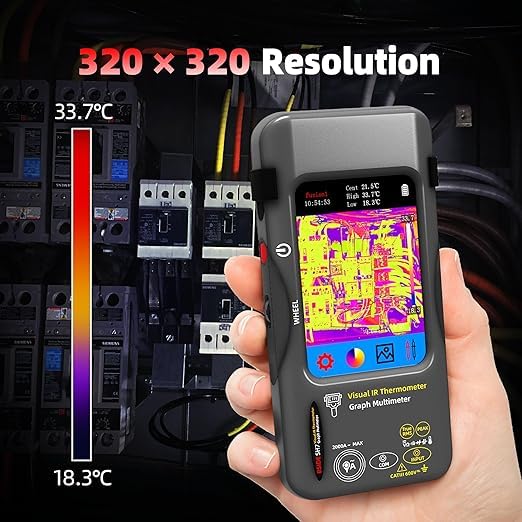

Thermal Imaging Camera: 320 x 320 resolution
Sensor Type: Vanadium Oxide (VOx) Microbolometer
Response Band: 8-14pm
Noise Equivalent Temperature Difference (NETD): ≤60mK(@25℃,F#1.0)
Spatial resolution (IFOV): 8.89mrad
Frame rate: 25Hz
Imaging lens focal length: 1.35mm
Temperature measurement resolution: 0.1℃
Temperature measurement focal length: 0.3m-3m adjustable
Temperature range: -20℃~550℃(-4°~1022°F)/0.1℃.
Temperature measurement unit: degrees Celsius, degrees Fahrenheit, Kelvin
15 kinds of color palettes: white heat, black heat, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, sepia, color 1, color 2, ice and fire, rain, green heat, red heat, dark blue
Screen Display resolution: 480*320
Image storage: 30000 pictures
Multimeter mode:
DC Voltage (V):
2.0000V/0.0001V/±(0.05%+3)
20.000V/0.001V/±(0.05%+3)
200.00V/0.01V/±(0.5%+3)
1000V/0.1V/±(0.5%+3)
DC Voltage (mV):
20.000mV/0.001mV/±(0.1%+3)
200.00mV/0.01mV/±(0.1%+3)
AC Voltage (V):
2.0000V/0.0001V/±(0.5%+3)
20.000V/0.001V/±(0.5%+3)
200.00V/0.01V/±(0.5%+3)
750V/0.1V/±(0.5%+3)
AC Voltage (mV):
20.000mV/0.001mV/±(0.5%+3)
200.00mV/0.01mV/±(0.5%+3)
Resistances:
200.00Ω/0.01Ω/±(0.5%+3)
2.0000kΩ/0.0001kΩ/±(0.2%+3)
20.000kΩ/0.001kΩ/±(0.2%+3)
200.00kΩ/0.01kΩ/±(0.2%+3)
2.0000MΩ/0.0001MΩ/±(1.0%+3)
20.000MΩ/0.001MΩ/±(1.0%+3)
200.00MΩ/0.01MΩ/±(5.0%+5)
Capacitors:
999.99nF/0.01nF/±(5.0%+5)
9.999uF/0.001μF/±(2.0%+5)
999.99uF/0.01μF/±(2.0%+5)
99.999mF/0.001mF/±(5.0%+10)
Flexible Current Clamp AC Current:
200.0A/0.1A
2000A/1A
Temperature:
(-20~1300)℃/1℃/±(2.0%+5)
(-4~2372)℉/1℉/±(2.0%+5)
Diodes: Yes
Continuity: Yes

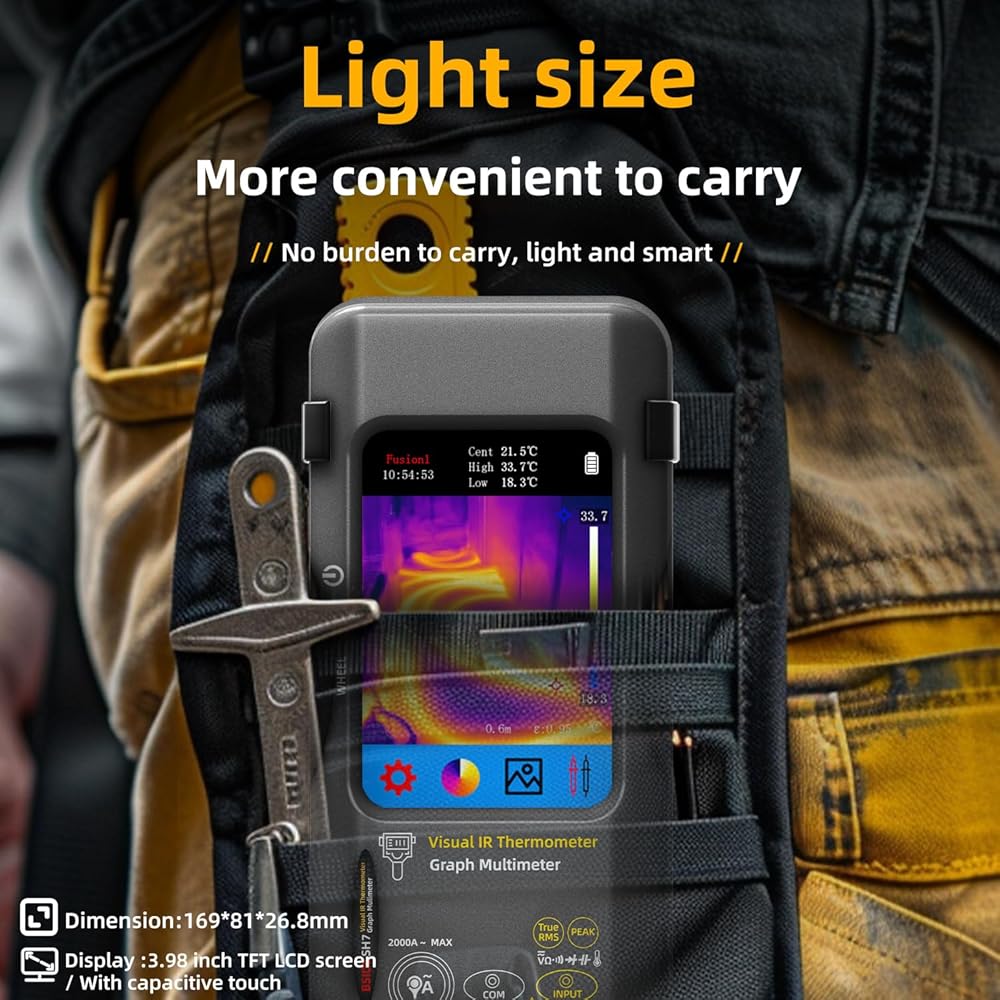

Size: 169*81*26.8mm
Weight: 270.7g

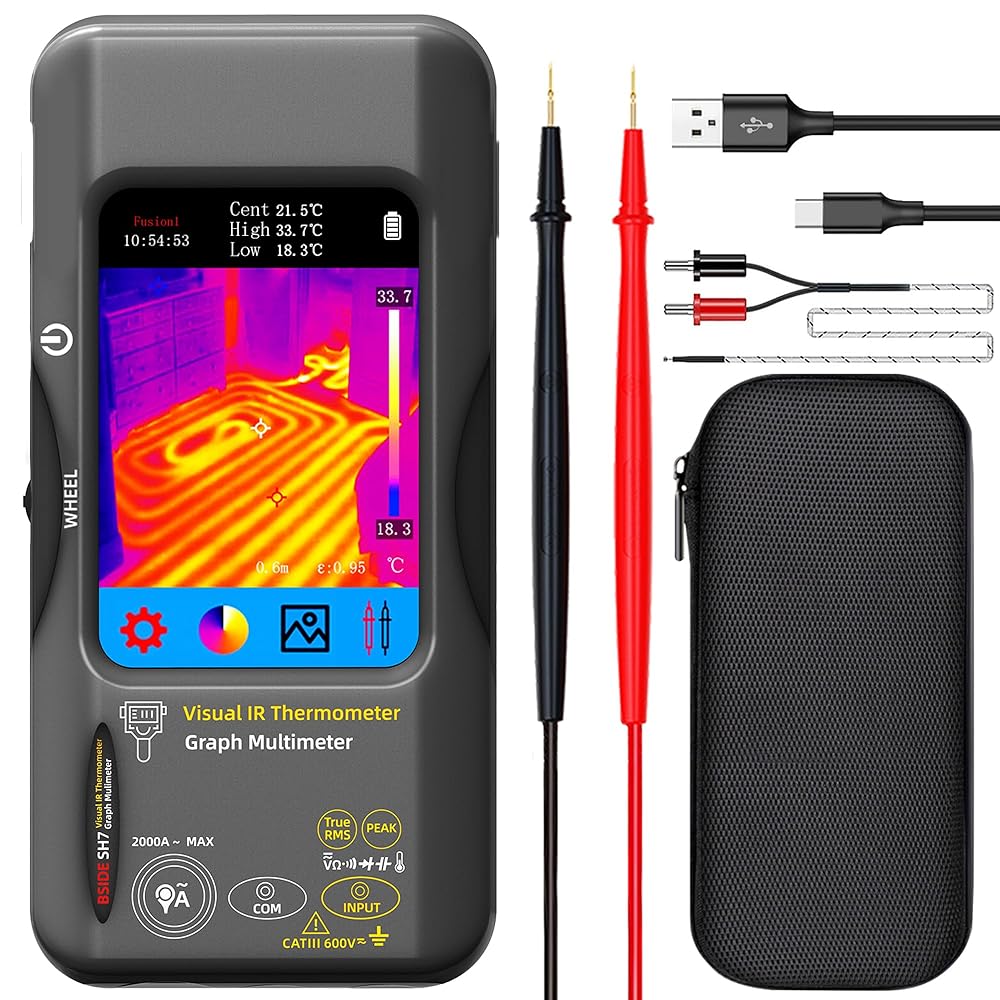

Package content:
1×Thermal imaging camera multimeter
1×thermocouples
1×Test Leads
1×Storage bag
1 x Charging Cable
1 x Instruction manual
