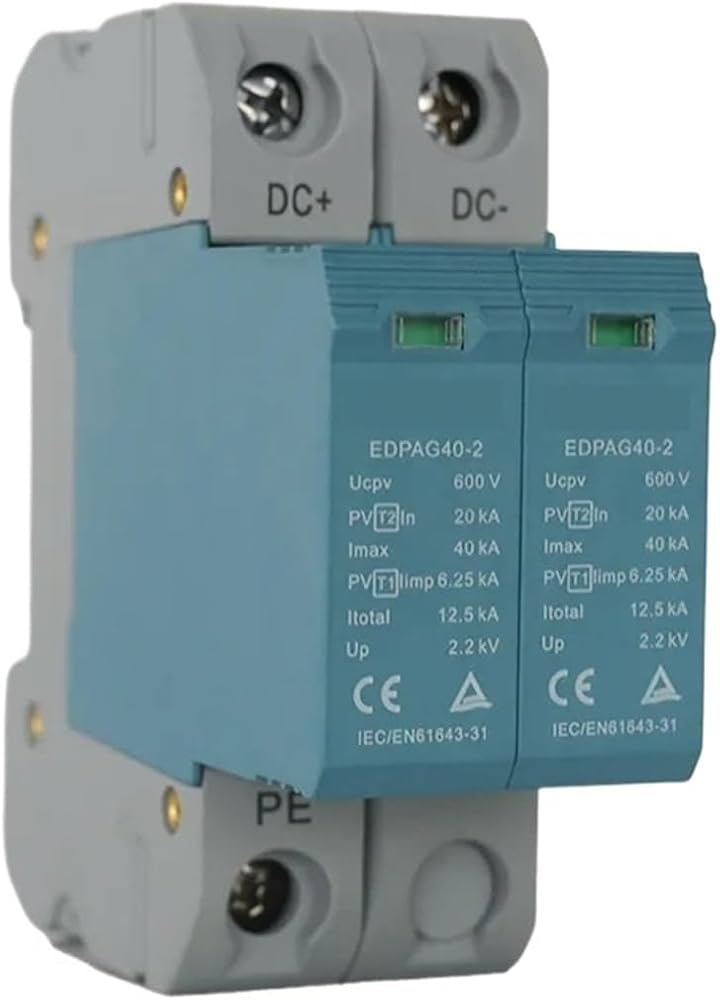

2Pole DC SPD T1 + T2، PV12.5KA الشمسية حماية من زيادة التيار، Din Rail 600V 40KA واقي مانع in Kuwait

2Pole DC SPD T1 + T2، PV12.5KA الشمسية حماية من زيادة التيار، Din Rail 600V 40KA واقي مانع

KWD 59
ماركة
E26IBDTMYE
اللون2 القطب
– 1 +

مميزات خاصة

  • Gas Tube Arrestors
  • Pluggable Design:Features a pluggable design, allowing for easy installation and maintenance on Din Rail systems.
  • Technical Compliance:Meets EC 61643-31 and EN50539-11+ A1 standards for safety and reliability in solar PV systems.
  • Surge Ratings:Boasts up to 12.5kA surge protection and 40kA overload capacity for comprehensive defense.
  • Mode of Protection:Offers multiple protection modes, including (DC+)- PE, (DC-)- PE, and (DC+)-(DC-) for diverse scenarios.
  • Edp 12.5| Edp|High Energy MOV:Equipped with a high-energy MOV, this device offers rapid voltage discharge for reliable protection.

وصف

Gas Tube Arrestors
EDP series surge protective devices have reliable voltage protection level, super surge discharge capacity and safety overload capacity, which are used for protection of photovoltaic power generation system. The product is equipped with high-energy mov chip, so when the system has overvoltage due to stroke or other reasons, it can introduce the voltage into the earth with nanosecond response speed, so as to protect the equipment.
Mode of Protection: (DC+)- PE, (DC-)- PE, (DC+)-(DC-)
Surge Ratings: lTotal =up to 12.5kA(10/350 s)
ITota =up to 40kA(8/20 S)
IEC/EN/L Category: Class l+/Type 1+2
Protective Elements: High Energy MOV
Housing: Pluggable Design
Compliance:lEC 61643-31 EN50539-11+ A1

==========
High-concerned chemical : None
Type : SPD
