مميزات خاصة

【High-efficiency fluid transport】This pneumatic piston pump features a 2:1 pressure ratio and a material flow rate of up to 18 liters/minute, enabling efficient transport of high-viscosity fluids such as polyurethane and polyurea.
【Carbon steel body structure】The pump body is made of carbon steel, the connecting pipes are precision steel pipes, and the pump head is aluminum, balancing durability and cost-effectiveness.
【Corrosion-resistant sealing design】Although the main body is carbon steel, the key sealing rings are made of corrosion-resistant PTFE (polytetrafluoroethylene) material, supplemented with copper-powdered Glyd Rings, ensuring excellent sealing and wear resistance.

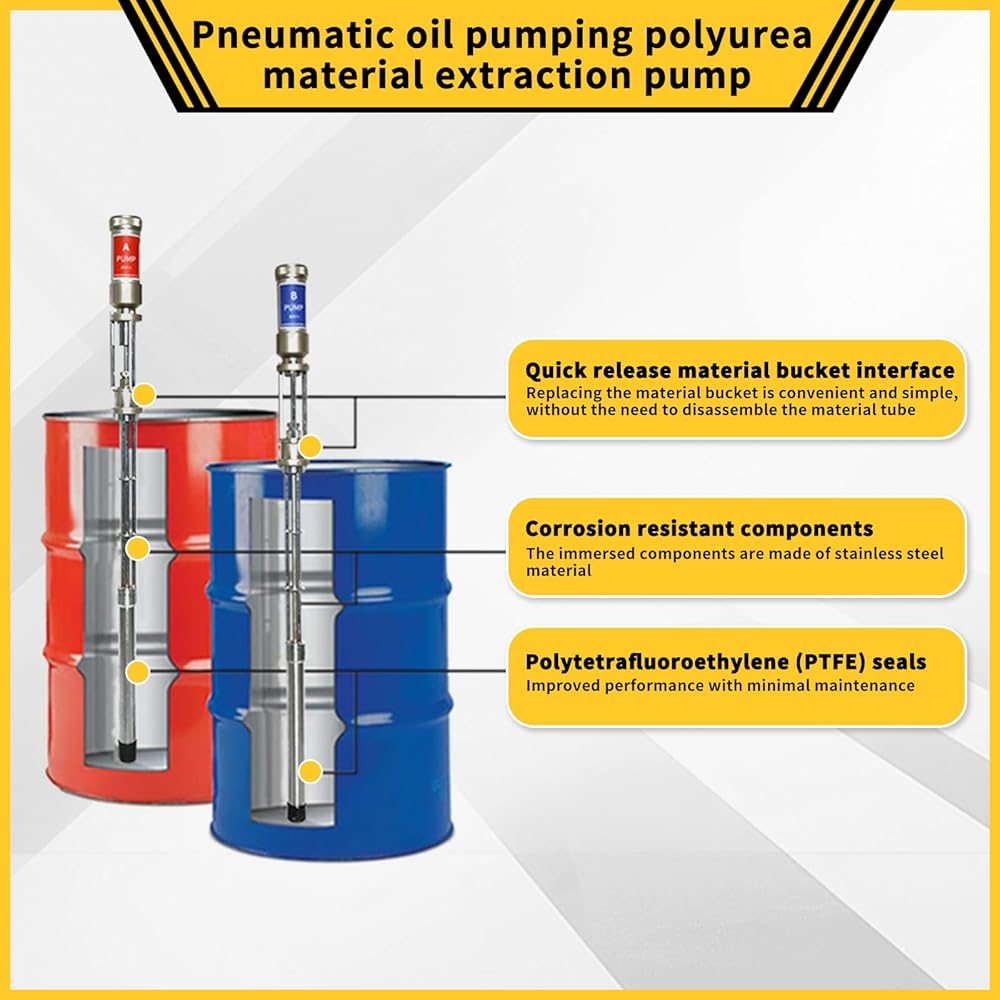

【Compatible with standard large containers】Equipped with a standard 880 mm long suction hose, it is ideal for use with common 180-220 liter large containers, facilitating quick and easy installation and removal.
【Standard pneumatic interface】The operating pressure range is 0.1-1.0 MPa, with an air consumption of 250 liters/minute. It features a 1/4" air inlet and a 1/2" oil outlet for easy connection to spray painting equipment systems.

وصف

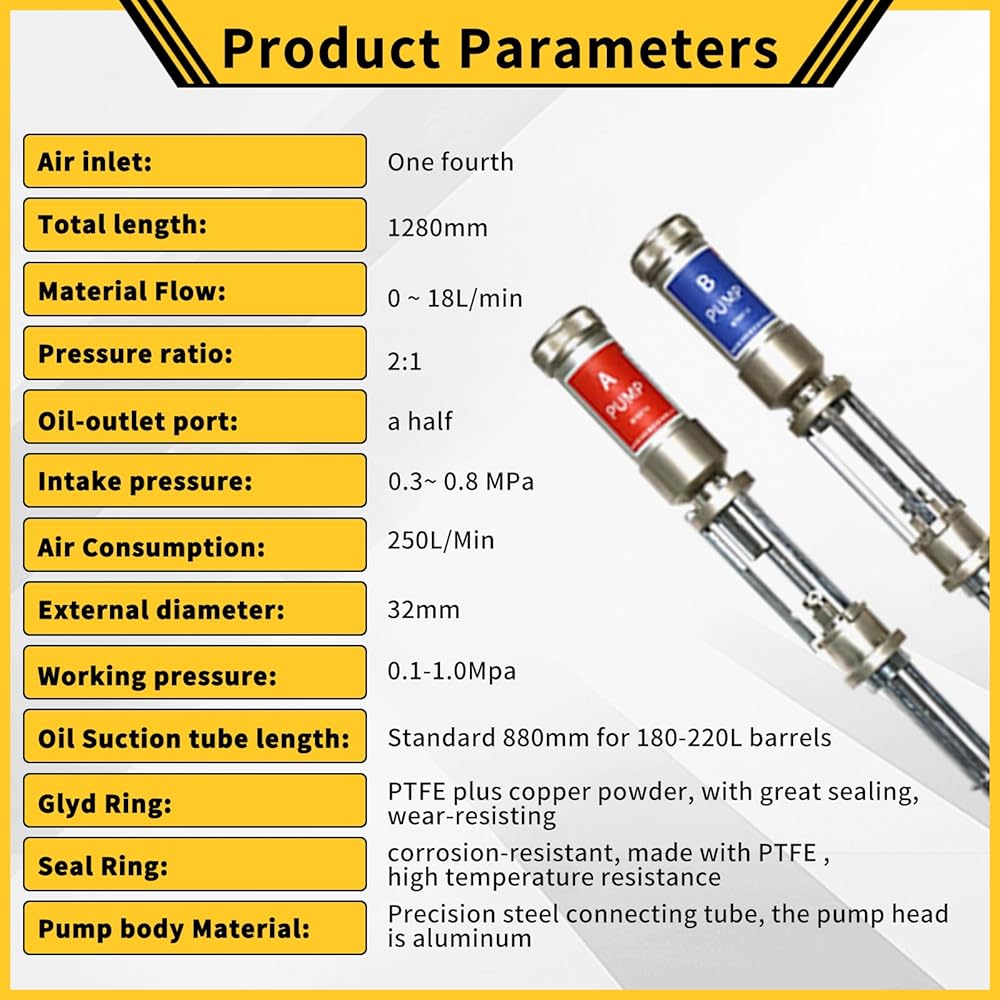

Pressure ratio: 2:1 External diameter: 32mm Material Flow: 0 ~ 18L/min Working pressure:0.1-1.0Mpa Air Consumption: 250L/Min Air inlet: One fourth Oil-outlet port: a half Pump body Material: Precision steel connecting tube, the pump head is aluminum Intake pressure: 0.3~ 0.8 MPa Seal Ring: corrosion-resistant, made with PTFE , high temperature resistance Glyd Ring: PTFE plus copper powder, with great sealing, wear-resisting Oil Suction tube length: Standard 880mm for 180-220L barrels Total length:1280mm
