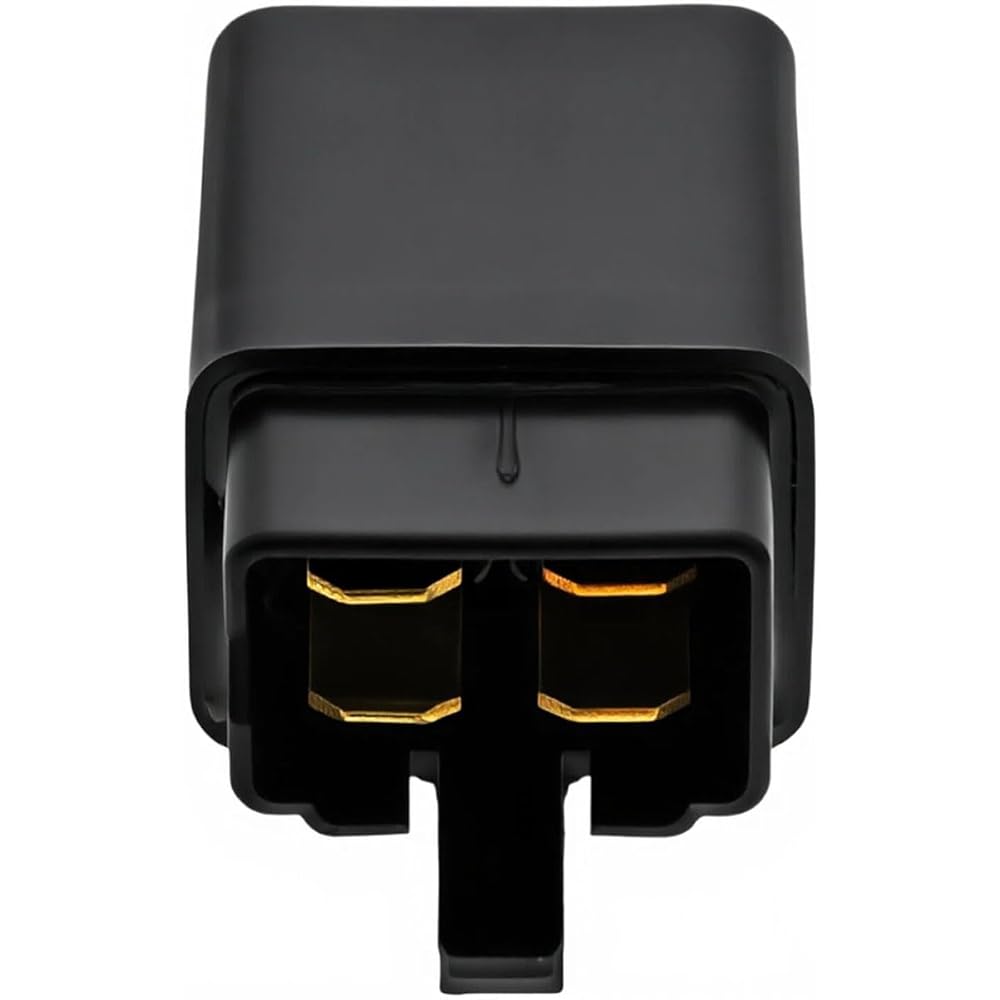

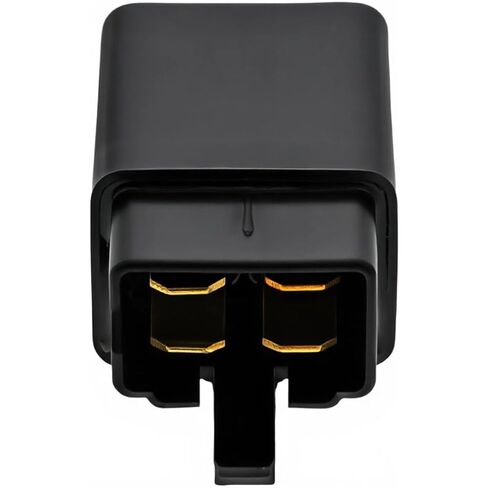

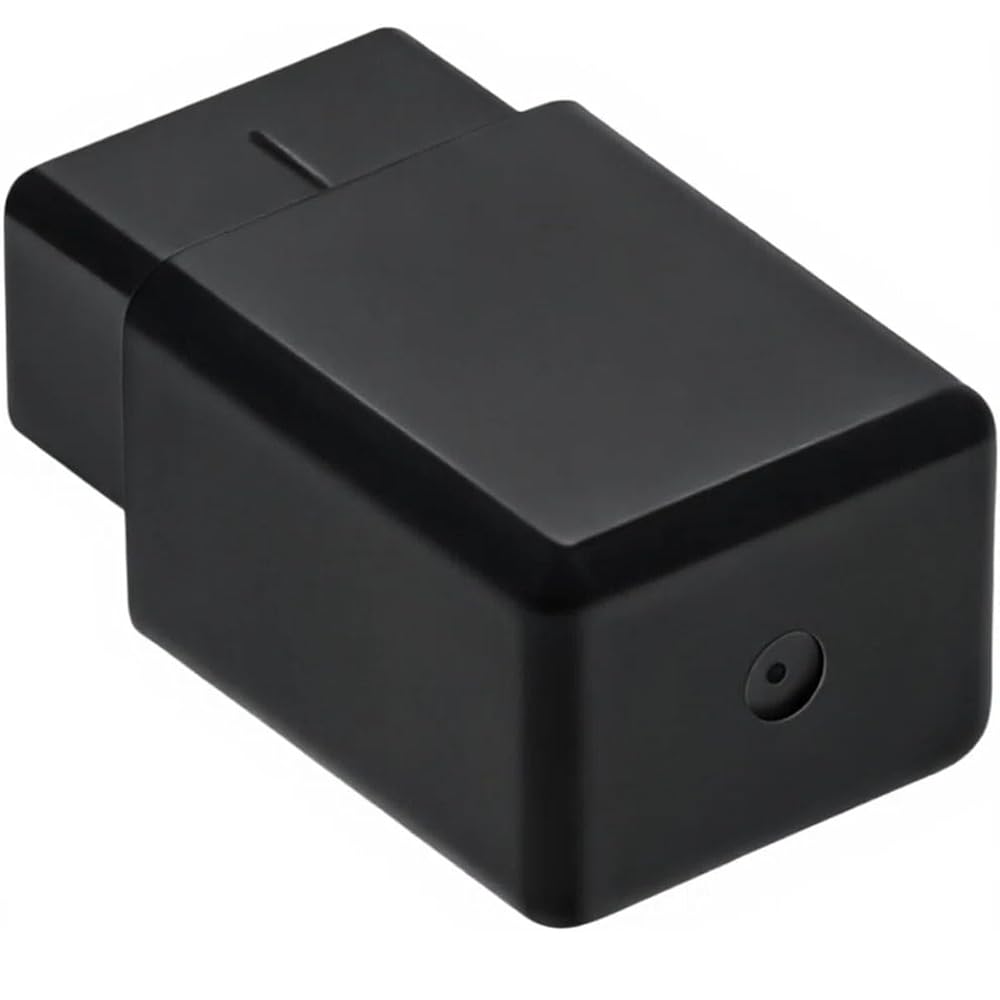

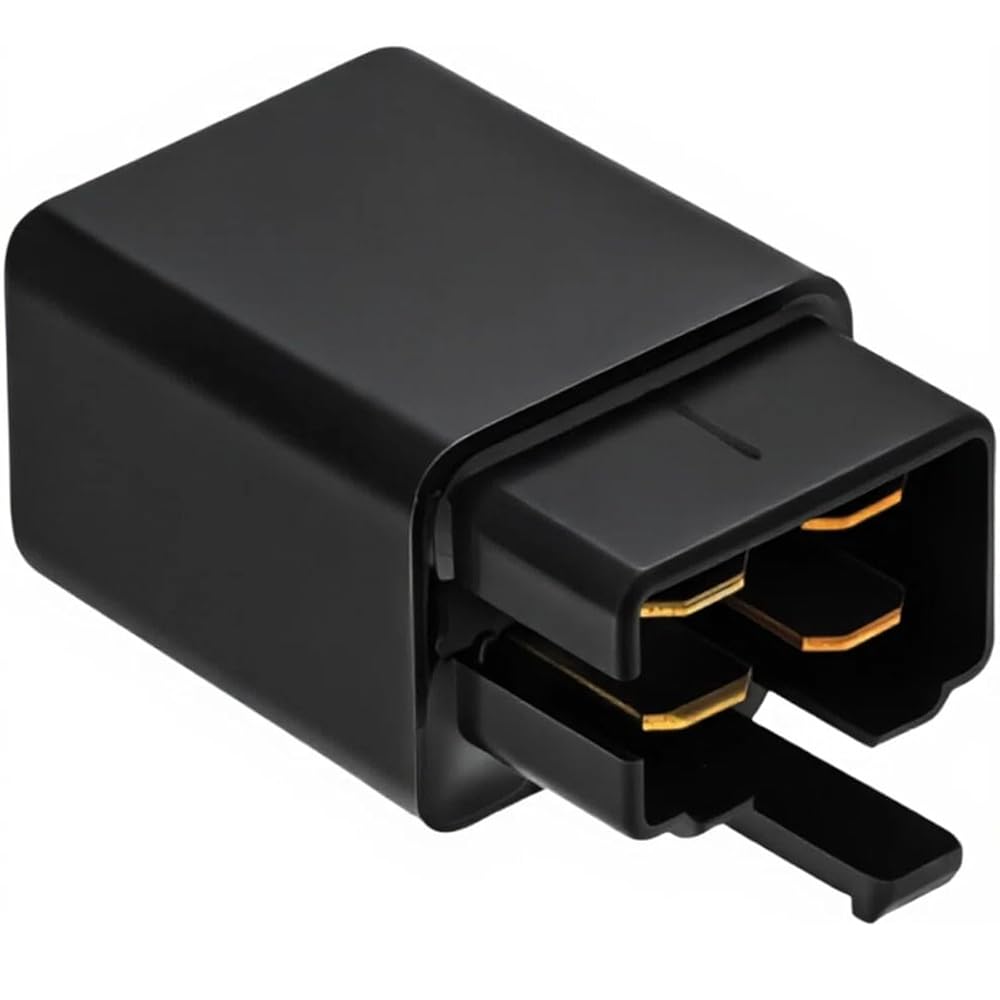

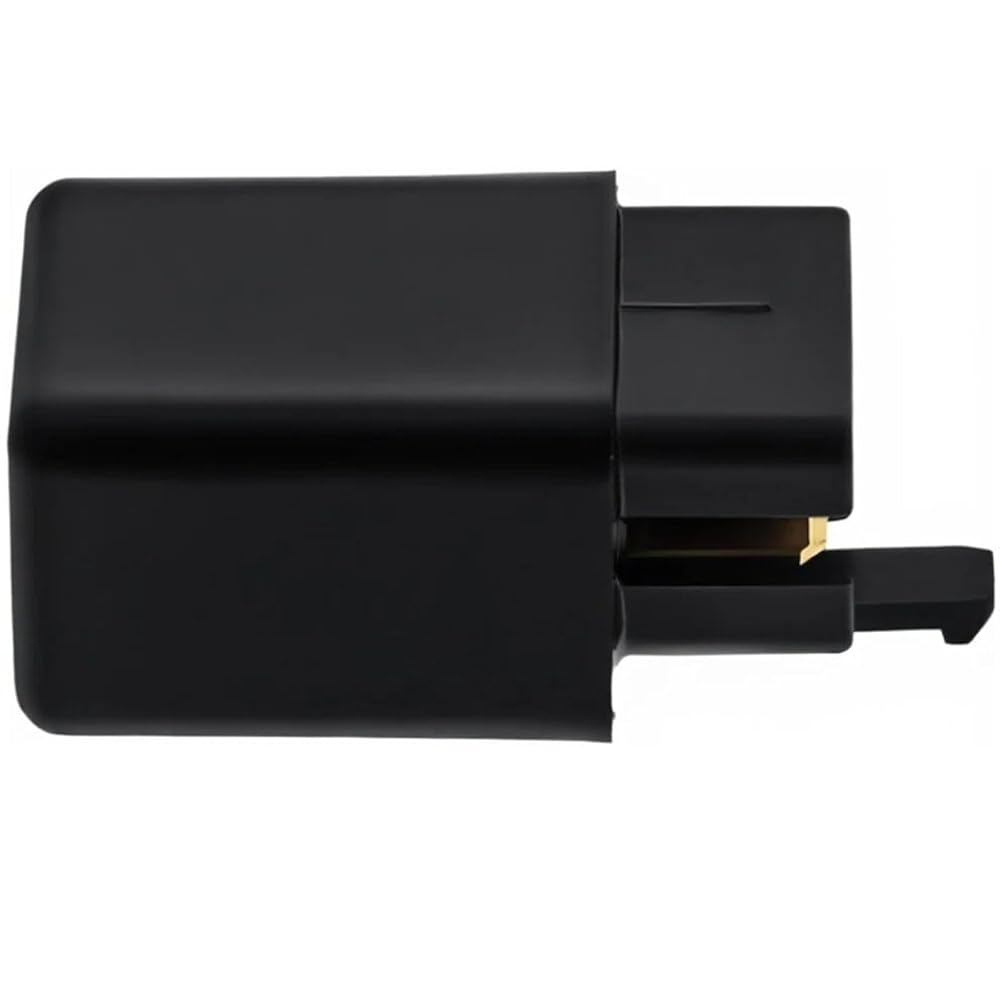

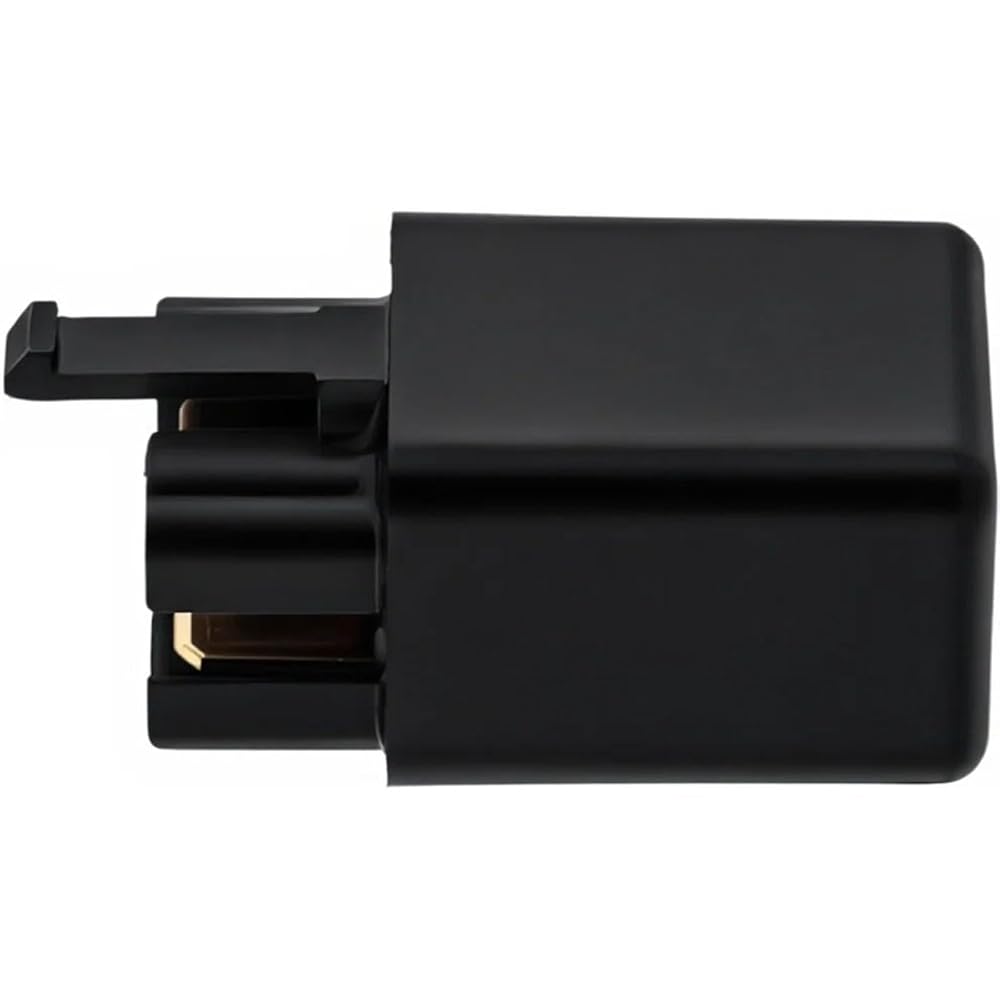

Starter Relay (Starter Solenoid Relay), Type: Starter; 12V, 4-terminal design for powersports starting systems. OE reference: 38501-GN2-014; replaces 38501-GN2-004; interchange refs: 38501-GN2-003 / 38501-GAM-007 (confirm by OE number & terminal layout before purchase). Function: switches battery power to the starter circuit when triggered by the start switch. Symptoms of a failing relay may include clicking, no-crank, intermittent crank, or starter staying engaged—inspect wiring and battery condition as well.
Install / replace tips: disconnect the negative battery cable first. Compare the old unit's terminal count and wiring plug/lead positions; match the mounting position and hardware; tighten battery & starter cable nuts to spec and keep connections clean/dry. After install, test start operation and re-check for heat/loose terminals. Common listing location in parts diagrams: Wire Harness / electrical starting-system assemblies—confirm the exact mounting spot by OE number in your vehicle manual/parts fiche.
Compatible with 1995 Honda CBR600F3 Wire Harness Relay | Compatible with 1996 Honda CBR600F3 Wire Harness Relay | Compatible with 1996 Honda CBR600SJR Wire Harness Relay
Compatible with 1985 Honda AERO 50 (NB50M) Wire Harness Relay | Compatible with 1986 Honda AERO 50 (NB50) Wire Harness Relay | Compatible with 1987 Honda AERO 50 (NB50) Wire Harness Relay | Compatible with 1985 Honda AERO 80 (NH80) Wire Harness-Rectifier-Key Set Relay
Fitment note: do not rely on appearance alone—confirm fitment by OE number 38501-GN2-014 and your service manual/parts fiche. Cross-reference numbers sometimes listed for this relay include 38501-GN2-004, 38501-GN2-003, 38501-GAM-007, SMU6061, and 240-54035; match the exact number and connector/terminal layout before ordering.
وصف
Type: Starter relay / starter solenoid relay
Voltage: 12V
Terminals: 4-terminal configuration
OE references: 38501-GN2-014; replaces 38501-GN2-004; interchange refs: 38501-GN2-003, 38501-GAM-007
Acts as a high-current switch in the starting circuit, routing battery power to the starter when triggered by the start switch.
Clicking with no crank
Intermittent starting / requires multiple presses
Starter stays engaged (sticking contacts)
These symptoms can also be caused by a weak battery, corroded cables, or starter motor issues—diagnose before replacing parts.
Confirm fitment by matching OE number 38501-GN2-014 on your old relay and verifying the mounting/connection layout in your service manual or parts fiche before ordering.
