T9AV5D12-22 التتابع 22VDC لفائف SPDT 1 نموذج C 20A 5-Pin من خلال ثقب قاعدة لوحة دائرة مطبوعة لحام محطة استبدال مرحل الطاقة

KWD 7
ماركة
Kwaich
وزن
50 g
– 1 +

مميزات خاصة

  • Specs & key features: T9AV5D12-22 power relay / general purpose relay with 22VDC coil (for 24V-class control circuits), SPDT / 1 Form C contact, rated 20A (NO) / 10A (NC), non-latching. 5-pin through-hole PCB mount, solder terminals, coil resistance ~484Ω. Use as a replacement relay for control board / circuit board switching where the same coil voltage, contact form, and footprint are required. OE/Part No.: T9AV5D12-22 (match the exact marking).
  • Install/replace tips: Disconnect battery / power first. This relay uses a 22VDC coil—do not substitute for common 12V micro-ISO relays. Verify pinout before install (coil pins + COM/NO/NC contact layout) and confirm the 5-pin through-hole footprint matches your board/socket. For PCB replacement: desolder the old relay, clean pads, solder the new relay square to the board, and inspect traces for heat damage. After install, test for proper click and switching with a multimeter. Common locations (by design): through-hole mounted on control boards/relay modules.
  • Compatible with applications that require a T9AV5D12-22-spec relay: public sources list this part as a 22VDC-coil, SPDT, 5-pin through-hole power relay. Because year/make/model vehicle fitment tables are not reliably published for this part number, confirm fitment by matching OE/part number T9AV5D12-22, coil voltage (22VDC), contact form (SPDT/1C), and the PCB footprint/dimensions (approx. 32.51 x 27.43 x 20.4 mm). Confirm fitment by OE number / vehicle or equipment manual before purchase.
  • Compatible with troubleshooting needs: a worn relay can cause intermittent power, no-load switching, stuck contacts, or inconsistent operation of the circuit it controls. If you see heat discoloration on the board, a burnt smell, or abnormal resistance/continuity readings, replace the relay and re-check the socket/pads. This replacement relay is intended to restore normal switching behavior when the original relay with the same T9AV5D12-22 specification has failed.
  • Compatible with preventative maintenance: if the relay failed from heat or arcing, also inspect the mating connector, fuse, and wiring for that circuit. On PCB-mounted applications, check for cracked solder joints and damaged pads/traces; reflow/repair as needed. If your module uses multiple identical relays, consider keeping a spare of the same part number for the same relay block/control board—match specs and markings.
  • Compatible with the following purchase checklist: 1x T9AV5D12-22 relay. Search keywords: 22VDC coil power relay, SPDT 1 Form C, 20A 5-pin PCB relay, T9A/T90 style relay. If you are unsure, message us your original relay markings and board photo for a pre-purchase spec check (coil voltage + pinout + footprint).

وصف

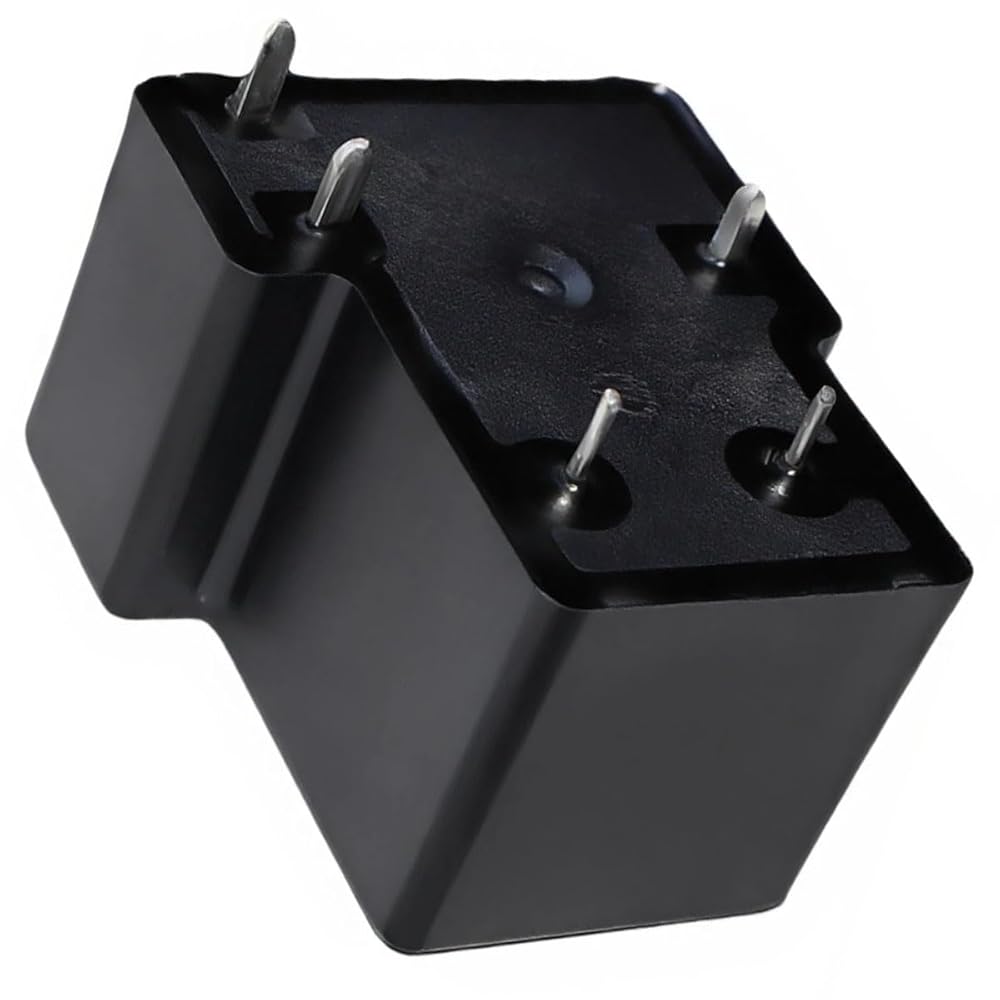

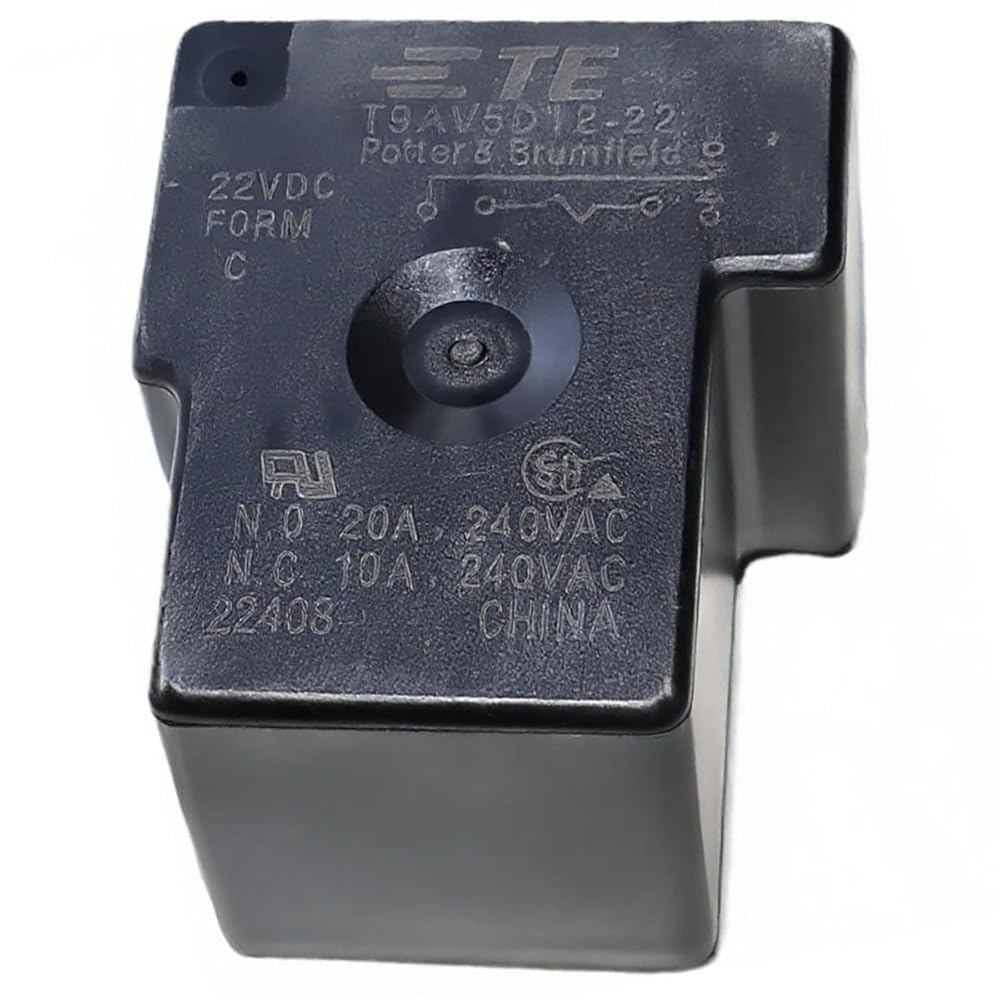

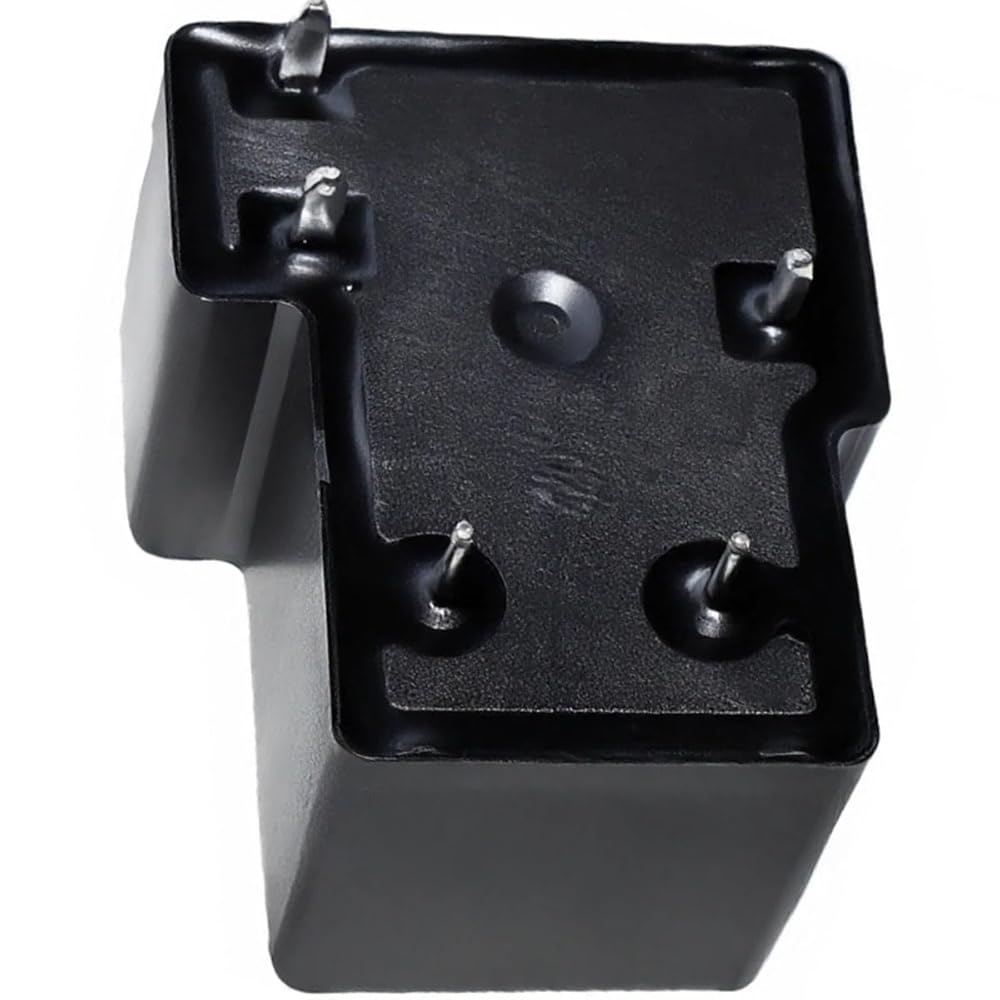

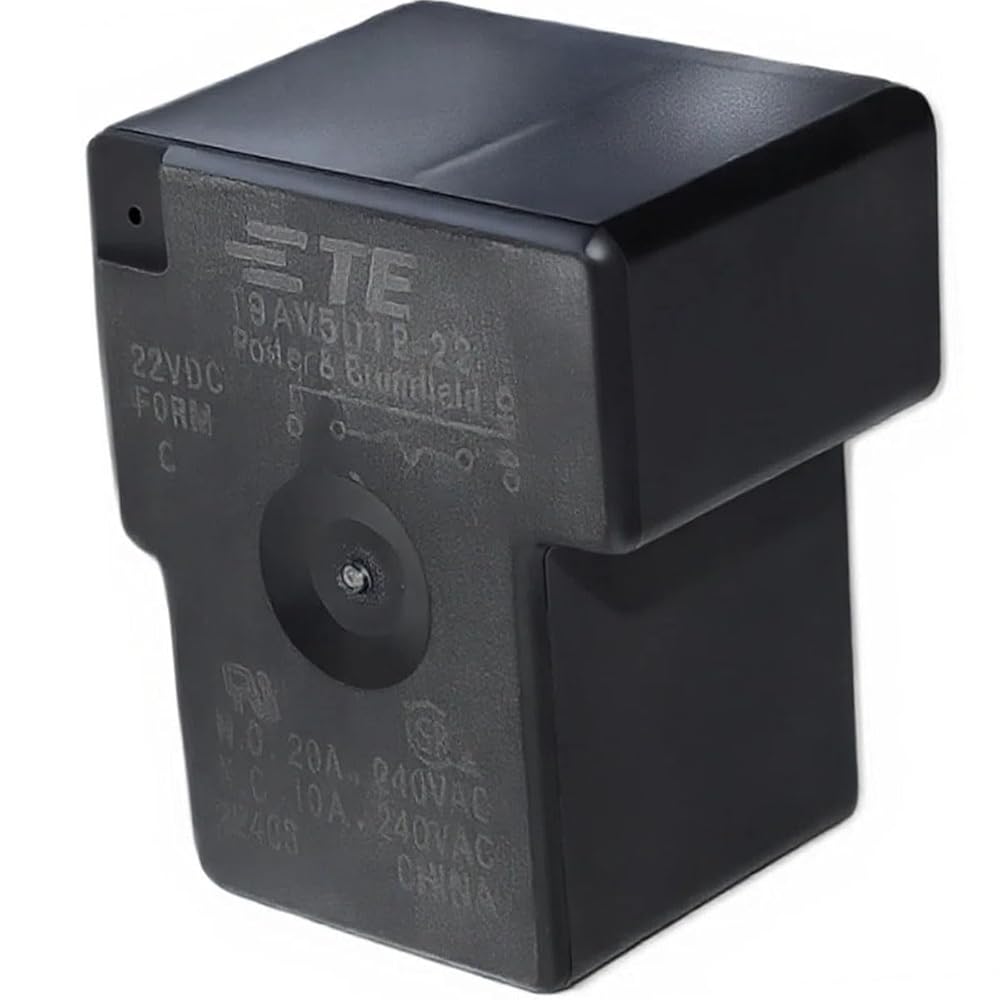

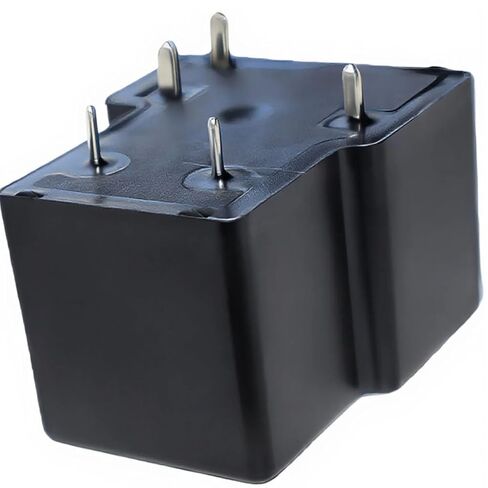

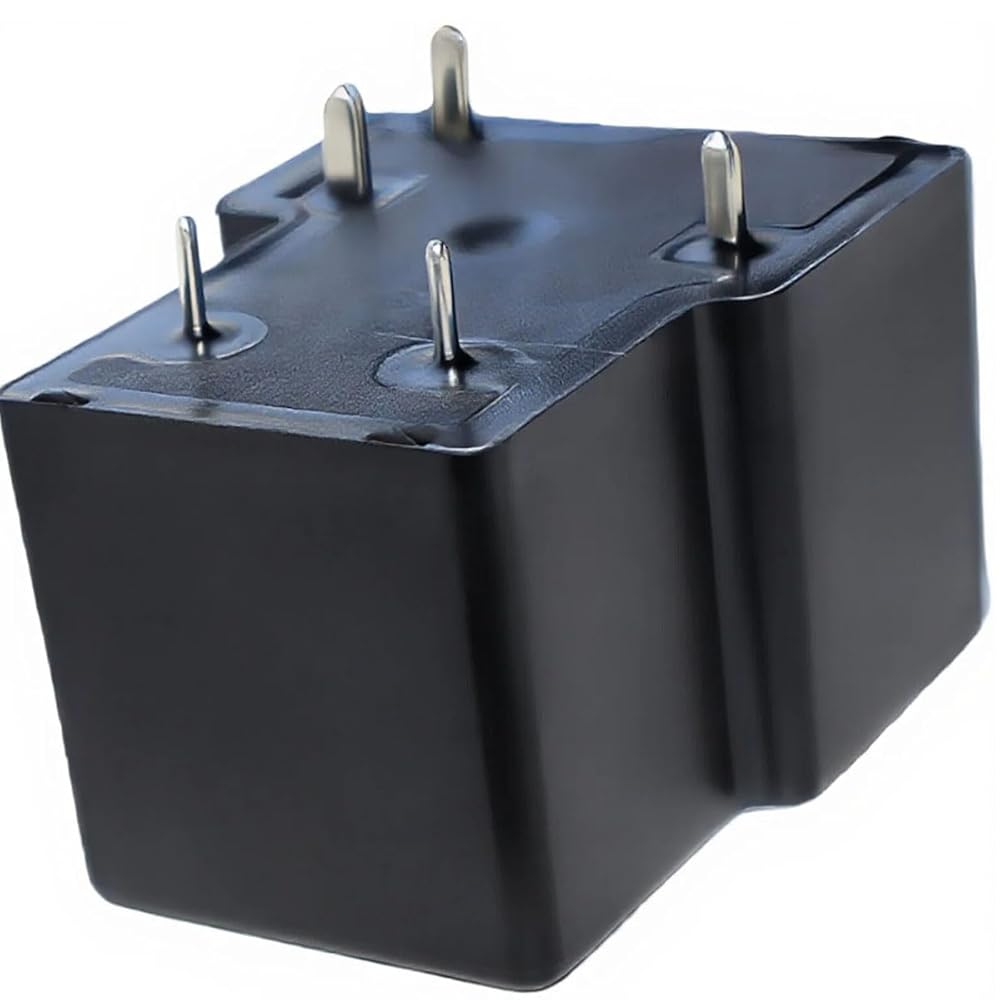

This listing is for a replacement relay with the part number T9AV5D12-22. Please match the exact marking on your original relay and verify coil voltage/pinout before ordering.
Part No.: T9AV5D12-22
Coil voltage: 22VDC (24V-class control circuits)
Contact form: SPDT / 1 Form C (COM/NO/NC)
Current rating: 20A (NO) / 10A (NC)
Terminals/mounting: 5-pin, through-hole PCB mount, solder terminals
Approx. body size: 32.51 x 27.43 x 20.4 mm
Switches higher-current loads using a low-power control signal inside a control module or relay board.
Commonly used wherever the same 22VDC-coil SPDT relay footprint is required.
Intermittent operation, inconsistent switching, or no power through the controlled circuit
Relay clicks abnormally or shows poor continuity/resistance readings
Heat marks, arcing, or damaged solder joints/pads on the board
Fitment reminder: Because vehicle/application fitment tables are often incomplete for component-level relays, confirm fitment by OE/part number (T9AV5D12-22), coil voltage (22VDC), contact form (SPDT), and the PCB footprint using your manual or the markings on the original relay.
