Temp Control Sensor

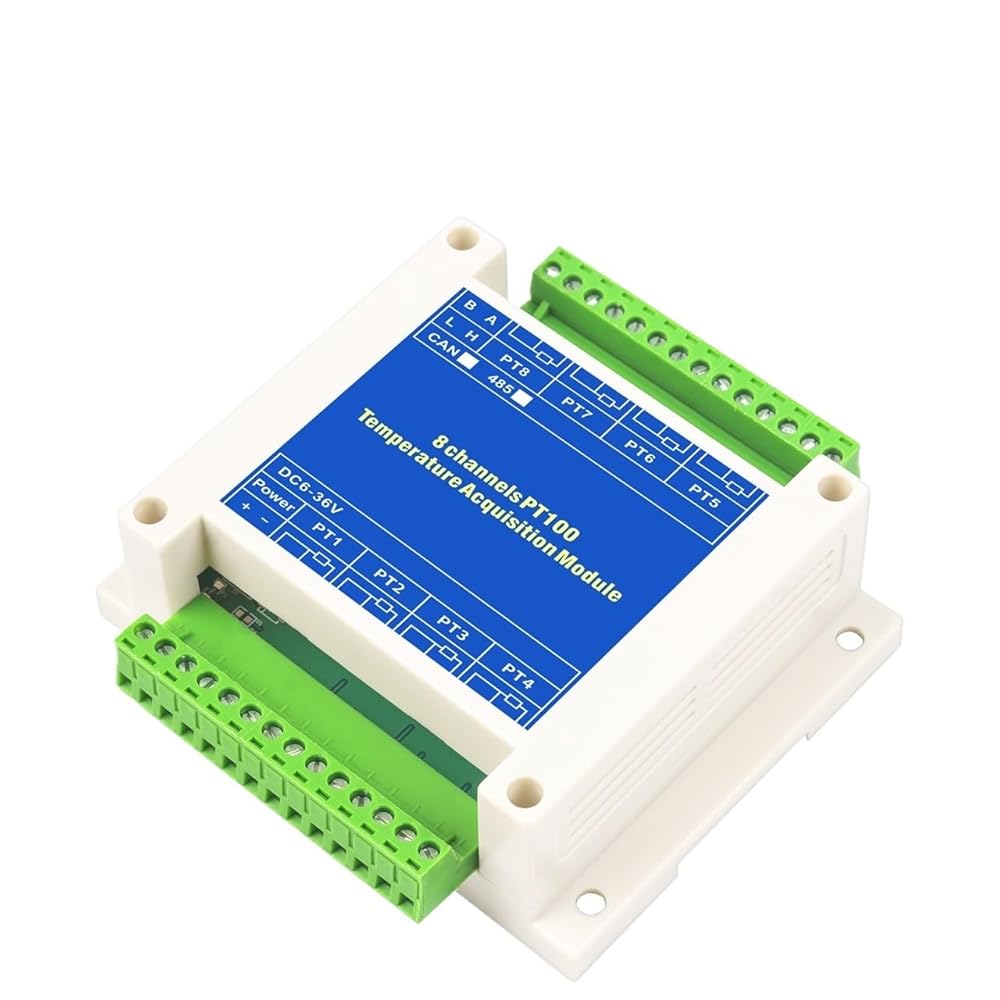

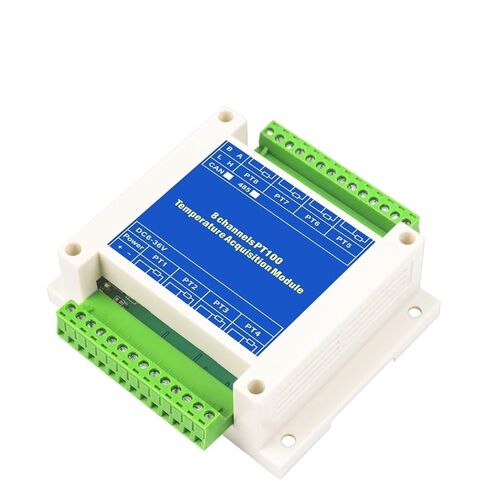

2/4/8/16 channels PT100 K/S/R/B/N/E/J/T type Thermocouple Sensor RS485 Output Temperature Acquisition Module
Model
Parameter
CWT-KWL-2PT
2 channels PT100, RS485 output
CWT-KWL-4PT
4 channels PT100, RS485 output
CWT-KWL-8PT
8 channels PT100, RS485 output
CWT-KWL-16PT
16 channels PT100, RS485 output
CWT-KWL-2TC
2 channels thermocouple (K/S/R/B/N/E/J/T type), RS485 output
CWT-KWL-4TC
4 channels thermocouple (K/S/R/B/N/E/J/T type), RS485 output
CWT-KWL-8TC
8 channels thermocouple (K/S/R/B/N/E/J/T type), RS485 output
CWT-KWL-16TC
16 channels thermocouple (K/S/R/B/N/E/J/T type), RS485 output
Specification
PT100 module specification:
Supplypower
6-36V
communication port
Isolated RS485
Numberofchannels
1-16 channel
Temperature range
-200~850
Powerconsumption
sensor type
2 or 3 wires
Temperatureaccuracy
±0.3
Resolution
0.1
Acquisitionrate
100KHZ/channel
Data Update
10HZ/channel
Erroralarm
Sensor disconnects detection
baudrate
1200~115200 (default 9600)
Thermocouple module Parameter
Supplypower
6-36V
communication port
Isolated RS485
Numberofchannels
1-16 channel
Operating temperature
-20~75
Powerconsumption
mailing address
1-247
Temperatureaccuracy
±1
Resolution
0.1
Acquisitionrate
100KHZ/channel
Data Update
2HZ/channel
Erroralarm
Sensor disconnects detection
temperature correction
Software setting offset (-20.0~20.0°C)
sensor type
K/S/R/B/N/E/J/T type thermocouple
baudrate
1200~115200 (default 9600)
Thermocouple temperature range table
sensor type
Temperature measurement range
K type
-270~1370
S type
-50~1700
R type
-50~1700
B type
250~1800
N type
-200~1300
E type
-270~1000
J type
-200~1200
T type
-270~400
Characteristic
Double watchdog of software and hardware, never down
Read and use, no calculations required
Sensor disconnects detection
Overvoltage protection, overcurrent protection
Simple connection, and play
All channels integrated into one output
Isolated communication, strong anti-interference
Industrial grade quality, reverse polarity surge protection
Digital signal output to prevent acquisition errors
Wide measuring range, high measuring accuracy
IsolatedRS485output,supportModbusRTUprotocol
Size:
==========
Model Number : CWT-KWL
