USB to IIC I2C UART converter adapter module provides flexible communication between USB and IIC or UART interfaces. This module supports flashing chips, controlling IIC devices, and serial data transmission. It is compatible with STC series microcontrollers and for STM series microcontrollers
Use this adapter for programming and debugging tasks. Connect the module to your computer via USB. Select the desired communication rate: 20K, 100K, 400K, or 750K for IIC mode. For UART mode, configure baud rates from 50bps to 2Mbps. The LED indicators display real-time status. Switch between 5V and 3.3V voltage outputs based on your device requirements
Specification
Item Type: USB To IIC I2C UART Converter Adapter Module
Material: Electronic Components
Color: Blue

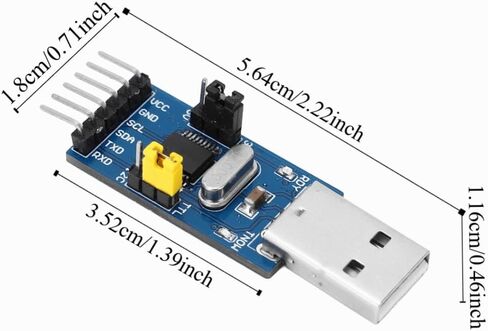

Size:56.4*18*11.6mm(2.22*0.71*0.46in)
Features:
1. Provide 5V and 3.3V voltage output

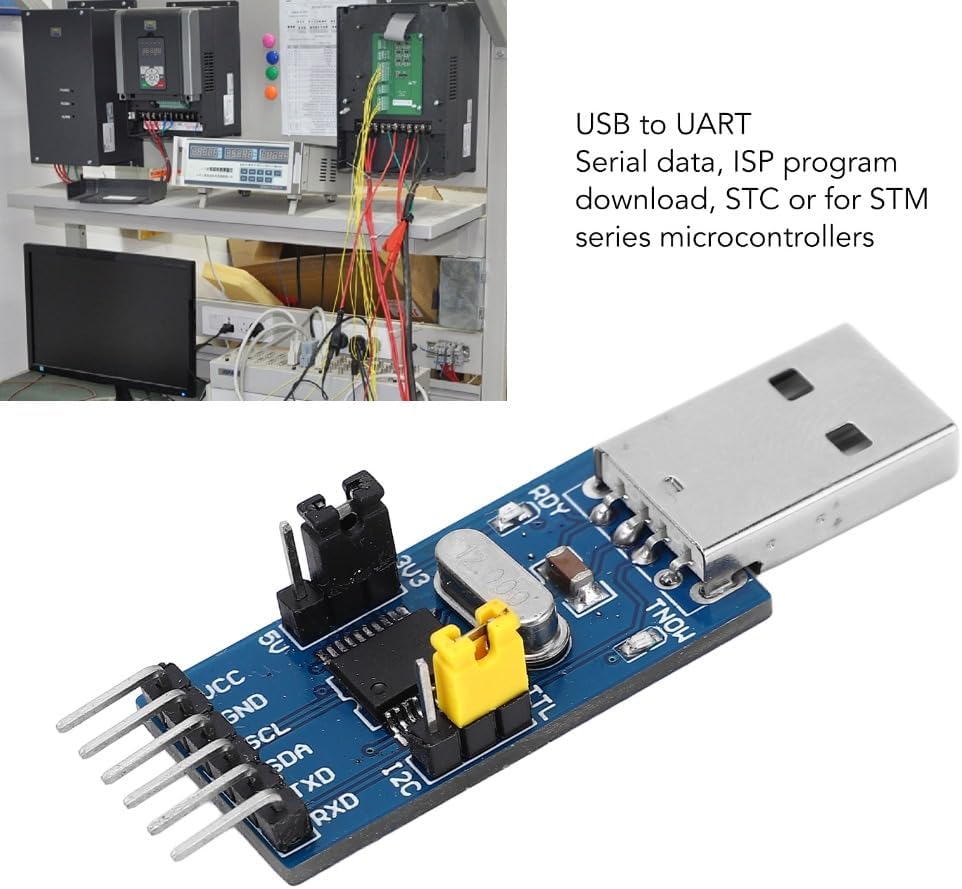

2. USB to UART
(Serial data, ISP program download, STC or for STM series microcontroller)
Serial data communication
(50bps to 2Mbps, can be configured for non conventional baud rate use)
3. ISP mode program download (STC or for STM series MCU)
4. USB to IIC or I2C
(Flashing chip, IIC device control, machine brush) can be used separately as master.
20K, 100K, 400K, 750K adjusting communication rate
5. With LED Lamp Status display
6. Function, switch voltage side
Package List

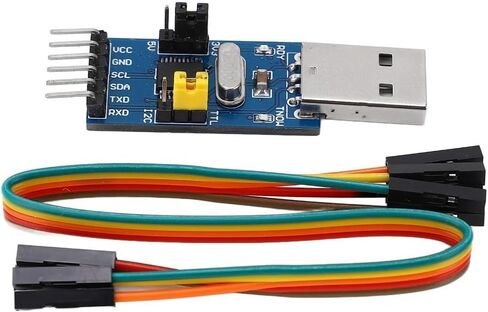

1 x USB To IIC I2C UART Converter Adapter Module
1 x Jumper Wire
Note
Pay attention to standard procedure
