مميزات خاصة

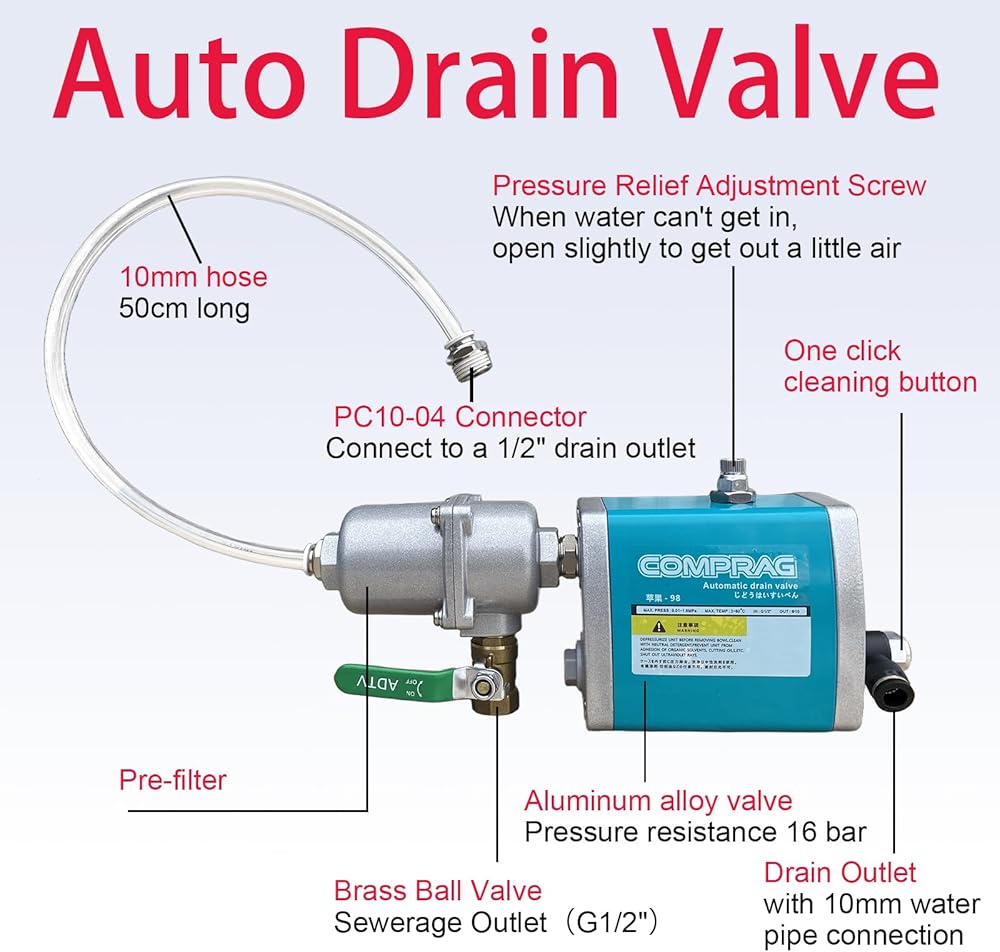

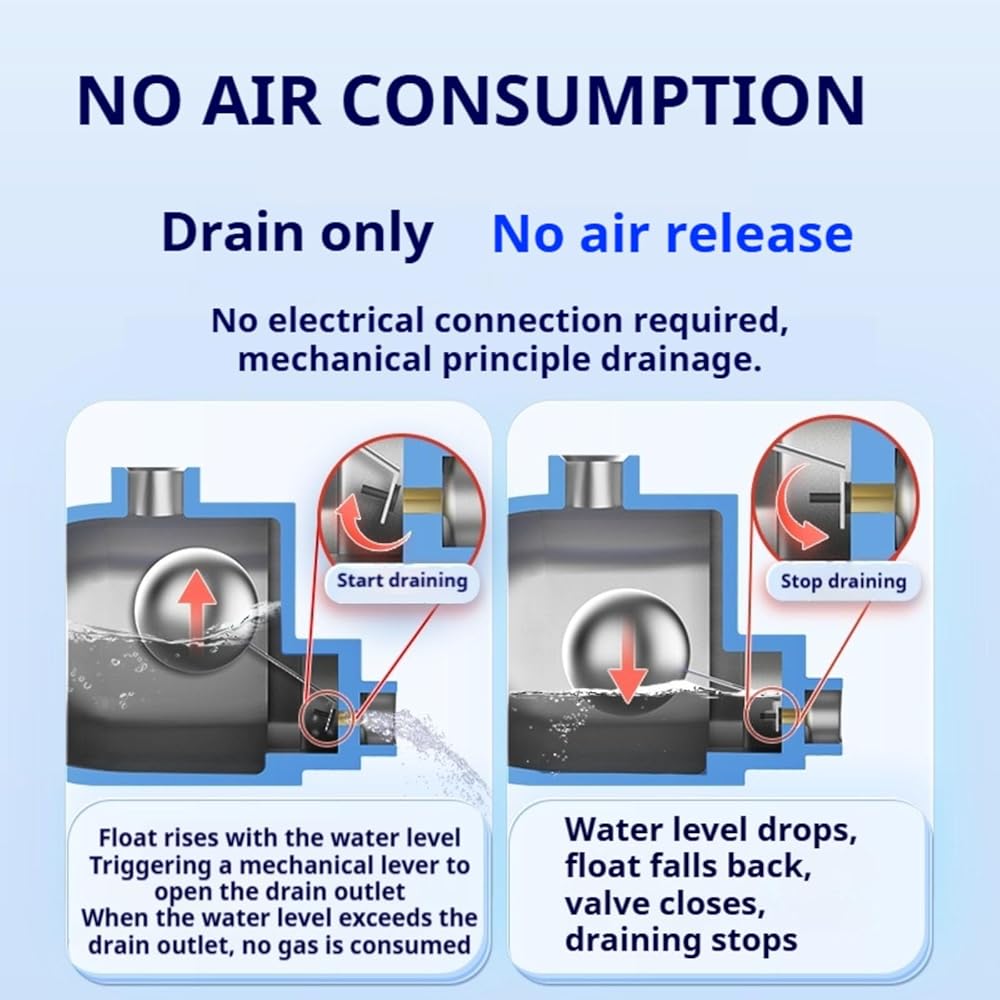

【Full Automatic Drain Valve Mechanism】 Experience hands-free operation. This automatic air tank drain valve features a built-in float and mechanical lever system. As water rises, the float lifts to automatically trigger the lever and open the drain, ensuring efficient, maintenance-free drainage without electricity.
【Visible Water Level Window】 Monitor system status at a glance. The unique side-mounted water level indicator allows you to visually check the water level inside the valve body, making diagnosis quick and easy for optimal performance of your auto drain valve.
【Easy Manual Pressure Release】 Deal with clogs or airlocks instantly. If drainage slows, simply twist the top manual pressure-release vent. This quick action clears blockages and restores your automatic tank drain valve to full function without any tools or disassembly.
【Pre-Filter for Double Protection】 Defend your system from debris. The integrated pre-filter screen effectively traps sediment, rust, and other particles, preventing clogs in downstream pipes and protecting the auto air tank drain valve mechanism for long-lasting reliability.
【Universal & Durable Design】 Built for various applications. Crafted from robust aluminum alloy, this corrosion-resistant valve is a versatile automatic drain valve for air compressor tanks, as well as Precision Filter. Easy to install and ready to use.

وصف

Inspection and maintenance methods:
1. How to disassemble the automatic drain:Screw half a circle counterclockwise and pull up gently, you can clean the internal impurities and oil to prevent clogging.
2. No drainage and air leakage check:Firstly check whether there are too much impurities and oil inside, blocking the sealing rubber, which can be unscrewed to clean the dirt inside the cup. Secondly, check whether the stainless steel ball is broken into the water, resulting in no automatic drainage.
3. Pre-filtration needs to be manually discharged to avoid clogging without drainage.

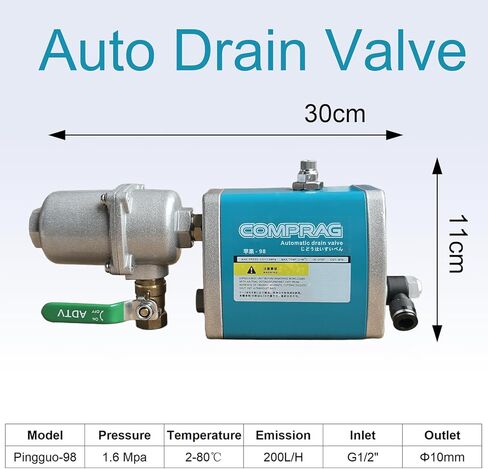

Specification:
Item Type: Air Compressor Drain Valve
Water Inlet: G1/2'', that is, DN15
Drain Outlet: G1/2''
Water Outlet: 10mm
Pressure: 0-16bar
Maximum Operating Temperature: 80℃
Maximum Displacement: 200L/H

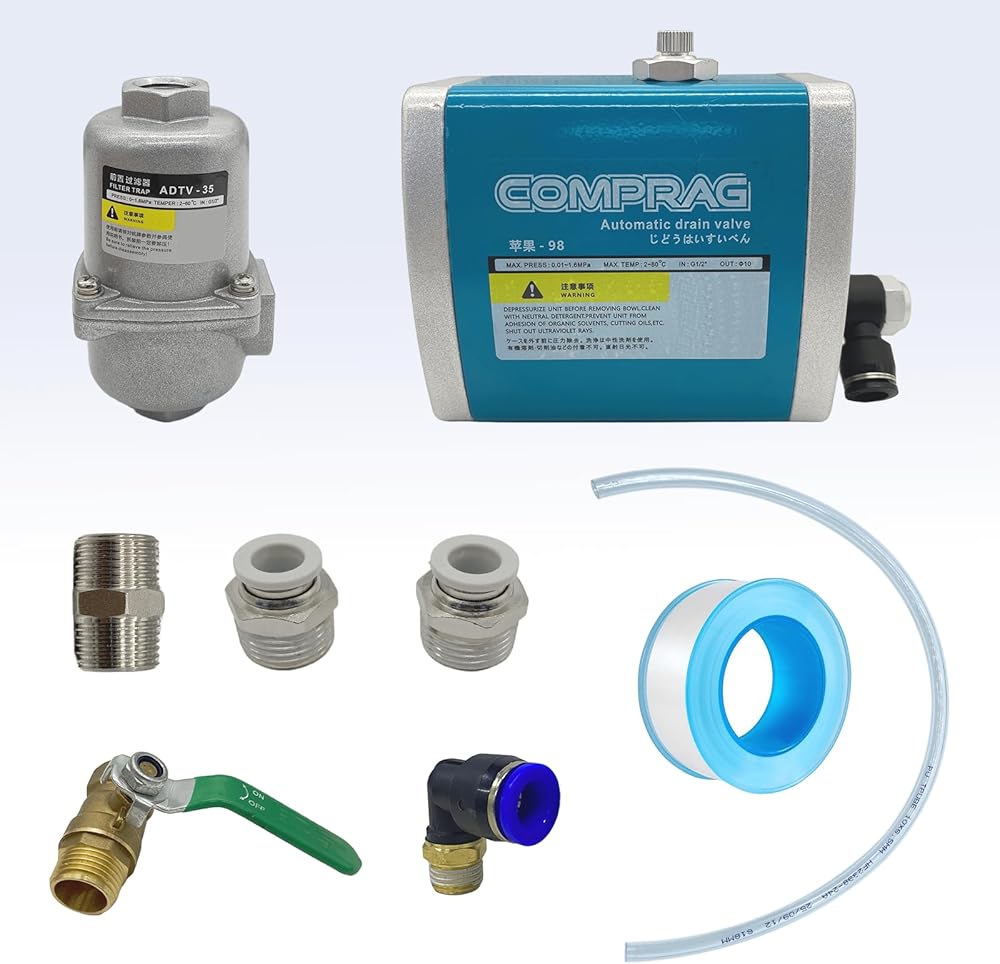

Package List:
1 x Air Compressor Drain Valve
1 x Pre-Filter Valve
1 x Pipe Connecting Fitting
1 x Brass Ball Valve
2 x PC10-04 Connect Fittings and a 10mm hose
1 x PL10-2 Connect Fittings
1 x Thread Seal Tape
1 x Rotatable Drain Outlet
