linear bearing

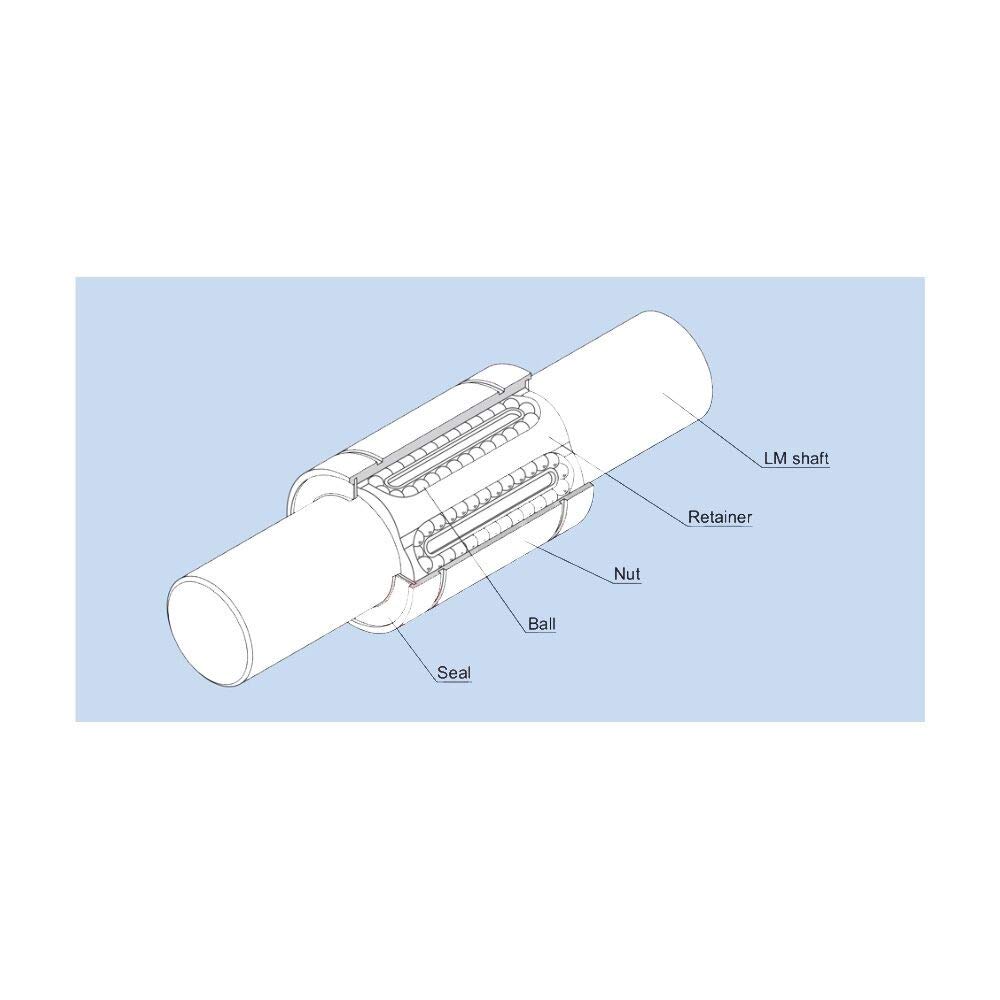

Structure and Features
Linear Bushing model LM is a linear motion system used in combination with a cylindrical LM shaft to perform infinite straight motion.
The balls in the loaded area of the nut are in point contact with the LM shaft.
This allows straight motion with minimal friction resistance and achieves highly accurate and smooth motion despite the small permissible load.

وصف

linear bearing

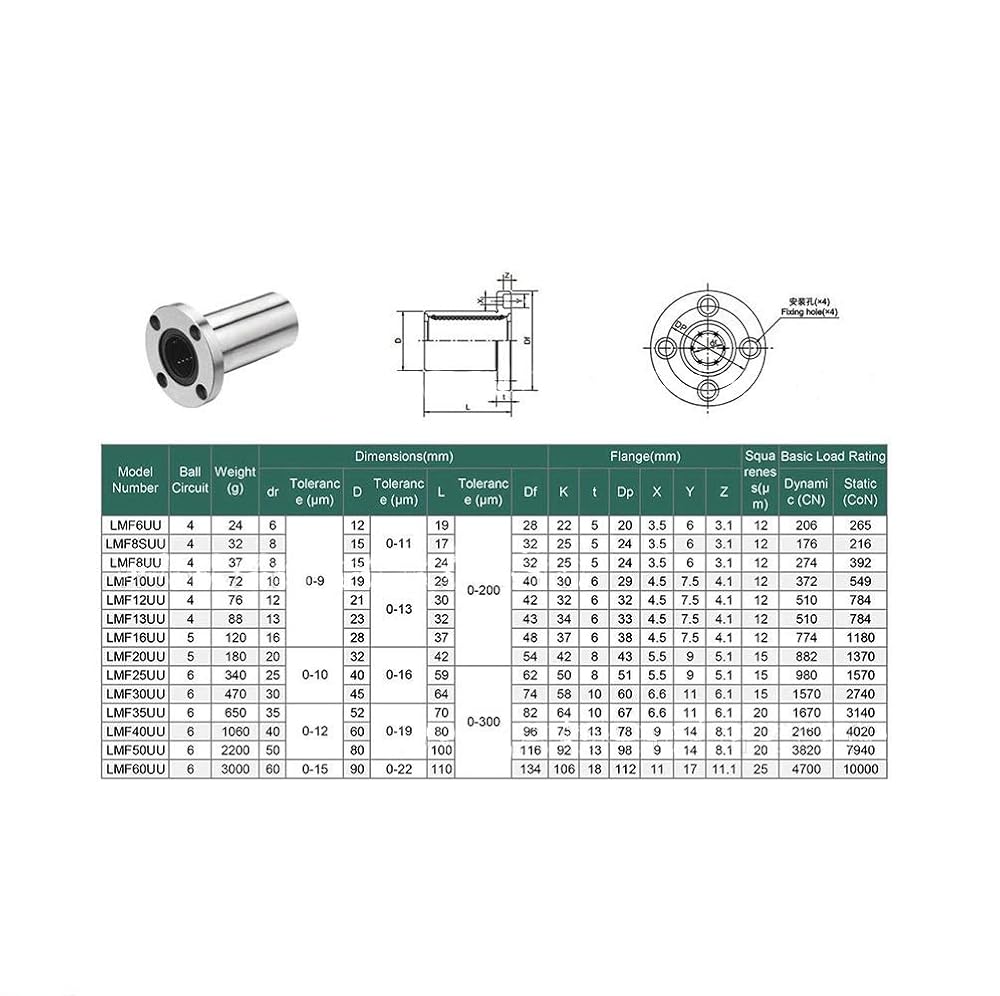

Details
Model:LMF6UU
Ball circuit: 4
Inscribed circle Diameter: 6 mm
Out Diameter: 12 mm
Length: 19 mm
Dynamic Cr: 21 kgf
Static Cor: 27 kgf
Weight: 24 g
Grade: ABEC-5
Quantity: 1 Lot = 4 PCS
Model:LMF8UU
Ball circuit: 4
Inscribed circle Diameter: 8 mm
Out Diameter: 15 mm
Length: 24 mm
Dynamic Cr: 28 kgf
Static Cor: 40 kgf
Weight: 37 g
Grade: ABEC-5
Quantity: 1 Lot = 4 PCS
Model:LMF10UU
Ball circuit: 4
Inscribed circle Diameter: 10 mm
Out Diameter: 19 mm
Length: 29 mm
Dynamic Cr: 38 kgf
Static Cor: 56 kgf
