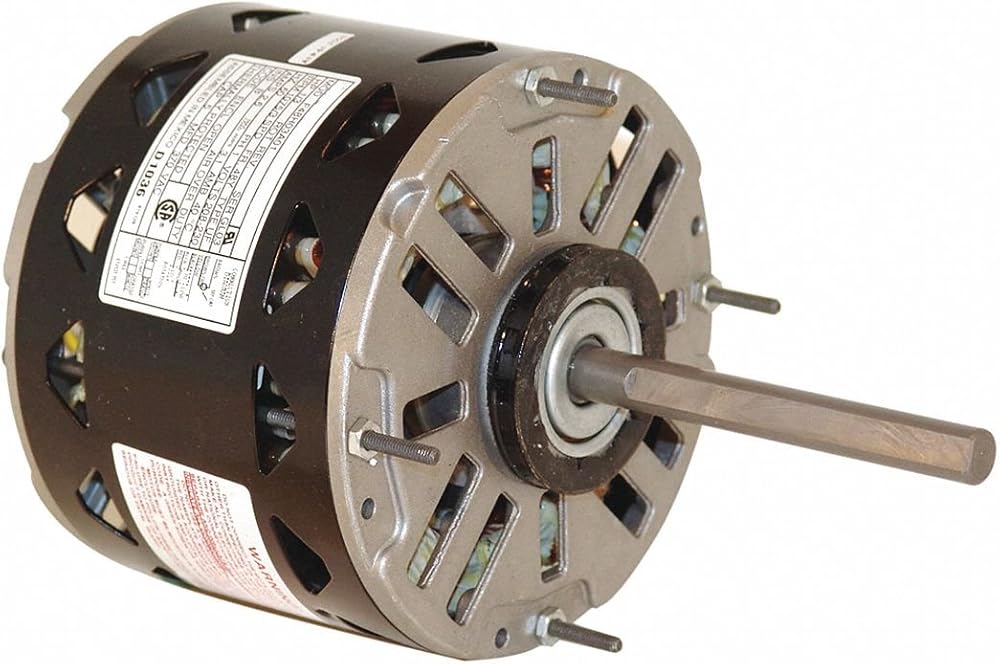

Item: Direct Drive Blower Motor
Motor Application: HVAC/R
Motor Sub Application: Direct Drive Fan/Blower
Motor Design: Permanent Split Capacitor
Motor Enclosure Design: Open Air-Over
HP: 1/4
Nameplate RPM: 1075
Voltage: 115
Full Load Amps: 3.5
Hz: 60
Phase: 1
Frame: 48Y
Motor Service Factor: 1.00
Max. Ambient Temp.: 40 Degrees C
Ins. Class: B
Duty: Continuous
No. of Speeds: 3
Motor Mounting Type: Stud
Motor Mounting Position: All Angle
Motor Bearings: Sleeve
Motor Thermal Protection: Auto
Motor Shaft Rotation: CW/CCW
Body Dia.: 5-5/8"
Length Less Shaft: 5-1/8"
Shaft Dia.: 1/2"
Shaft Length: 4"
Motor Shaft Design: Flat
Capacitor Required: 2MDV4
Resilient Ring Dia.: 2-1/4"
Ring to Ring Center: 4-11/16"
Mounting Stud Pattern: 3-5/8" x 3-5/8"
Stud Size: #8-32
RPM Range: 1001-1100
Standards: UL Recognized, CSA Certified
Application: Blowers, Fans and Air Circulators
