مميزات خاصة

[High Precision] The mutual inductance current monitoring holds a high precision of current detection and input and output isolation.

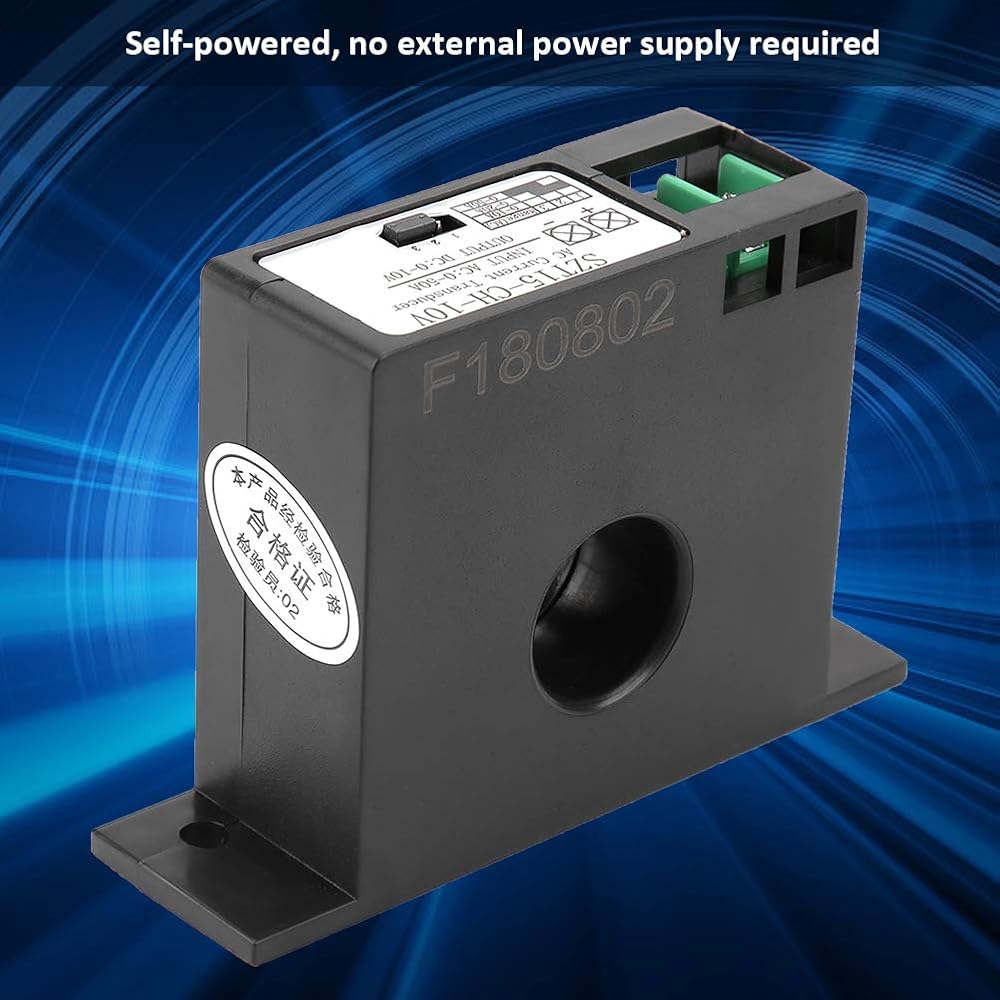

[No Power Required] This is transmitted as self-powered, no external power supply is required.

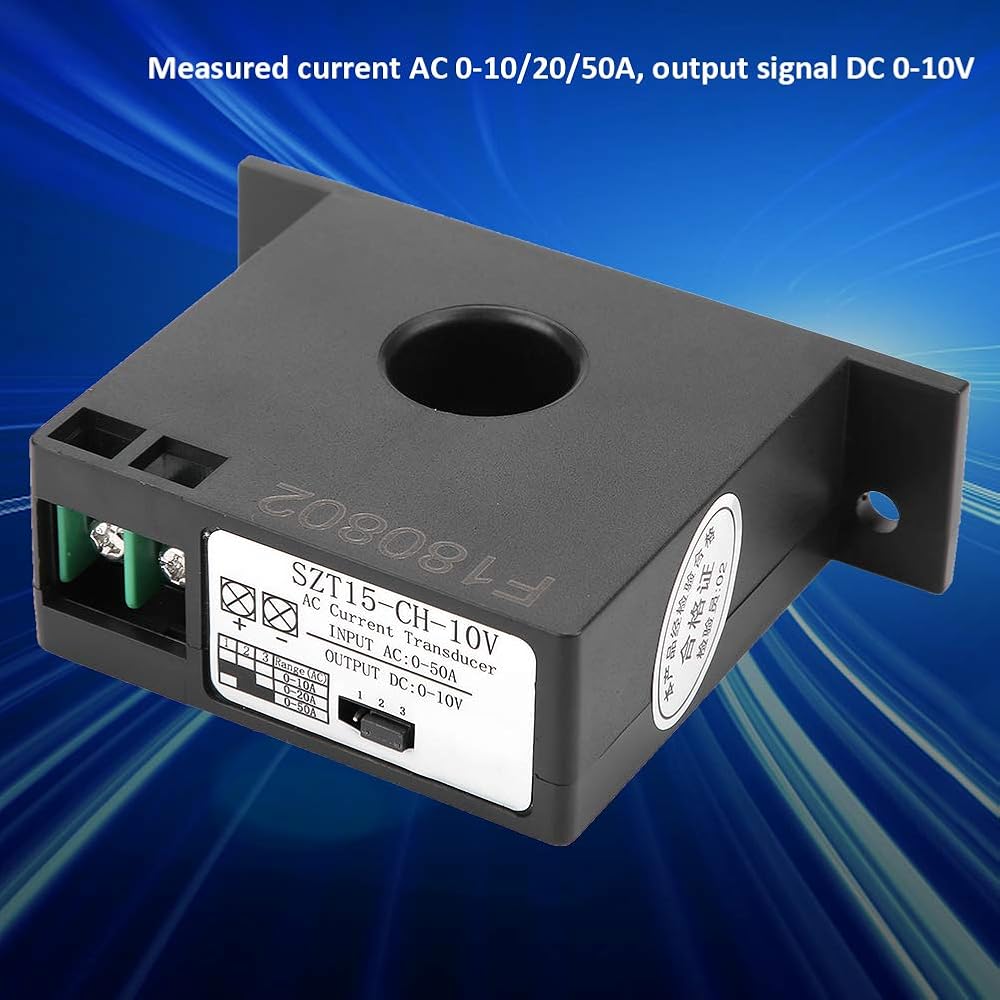

[Parameter] Measured current AC 0-10 / 20 / 50A, signal of DC 0-10V output.
[Easy Installation] This transmission is easy to install and use, no need to connect CC to the circuit during the measurement.
[Direct Structure] These transmissions of design of direct structure, voltage of resistance of insulation of up to 2000V.

وصف

Specification:

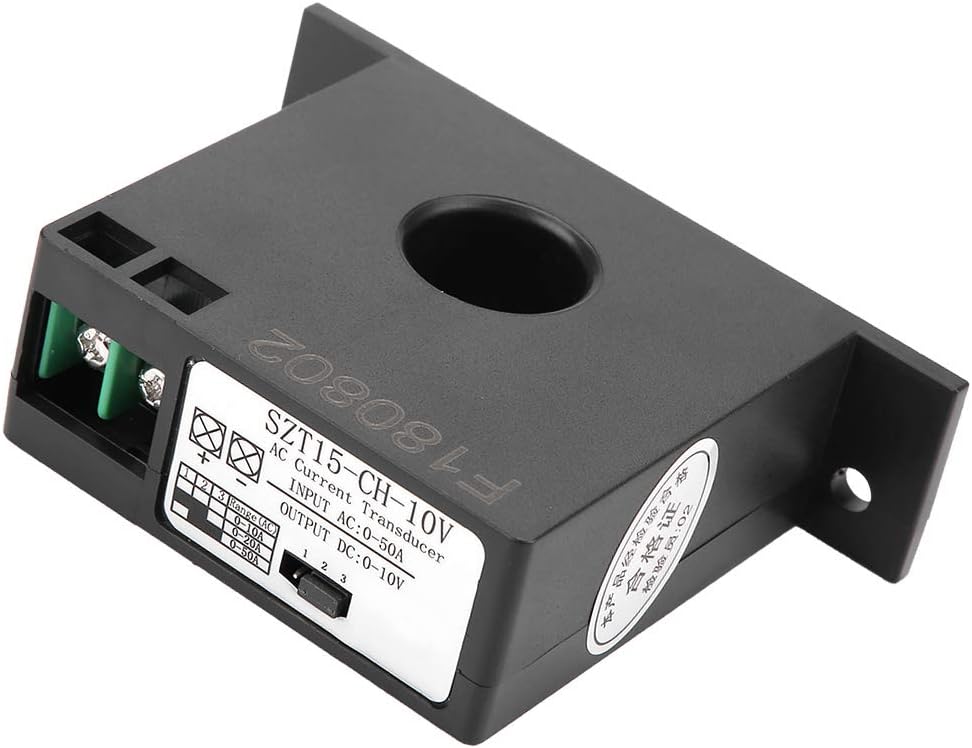

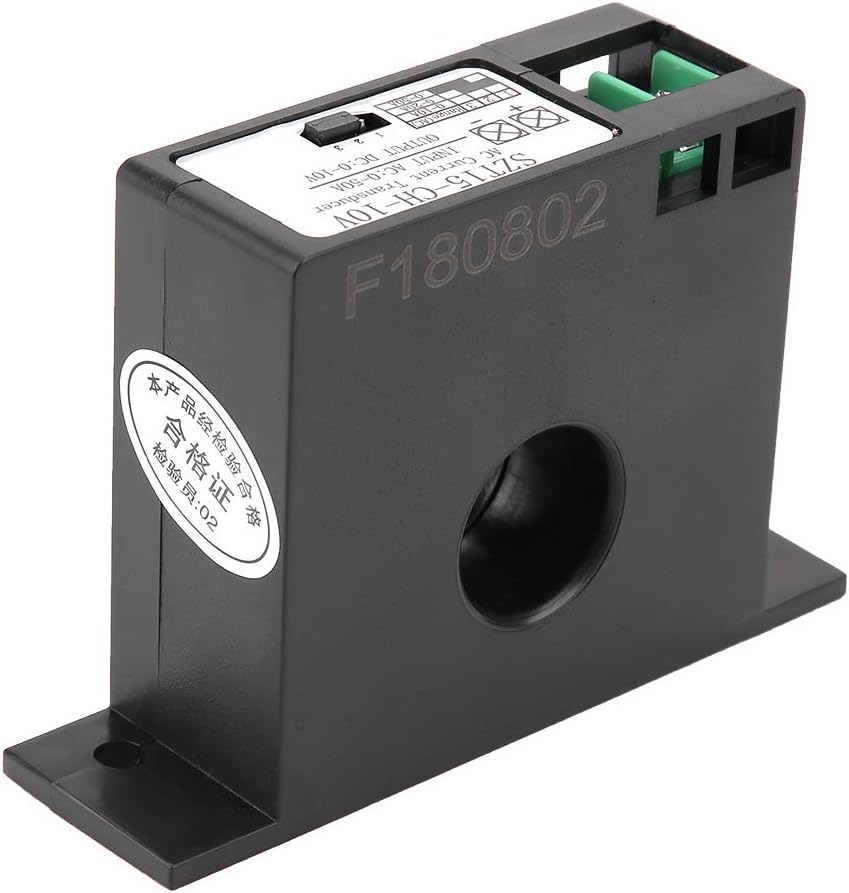

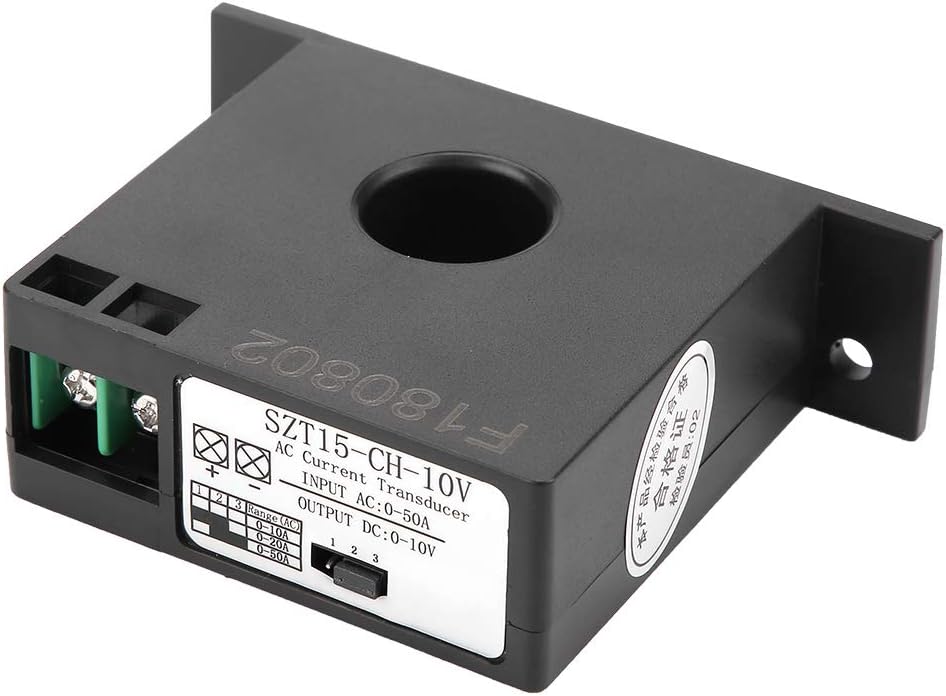

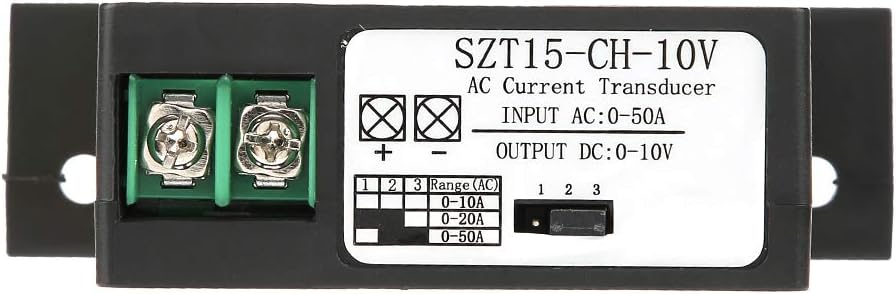

Model: SZT15-CH-10V
Supply power: Not required
Output type: 0-10V DC
Input straight-through current: AC 0-10A/20A/50A
Switch on minimum: 0.5±0.2A
Maximum overload of straight-through current: 200%
Accuracy: ±1%
Power consumption: 1W
Leakage current: 1mA
Hysteresis: 1%
Linearity: 10%-100%
Straight-through wire diameter: 0.35-20mm
Response time: 200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working environment: -20~60, 5-95%RH

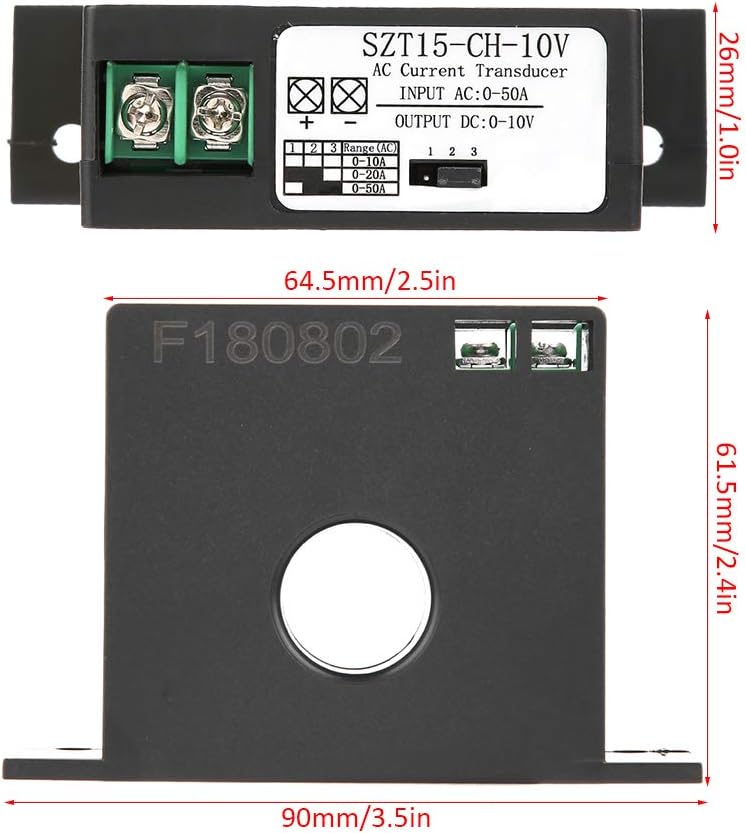

Dimensions: 61.5*90*26mm / 2.4*3.5*1.0in
Hole diameter: 20mm / 0.8in
Package weight: Approx. 107g/3.8oz

Package list:
1 * AC Current Transmitter

Note:
1.Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2.Please allow slight error due to manual measurement. Thanks for your understanding.
