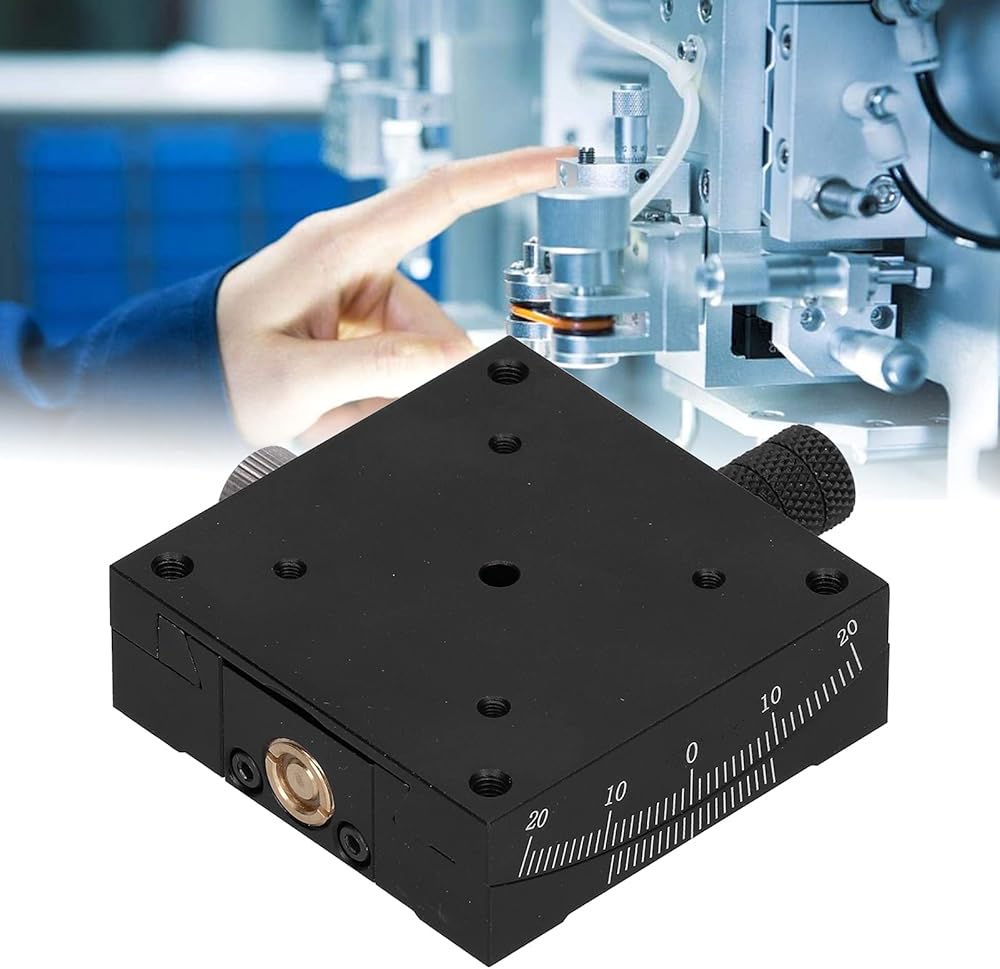

[Wide Application] Ideal for use in optical equipment, semiconductor manufacturing, microscopes, and more, versatile for various industries.

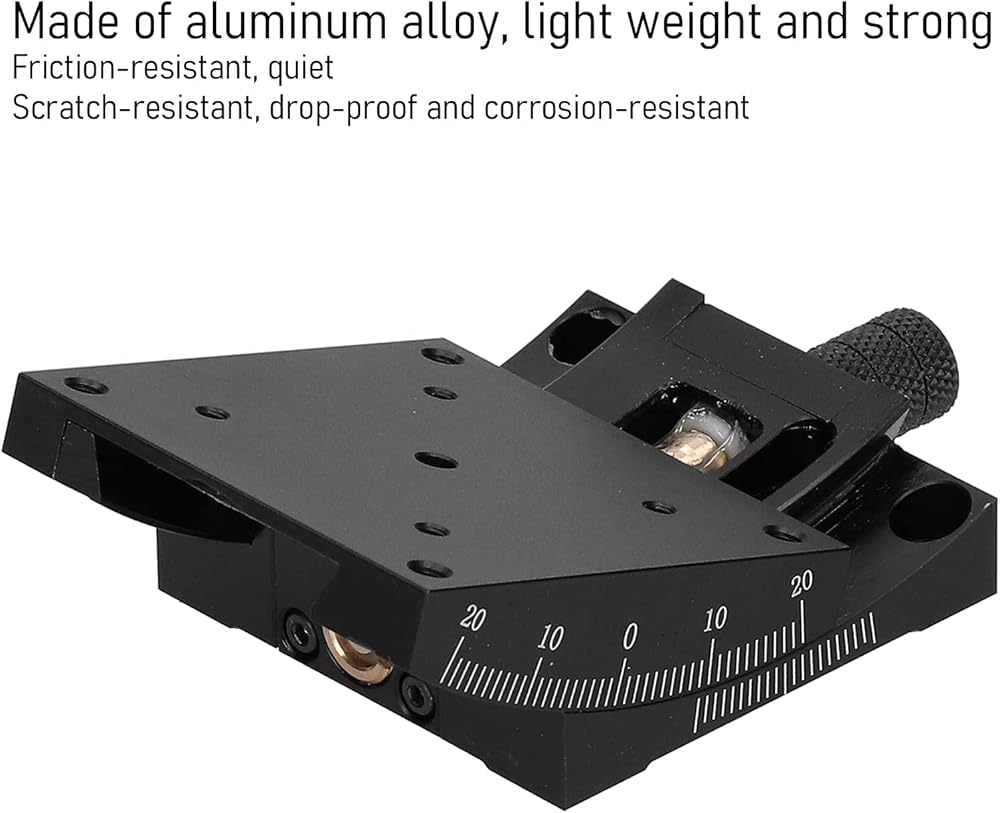

[Premium Material] Made of excellent aluminum alloy for a light weight and strong design with high corrosions resistance, ensuring durability.

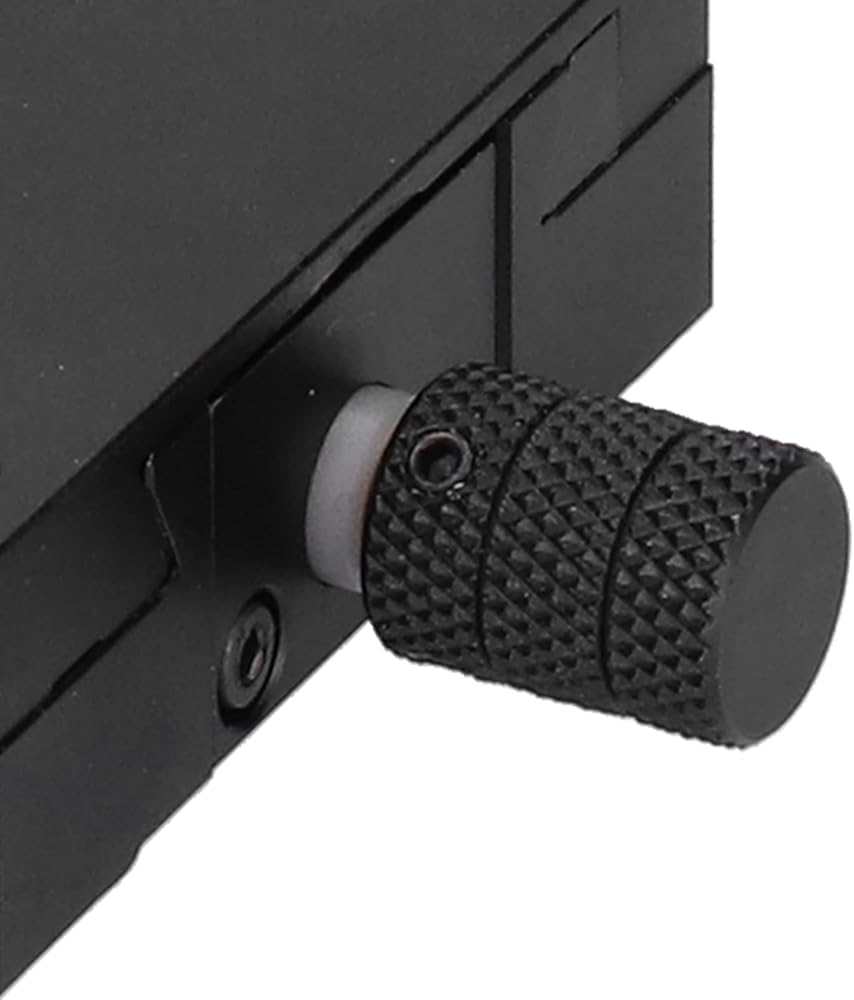

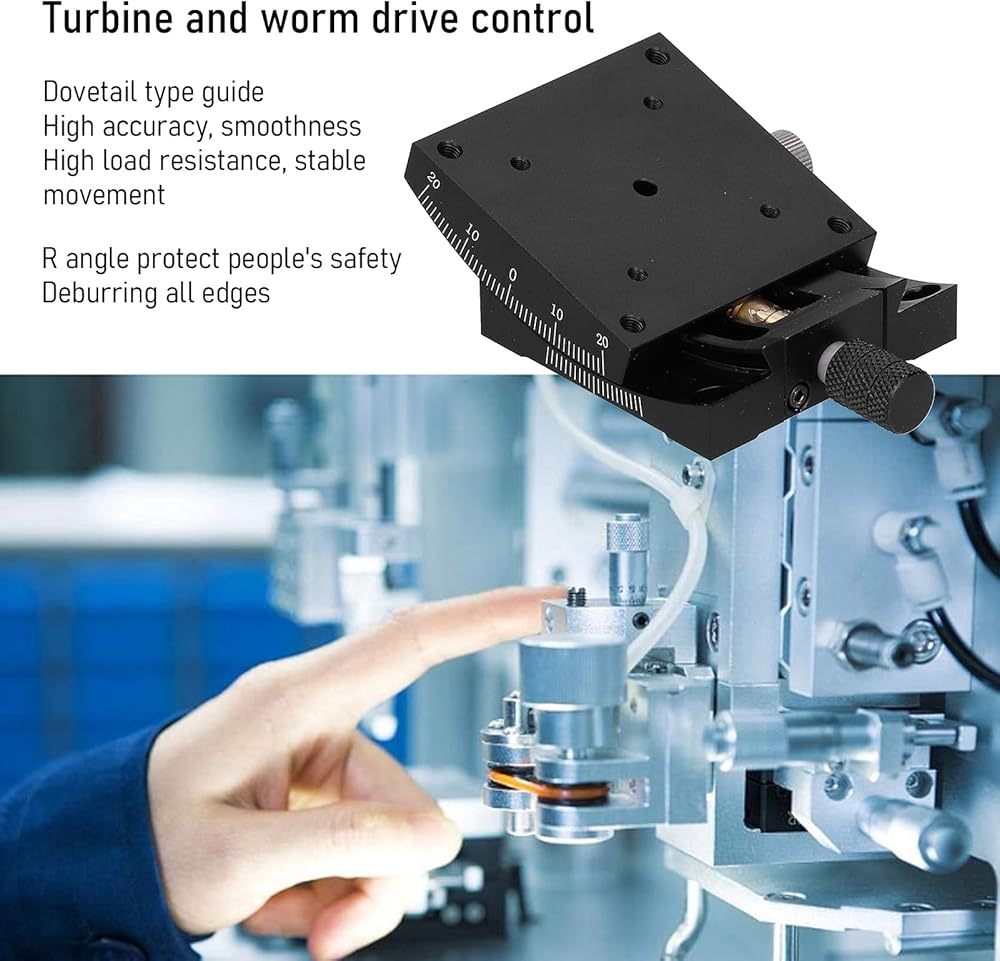

[Precise Movement] Features drive control with accuracy and smoothness, good for precise adjustments in optical equipment.
[Enhanced Safety] Equipped with r angle protection and deburred edges to protect users during operation, ensuring a safe user experience.

Spec:
Item Type: Linear Stage
Model: HXV-A60
Material: Aluminum alloy

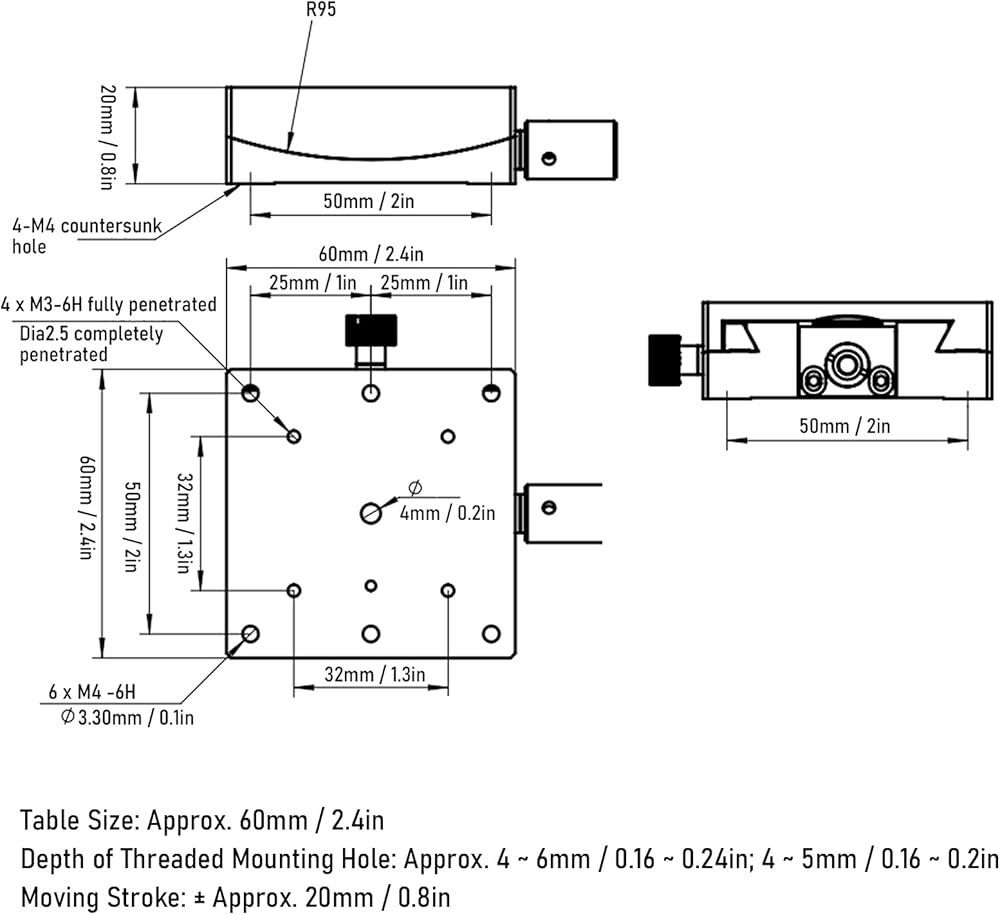

Table Size: Approx. 60 x 60mm / 2.4 x 2.4in

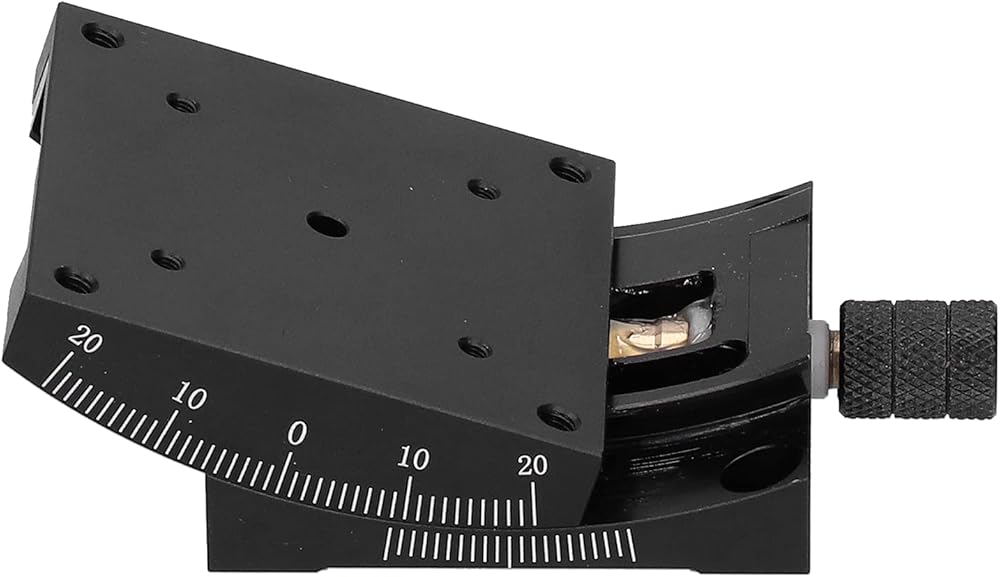

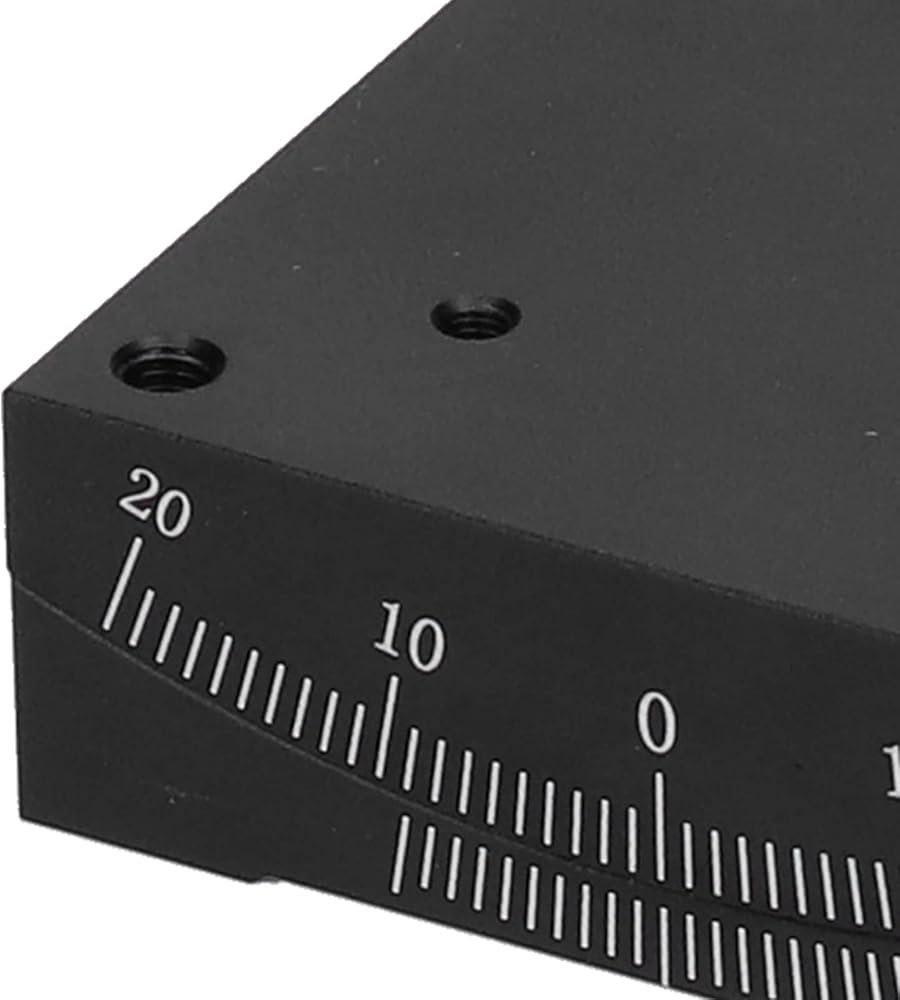

Moving Angle: ±10°
Body Material: Aluminum alloy (black anodized)
Rail Type: Dovetail groove
Number of Threaded Mounting Holes on the Countertop: 4+4
Threaded Mounting Hole Diameter: 4-M4mm; 4-M3mm
Depth of Threaded Mounting Hole: Approx. 4 ~ 6mm / 0.16 ~ 0.24in; 4 ~ 5mm / 0.16 ~ 0.2in
Vertical Load Resistance: 29.4N (3Kgf)
Moving Stroke: ± Approx. 20mm / 0.8in
Minimum Reading: 0.1°
Straightness: 0.03mm
Scope of Application: Optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, handling machines, processing machines, printing machines and others

Package List:
1 x Linear Stage

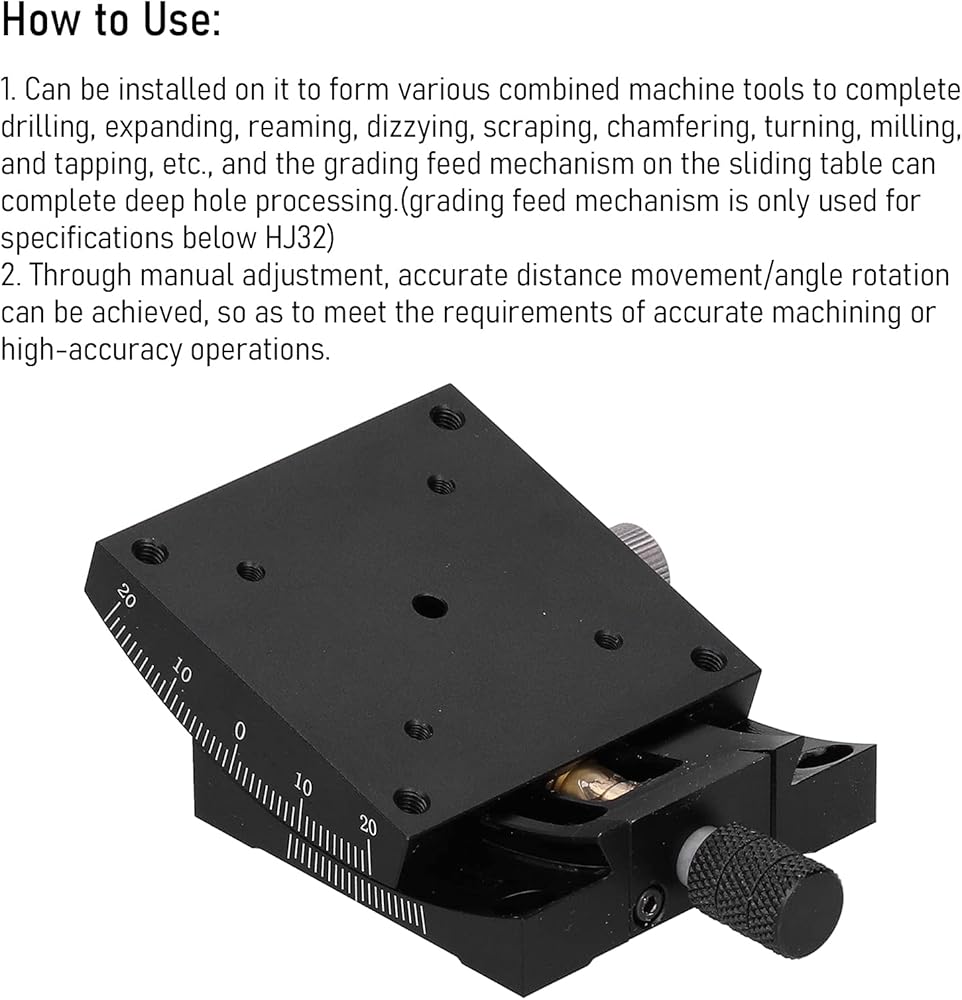

How To Use:
1. According to the process requirements of the processed parts, a power box (with multi‑axes box) drilling head, boring head, milling head, turning head, etc. can be installed on it to form various combined machine tools to complete drilling, expanding, reaming, dizzying, scraping, chamfering, turning, milling, and tapping, etc., and the grading feed mechanism on the sliding table can complete deep hole processing(grading feed mechanism is only used for specifications below HJ32)
2. Can be installed on the side base or column, and can also be installed on the inclined base to form a horizontal, vertical or inclined modular machine tool
