مميزات خاصة

RF transmitter PA set point control and level monitoring, power monitoring in radio line transmitters.
This product is used for RSSI measurement in base stations, WLAN, WiMAX and .
The input impedance is 50Ω, the output impedance is 50Ω (video impedance), the working frequency is 1MHz ~ 10GHz.
Small size, easy to carry and store, convenient to use and with good performance.
The module using high-quality materials, strong and , has a long service life

وصف

Specification:

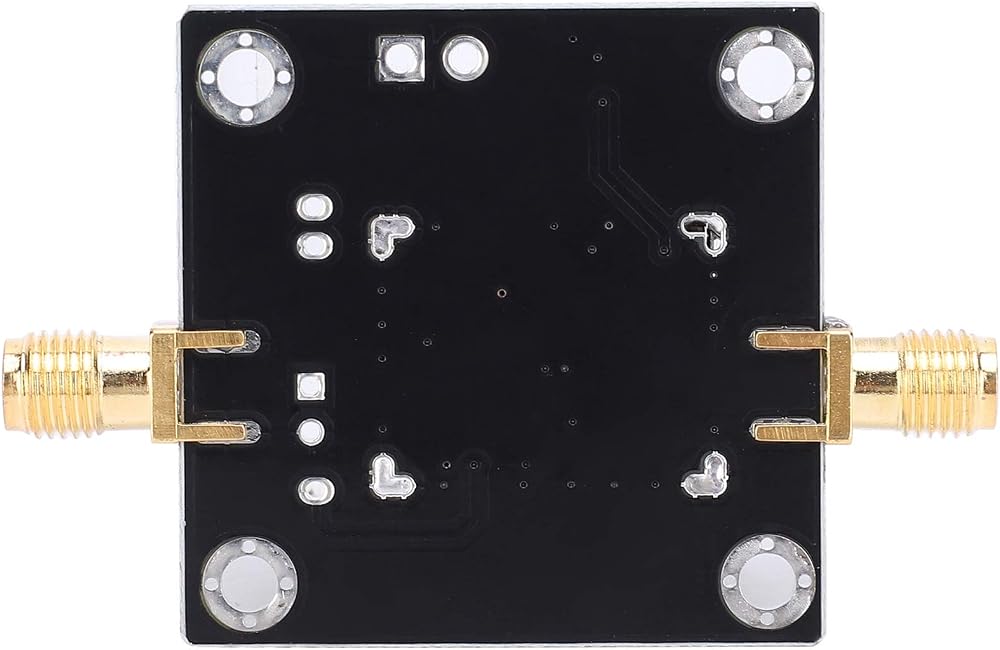

Item Type: Power Meter Module
Input Impedance: 50Ω
Output Impedance: 50Ω (video impedance)
Working Frequency: 1MHz ~ 10GHz
Output Voltage Range: 1.6 ～ 0.4V (corresponding to -55 ～ 0 dBm)
Input and Output Ratio: ~ -22mV/dBm
Input Dynamic Range: -60 ～ +5dBm (High Linear Dynamic Range: -55 ～ 0 dBm)
Power Supply Voltage: +3.3~5V.DC at 20mA

packing list:
1 x Power Meter Module

منتجات شبيهه

{"error":"\u062e\u0637\u0623","cart_limit":"\u0644\u062f\u064a\u0643 \u0627\u0644\u0643\u062b\u064a\u0631 \u0645\u0646 \u0627\u0644\u0645\u0646\u062a\u062c\u0627\u062a \u0641\u064a \u0633\u0644\u0629 \u0627\u0644\u062a\u0633\u0648\u0642 \u0627\u0644\u062e\u0627\u0635\u0629 \u0628\u0643.","prod_limit":"\u0644\u0627 \u064a\u0645\u0643\u0646\u0643 \u0625\u0636\u0627\u0641\u0629 \u0627\u0644\u0645\u0632\u064a\u062f \u0645\u0646 \u0647\u0630\u0627 \u0627\u0644\u0645\u0646\u062a\u062c"}

مرحبًا،

بحث

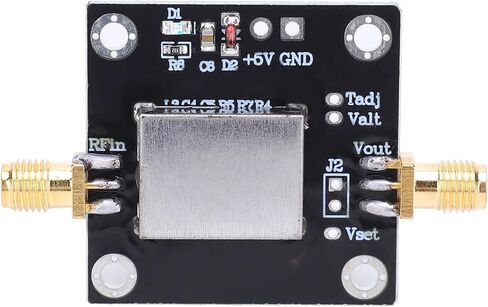

كاشف لوغاريتمي وحدة قياس الطاقة 1M - 10 جيجا هرتز 60 ديسيبل المكون الإلكتروني الديناميكي AD8317
