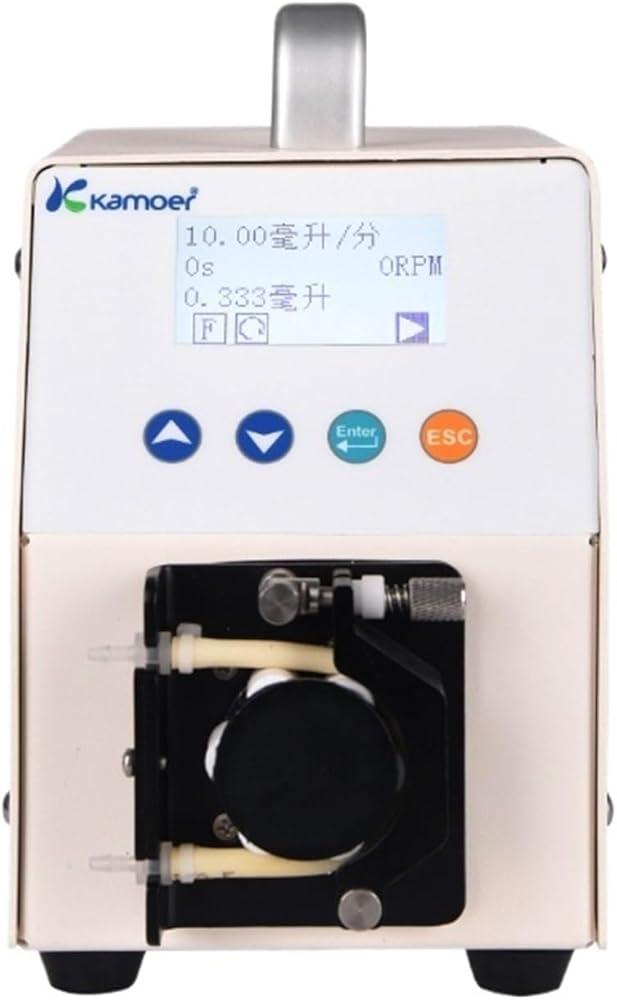

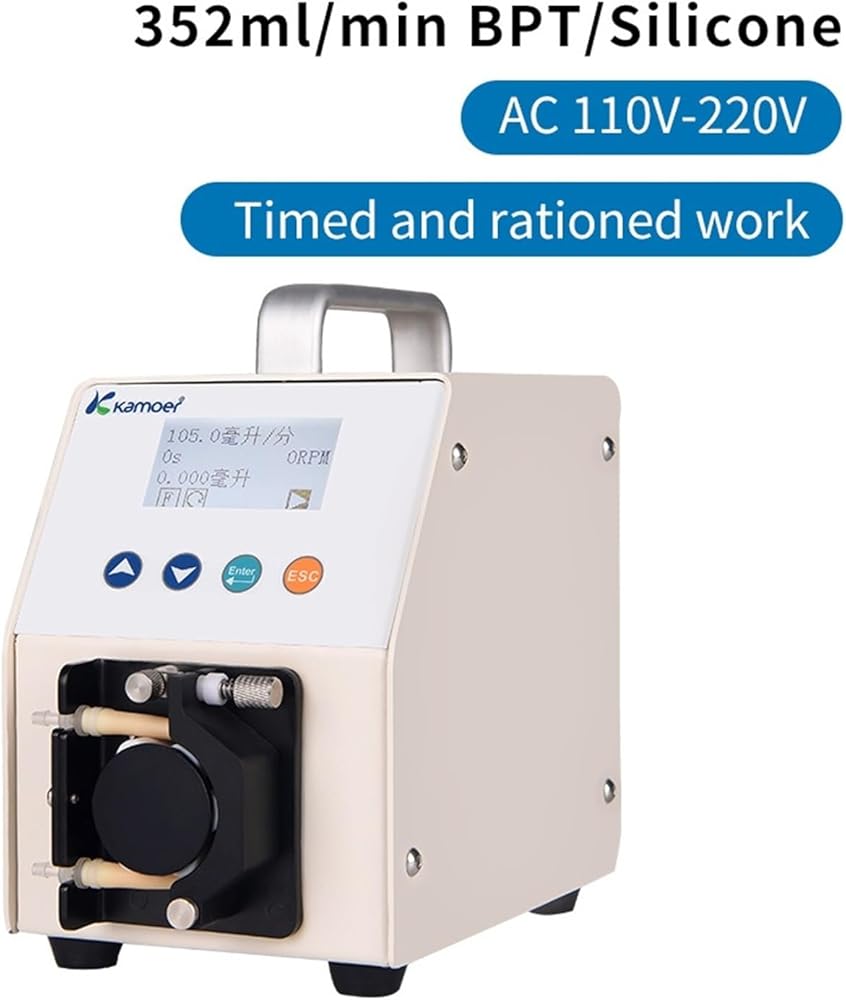

LLS Plus Intelligent High Precision Peristaltic Pump With Adjustable Flow Rate
Easy to replace pump tube
Timed and quantitative work according to customer needs
Low noise, high precision
Simple structure, maintenance-free
The number of rotors is adjustable, which can balance the flow rate and pulsation
Basic Parameters
Motor: Stepper motor
Voltage: AC 110~220V
Power: 20W max
Flow: 13.2~352ml/min
Periperal equipment: foot switch
Weight: 2.5KG
Working temperature: 0~40
Humidity: Less than 80%
Various Applications
Filling-packing
Laboratories, research institutes
Cosmetics/Beverages sizing

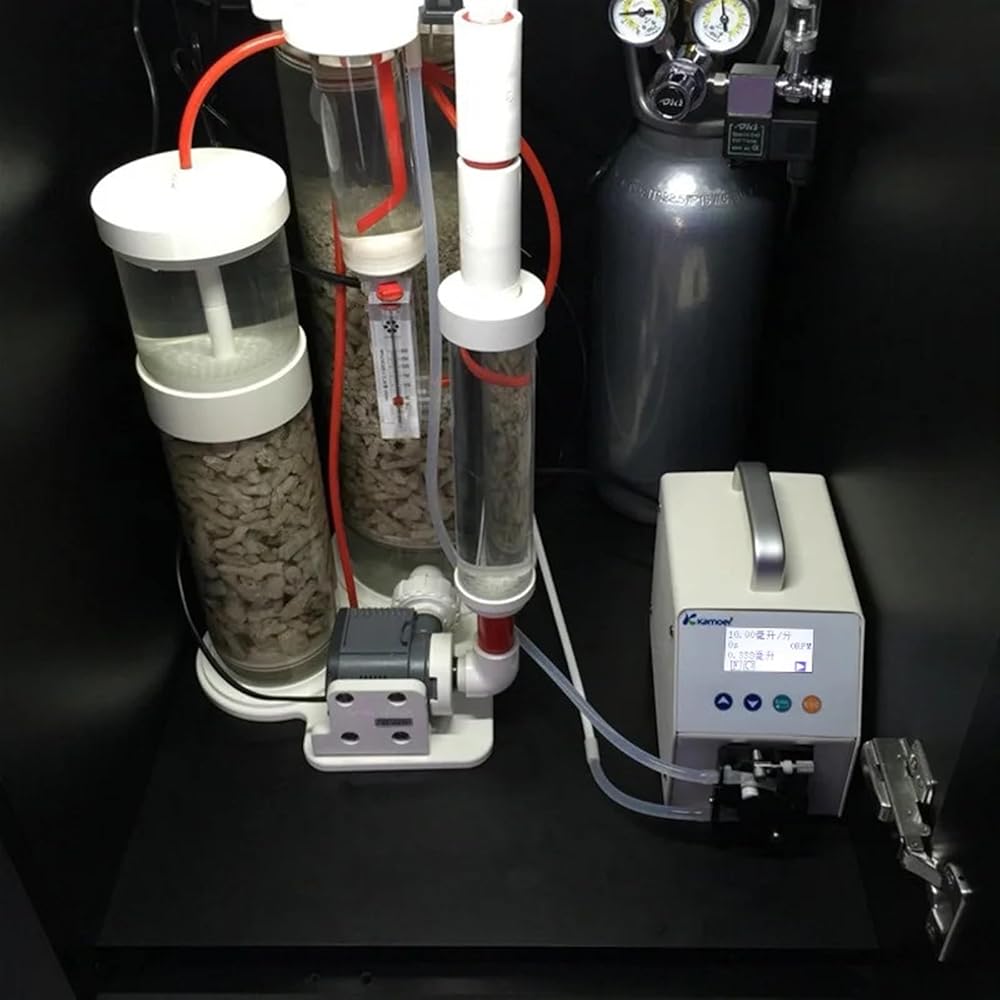

Ideal for calcium recator
Flow Rate & Tube Selection
Material
S BNS
BS
B/N/S
S
Code
13
14
19
16
40
ID*OD (mm)
0.8×4.0
1.6×4.8
2.4×5.6
3.2×6.4
4.0×7.2
Flow Rate
(ml/min)
3 rotors
17.6
71.5
132
231
352
6 rotors
13.2
49.5
99
165
220
Tubes
Materials
Features
Tubing Life
S Silicone
Low adsorption, good temperature resistance, not easy to aging, low precipitation, etc., chemical resistance. Corrosion performance decreases with increasing temperature. Suitable for transmission of various low corrosion(10%) Liquid.
Working temperature: -60~200
200H
B PharMed
BPT
Very good resistance to general chemicals, as well as excellent resistance to acids, alkalis and oxides. The product is transparent and to ultraviolet radiation, so it helps protect sensitive liquids.
Working temperature: -51~132
1000H
N Imported
Norprene
certificate, perfect for food and dairy product application. High temperature and corrosion resistance, aging and oxidation resistance, long-term service time.
Working temperature range: -60~-135
1000H
Joint Selection
Connectors
Straight
L-shaped
Y-shaped
T-shaped
X-shaped
Pipe inner diameter ID
1/16
32050004
32050027
32050006
32050039
0.61.6
3/32
32050066
32050028
32050029
32050053
1.62.4
1/8
32050066
32050037
32050015
32050020
32050019
2.43.2
Packing List
1 x Host;
1 x Power Adapter;
1 x Foot switch.
More Details

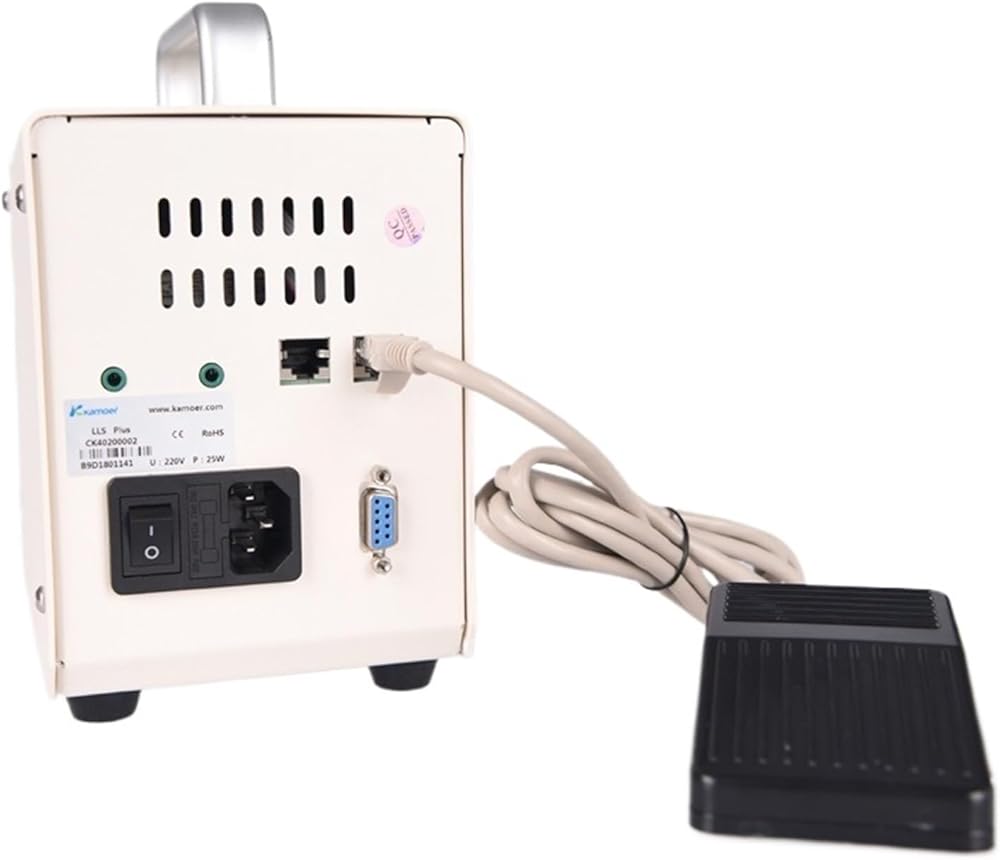

Left is power line; Right is foot switch.
Power and wire
Power Adapter
24V
Chinese standard
24V
American standard
24V
European standard
24V
British standard
24V
Australian standard
Sales codes
32040002
10080033
10080021
10080038
10080039
Power cord
Code L Sales code
Note: There is an error in manual measurement, please refer to the design drawing size.
Dimensions
