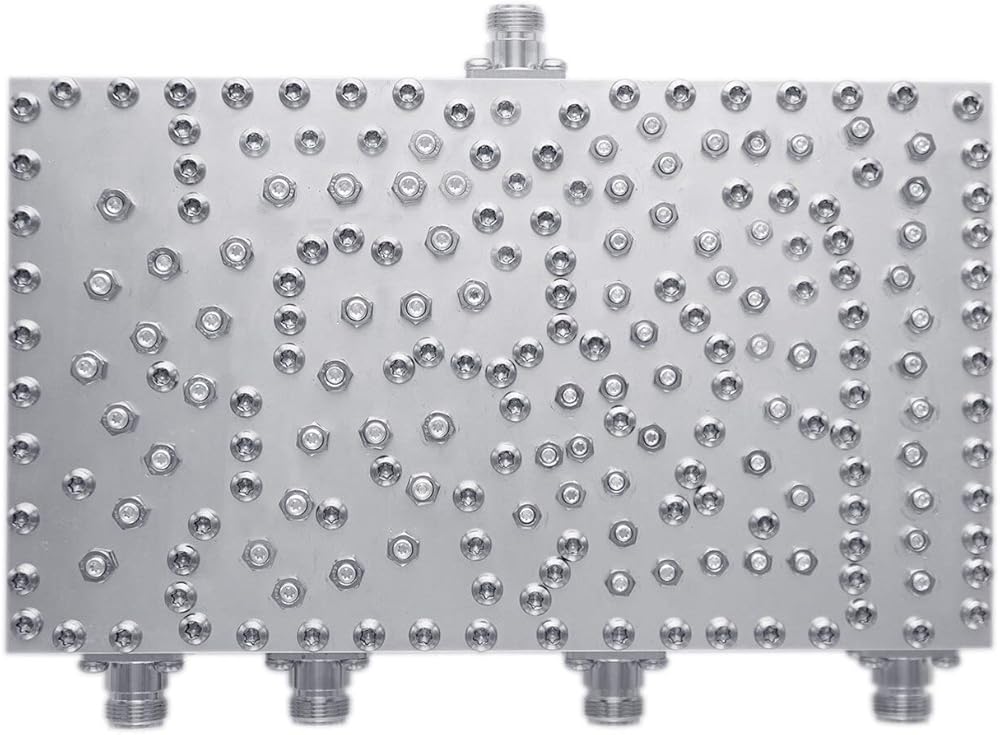

| النطاق العريض Quadraplexer | قم بدمج 4 إشارات خلوية من الهوائيات الخارجية في إشارة موحدة واحدة - مجمع منخفض الخسارة من الدرجة التجارية 698-2170 ميجاهرتز in Kuwait

| النطاق العريض Quadraplexer | قم بدمج 4 إشارات خلوية من الهوائيات الخارجية في إشارة موحدة واحدة - مجمع منخفض الخسارة من الدرجة التجارية 698-2170 ميجاهرتز

KWD 452
– 1 +

مميزات خاصة

  • WHAT IS IT?: This is a hard-to-find QUADRAPLEXER. It combines 4 cellular signals captured from up to 4 outdoor cellular antennas for the highest possible quality signal with minimal loss. Also known as a diplexer, quadplexer, or quadruplexer.
  • USE CASE: When you have to amplify different bands from different carriers from different cell phone towers, this quadraplexer is the best, most affordable option. It serves the same purpose as a diplexer, but for four signals.
  • TECH SPECS: Frequencies covered: CH1: 698 to 806MHz; CH2: 824 to 896MHz; CH3: 1850 to 2000MHz; CH4: 1710 to 1755MHz & 2110 to 2170MHz frequency bandwidths to cover the entire cellular/wireless spectrum, Low loss: ≥0.5dB of insertion loss
  • UGLY YET POWERFUL: Gives an average of 50 W of power, with a 1000W peak with low passive IM and PIM
  • WHO IS THIS FOR? Ideal for Professional Installers and Integrators with high reliability

وصف

The Bolton Technical Wideband Quadraplexer in combination with a cell phone signal booster and yagi direction outdoor cell antennas combines cell phone signal of different frequencies into one cable. It has been designed using passive, proprietary techniques to ensure minimal loss and very high reliability. With its compact weight, low PIM, and N-Female connectors, the Bolton multi-band combiner is ideal for your commercial cell phone signal booster installation. It allows efficient combining or division of the standard cellular bands for use in a coaxial distributed in-building cellular network or DAS.
