Features:
【Excellent Performance】: Generator slip ring has the performance of high temperature and corrosion resistance, anti-aging, and the anti-vibration and anti-dust design can meet your basic working needs. Generator slip ring has the function of multi-channel signal transmission, anti-jamming.
【Applied Environment】: Mini slip ring has the feature of low temperature resistance, wide operating temperature range, so it can be adapted to the larger temperature difference between the work environment.
【Engineering Plastics】 : Wind generator slip ring is made of high quality engineering plastics, which is solid, wear-resistant and pressure resistant.
【Scope of Application】: Generator slip ring is applicable to most equipment, including wind, controller, robot, construction machinery, medical equipment, military radar and so on.

Specifications:
Material: Engineering plastics
Voltage: 0-600V
Insulation Resistance: 1000MΩ at 500VDC
Rated Current: 15A
Insulation strength: 500VAC at 50Hz, 60s
Electrical Noise: ≤20MΩ
Pathway: 3 Wires
Working speed: 150RPM
Operating temperature: -30℃~80℃
Operating Humidity: 0-85% RH
Contact materials: precious metal
Lead length: 330mm
Torsion: ≤8 g.m
Protection class: IP51

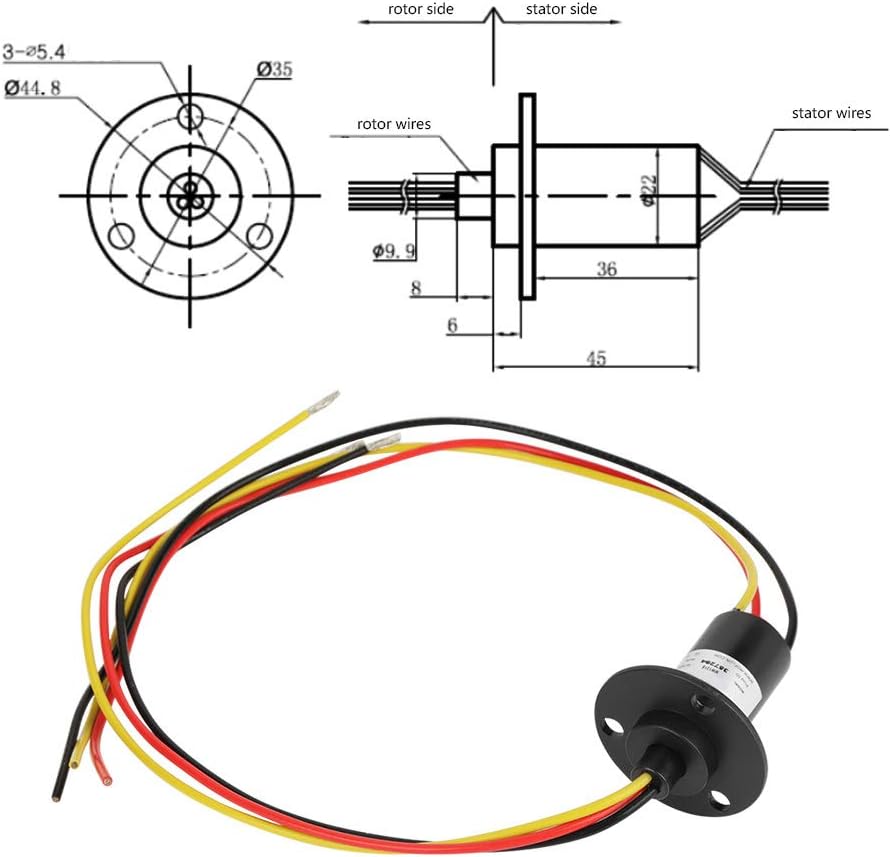

Size: 70 x 5 x 5cm / 27.56 x 1.97 x 1.97inch
Weight: 84g

Package Included:
1 x Slip Ring
