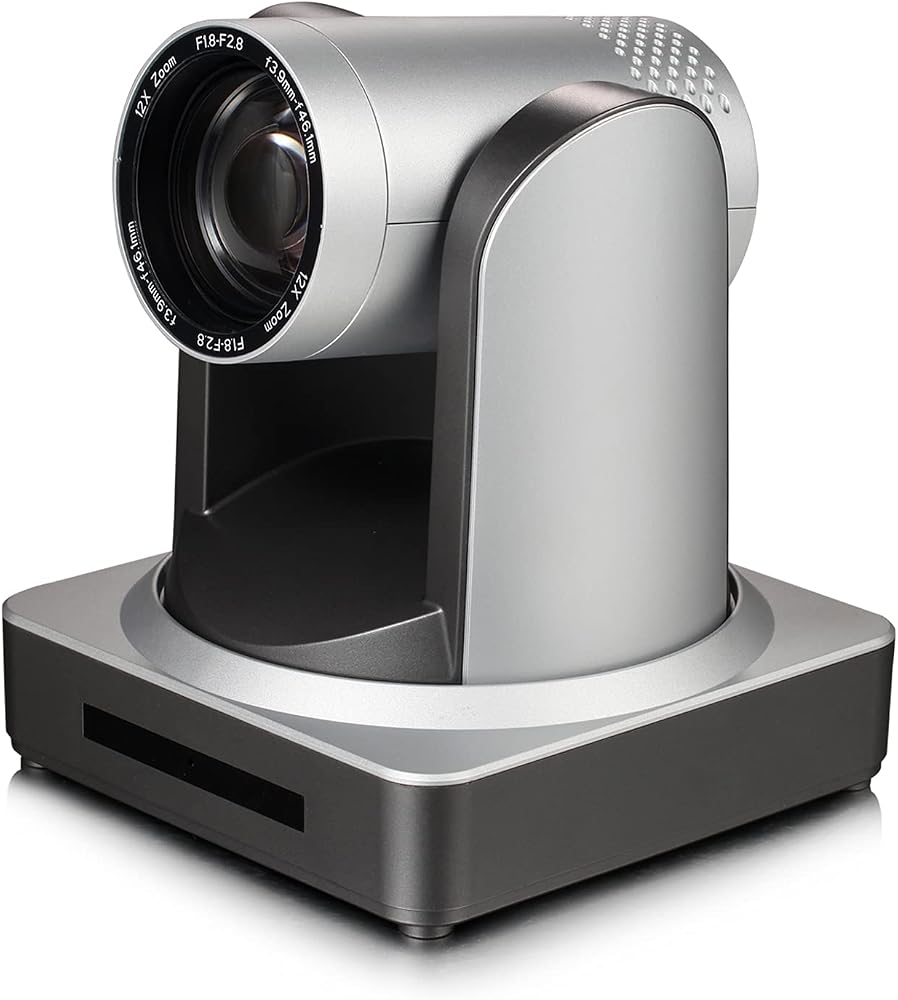

Z2000 PTZ Camera Information
Sensor: 1/2.8 inch CMOS sensor
Effective Pixels: 16: 9, 2.07 Megapixel
Video format:
1.HDMI/SDI Output: 1080P60、1080P50、1080I60、1080I50、1080P30、1080P25、720P60、720P50
2.CVBS SD Output: 576i, 480i

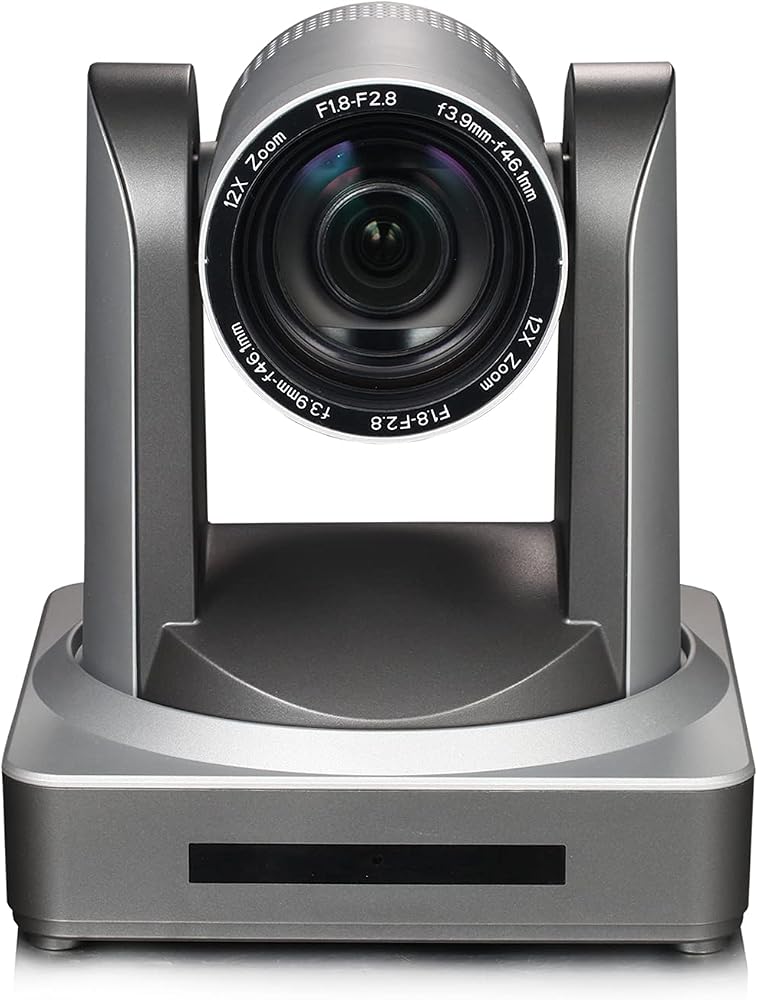

Optical Zoom:
12X: f=3.9-46.8mm, 6.3°(tele)--72.5°(wide), F1.8- F2.4
20X: f=5.5-110mm, 3.3°(tele)-54.7°(wide), F1.6 – F3.5
30X: f=4.3-129mm, 3.34°(tele)--65.1°(wide), F1.6 - F4.7
Minimum illumination 1Lux@（F1.8，AGC ON）
Focus: Auto/ Manual/ One Push
White balance: Auto/ Manual/ One Push/ 3000K/ 4000K/ 5000K/ 6500K/ 7000K
BLC: ON/ OFF
Electronic Shutter: Auto/ Manual
WDR: OFF/ Dynamic level adjustment
Video Adjustment: brightness, color, saturation, contrast, sharpness, B/W mode, Gamma Curve
SNR: >50dB

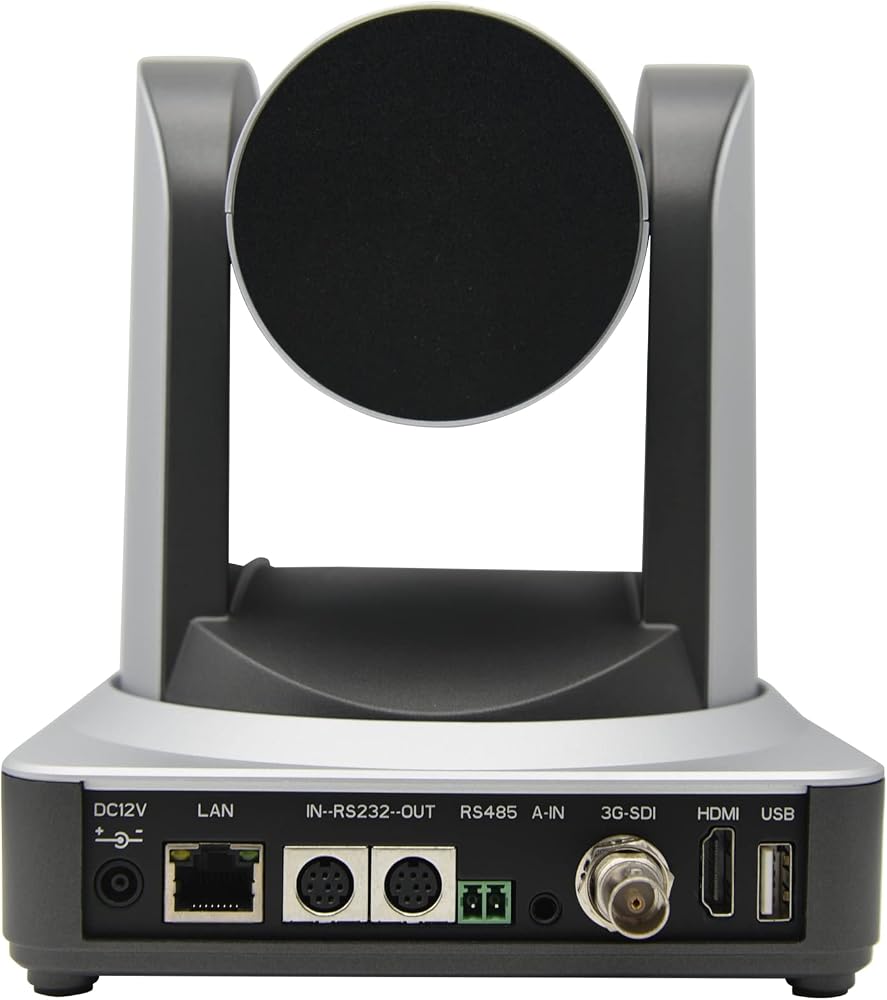

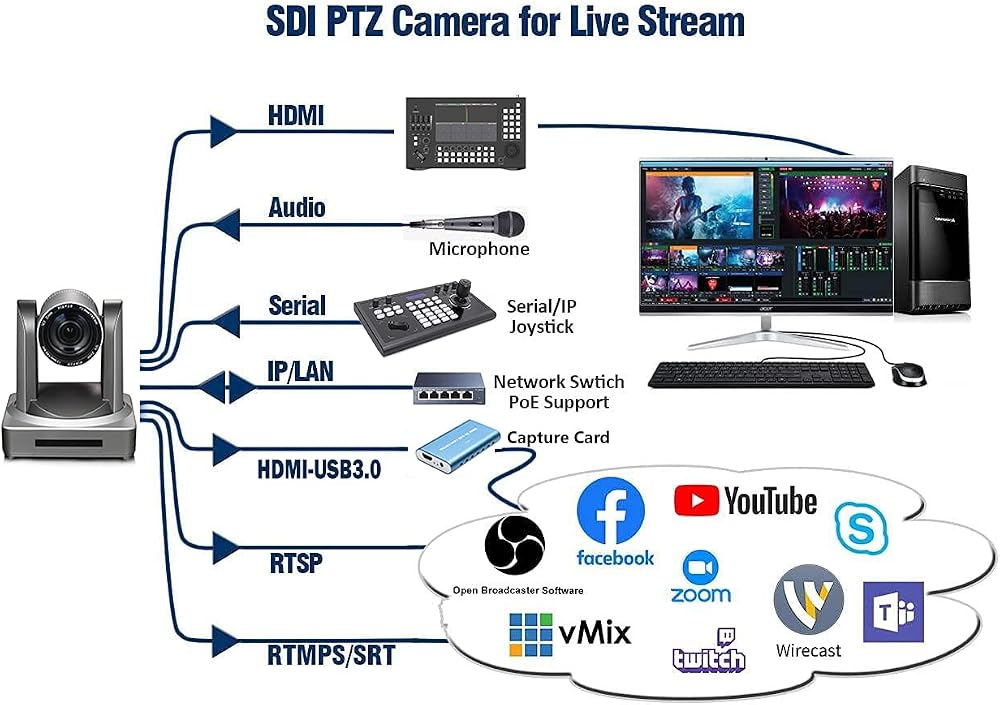

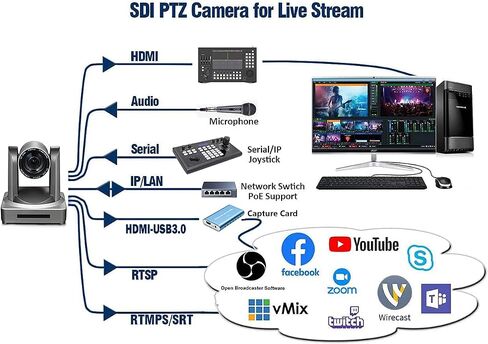

Input/ Output
Video Compression: H.265/ H.264
Audio Input Interface: Dual track 3.5mm line input
Audio Compression: AAC、MP3、G.711A
IP Interface: 100M IP port (10/100BASE-TX)

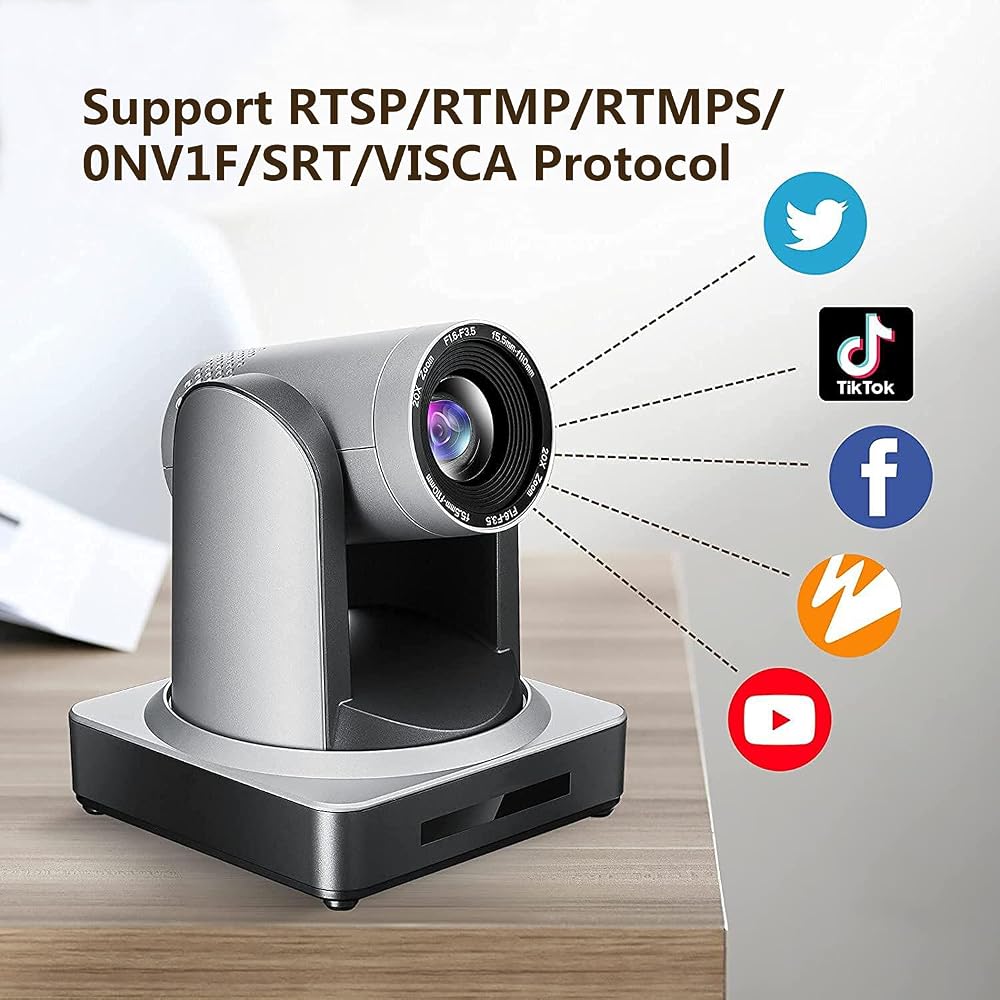

Visca Protocol: RTSP/ RTMP/ ONV1F/ T28181/ VISCA；Support remote upgrade, reboot and reset
Control Signal Interface: RS-232 I/O, RS485
Baud Rate：115200/9600/4800/2400
Supply Adapter: Input: AC110V-AC220V, Output: DC12V/1.5A RF Parameters
Operating frequency range: 5.1—5.9 (GHz)
Transmit power: 17dBm
Channel bandwidth: 40MHz
Modulation mode:OFDM
Transmission distance: ≤300 meters (outdoor open and unobstructed), ≤150 meters (indoor free and unobstructed)
Data transmission rate: Max 300Mbps (determined by transmission distance and channel occupancy)
Anti-interference mode: Manual / automatic selection of channel mode PTZ Parameter
Pan Rotation: -170°～+170°
Tilt Rotation: -30°～+90°
Pan Control Speed: 0.1 ～50°/s
Tilt Control Speed: 0.1～30°/s

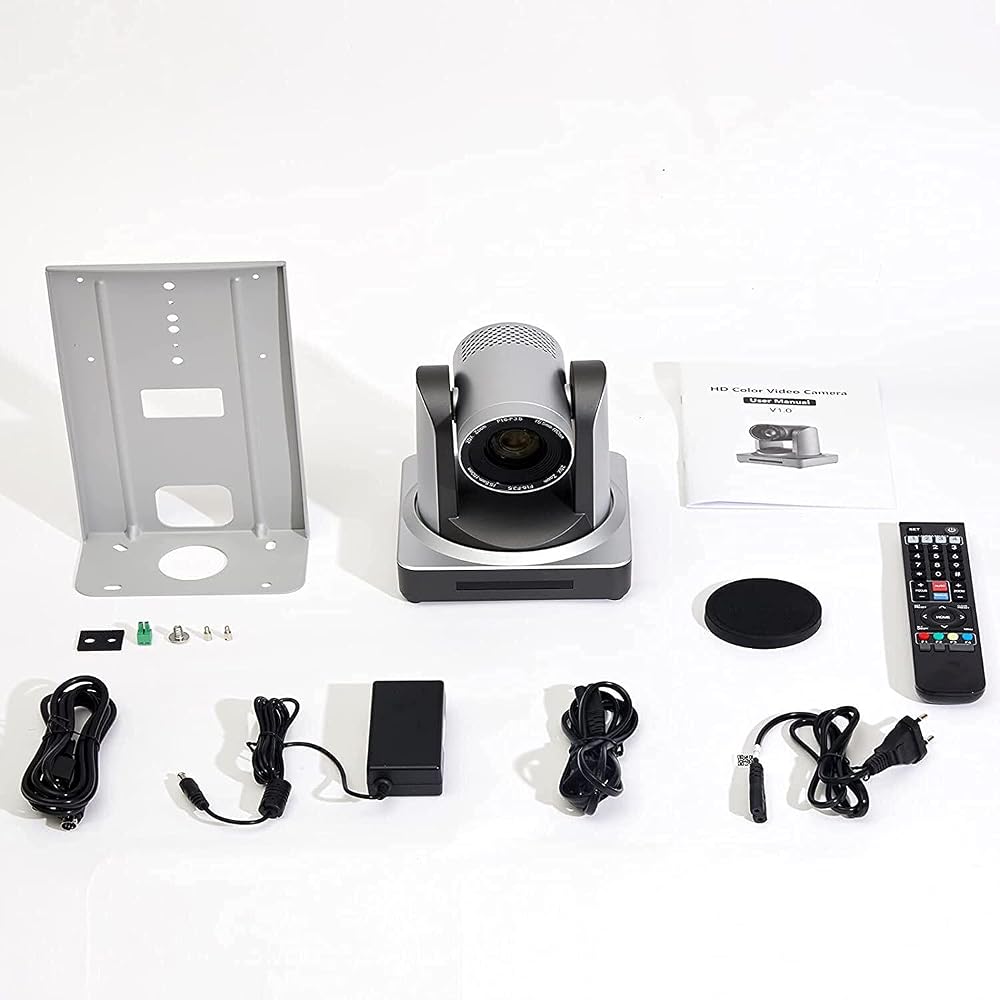

Preset Number: 255 presets（10 presets by remote controller） Package
12V/ 1.5A power supply, RS232 control cable, USB2.0 cable, instructions
