مميزات خاصة

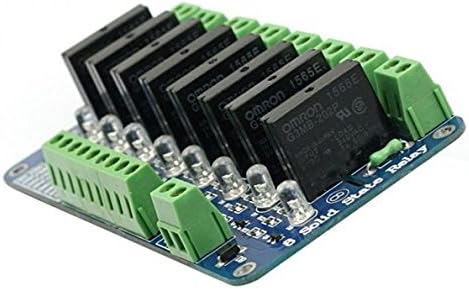

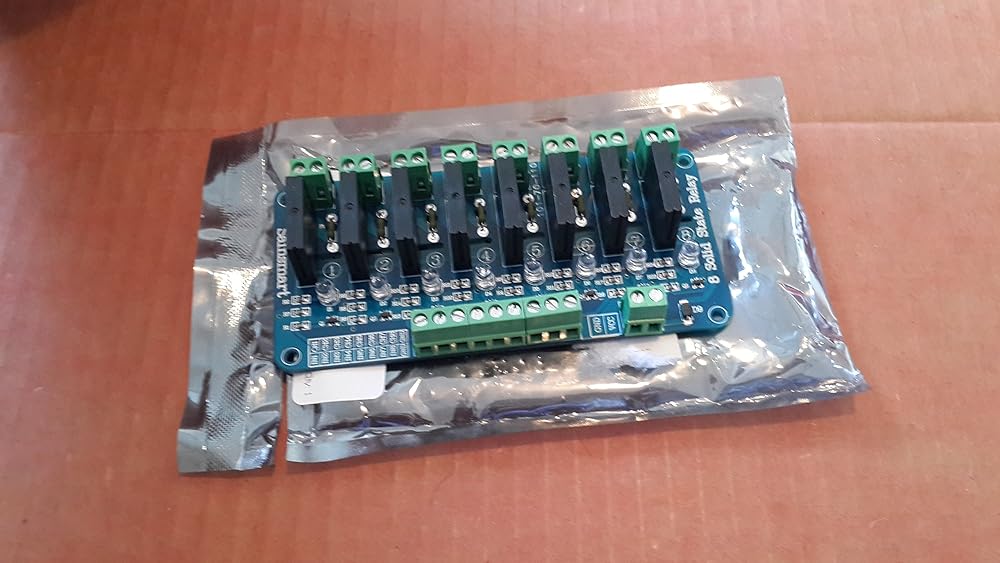

Has been assembled, and electrical test passed.

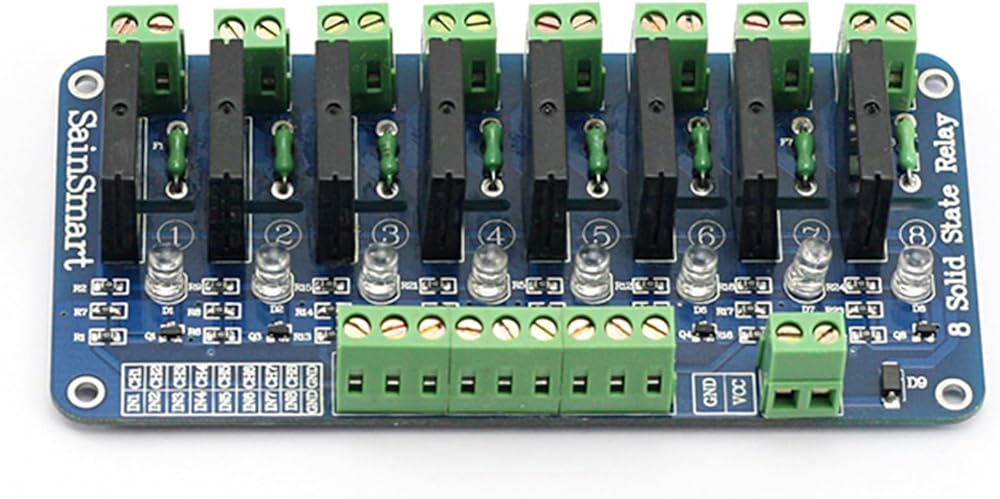

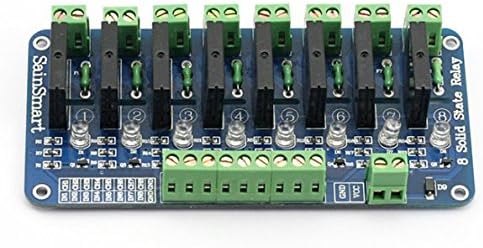

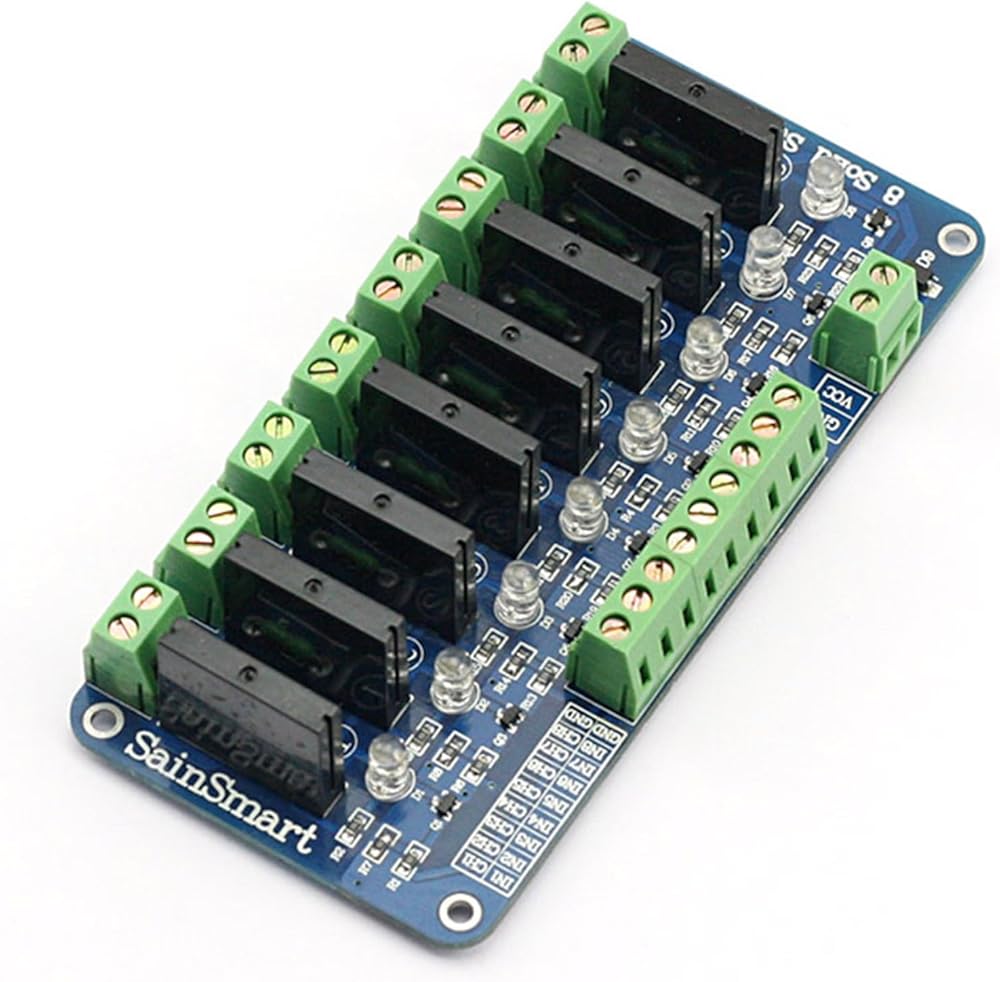

Led indicator for each relay.

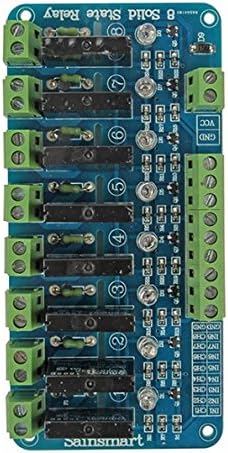

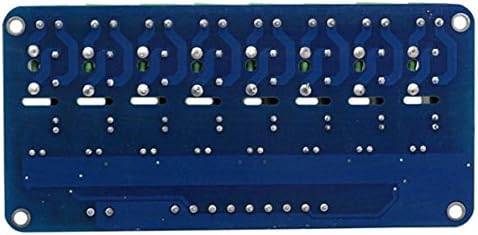

FR-4 Fiber glass PCB (Double Layer); Size: 155 x 55 x 24 mm (approximately 6.1 x 2.17 x 0.95 inch)
Input control signal voltage: 0V - 0.5V Low stage (SSR is OFF), 0.5V - 2.5V (unknown state), 2.5V - 20V High state (SSR is ON); SSR Output (each channel); Load voltage range: 75 to 264VAC (50/60Hz); Load current: 0.1 to 2 AMP
Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

وصف

Specification:

SSR Output (each channel):
- Load voltage range: 75 to 264V AC (50/60Hz).

- Load current: 0.1 to 2 AMP.

Input control signal voltage:
- 0V - 0.5V Low stage (SSR is Off).

- 0.5V - 2.5V (unknown state).

- 2.5V - 20V High state (SSR is On)

منتجات شبيهه

{"error":"\u062e\u0637\u0623","cart_limit":"\u0644\u062f\u064a\u0643 \u0627\u0644\u0643\u062b\u064a\u0631 \u0645\u0646 \u0627\u0644\u0645\u0646\u062a\u062c\u0627\u062a \u0641\u064a \u0633\u0644\u0629 \u0627\u0644\u062a\u0633\u0648\u0642 \u0627\u0644\u062e\u0627\u0635\u0629 \u0628\u0643.","prod_limit":"\u0644\u0627 \u064a\u0645\u0643\u0646\u0643 \u0625\u0636\u0627\u0641\u0629 \u0627\u0644\u0645\u0632\u064a\u062f \u0645\u0646 \u0647\u0630\u0627 \u0627\u0644\u0645\u0646\u062a\u062c"}

مرحبًا،

بحث

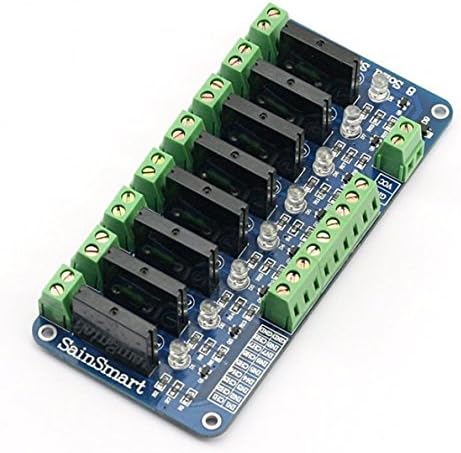

SainSmart 8-Channel 5V لوحة وحدة تتابع الحالة الصلبة لـ Arduino Uno Duemilanove MEGA2560 MEGA1280 ARM DSP PIC
