Comet Original CAA-500 Mark II محلل الموجات الدائمة 1.8-500 ميجا هرتز SWR والمقاومة في وقت واحد in Kuwait Comet Original CAA-500 Mark II محلل الموجات الدائمة 1.8-500 ميجا هرتز SWR والمقاومة في وقت واحد in Kuwait Comet Original CAA-500 Mark II محلل الموجات الدائمة 1.8-500 ميجا هرتز SWR والمقاومة في وقت واحد in Kuwait

Comet Original CAA-500 Mark II محلل الموجات الدائمة 1.8-500 ميجا هرتز SWR والمقاومة في وقت واحد

KWD 161
– 1 +

مميزات خاصة

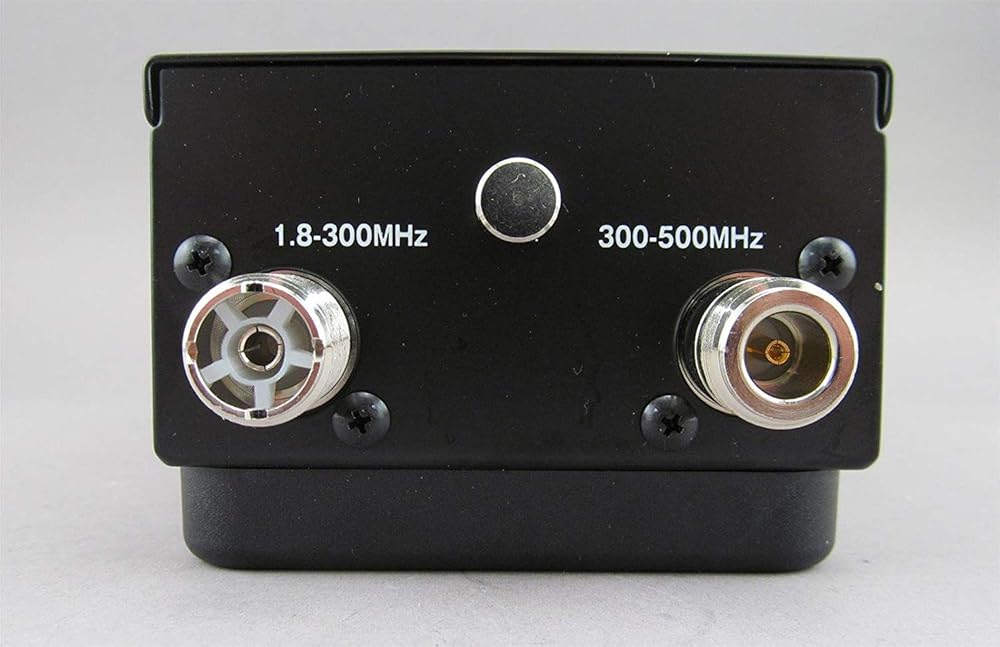

  • Range: 1.8 – 500MHz (including 222MHz band). RF output level: 0dBm 1 mW. Measured SWR Range: Analog meter 1.0 – 6.0:1 , LCD display 1.0 – 9.9:1
  • Impedance measurements: 12.5-300 ohms. Reactance range: 0 – 500 Ohms (absolute value) 1.8 -190MHz. Battery indicator and selectable Auto-Power-Off timer
  • Operates up to 9 hours continuous using six AA Alkaline or NiMH cells (not included). or use an external 8-16VDC 200ma power source (DC cable included) Internal trickle charger option when using NiMH batteries
  • Size: 3.5 x 7.75 x 2.65 inches (overall)
  • Weight: 2lbs 2oz with alkaline batteries installed

وصف

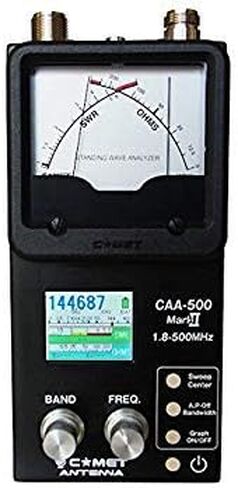

The new analyzer retains the same analog cross needles to display SWR and impedance, but ADDS a full color TFT LCD display screen providing graphic and numerical SWR along with total impedance with R and X values. Features: AUTO SWEEP MODE - Automatically graphs the SWR on the LCD display. Choose any one of the pre-set amateur band frequency ranges and press the sweep button…in about 30 seconds the SWR graph is completed and displayed. MANUAL SWEEP MODE - Choose the band and manually set the band-width and manually sweep the chosen frequency range. MULTIPLE MANUAL SWEEPS - Should you want to make an adjustment to the antenna length, to the position, height above ground, a gamma match adjustment, etc…you can overlay 5 manual sweep results in different colors! Instantly graph and see exactly what happened after each adjustment!
