مميزات خاصة

BRIGHTER AND CLEARER IMAGE: Lens after coating bring high transmittance, high refractive index, possess brighter and clearer image
WITH PROTECTIVE DEVICE: Spring protection device can automatically rebound when the cover glass is encountered during observation, to protect the lens from crushing the specimen

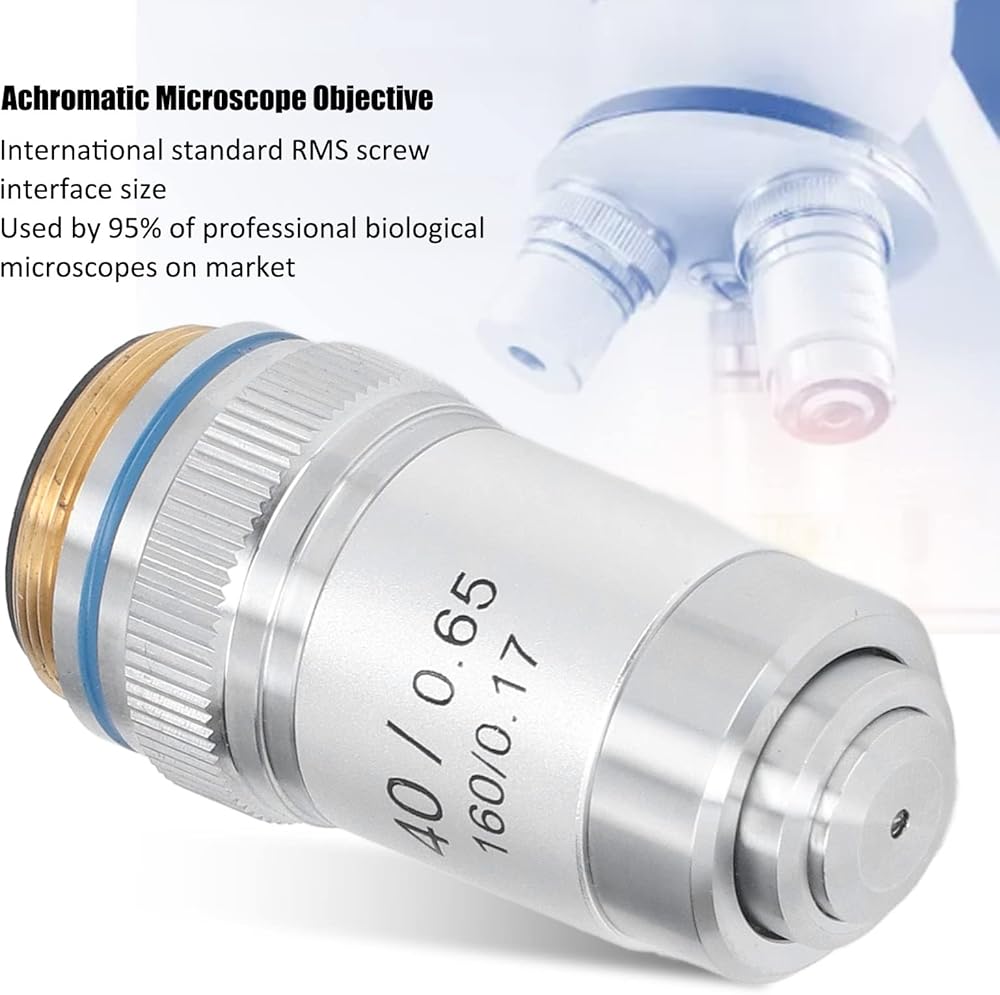

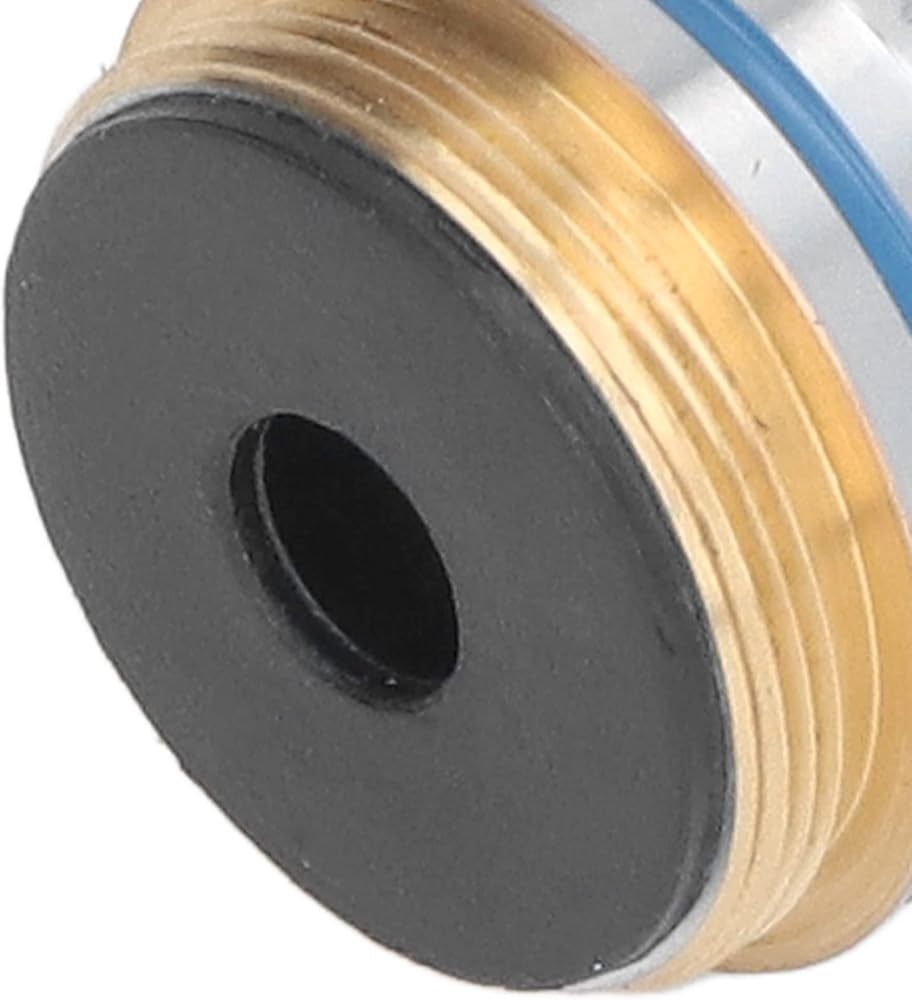

UNIVERSAL SCREW INTERFACE: The screw interface size is the international standard RMS size, interface size approx 20.2mm / 0.8in, which can be used by 95% of professional biological microscopes on the market
40X MAGNIFICATION: This is a 40X high magnification objective, the numerical value is accurate, and the operation is convenient, helps a lot in study, work or research, useful, helpful and practical

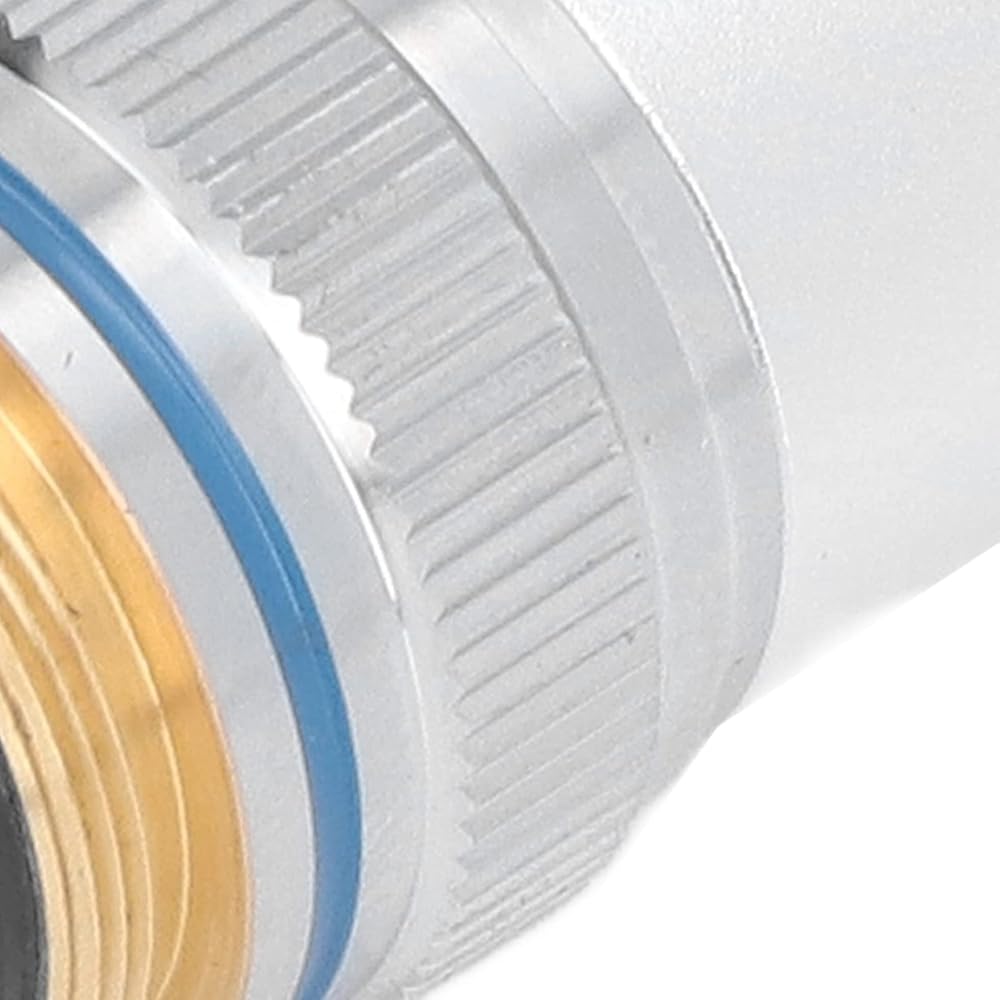

BRASS MATERIAL: Brass material with fine workmanship, and not easy to fall, exquisite and durable, the shell is chrome plated with accurate materials

وصف

How to Use:
1. Can be used after connecting with the microscope.

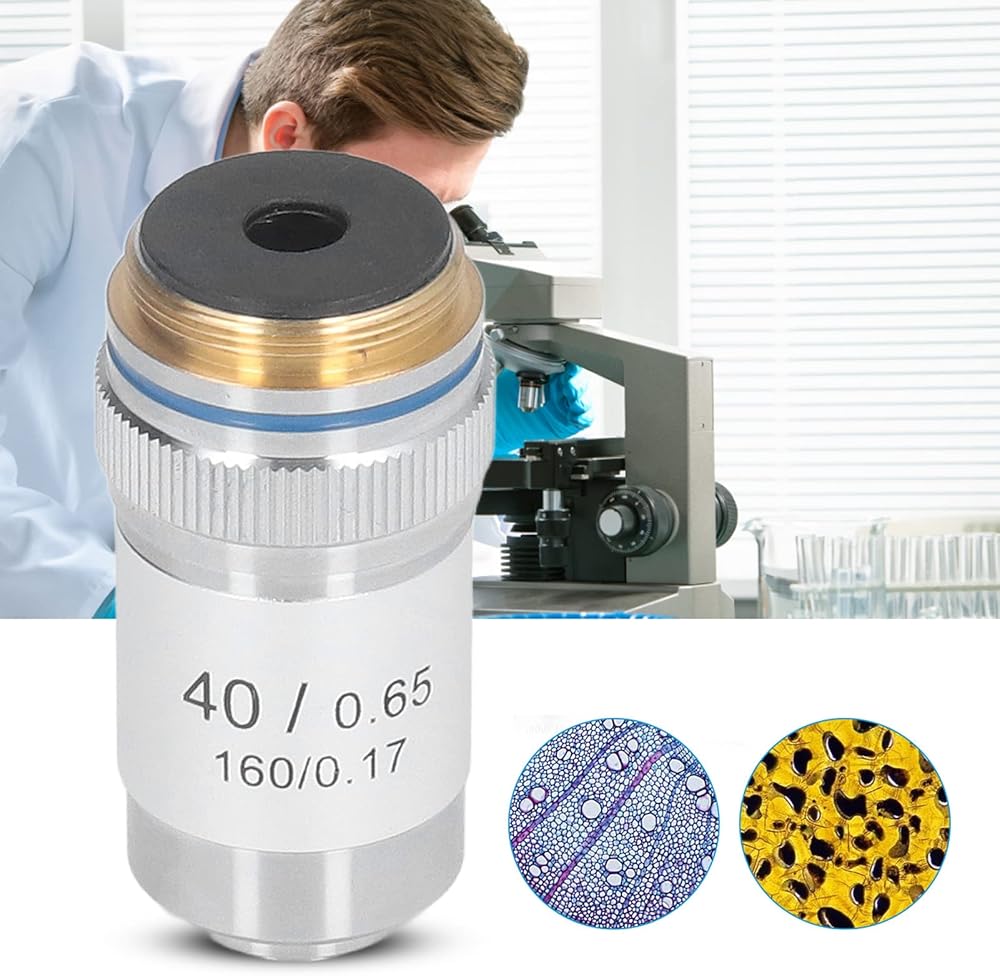

2. In order to facilitate observation, it is recommended to start observation at low magnification. It is more difficult to adjust at high magnification than at low magnification. According to the characteristics of the observed specimen, not all slices are suitable for observation under high magnification.

Specification:

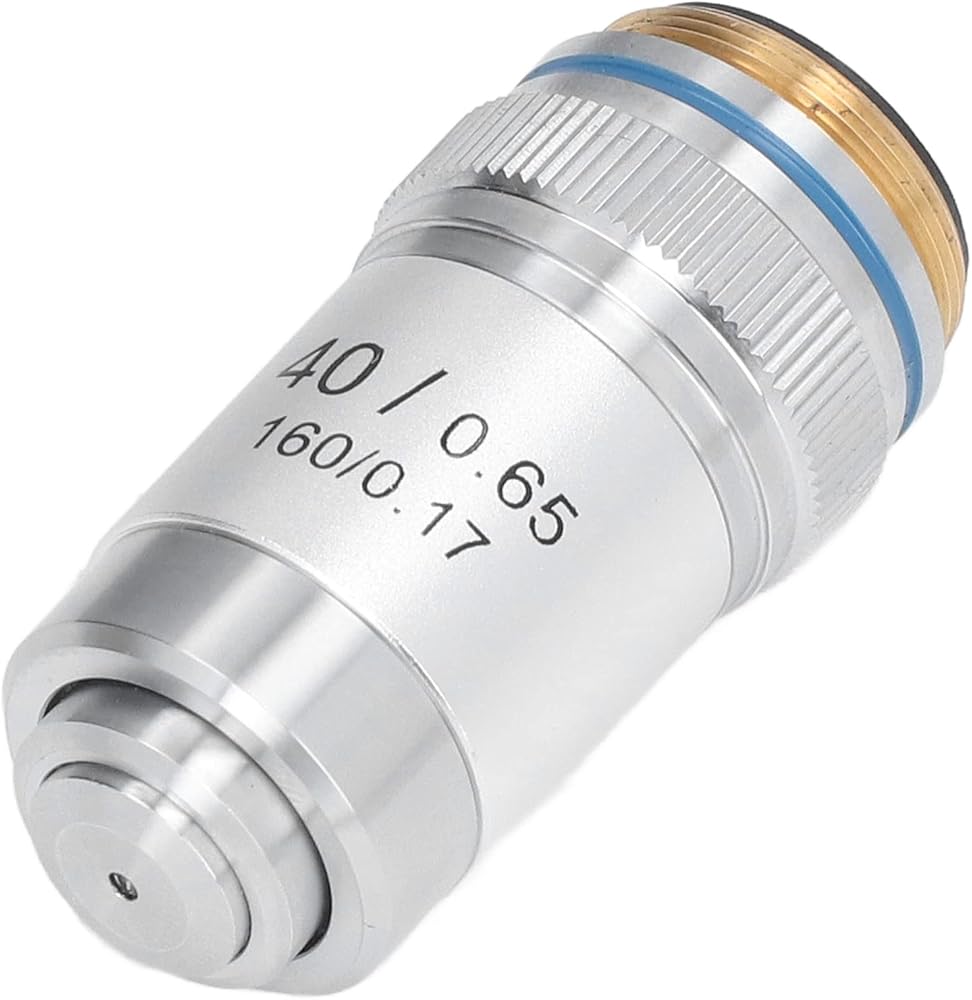

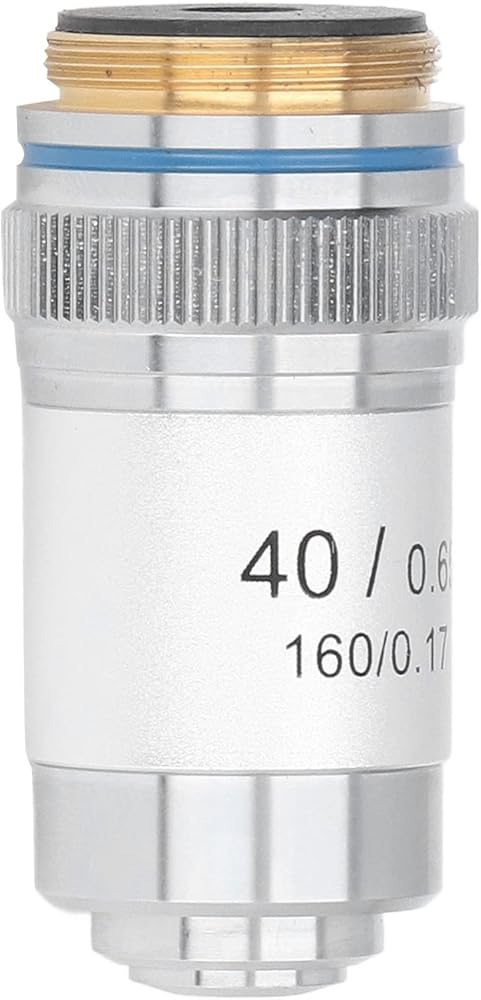

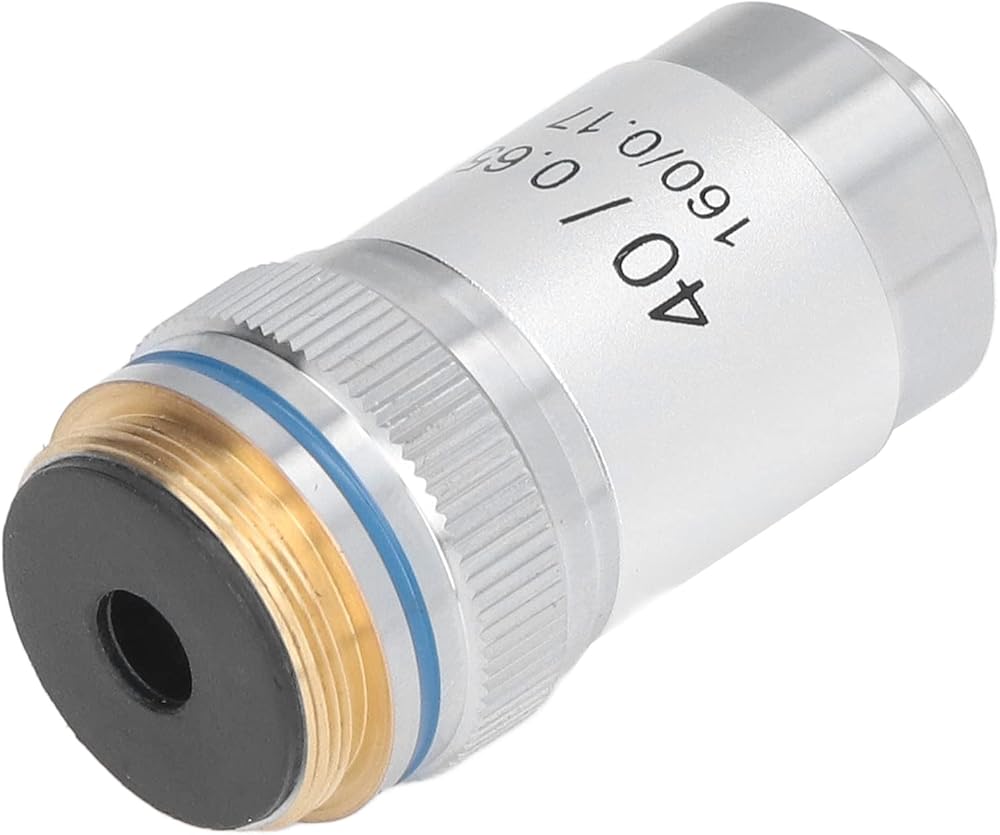

Item Type: Achromatic Microscope Objective
Model: 40/0.65
Material: Brass
Use: Microscope accessories

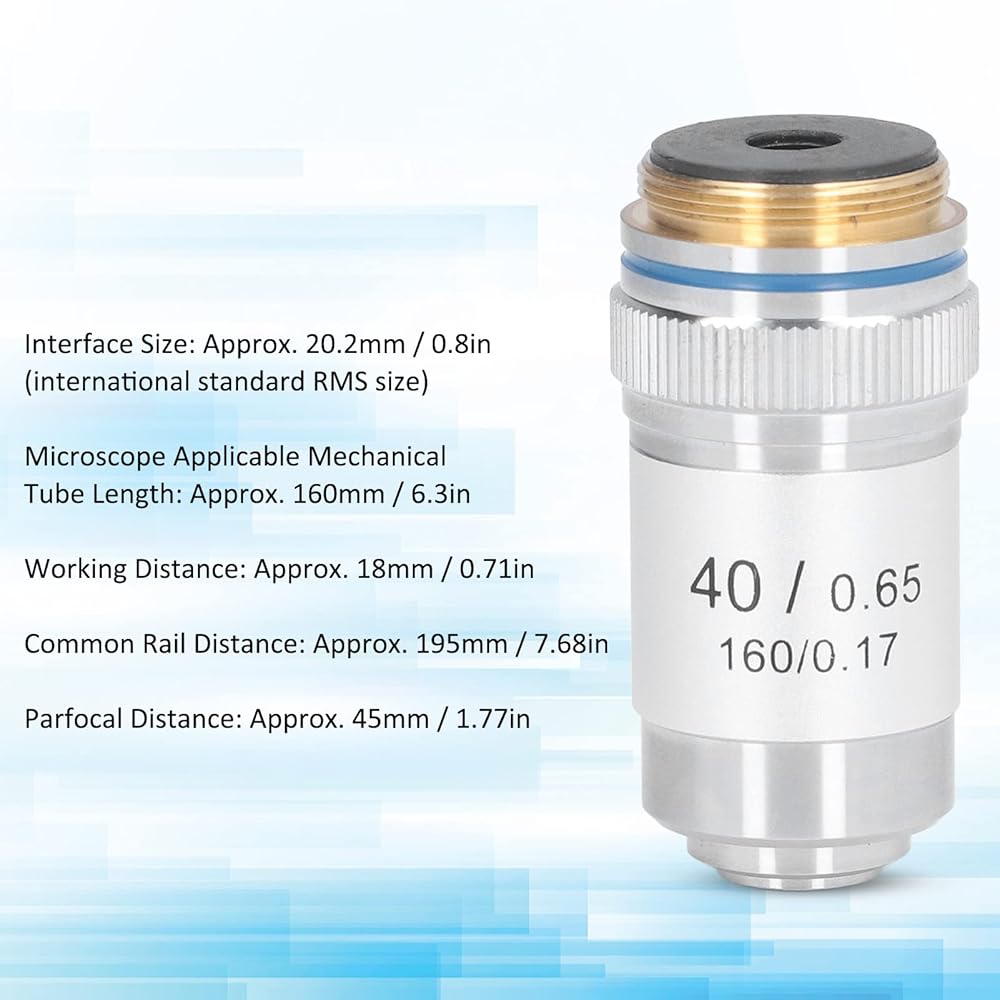

Interface Size: Approx. 20.2mm / 0.8in (international standard RMS size)
Numerical Hole Diameter: 0.65mm
Cover Glass Applicable Thickness: 0.17mm
Microscope Applicable Mechanical Tube Length: Approx. 160mm / 6.3in
Working Distance: Approx. 18mm / 0.71in
Common Rail Distance: Approx. 195mm / 7.68in
Parfocal Distance: Approx. 45mm / 1.77in
Spring: Yes(automatic rebound)

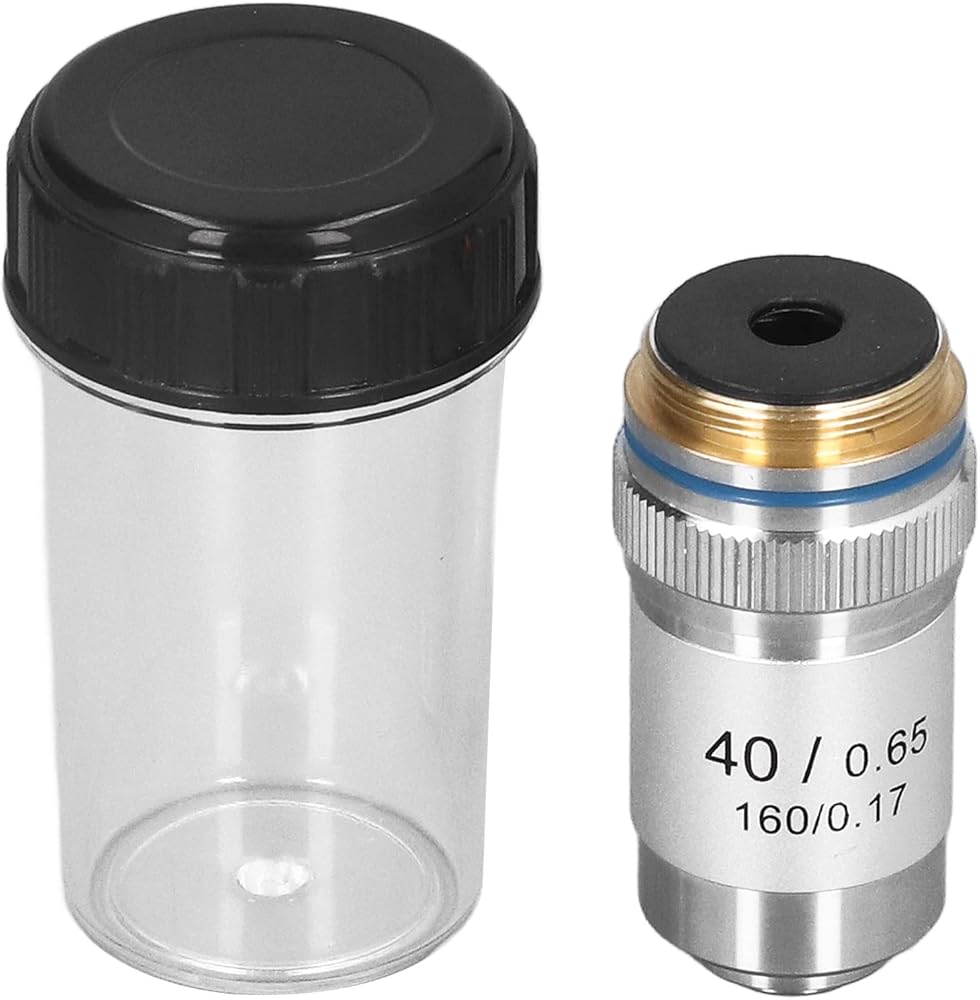

Package List:
1 x Lens
1 x Storage Box
