Industrial Motherboard B760 LGA1700 Processor(Core 12-14th Celeron/Pentium),M-ATX Computer Motherboards Support 4SATA3.0 MSATA M.2 NVME,5 * LAN (4i226-V+1 * i219V),2*DDR4 max 64GB,PCIE x 16 in Kuwait Industrial Motherboard B760 LGA1700 Processor(Core 12-14th Celeron/Pentium),M-ATX Computer Motherboards Support 4SATA3.0 MSATA M.2 NVME,5 * LAN (4i226-V+1 * i219V),2*DDR4 max 64GB,PCIE x 16 in Kuwait Industrial Motherboard B760 LGA1700 Processor(Core 12-14th Celeron/Pentium),M-ATX Computer Motherboards Support 4SATA3.0 MSATA M.2 NVME,5 * LAN (4i226-V+1 * i219V),2*DDR4 max 64GB,PCIE x 16 in Kuwait Industrial Motherboard B760 LGA1700 Processor(Core 12-14th Celeron/Pentium),M-ATX Computer Motherboards Support 4SATA3.0 MSATA M.2 NVME,5 * LAN (4i226-V+1 * i219V),2*DDR4 max 64GB,PCIE x 16 in Kuwait

Industrial Motherboard B760 LGA1700 Processor(Core 12-14th Celeron/Pentium),M-ATX Computer Motherboards Support 4SATA3.0 MSATA M.2 NVME,5 * LAN (4i226-V+1 * i219V),2*DDR4 max 64GB,PCIE x 16

KWD 74.500
ماركة
UDPTCP
فئة
– 1 +

مميزات خاصة

  • Intel Core 12-14th generation Celeron/Pentium LGA1700 processor, B760 chipset,Micro-ATX（245mm*210mm）.
  • 【Industrial NAS Motherboard 】2 * DDR4 3200MHz memory slot, supporting a maximum of 64GB on the entire board, DIMM. 4*SATA3.0 1 * MSATA (choose one of two interfaces with SATA1);1 *M.2 NVME| (PCIe 4.0 x 4);1 * PCI slot, 1 * PCIE x 16 slot, 2 * PCIE x 4 slot stable and ultra-fast transfer speed. 6*USB3.2 interface;1*USB 2.0 interface, 4 * USB2.0 2*5 pins,2 DB9 COM (COM1-2 supports RS232/485);4 COM 2 5Pin;1 F_AUDIO 2 5Pin (ALC897).
  • Fast and Stable Networking: Features 4*i226-V+1*i219V network RJ45 ports, ensuring stable and fast network connections, ideal for NAS storage, multimedia and network security appliances, etc. enhancing system reliability for professional use in both office and home settings
  • 【Warranty service】Suitable for Industrial Grade field, works up to 7x24 hours.The product is guaranteed for one year. If you have any questions, please feel free to contact us and we will reply to you within 24 hours.
  • Triple 4K monitors: This Micro-ATX board has HDMI and VGA , DP ports supports 4K@60Hz frequencies.

وصف

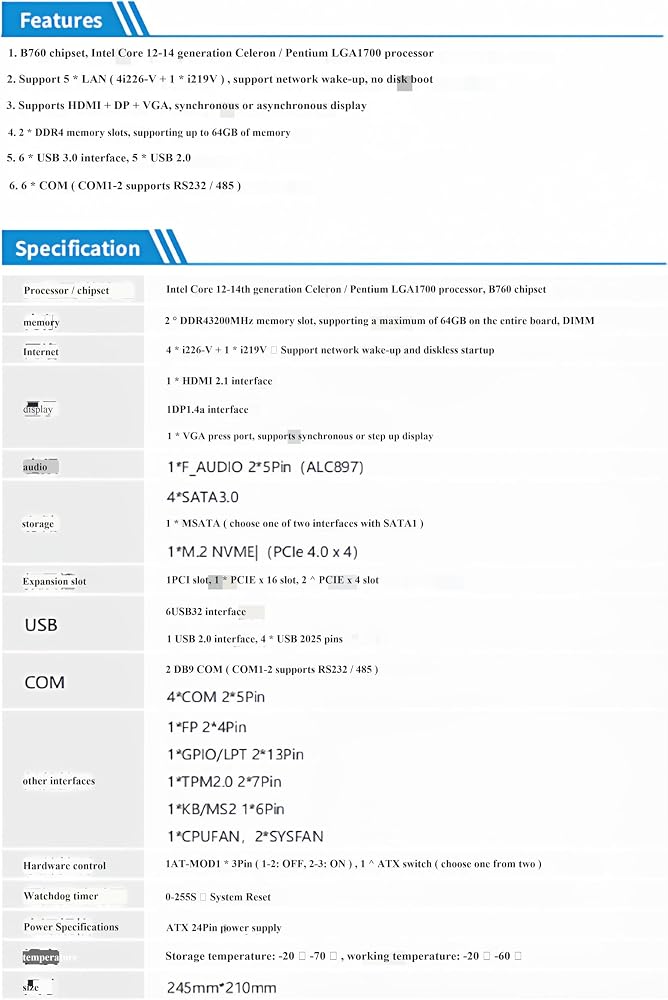

Specification
Processor/chipset:Intel Core 12-14th generation Celeron/Pentium LGA1700 processor, B760 chipset
Memory:2 * DDR4 3200MHz memory slot, supporting a maximum of 64GB on the entire board, DIMM
Internet:4*i226-V+1*i219V， Support network wake-up and diskless startup
Display:1 * HDMI 2.1 interface;1 * DP1.4a interface;1 * VGA press port, supports synchronous or step up display
Audio:1 F_AUDIO 2 5Pin (ALC897)
Storage:4*SATA3.0;1 * MSATA (choose one of two interfaces with SATA1);1 *M.2 NVME| (PCIe 4.0 x 4)
Expansion slot:1 * PCI slot, 1 * PCIE x 16 slot, 2 * PCIE x 4 slot
USB:6*USB3.2 interface;1*USB 2.0 interface, 4 * USB2.0 2*5 pins
COM:2 DB9 COM (COM1-2 supports RS232/485);4 COM 2 5Pin
Hardware control:1*AT-MODE 1 * 3Pin (1-2: OFF, 2-3: ON), 1 ^ ATX switch (choose one from two)
Watchdog timer:0-255S， System Reset
Power Specifications:ATX 24Pin power supply
Temperature:Storage temperature: -20 ℃ -70 ℃, working temperature: -20 ℃ -60 ℃
Size:245mm*210mm
