Specification:

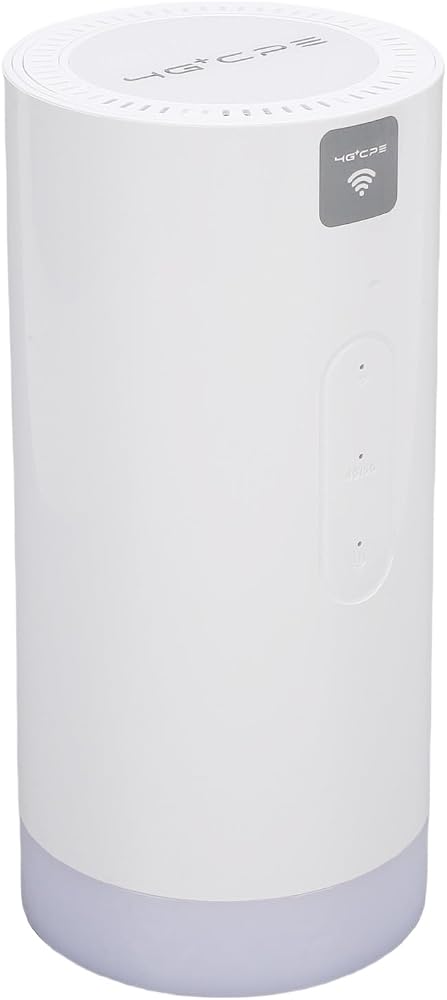

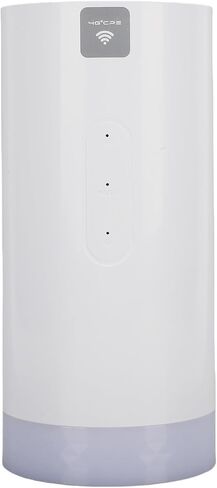

Item Type: 4G CPE CAT6 Router
Material: Plastic
Size: Approx. 200x95x92mm / 7.87x3.74x3.62in
SIM: MICROSIM x 1 (Without)
Battery: Lithium Cell 10000mAh (Built in)
Frequency Bands:
FDD: B1/B25(B2)/B3/B66(B4)/B26(B5/B18/B19)/B7/B8B/B12(B17)/B13/B20/B28/B71
TDD: B34/B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B8
EDGE: 850/900/1800/1900
CA with Frequency Band Aggregation Function:
B1+B3/B26(B5/B18/B19)/B7/B8/B20/B28
B2+BB2/B5/B12(B17)/B13/B28/B71
B3+B3/B5/B7/B8/B19/B20/B28
B4+B4/B5/B12(B17)/B13/B28/B71
B5+B5/B7/B40/B66
B7+B7/B8/B20/B28
B8+B38/B40/B41
B12+B66
B13+B66
B25+B25/B26
B26+B41
B40+B40
B41+B41
B66+B66/B71
Chipset: MT6631
: : 802.11 b/g/b/n/AC; 2.4G, 300Mbps, 5.8G, 866Mbps
Encryption: Protected Access TM (WPA/WPA2) 2
Parameter:
LTE FDD-TDD: Release9, Category 7, up to 300M DL and 86Mbps UL at 20MHz bandwidth
DC-HSPA+: Release9, up to 84.4Mbps DL, category 28; up to 11.5Mbps UL, category 7
HSPA+: Release10, up to 63.3Mbps DL, category 29; up to 11.5Mbps UL, category 7
HSPA: Release6, up to 7.2Mbps DL, category 7/8; up to 5.76Mbps UL, category 6
UMTS: Release4, up to 384Kbps DL and UL
EDGE: Release4, Multislot class 12, up to 237Kbps and 118Kbps UL
GPRS: Release4, Multislot class 10, up to 85.6Kbps and 42.8Kbps UL
Applicable Globally: Europe, Asia, Africa, South America, Latin America, Australia, Middle

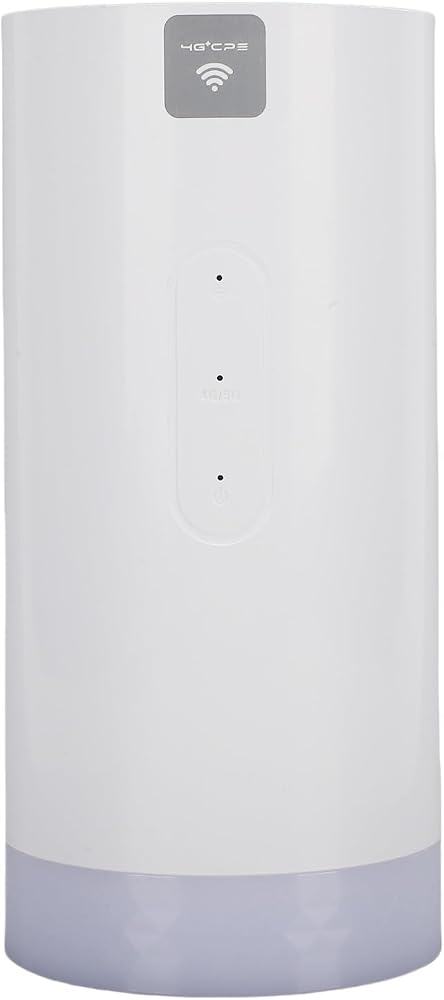

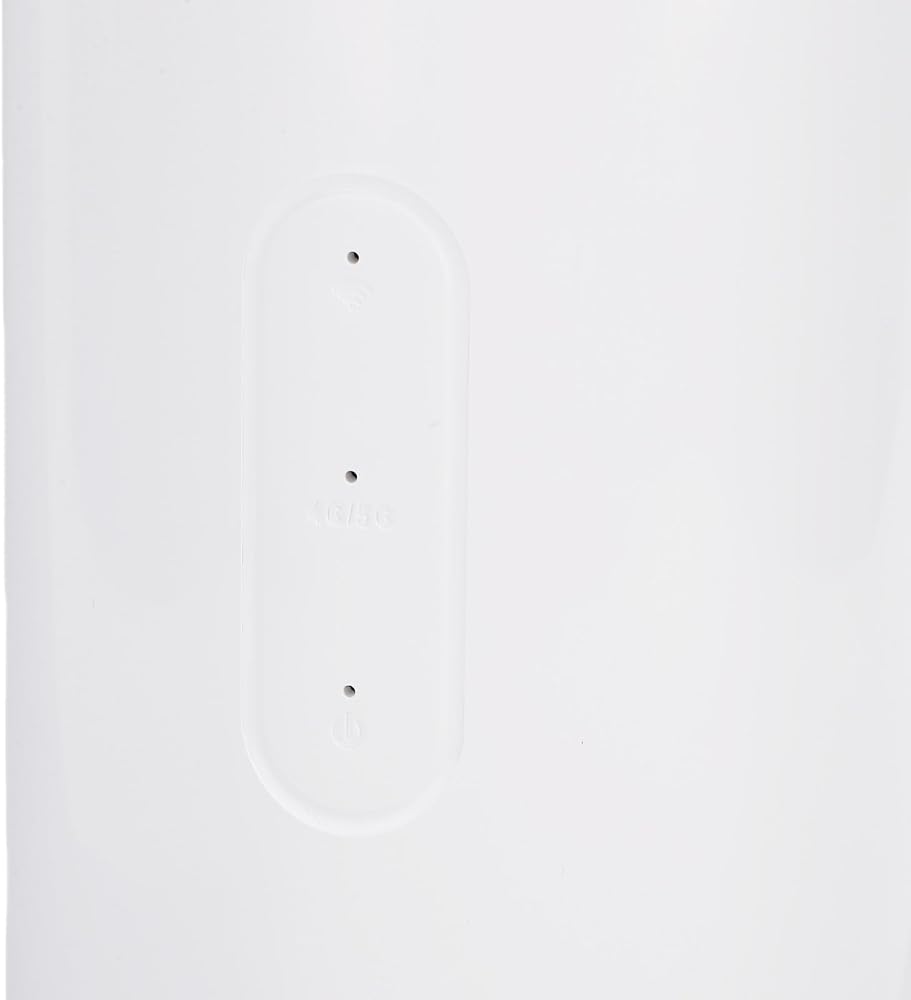

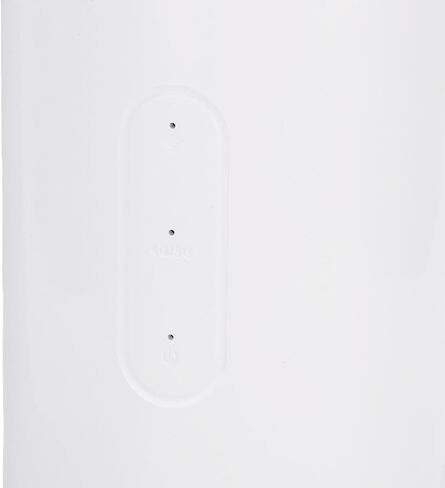

LED Indicator: LED indicator lights can intuitively display the working status of the device
Battery Level Indicator (White Light):
Battery Level ≤100%, White Light Flashing: Continuously on
Battery Level ≤75%, White Light Flashing: Continuously on
Battery Level ≤50%, White Light Flashing: Continuously on
Battery Level ≤25%, White Light Flashing: Continuously on
Indicator Light: Displays the current connection status
Network Signal Indicator: Displays the current network connection status (as described below)
Power Indicator Light: Displays the current power status (on or off)

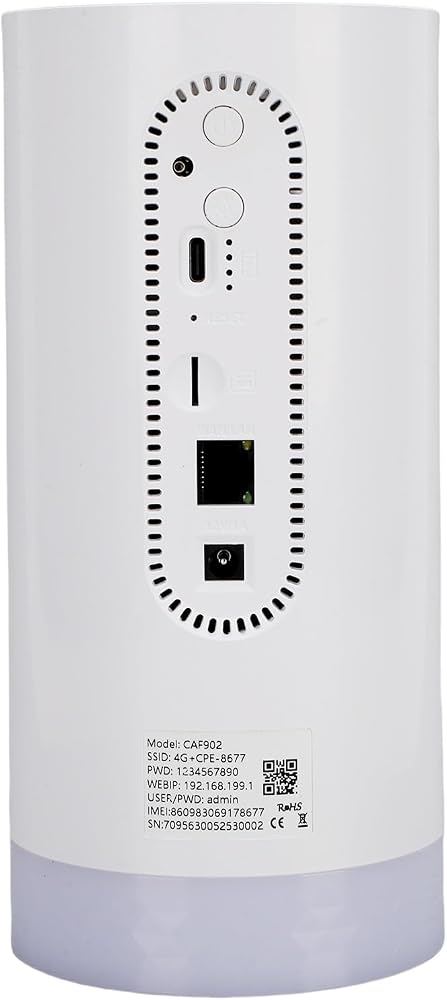

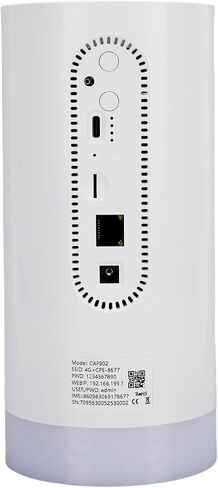

Power On/Off Button: Long press to turn on/off or wake up the device, (double click to switch between 2.4/5.8G )
Lighting Button: Turn on/off light and colored ambient light
Power On/Off: Charge the battery or connect to the computer

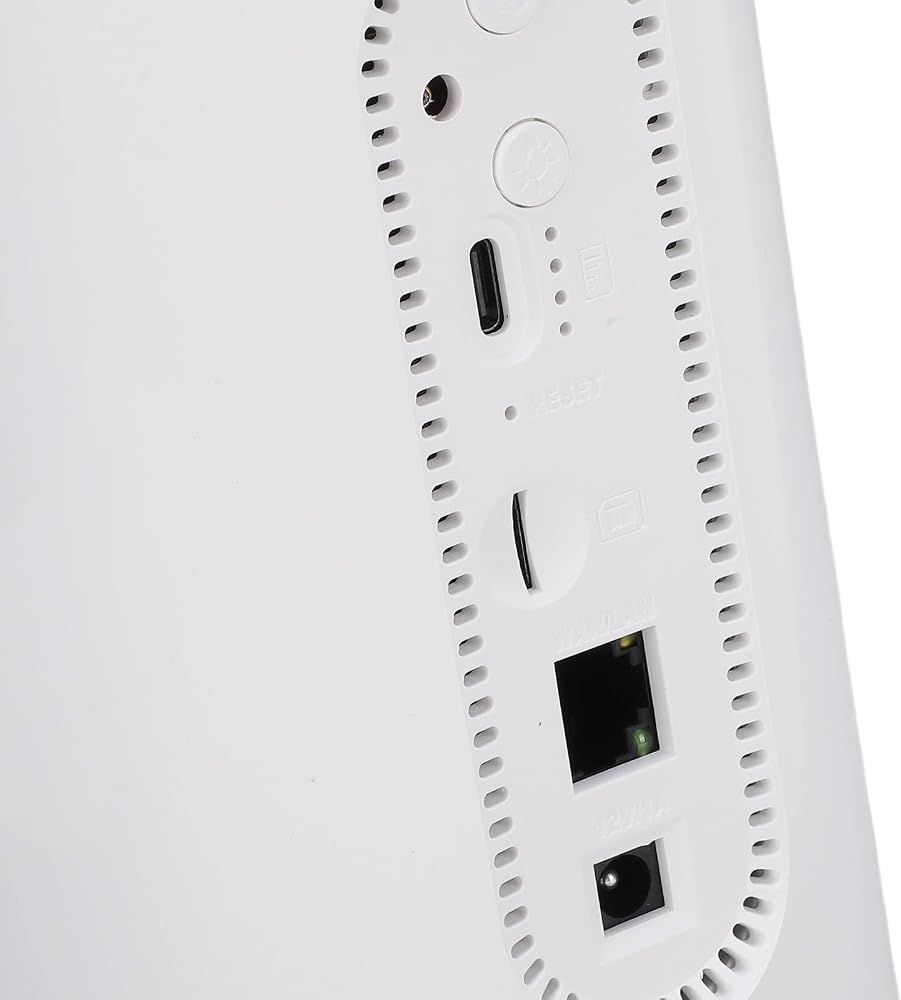

External Antenna Port (TS9): Expandable external antenna, enhance signal reception capability and environment
Battery Level Indicator: Displays the current battery level
Reset Button: Long press for 5 seconds to factory settings
SIM Card Slot: Please use a microSIM card
RJ45 Ethernet Port: Connect the computer through the LAN cable to access the Internet
DC Port: DC power supply/charging (or C type power supply) 12V 1A
Weight: Approx. 855g / 30.16oz

How to Use:
Backend Configuration
Log in to the WEB management interface
Please follow the steps below to log in to the management interface:
1. Ensure that the connection between your computer's and the device is working properly.
2. Open a web browser and enter router IP address in the address bar. If the IP conflicts with other IP addresses in the network, the device will automatically update the IP address.
3. Enter the login password to access the management interface. The default username and password are admin.

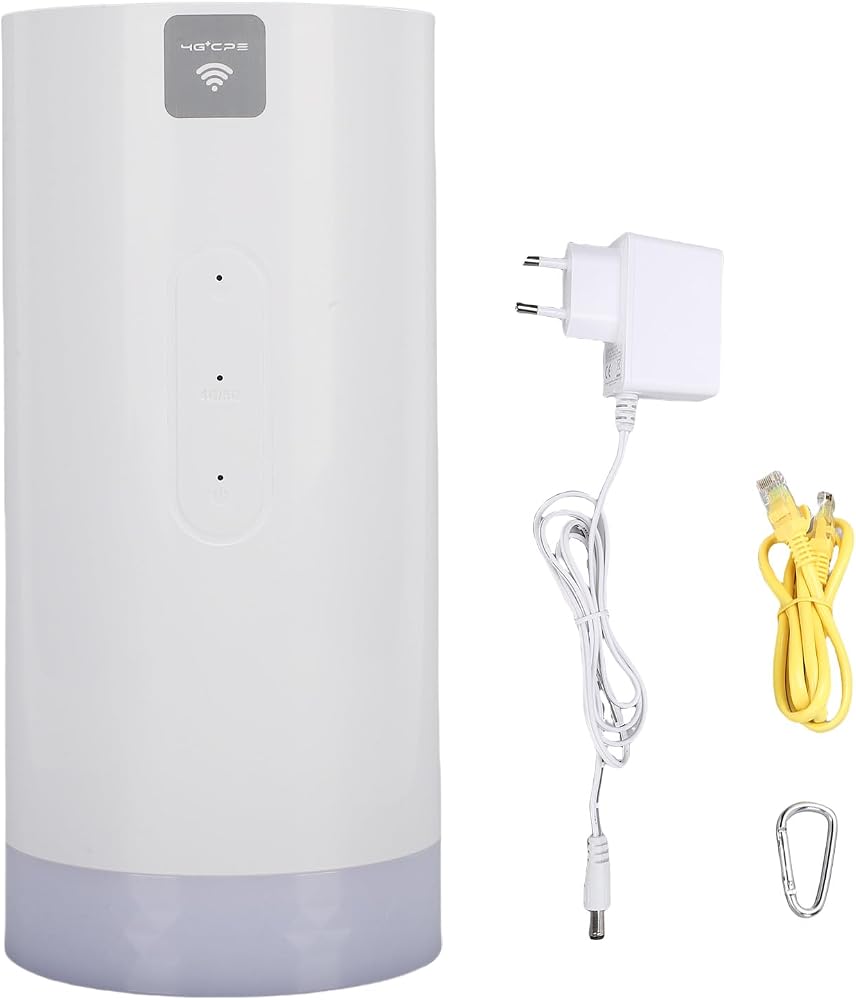

PackageList:
1 x Adapter
1 x User Manual
1 x Hanging Buckle
1 x Network Cable
1 x 4G CPE CAT6 Router (Without SIM Card, Built in Battery)

Note:
The connection process depends on the system of each device, please follow the prompts to operate.
