2 قطعة HU-M28 24 دبوس ATX جهاز كمبيوتر شخصي مكتبي هيكل الكمبيوتر نقل الطاقة مجلس 12 فولت 5 فولت 3.3 فولت in Kuwait 2 قطعة HU-M28 24 دبوس ATX جهاز كمبيوتر شخصي مكتبي هيكل الكمبيوتر نقل الطاقة مجلس 12 فولت 5 فولت 3.3 فولت in Kuwait 2 قطعة HU-M28 24 دبوس ATX جهاز كمبيوتر شخصي مكتبي هيكل الكمبيوتر نقل الطاقة مجلس 12 فولت 5 فولت 3.3 فولت in Kuwait 2 قطعة HU-M28 24 دبوس ATX جهاز كمبيوتر شخصي مكتبي هيكل الكمبيوتر نقل الطاقة مجلس 12 فولت 5 فولت 3.3 فولت in Kuwait 2 قطعة HU-M28 24 دبوس ATX جهاز كمبيوتر شخصي مكتبي هيكل الكمبيوتر نقل الطاقة مجلس 12 فولت 5 فولت 3.3 فولت in Kuwait 2 قطعة HU-M28 24 دبوس ATX جهاز كمبيوتر شخصي مكتبي هيكل الكمبيوتر نقل الطاقة مجلس 12 فولت 5 فولت 3.3 فولت in Kuwait

2 قطعة HU-M28 24 Pin ATX جهاز كمبيوتر شخصي مكتبي هيكل الكمبيوتر نقل الطاقة مجلس 12 فولت 5 فولت 3.3 فولت

KWD 4.500

الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

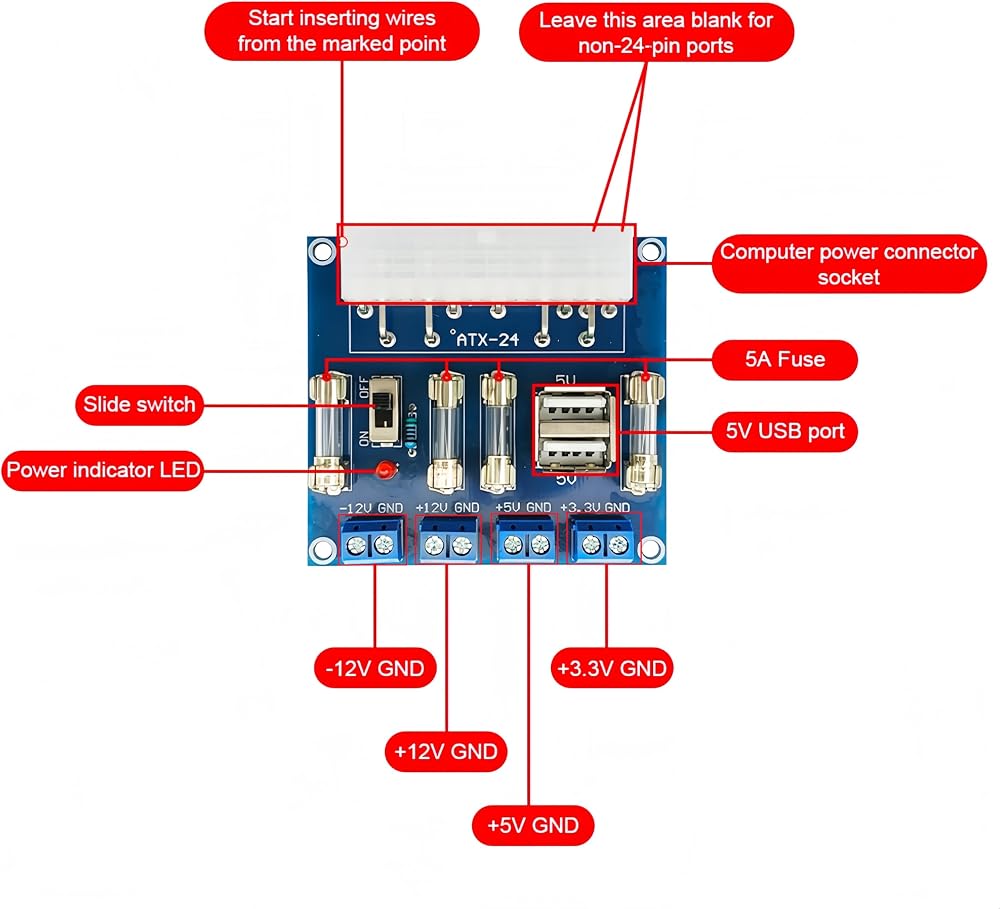

  • Compatible with the port: ATX (compatible with partial BTX type)
  • Number of sets of output four sets of different voltages
  • Pin number is 24 pin, with power light, power switch and 5V USB port

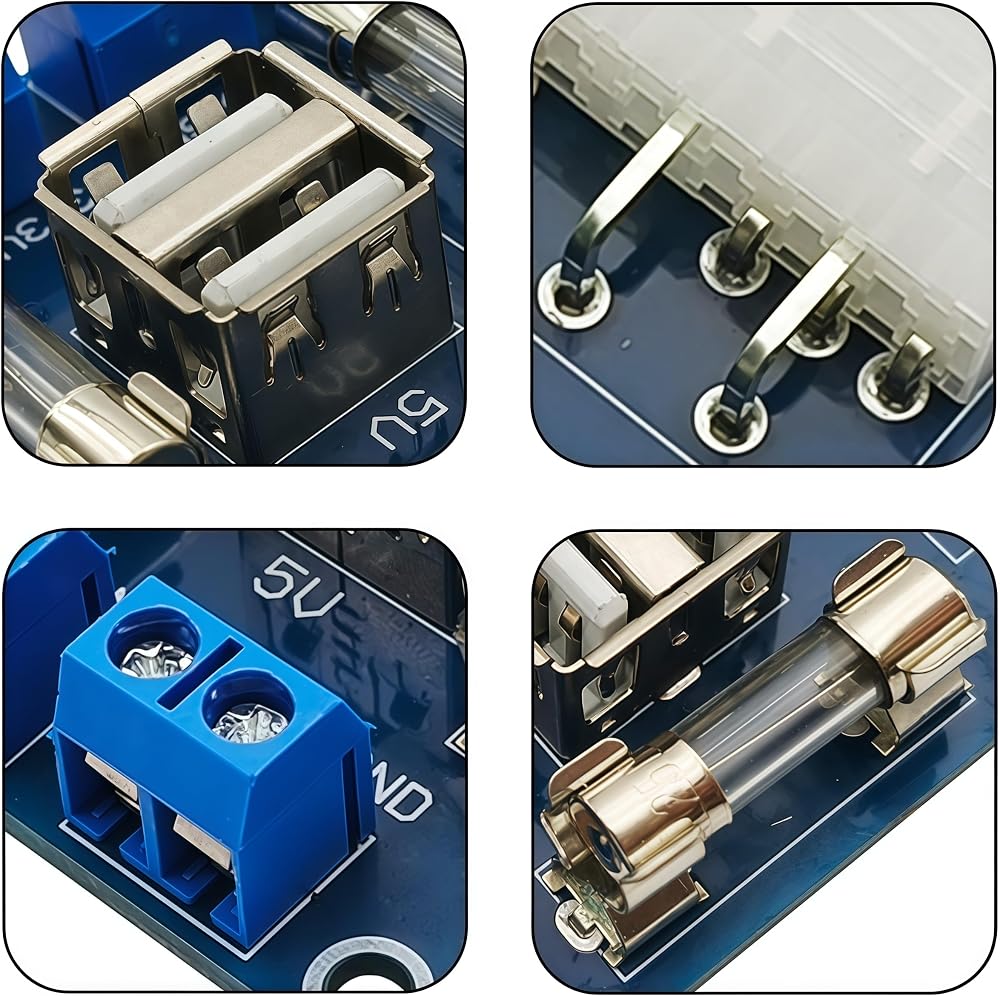

  • Size is 68*63mm, Weight is 34g. Each output channel has replaceable 5A fuse and corresponding ground connection with binding post easy to connect
  • Please note that if the power supply is a 20PIN port, if it is not a 24PIN port, the socket should be inserted from the circular mark on the circuit board.

وصف

Please note that if the power supply is a 20PIN port, if it is not a 24PIN port, the socket should be inserted from the circular mark on the circuit board.

Name: ATX Power Supply Transfer Board
Type: HU-M28 ATX-24
Compatible port: ATX (compatible with partial BTX type)
Number of PINs: 24PIN
Switch: Yes
Number of output groups: Four different voltages

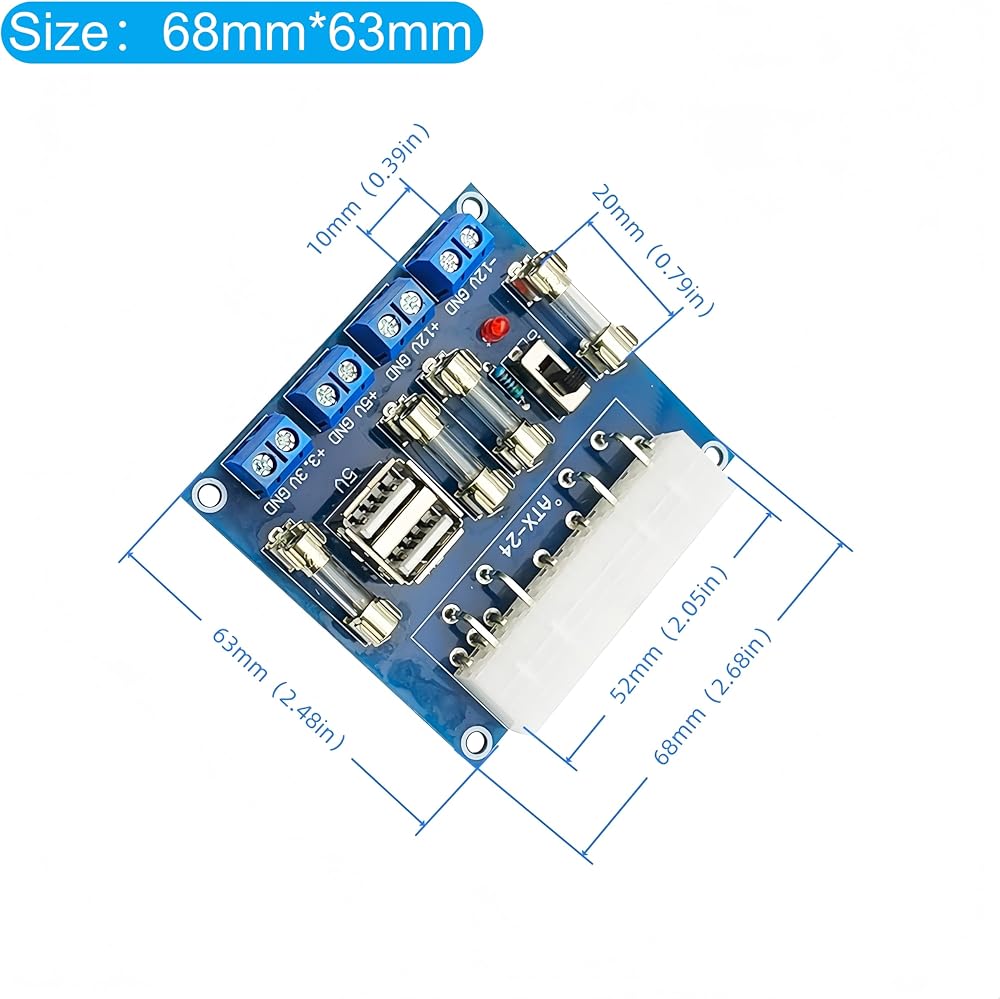

Size: 68*63mm
Hole spacing: 62*57mm
Installation hole diameter: 3mm
Weight: 34g

About the 24pin port:
The 24pin port powers the computer motherboard in the host computer. Usually, this port is used together.
Voltage description of each terminal:
-12V to GND, GND is positive, -12V is negative, voltage DC12V
+12V to GND, +12V is positive, GND is negative, voltage DC12V
+12V to -12V, +12V is positive, -12 is negative, voltage DC24V
+5V to GND, +5V is positive, GND is negative, voltage DC5V
+3.3V to GND, +3.3V is positive, GND is negative, voltage DC3.3V
Note it is not recommended to carry high current loads with 12V terminals. They only provide a logic potential to the motherboard, usually with a current of around 300MA
