مميزات خاصة

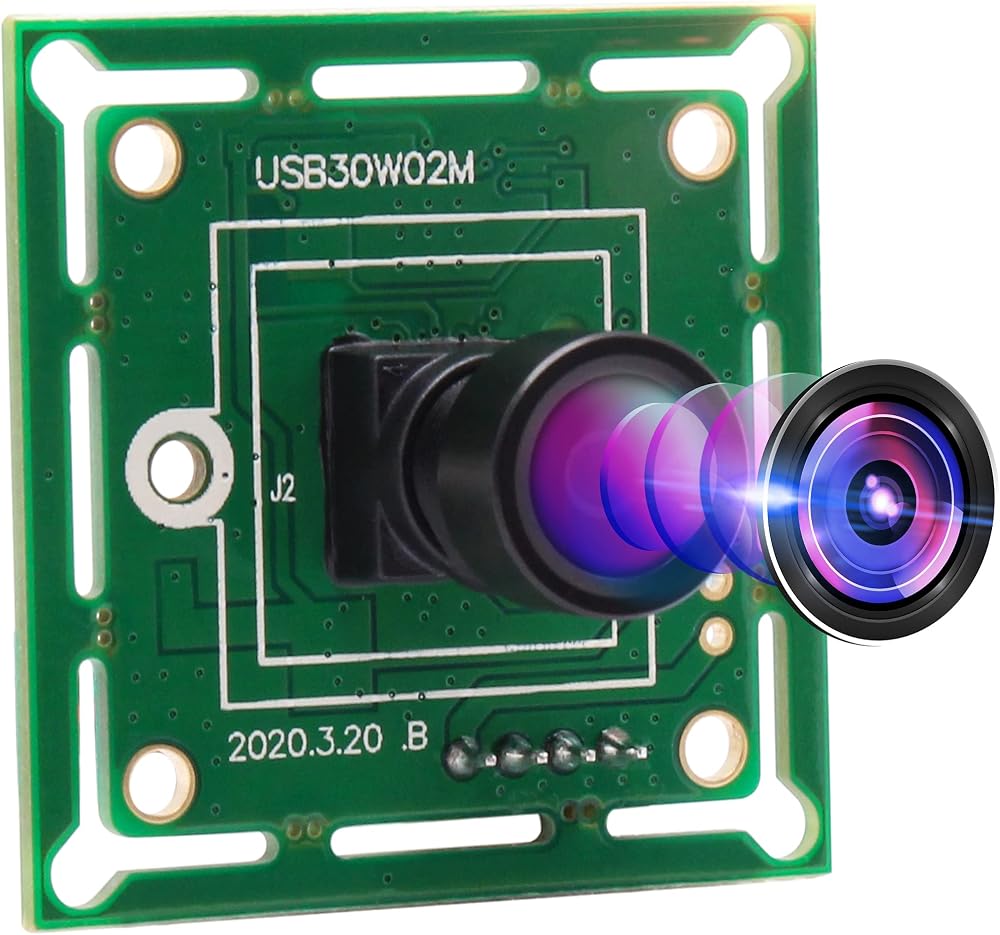

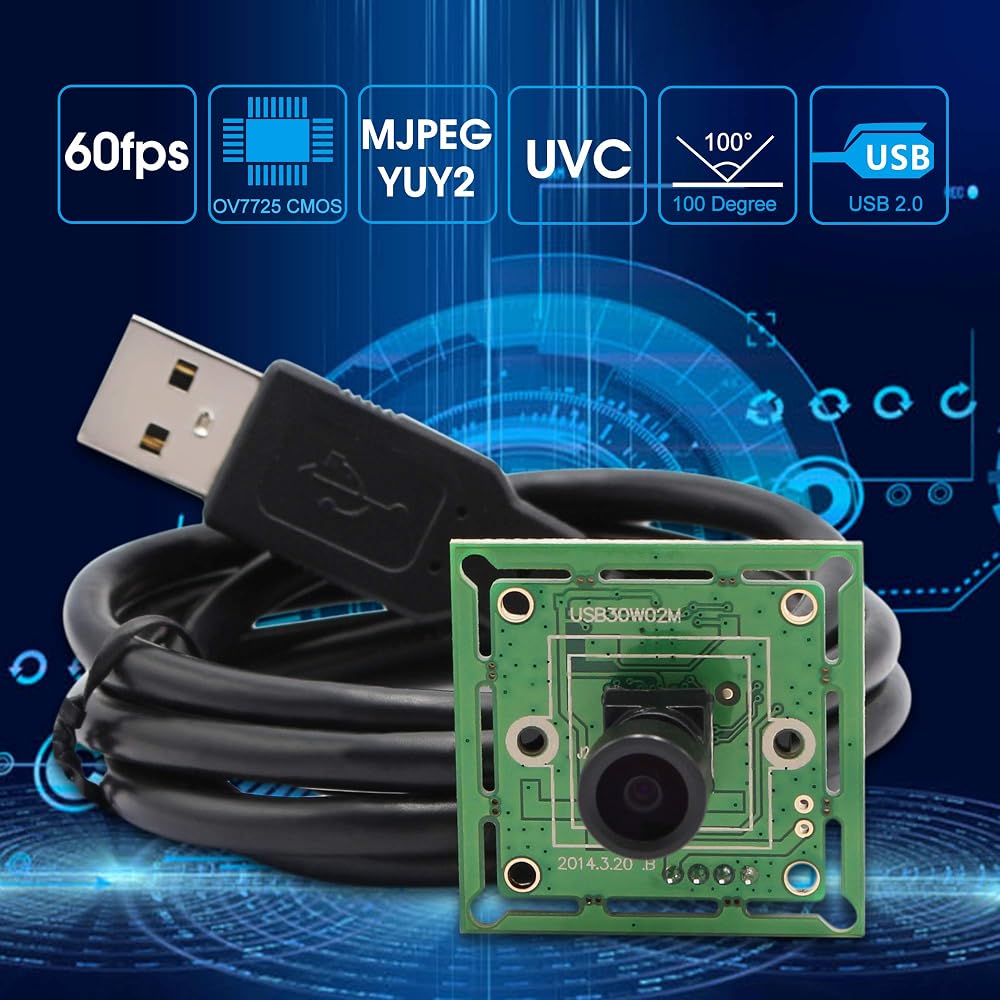

100 degree M7 Lens Wide Angle Usb Camera Module:Webcamera_usb Usb camera module with 100 degree M7 lens wide angle lens,0.3MP VGA usb cameras can meet most capturing and video requirements, 480p camera module usb with cmos ov7725 image sensor,Equipped with 1 meter usb cable, Support otg optional.
480P USB WEBCAM Module:The streaming camera module provides incredibly sharp 480p to capture crystal clear images and records 480p@60fps video.Small outlets,can embedded in most os,used for all kinds of machine as below: machinery equipment,all-in-one machine,POS equipment,STB,smart box TV BOX,advisement player,LED display,automatic vending machine,safety box,notebook,video door phone,MID,Tablet external,evaluator,Medical Equipment,on-the-spot law enforcement,etc.

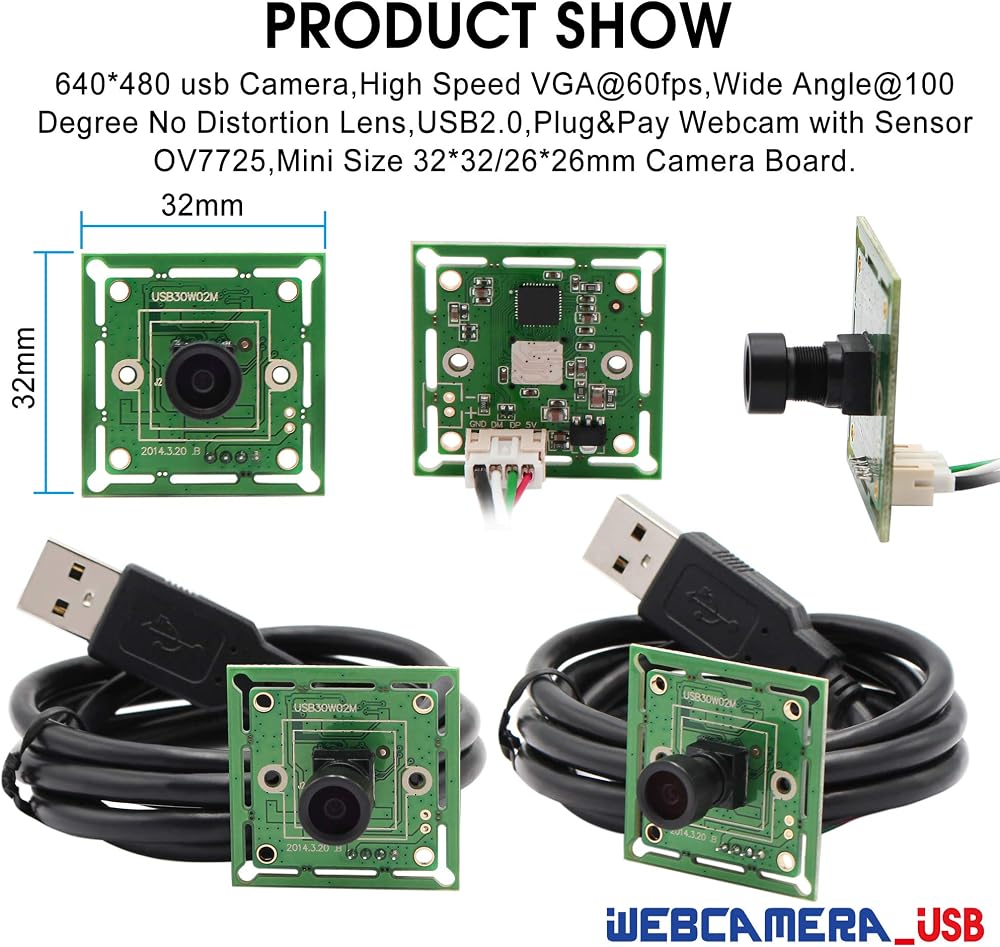

High Frame Rate 480P@60fps USB Camera Module Mini Webcam Module:High quality cmos ov7725 image Sensor for high quality image,0.3 Megapixel,Max resolution:640*480P,High frame rate 480P@60fps,Compression format :MJPEG/YUV2(YUYV),White balance Function:Excellent indoor and outdoor effects,vivid colors. Usb 2.0 high speed mini size 32x32/26x26mm for small space insert.
MJPEG/YUY2 Compression Format Web Cam Module: Webcamera_usb USB camera module with MJPEG/YUY2 compression format help to save more storage space,streaming with less demand on your computer provides faster and smoother video uploading.480P 0.3megapixel usb camera module,wide application for most project.

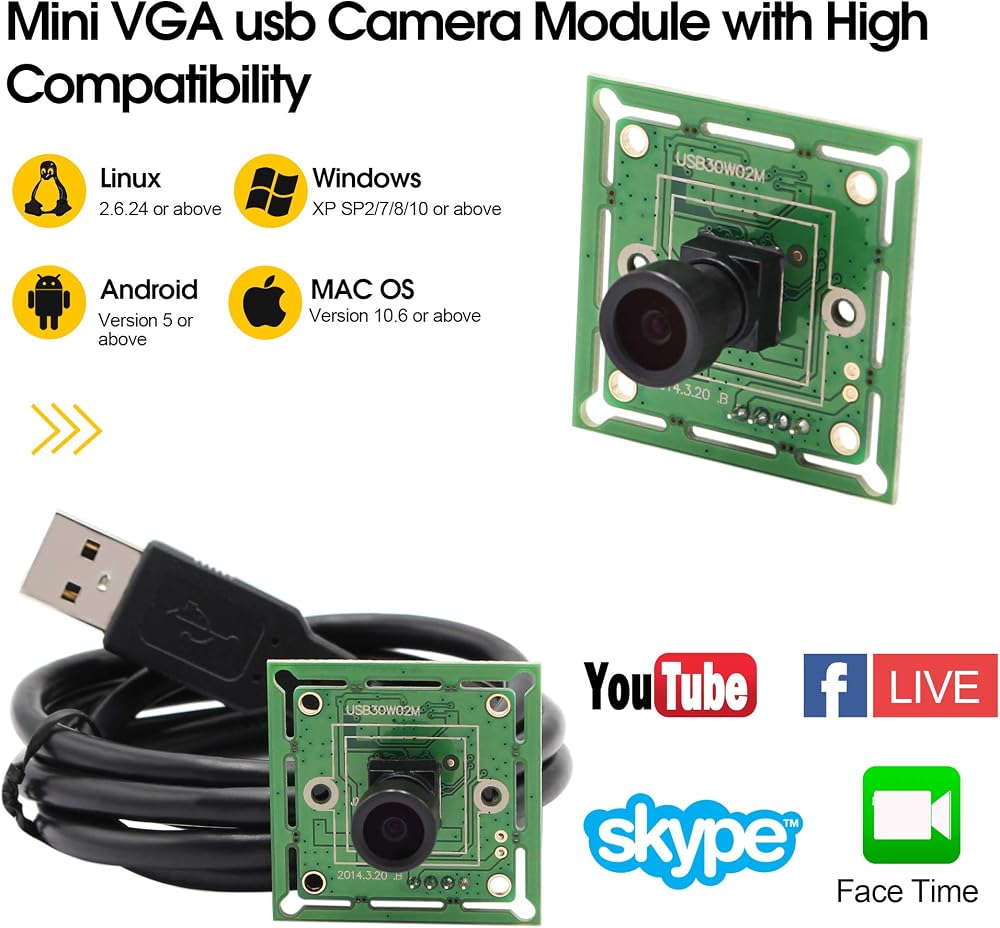

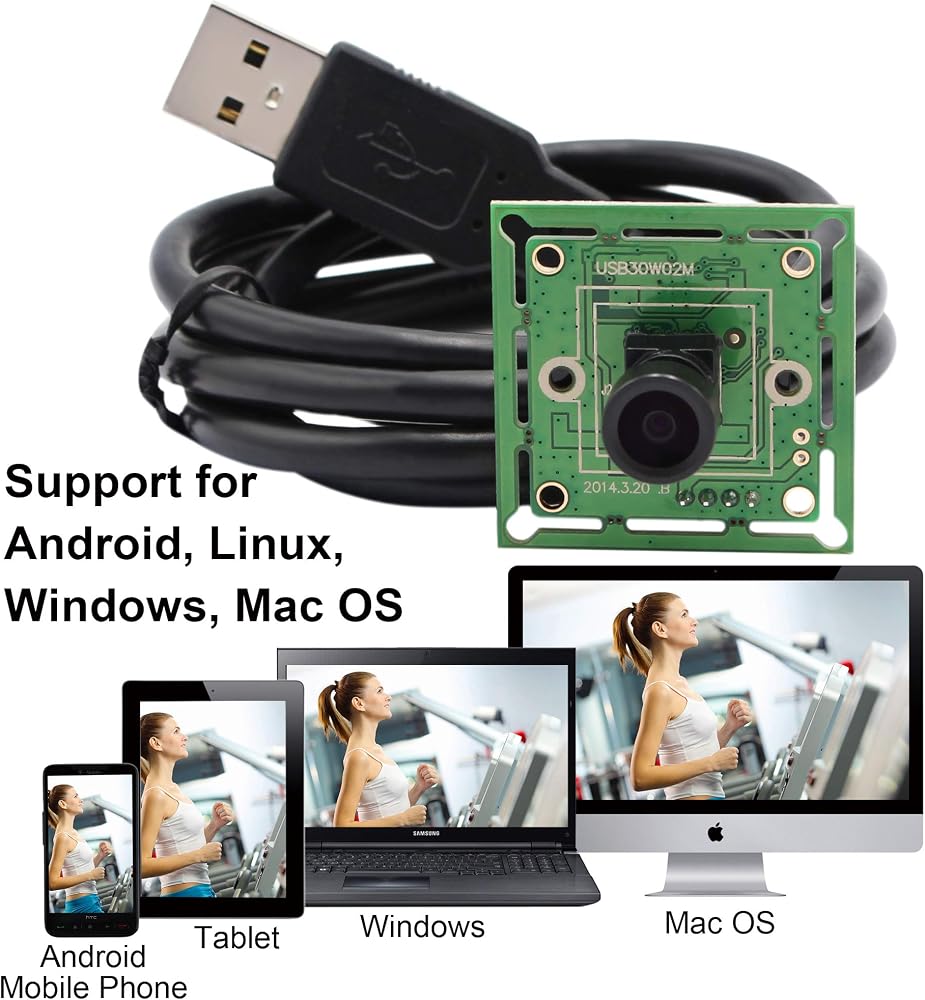

Plug and Play&UVC Compliant Usb Camera Module：Usb camera mini webcam module with UVC compliant for use in most OS: Windows,Linux,Android,Mac,etc,Operation System Request:Win8 or above,Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later,Android 4.0 or above with UVC.

وصف

Specification:

Sensor OV7725
Lens Size 1/4 inch
Pixel Size 6.0um X 6.0um
image area 3984 µm x 2952 µm
Max. Resolution 640(H)X480(V)
Compression format: MJPEG / YUV2（YUYV）

Resolution & frame:
640X480 MJPEG@ 60fps YUY2@ 30fps
480X480 MJPEG@ 30fps YUY2@ 30fps
450X450 MJPEG@30fps YUY2@ 30fps
352X288 MJPEG@ 30fps YUY2@ 30fps
320X240 MJPEG@30fps YUY2@ 30fps
240X240 MJPEG@ 30fps YUY2@ 30fps
S/N Ratio 50dB
Dynamic Range 60dB
Sensitivity 3.8V/lux-sec@550nm
Mini illumination 0. 2Lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB2.0 High Speed
Free Drive Protocol USB Video Class（UVC） AEC Support
AEB Support
AGC Support

Adjustable parameters:
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma
White balance, Backlight Contrast, Exposure
Night vision Need to equipped IR Sensor Lens and IR LED Board
LED board power connector Support 2P-2.0mm socket
Power supply USB BUS POWER 4P-2.0mm socket
Power supply DC5V
Operating Voltage 100mA~160mA
Working current -10～70℃
Working temperature -20～85℃

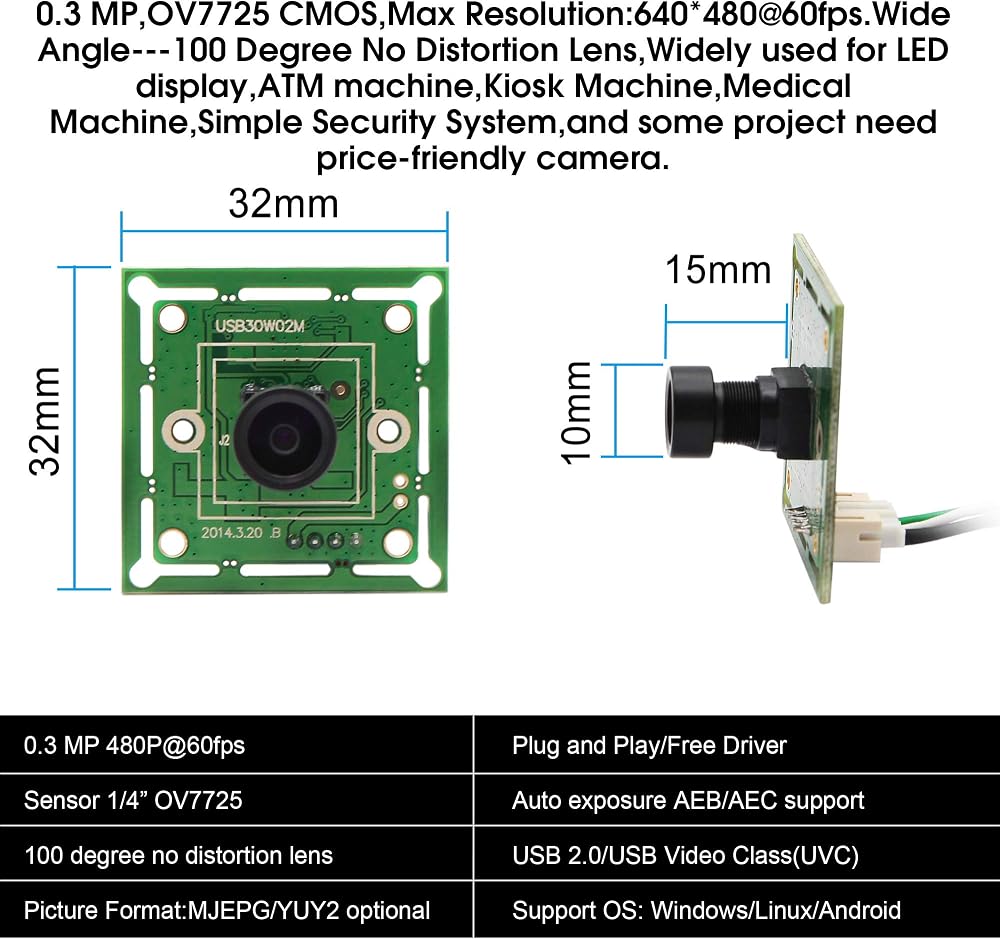

Board size /Weight 32X32mm（Compatible 26X26mm）/ about 30g
Cable Standard 1M
Operating system request WinXP/Vista/Win7/Win8, Linux with UVC
（above linux-2.6.26), MAC-OS X 10.4.8 or later,Wince with UVC, Android 4.0 or above with UVC
