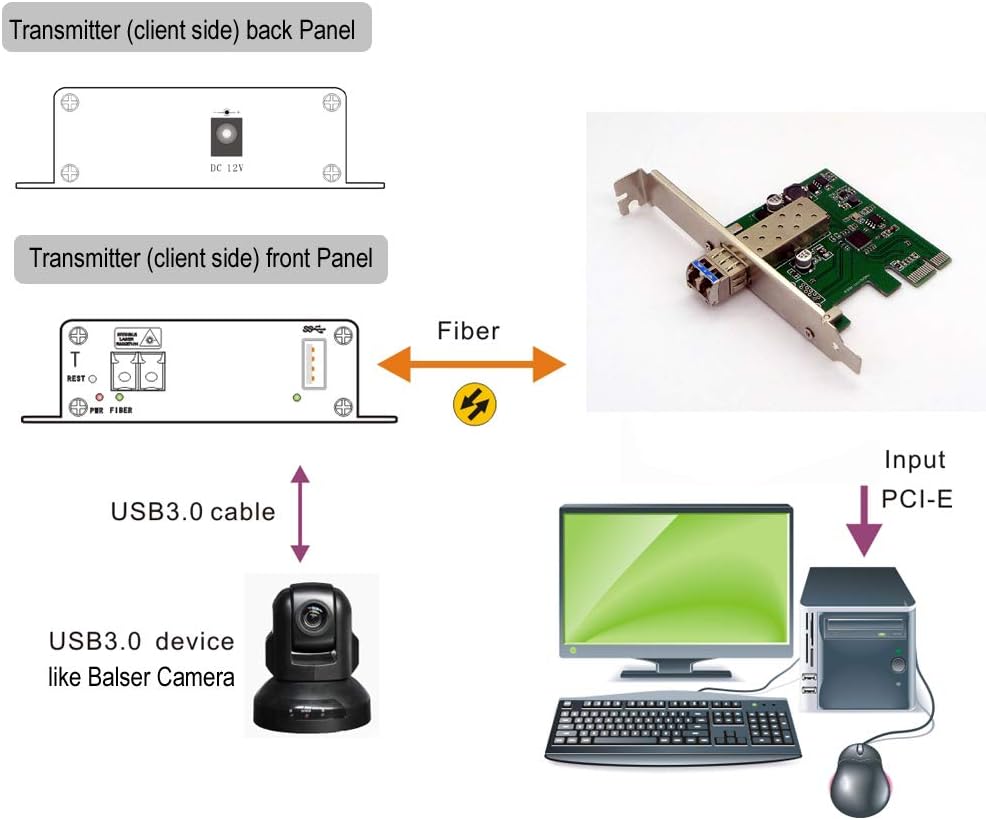

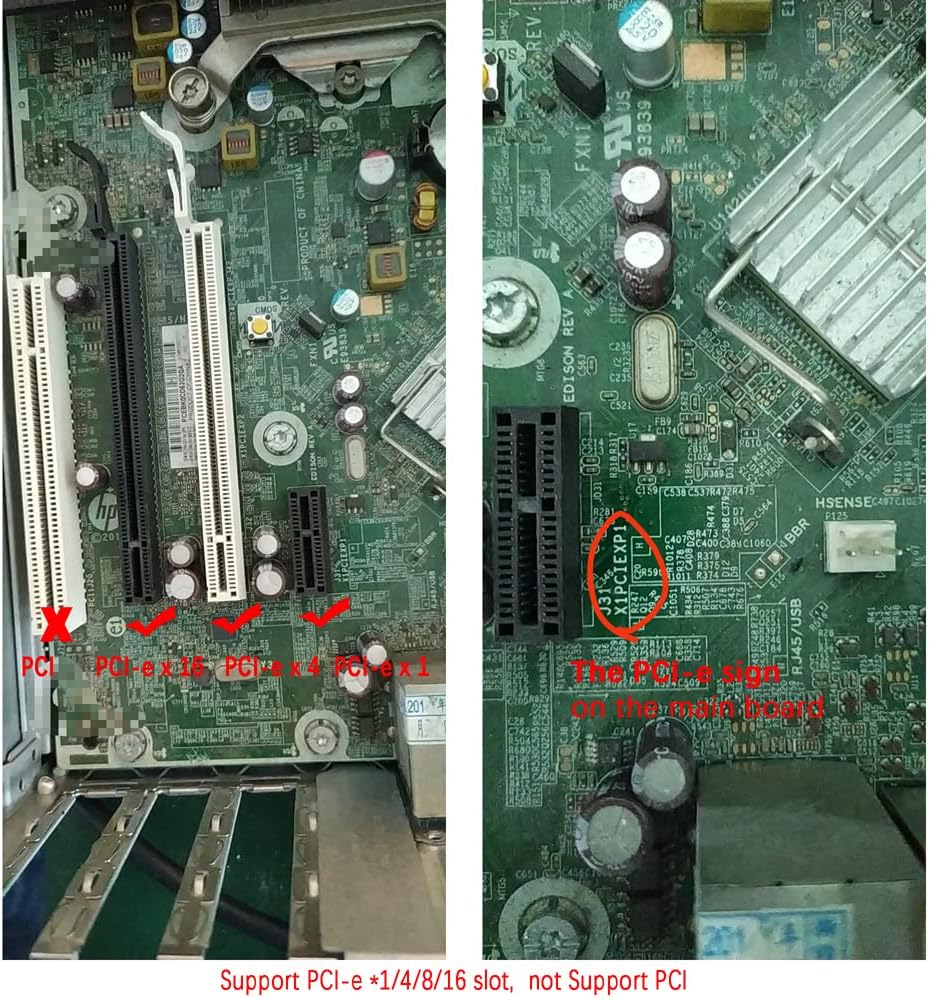

USB 3.0 PCI-E extension card Over optical Fiber BY-PUSB-729DF includes a transmitter（client-side）and a PCI-E to USB 3.0 fiber expansion card（host-side）which is installed in the PCIe sloExts in the host computer. it can extend the Super Speed USB 3.0 to a remote location over 2 core Single-mode fiber cable, max distance 250 Meters (820 FT)

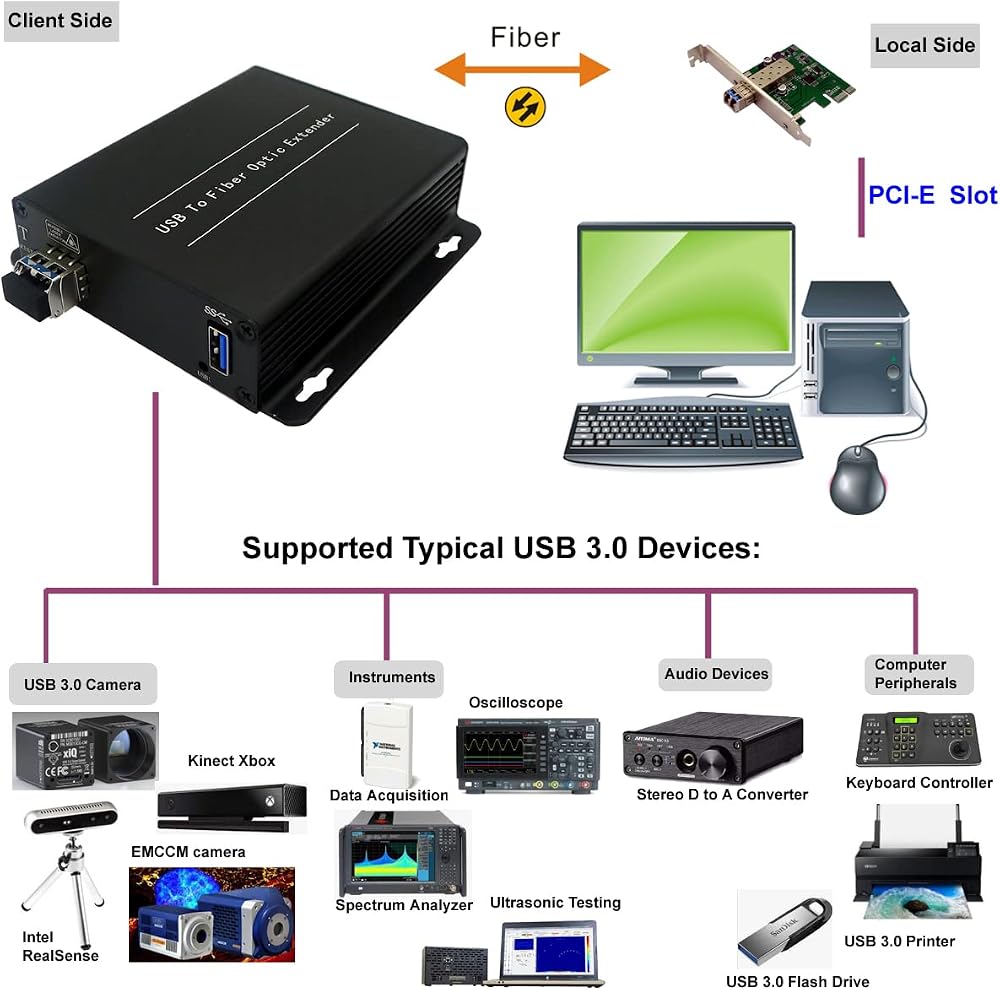

Supported Typical USB 3.0 Devices
1). USB 3.0 Camera:
Intel RealSense, XiQ USB 3.0 Camera, Kinect Xbox, Kinect Azure, EMCCM camera etc
2). Instruments:
Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing, Telescope etc
3). Aduio Device:
Stereo D to A Converter etc
4). Computer Peripherals:
Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc
5.) Others
Specs:
Optical Connector: 2 x LC
Wavelength: 1310nm
Support Single-mode Fiber type: 9/125μm
Physical Size (L× W ×H):
1).Client unit: 104 mm x104 mm x28 mm

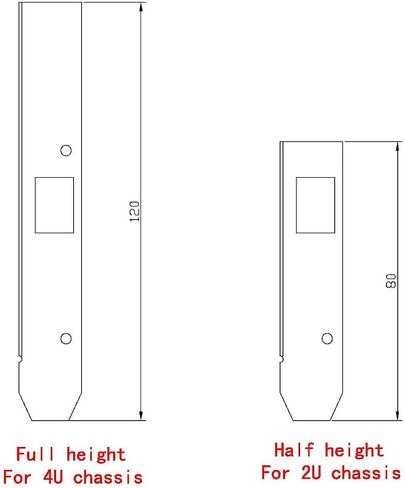

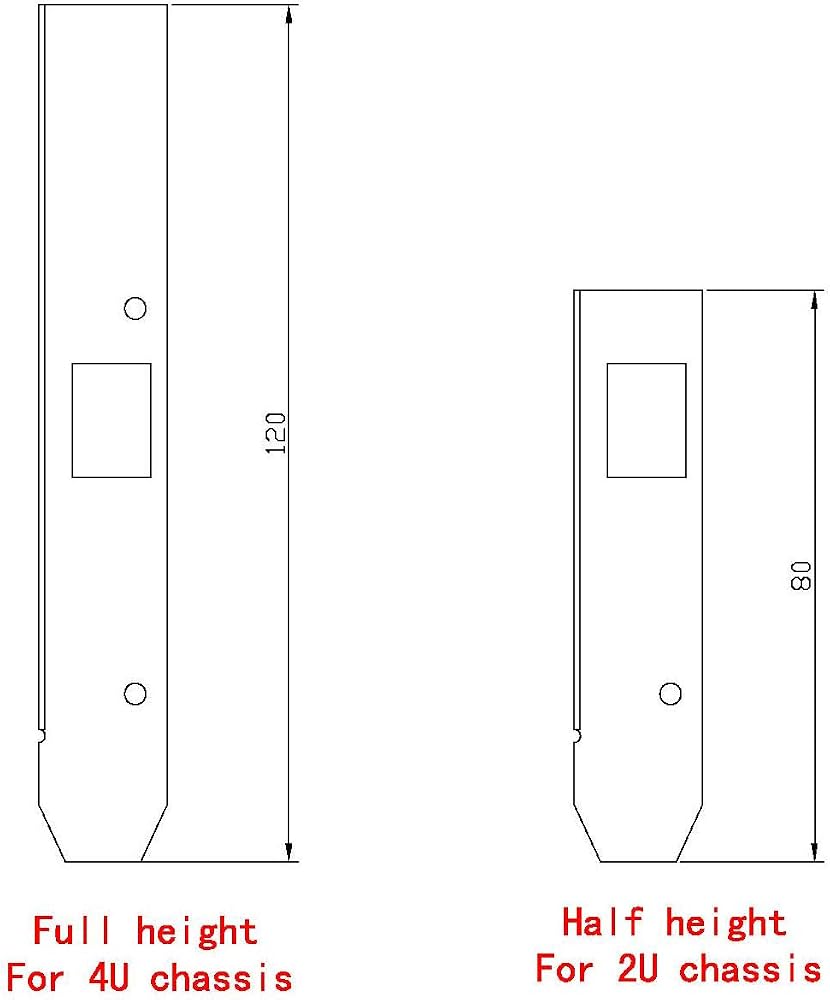

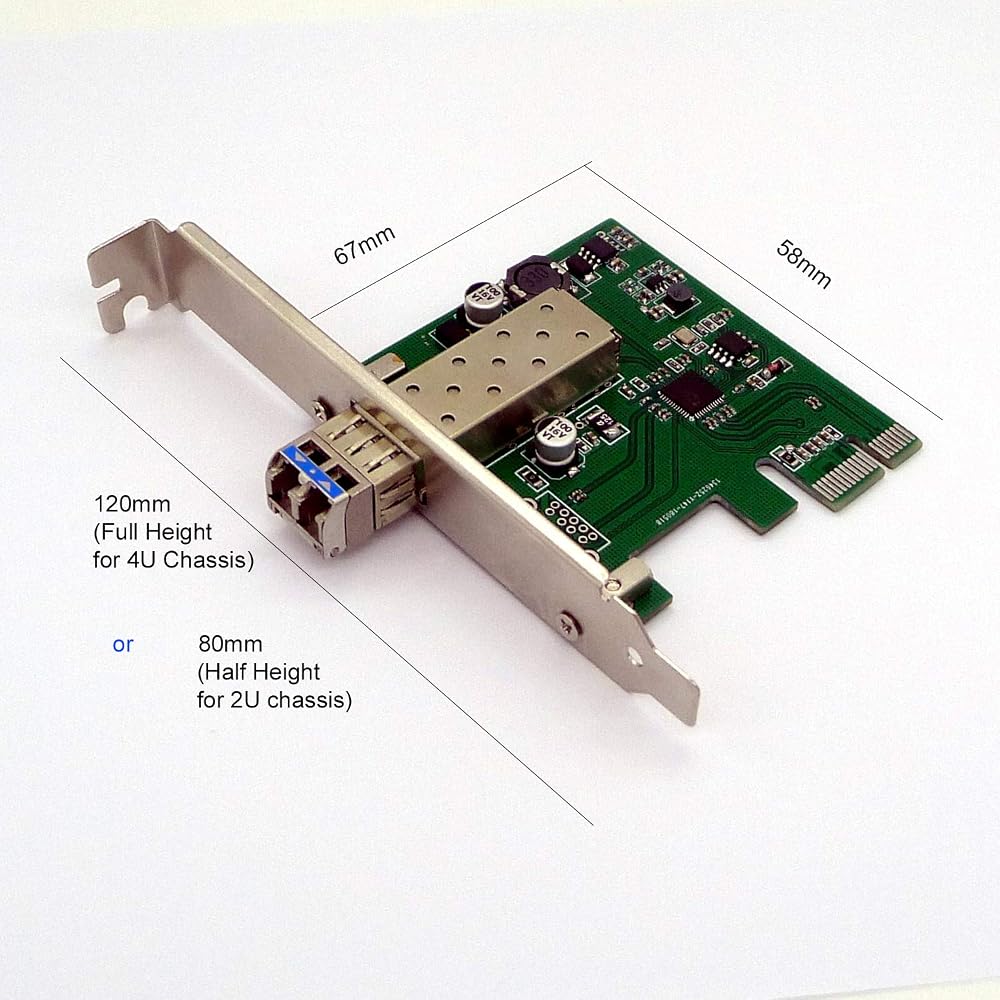

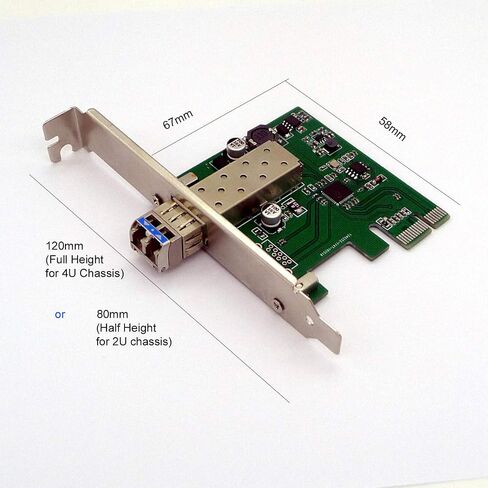

2) The Card at Host: 120 mm (for 4U chassis)x 67 mm x 58 mm; 80 mm (for 2U chassis)x 67 mm x 58 mm;
Case material:Aluminum
Color:Black
N.W.:0.5Kg
Power:
Sender Voltage:5~12V DC
Sender power consumption: Less 10W
Receiver power consumption: Less 2W
Environment Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity:0-95% (non-condensing)

Application
1.Industrial video transmission
2.Machine vision system
3.HD video surveillance system
4.High - speed data acquisition system
5.Remote storage
6.Digital signage and TV wall
7.Industrial printer system

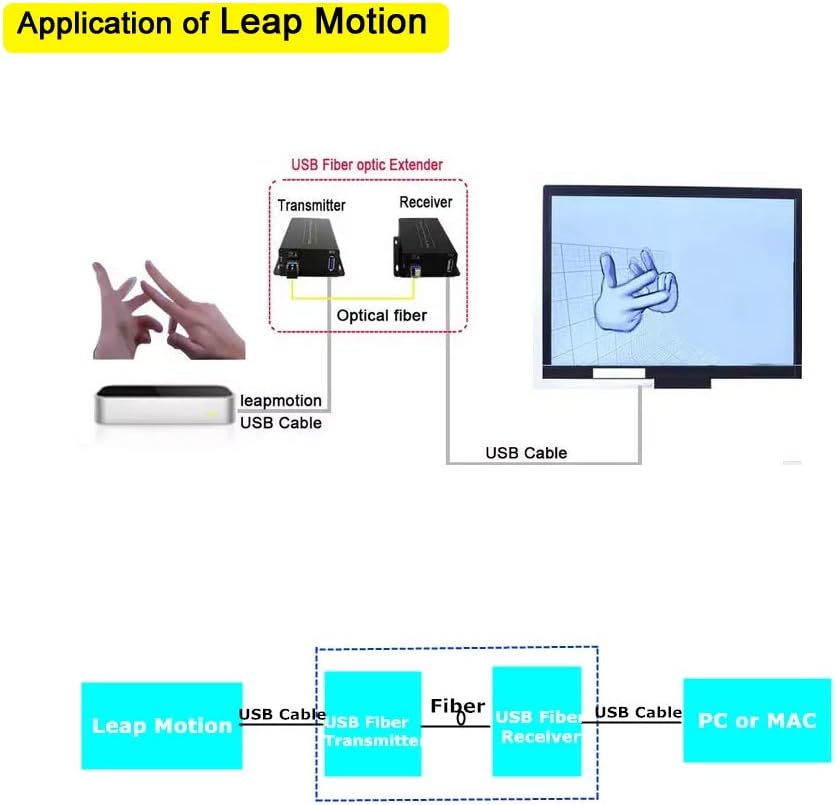

8. VA/VR systems, Kinect devices & Leap Motion devices etc.
Package:

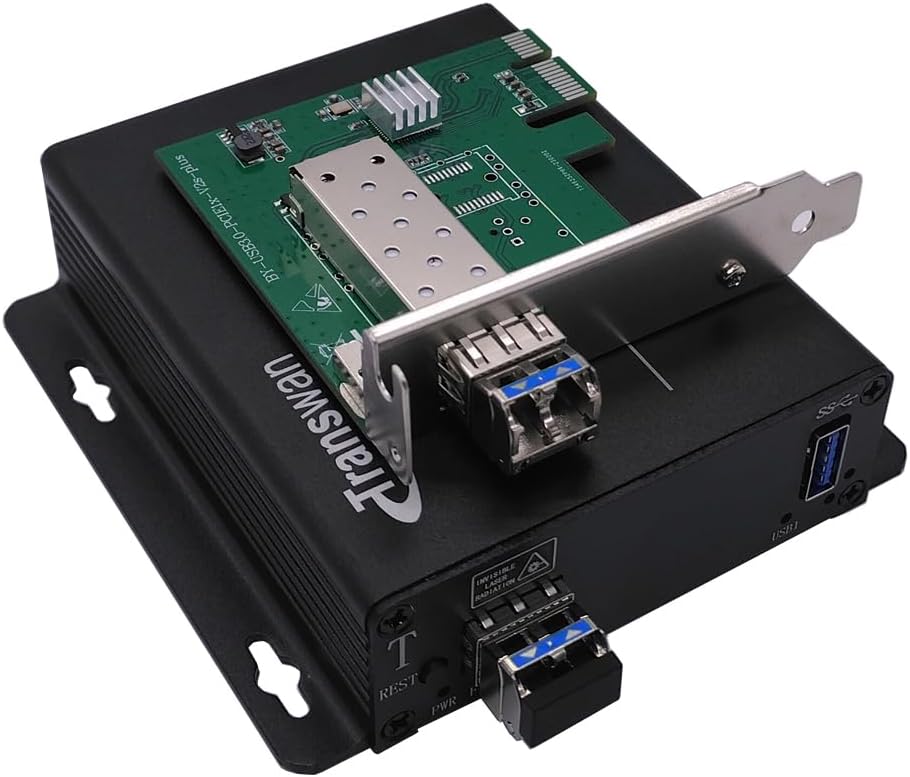

1. 1 x transmitter (client side).
2. 1 x PCI-E to USB 3.0 card (host side).
3. 1 x Power Supply Adapters DC 5~12V with US/EU/UK/AU plug.
