مميزات خاصة

[OE & 3-POINT FITMENT CHECK] 1 pc coffee brown 12V plug-in 5-pin double-make relay; built for applications using OE 13306940 or verified replacement-chain ID 84749906. Before ordering: (1) match the number stamped on the original relay; (2) match 5 terminals and 85/86/30/87/87b layout, not 87a; (3) confirm the circuit in the fuse box diagram or vehicle manual.
[FUSE BOX / DEFOGGER FUNCTION CHECK] Dealer catalog references this relay in main wiring junction/fuse block, rear window defogger, body multiuse, engine-compartment/fuse & relay box positions. Use it only for the slot calling for 13306940 / 84749906; relay function can vary by model and fuse box location.
[FITS BUICK / CADILLAC APPLICATIONS] Fits selected vehicles using OE 13306940/84749906, including Compatible with Buick Cascada 2016-2019, Buick Envision 2016-2019, Buick Verano 2012-2015; Compatible with Cadillac ATS 2013-2019, CTS 2014-2019, ELR 2014-2015, SRX 2012-2013. Verify engine and trim before purchase.
[FITS CHEVROLET / GMC APPLICATIONS] Fits selected applications using OE 13306940/84749906, including Compatible with Chevrolet Camaro 2018-2019, Corvette 2014-2019, Equinox 2018-2019 & 2023-2024 and Volt 2011-2015; Compatible with GMC Terrain 2018-2020 & 2023-2024 on 13306940, and 2018-2024 when verified by 84749906. Use VIN or original relay match to confirm.

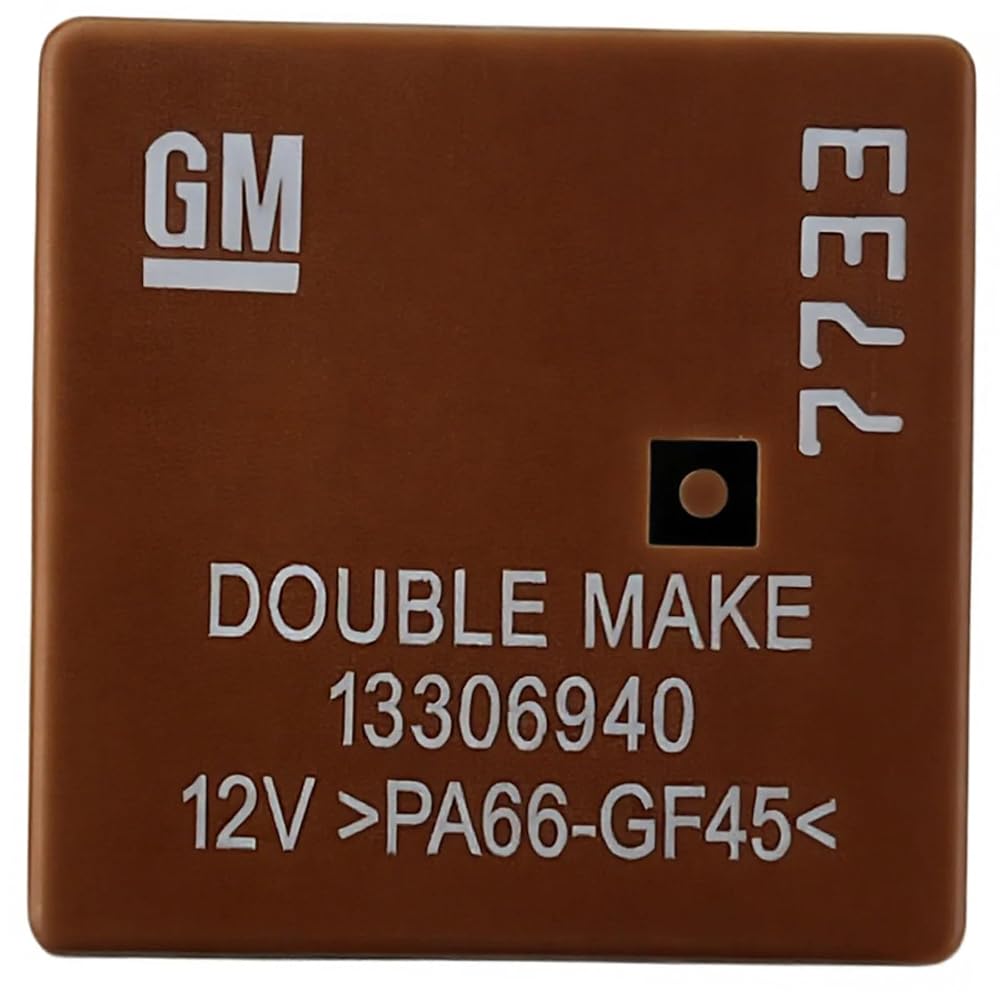

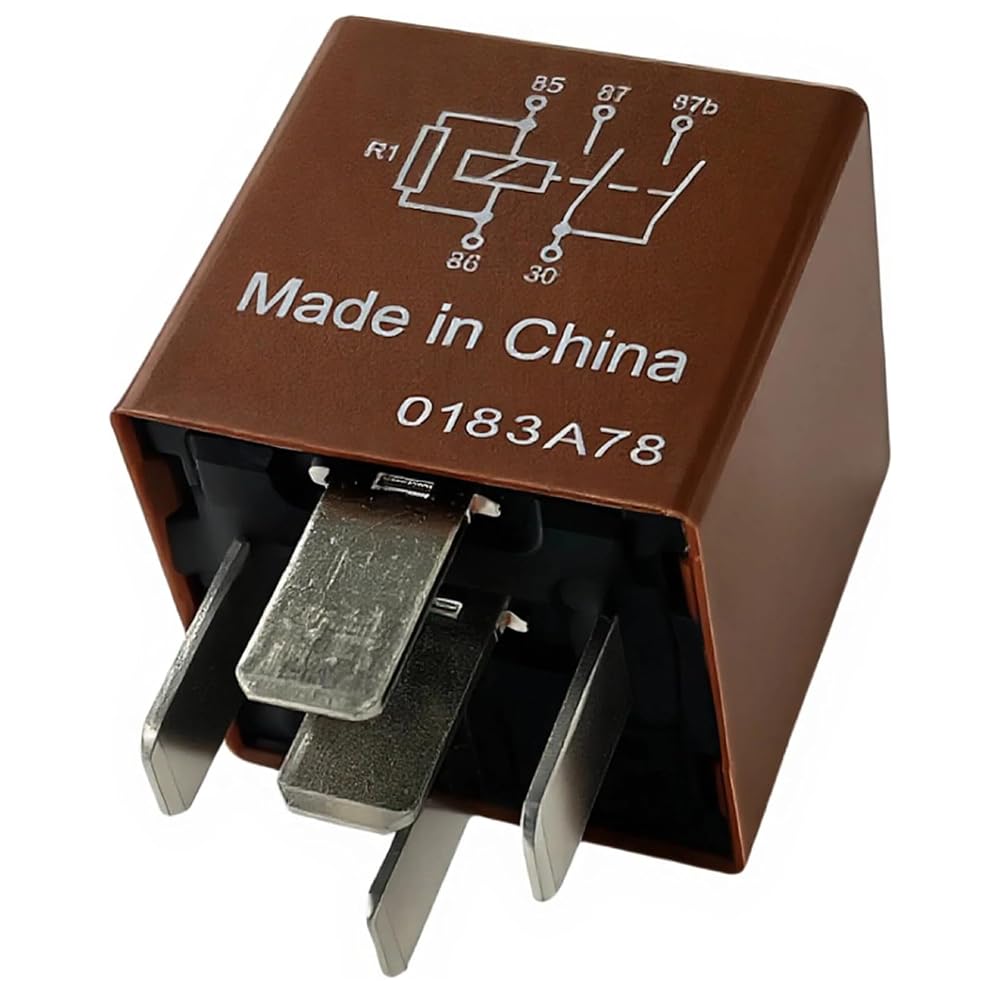

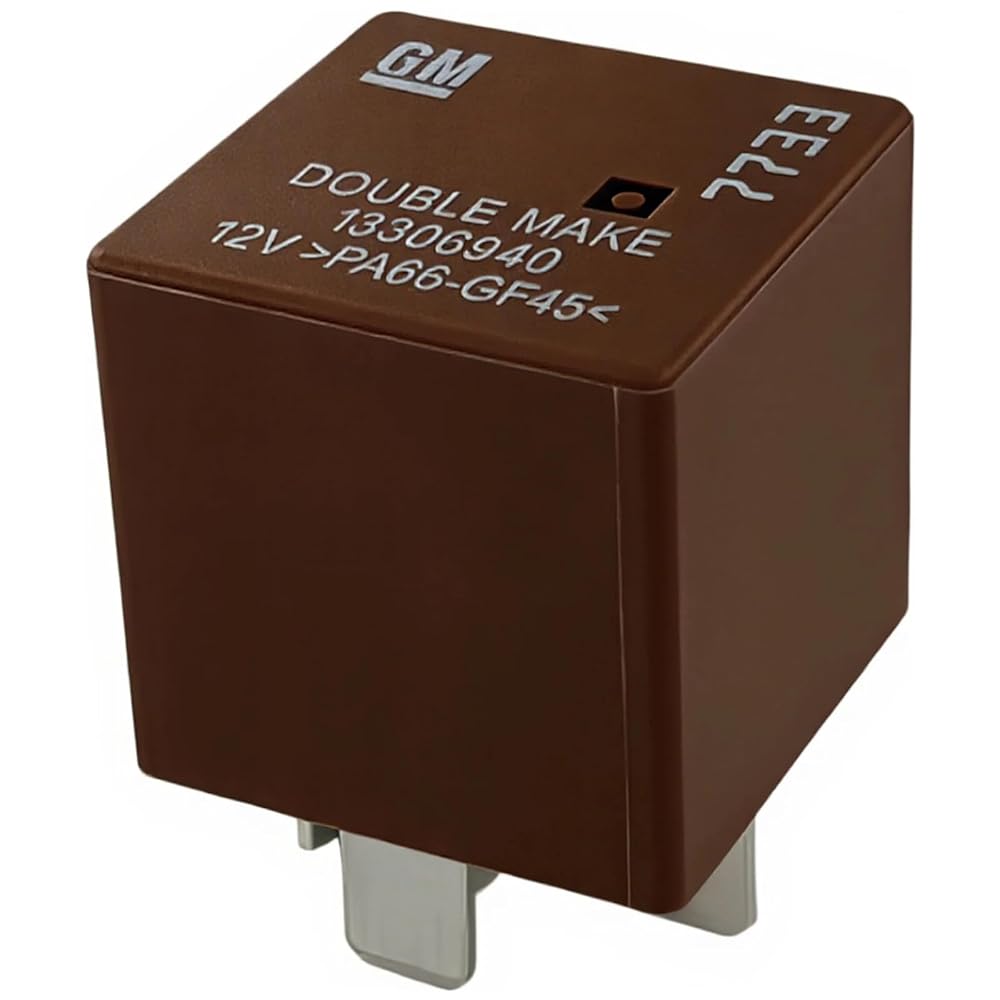

[VISIBLE MARKINGS TO MATCH] Product may show a coffee/brown housing, DOUBLE MAKE, 12V, PA66-GF45 material mark, schematic with R1 resistor and terminals 85/86/30/87/87b, plus housing/search marks such as 0183A78 or 7773. These visible marks help compare style but are not standalone replacement-chain proof.
[INSTALL & SOCKET INSPECTION] Disconnect power before service, pull the old relay straight out, and avoid hard prying against the fuse box. Inspect the socket for heat damage, corrosion, moisture or loose terminals; do not install if the original relay has different pin count, voltage, body size or terminal layout.
[COMPATIBILITY VERIFICATION NOTE] Vehicle names and part numbers are used only to identify compatibility. This is a replacement relay for matching applications; confirm by OE number, 5-pin layout and fuse-box legend. It may help restore circuit operation only when diagnosis confirms relay failure.

وصف

Package: 1 piece coffee brown 12V plug-in relay.
Main part number: 13306940.
Verified replacement-chain ID: 84749906.

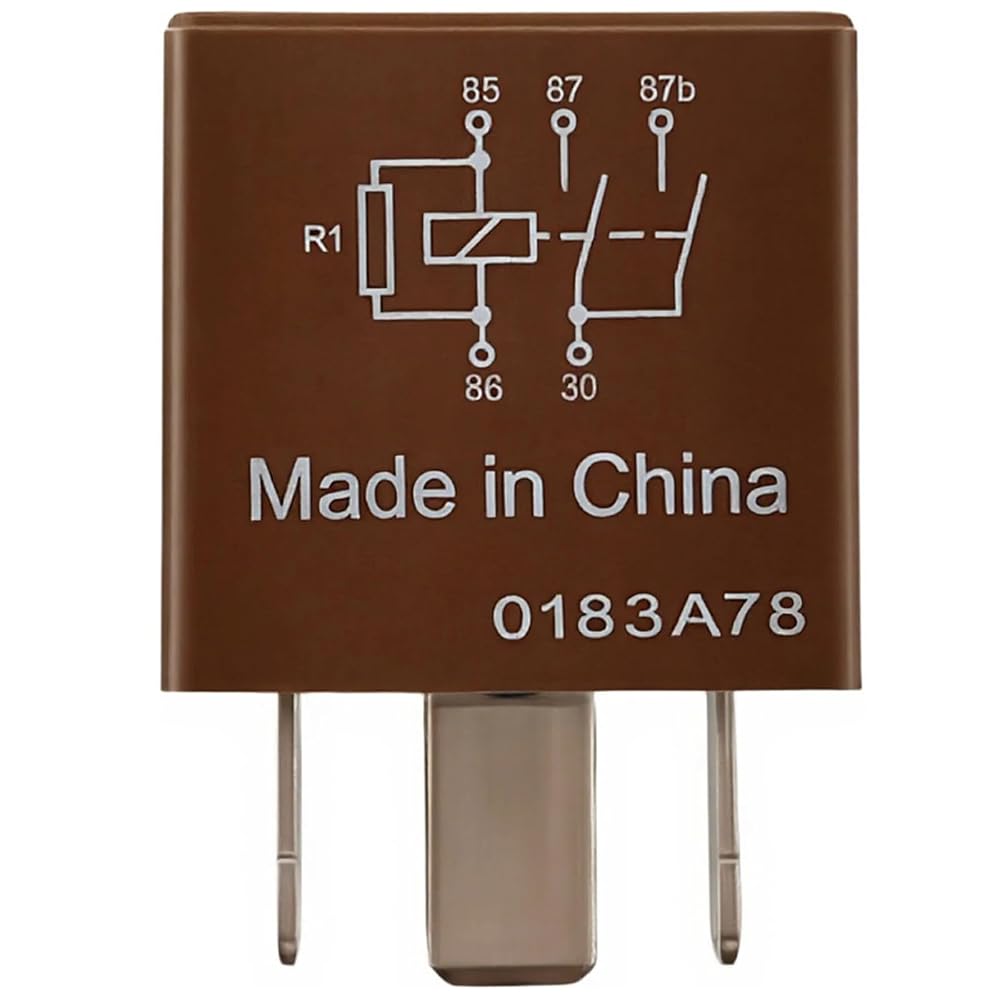

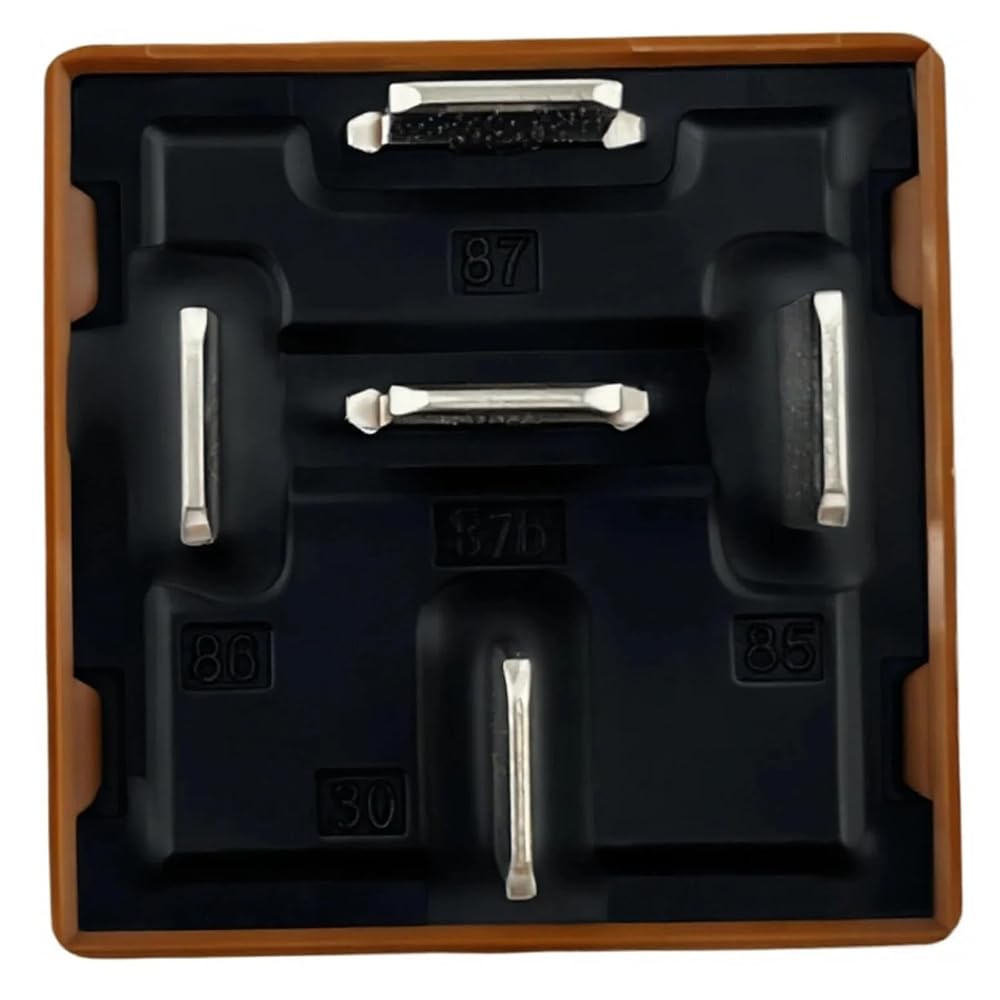

Visible layout: 5 terminals marked 85, 86, 30, 87 and 87b; double-make / Form-U style with resistor symbol R1.
Common catalog descriptions: main wiring junction and fuse block relay, rear window defogger relay, accessory power relay, body multiuse relay, engine-compartment fuse & relay box relay.
Match the original relay number to 13306940 or verified replacement-chain ID 84749906.
Match the 12V coffee/brown housing, 5-pin terminal pattern and 87/87b double-make layout. Do not use as a 87a changeover relay.
Confirm the exact fuse box slot and circuit by VIN, fuse box diagram, service manual or original relay markings before purchase.
Compatible with Buick Cascada 2016-2019, Buick Envision 2016-2019 and Buick Verano 2012-2015 applications using OE 13306940 / 84749906.
Compatible with Cadillac ATS 2013-2019, CTS 2014-2019, ELR 2014-2015 and SRX 2012-2013 applications using OE 13306940 / 84749906.
Compatible with Chevrolet Camaro 2018-2019, Corvette 2014-2019, Equinox 2018-2019 and 2023-2024, and Volt 2011-2015 applications using OE 13306940 / 84749906.
Compatible with GMC Terrain 2018-2020 and 2023-2024 applications using OE 13306940; also verify 2018-2024 GMC Terrain applications by replacement-chain ID 84749906 and original relay layout.
Fitment is not universal. Listed years/models may still vary by engine, trim, fuse box design and circuit option.
Disconnect power before service. Pull the old relay straight out and avoid prying hard against the fuse box.
Inspect the relay socket for heat damage, corrosion, moisture or loose terminals before installing the replacement.
If the original relay has a different terminal count, 87a layout, voltage marking, body size or fuse-box legend, do not install this part.
Is 84749906 in the same replacement chain? Dealer catalog sources list 13306940 as replaced by 84749906 and 84749906 as replacing 13306940.
Can this replace any 5-pin relay? No. It must match the 85/86/30/87/87b double-make layout and the original part number or fuse-box listing.
What symptoms may relate to a failed relay? A failed relay can cause related rear defogger or accessory-power circuit issues, but diagnosis should confirm relay failure before replacement.
