STABLE SIGNAL CONTROL: DC-3GHz attenuator supports RF testing and signal reduction with low VSWR under 1.20, helping maintain accurate transmission in communication setups
ATTENUATION: 2W N-JK type male to female attenuator offers selectable values from 1dB to 50dB for flexible signal adjustment in RF measurement and lab applications
COPPER PLATED BUILD: RF coaxial attenuator uses copper plated ternary material for LONG LASTING use, stable conductivity, and reliable performance under continuous operation
N TYPE CONNECTION: Coaxial low fixed attenuator features male input and female output connectors for secure installation with fit for RF signal generators and testing devices
WIDE TEMPERATURE RANGE: RF coaxial attenuator operates from -55°C to +125°C, supporting indoor and industrial environments while maintaining consistent 50 Ohm impedance performance

وصف

Features:
* and
* Made of - materials, sturdy and practical
* Built and tested to strict quality control standards.
* Stable performance and high reliability.

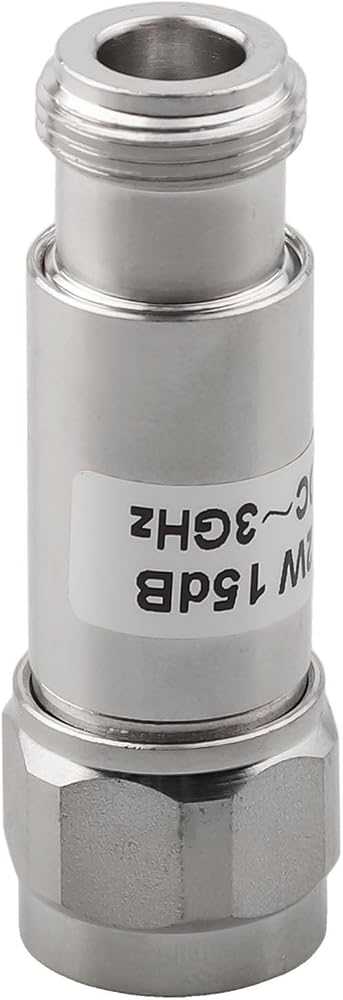

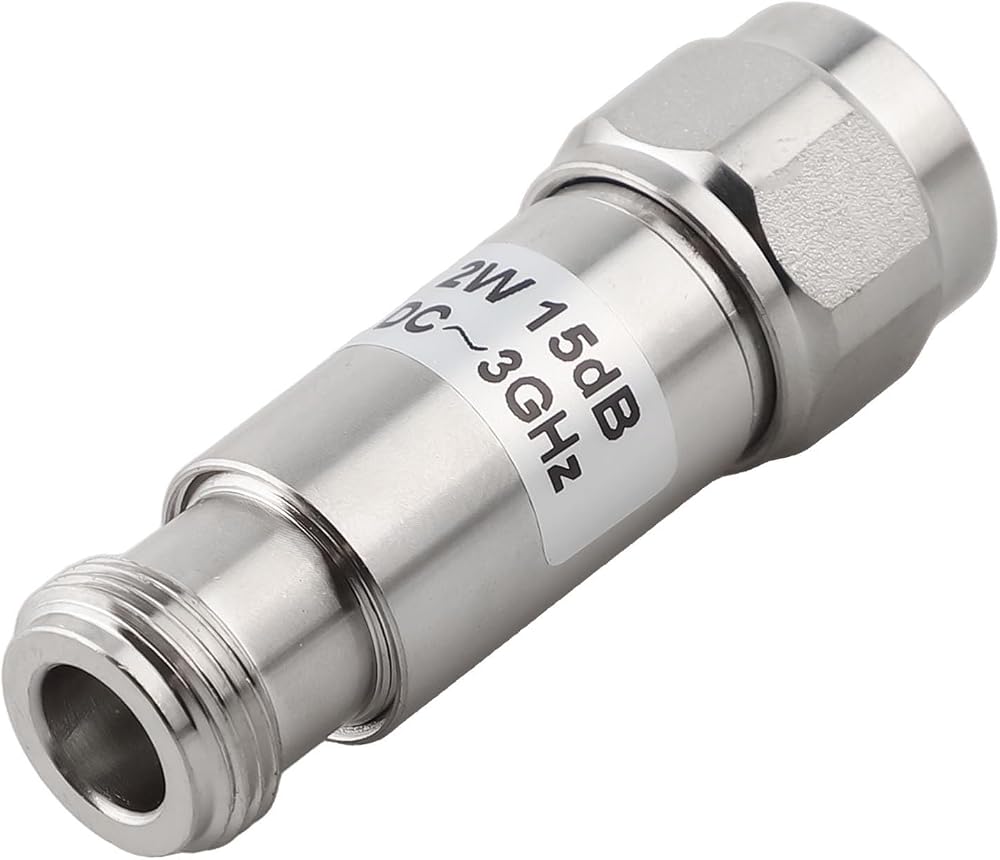

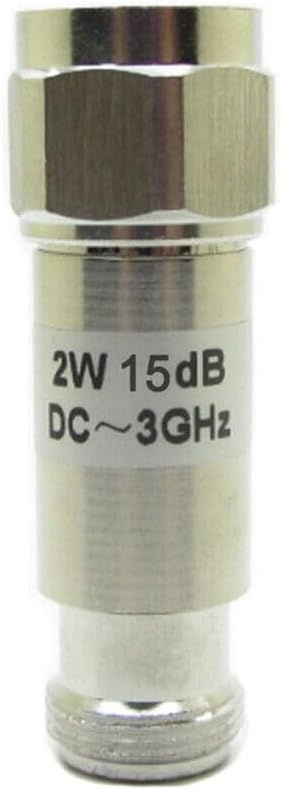

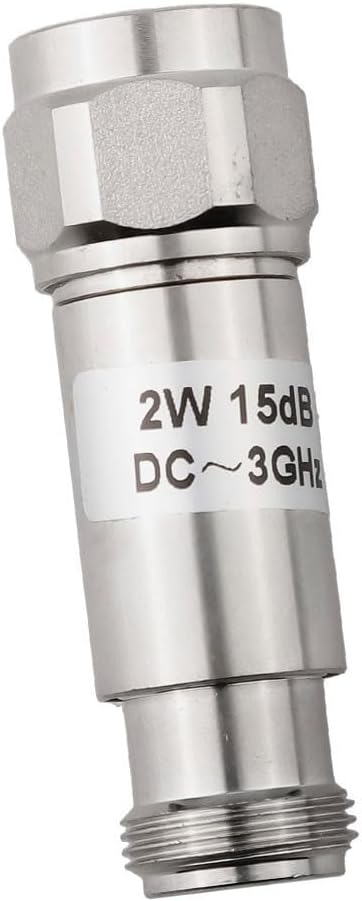

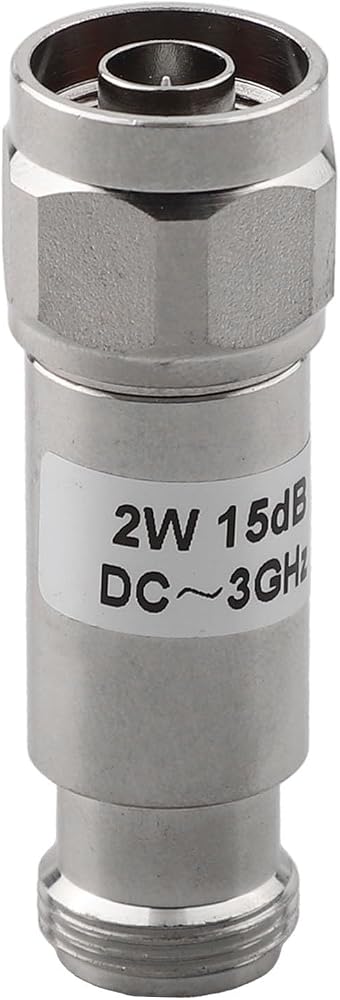

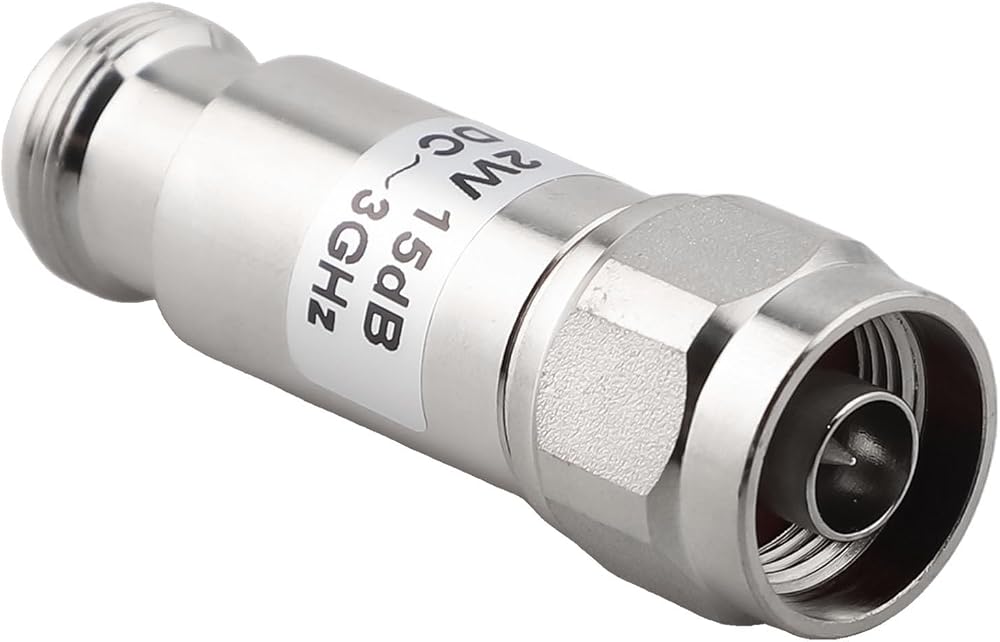

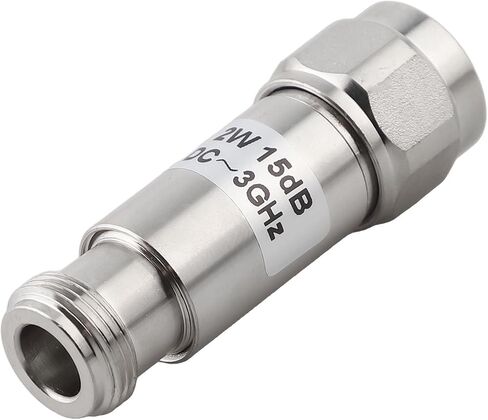

* DC-3GHz2W N-JK male-to-female copper-plated three-element 1-50dB coaxial low-power fixed attenuator

Specification:
Name: Attenuator

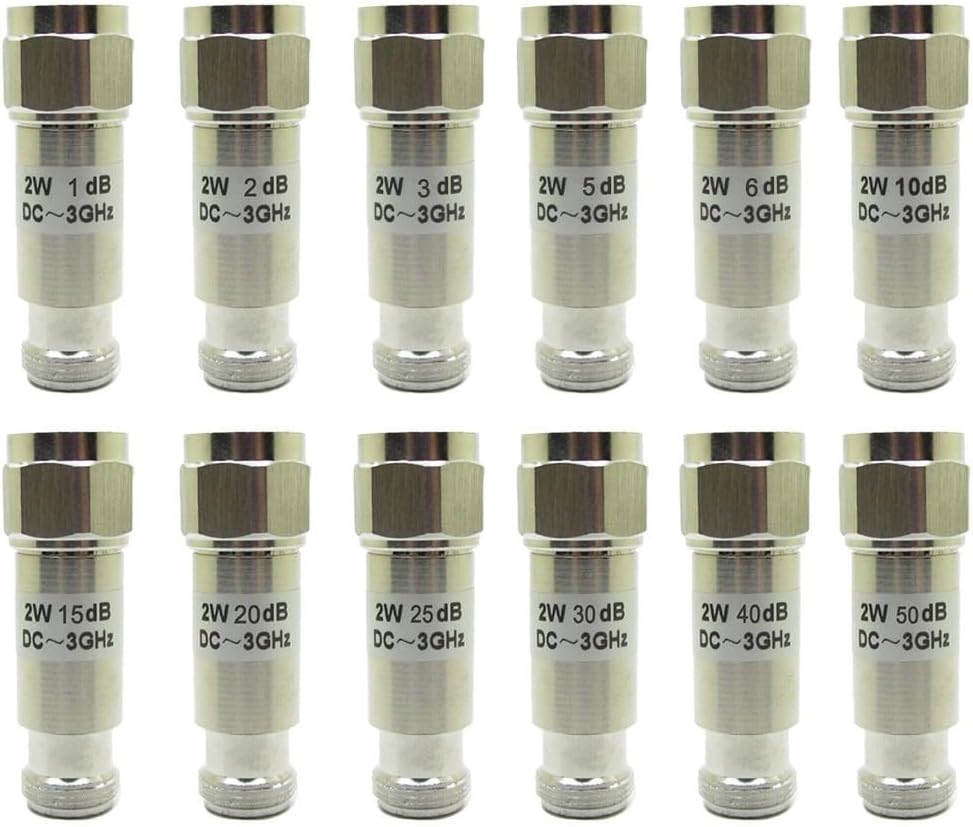

Model (optional): 1dB, 2dB, 3dB, 5dB, 6dB, 10dB, 15dB, 20dB, 25dB, 30dB, 40dB, 50dB
Color: silver
Material: copper plated ternary
Power: 2W
for Frequency range: DC-3.0GHz (0-3GHz)
Standing wave ratio: less than 1.20
Impedance: 50 ohms
Connector: N type
Size: 58mm x 18.5mm
Operating temperature: -55 - +125 degrees for Celsius
Tolerance: 1-10dB ±0.5dB, 15-30dB ±1dB
Direction: male to female
Male header (center pin): signal input
Female (center socket): signal output

Package Contents:
1 x attenuator
