→Use:
This series of fuse links is suitable for AC 50HZ, rated voltage to 2000V, and rated current to 2500A. It is mainly used in electrical circuits as short-circuit protection of semiconductor equipment.
The rated segment capacity of this series of fuse links is up to 100KA.
→Structural features:

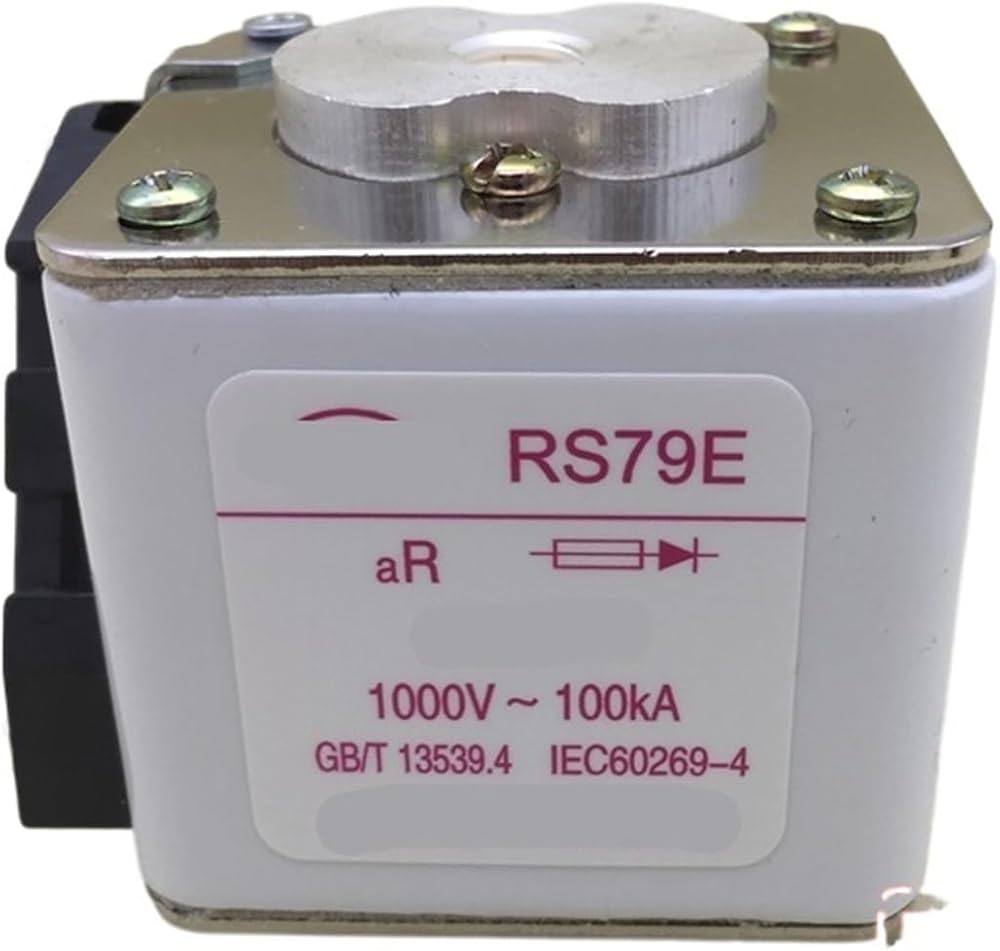

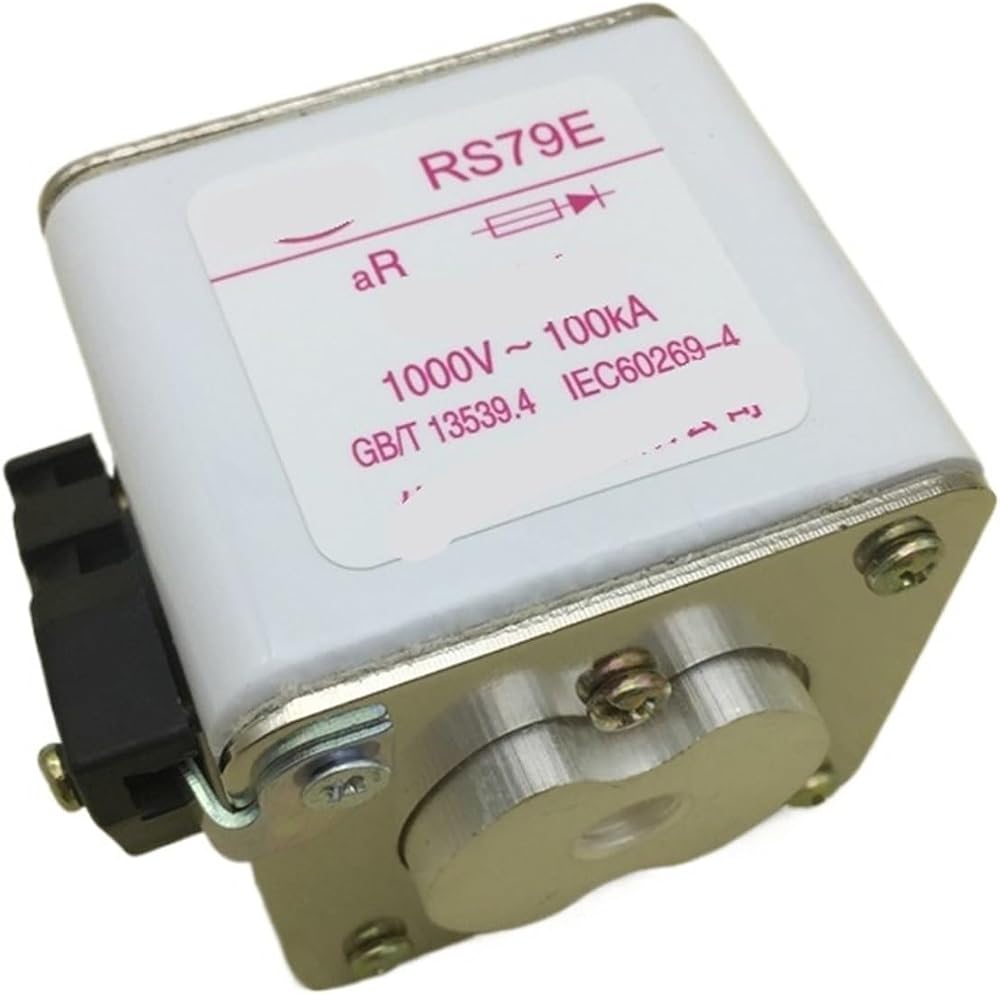

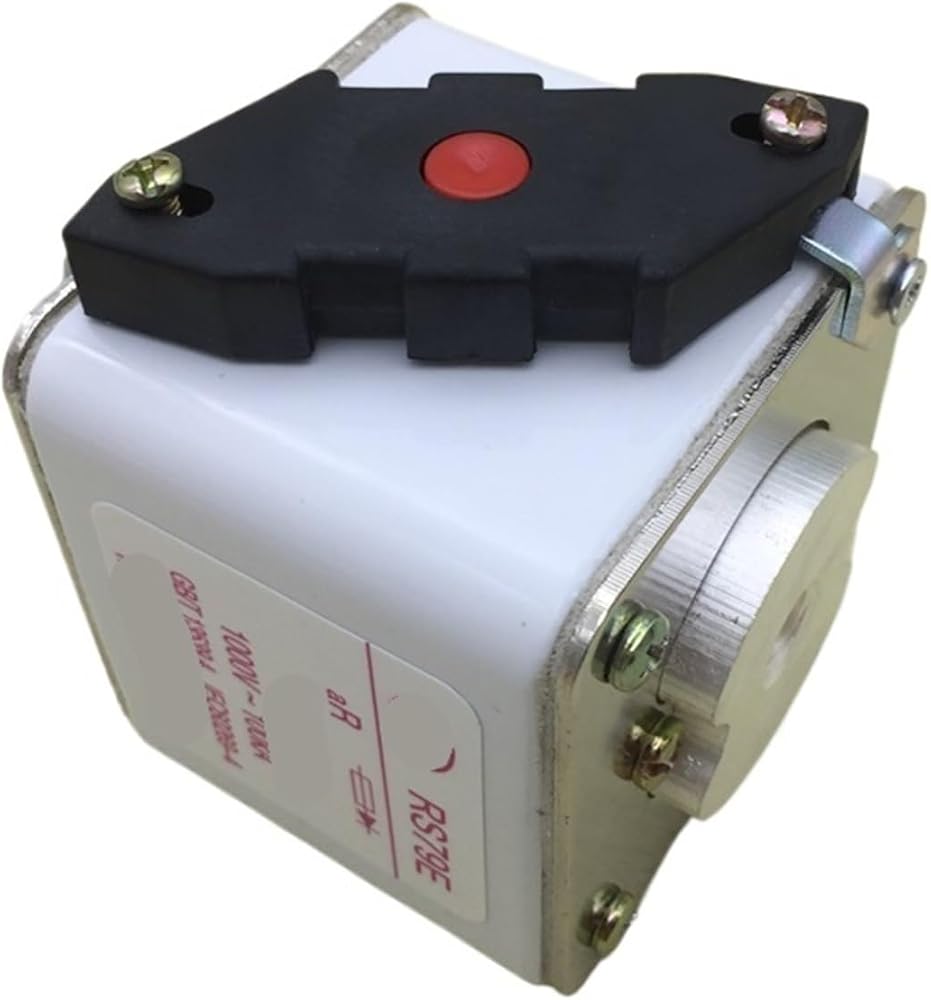

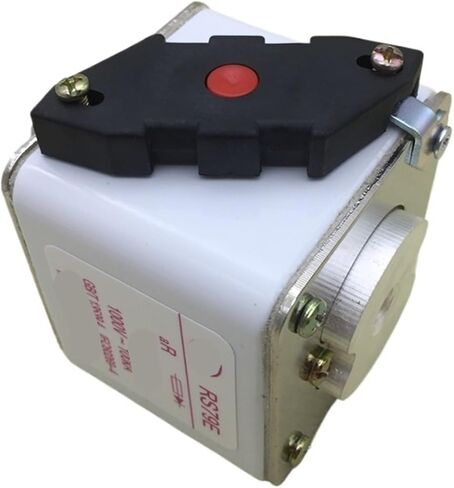

The variable cross-section melt made of pure silver sheets is encapsulated in a melt tube made of high-strength porcelain; the melt tube is filled with chemically treated high-purity quartz sand as the arc extinguishing medium; both ends of the melt are spot welded to the contacts Strong electrical connection. There are two types of fuse links: square tube knife-shaped contacts and square tube flat-shaped contacts.
→Basic data:
The fuse link model, overall dimensions, rated voltage, and rated current are shown in the parameter table below:
