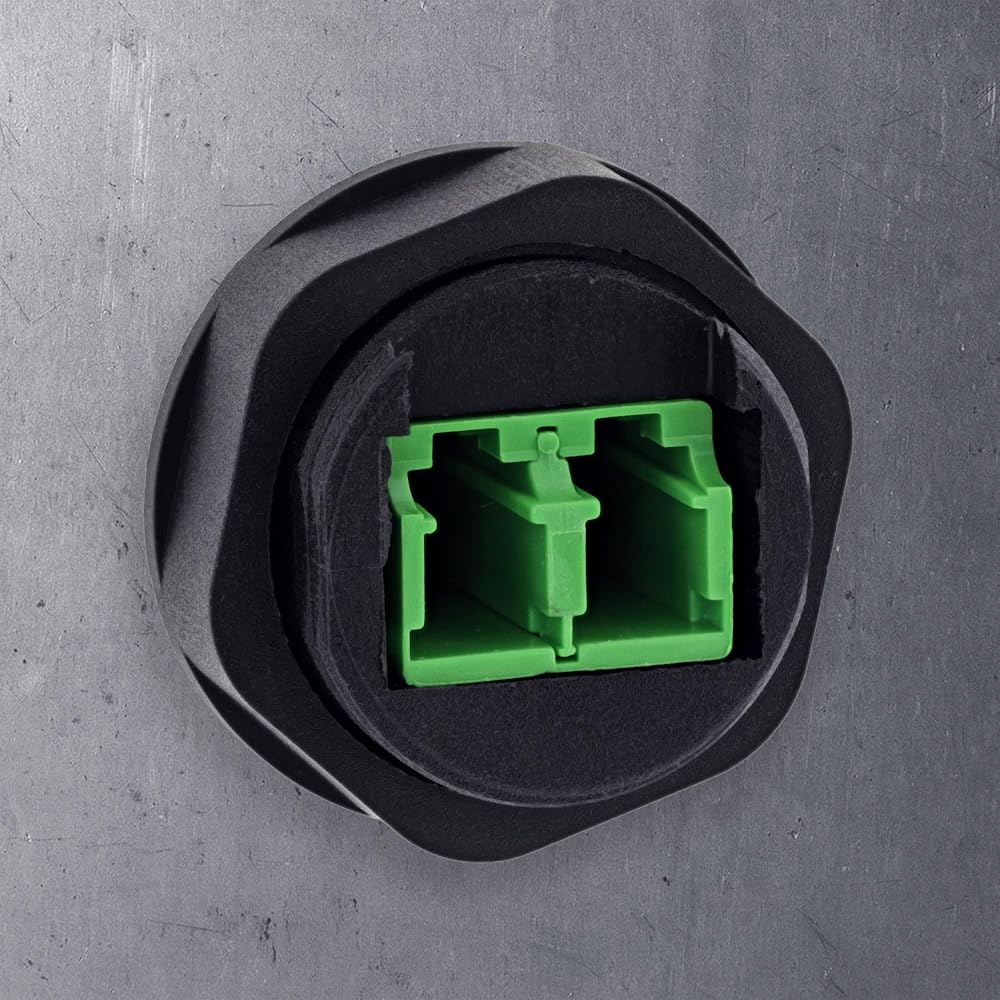

The InLine LC fiber cable coupling in short design offers reliable protection and a stable connection for fibre optic installations – even in limited installation space. At only 74mm in length, this coupling is ideal for use in tight distribution cabinets, outdoor enclosures or industrial applications.

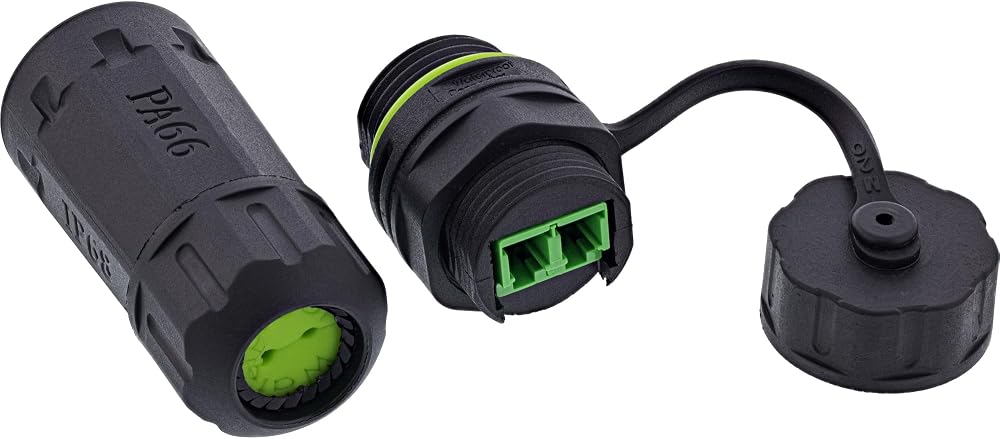

The coupler is equipped with two LC duplex sockets and supports single-mode fibres with UPC or APC grinding. Thanks to the IP68 protection, the connection is reliably protected against moisture, dust and temperature fluctuations from -40 °C to +85 °C. The robust PA66 plastic housing and high-quality silicone seal ensure durability and ease of use.

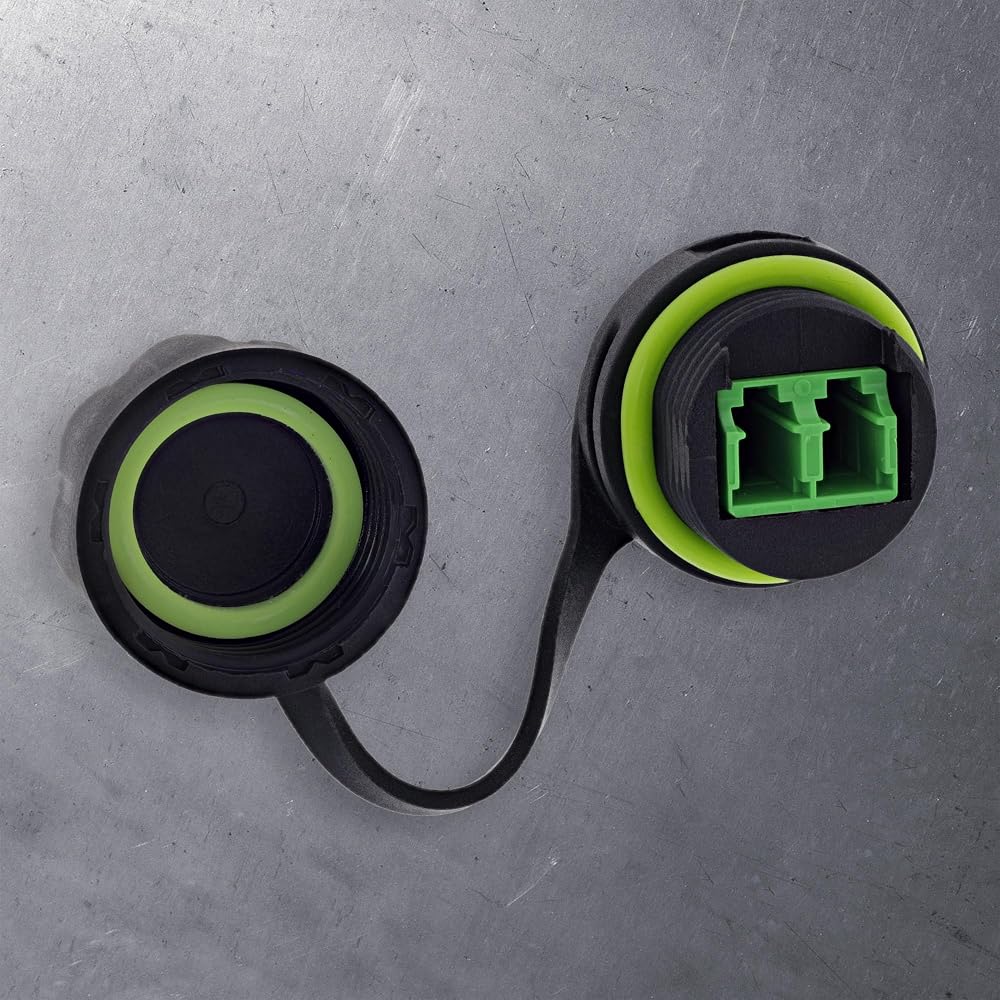

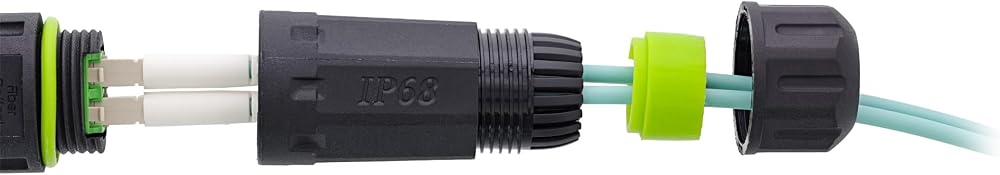

The installation takes place without tools thanks to the integrated screw system. Thanks to the M20 thread, the coupling can be quickly and safely attached to housings or connection boxes. The green sealing ring and rubber seal ensure a reliable seal even with repeated use.

This compact fiber coupler is ideal for applications where space matters without sacrificing quality and protection.

Additional Technical Specifications:

Material: nylon (PA66).
Seal: silicone.
Module: LC duplex female/female
Thread Size: M20
Application: Single Mode UPC/APC
For cable diameter: 2.9 mm.
Dimensions: 74 x 26 mm.
IP protection class: IP68.
Temperature resistance: -40°C to +85°C.
