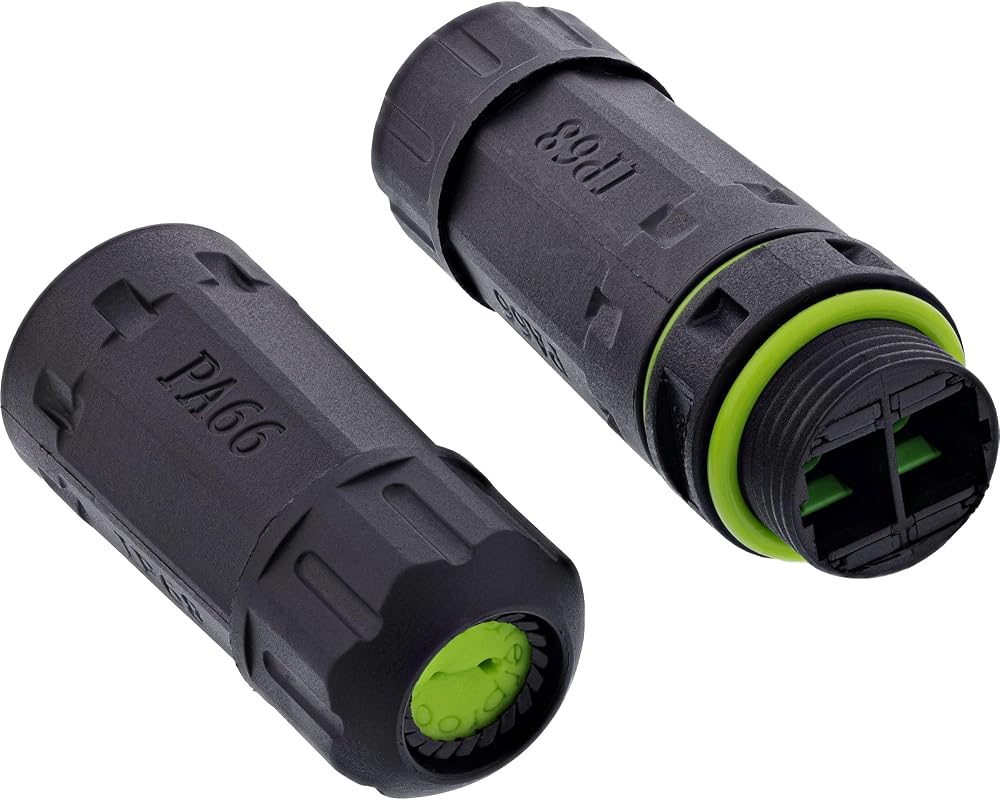

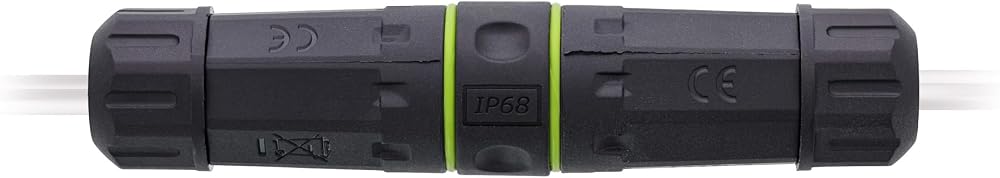

The InLine SC fiber optic cable coupling is the ideal solution for anyone who needs reliable and permanently protected fibre connections in demanding environments. With protection class IP68, the coupling is ideal for outdoor use, in damp or dusty environments as well as in extreme temperatures from -40 °C to +85 °C.

The housing made of robust PA66 plastic combined with a high-quality silicone seal ensures a durable and resistant connection. The integrated SC duplex sockets allow for a secure connection of two single-mode fiber cables with SC connectors (UPC or APC). Thanks to the M20 thread, the coupling can be easily integrated into standardized openings of enclosures or distribution cabinets.

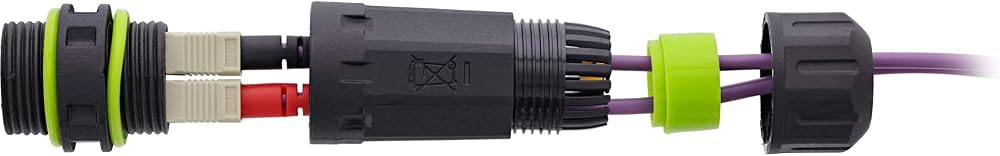

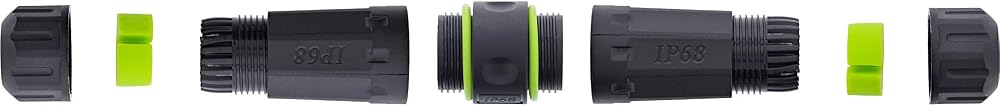

Installation is quick and uncomplicated: the pre-assembled sockets, the dust-proof housing parts and the screw connections are intuitive and can be assembled without additional tools. This means that the connection is not only mechanically stable, but also reliably protected against external influences.

Whether for industrial applications, professional network installations or demanding outdoor scenarios – with the InLine fibre optic coupling you are on the safe side.

Additional Technical Specifications:

Material: nylon (PA66).
Seal: silicone.
Module: SC Duplex female/female
Thread Size: M20
Application: Single Mode UPC/APC
For cable diameter: 2.9 mm.
Dimensions: 120 x 26 x 26 mm.
IP protection class: IP68.
Temperature resistance: -40°C to +85°C.
