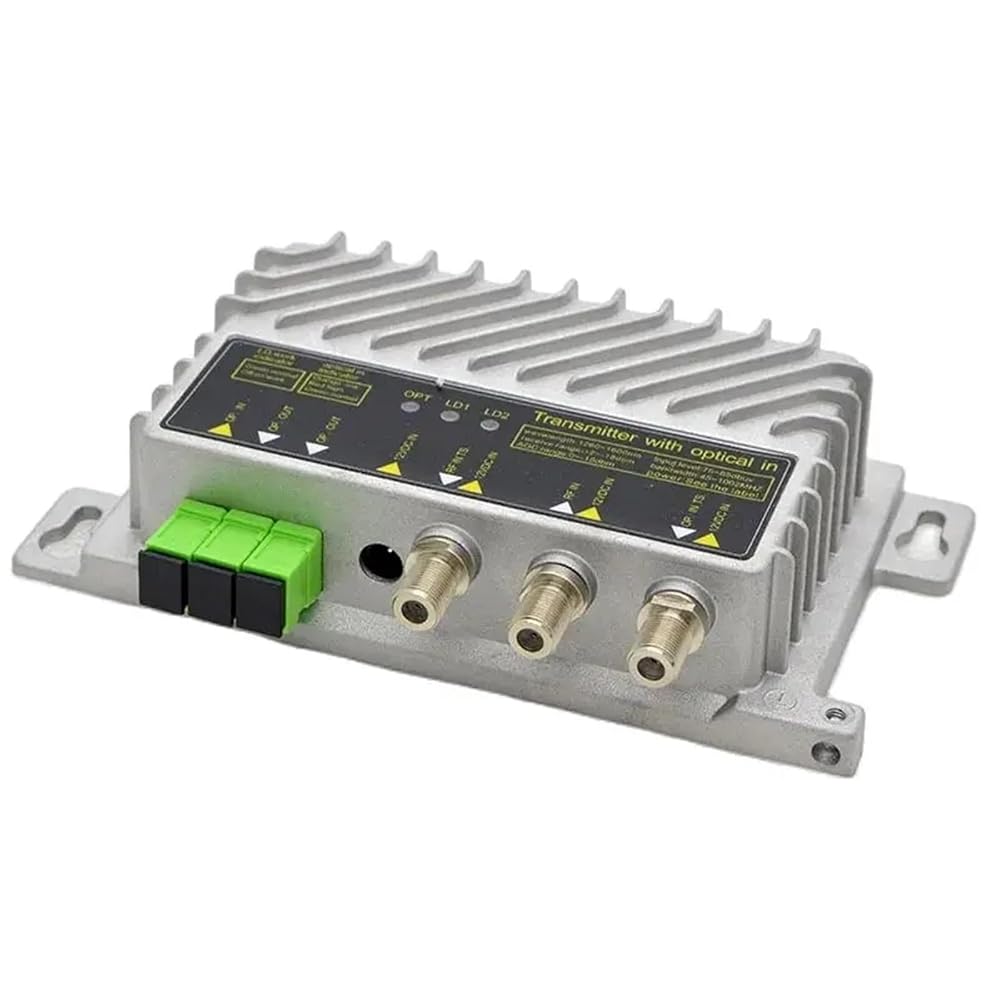

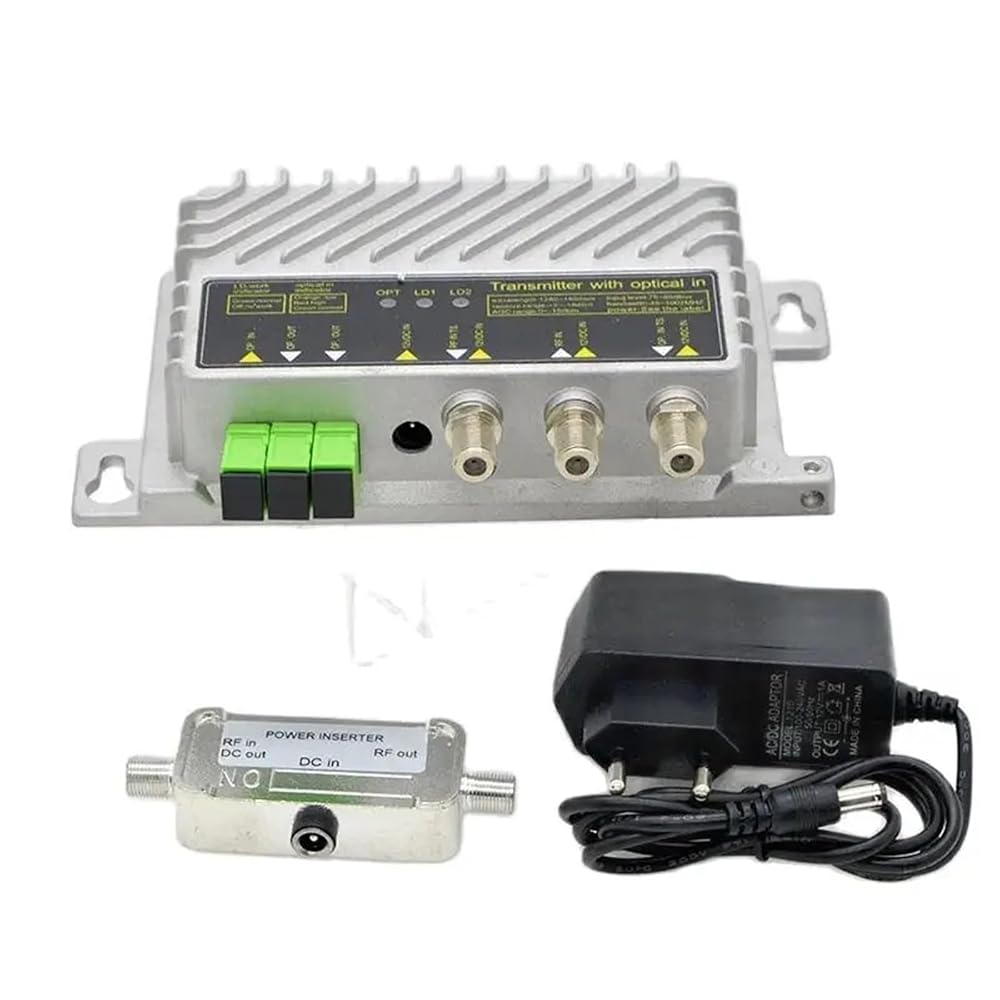

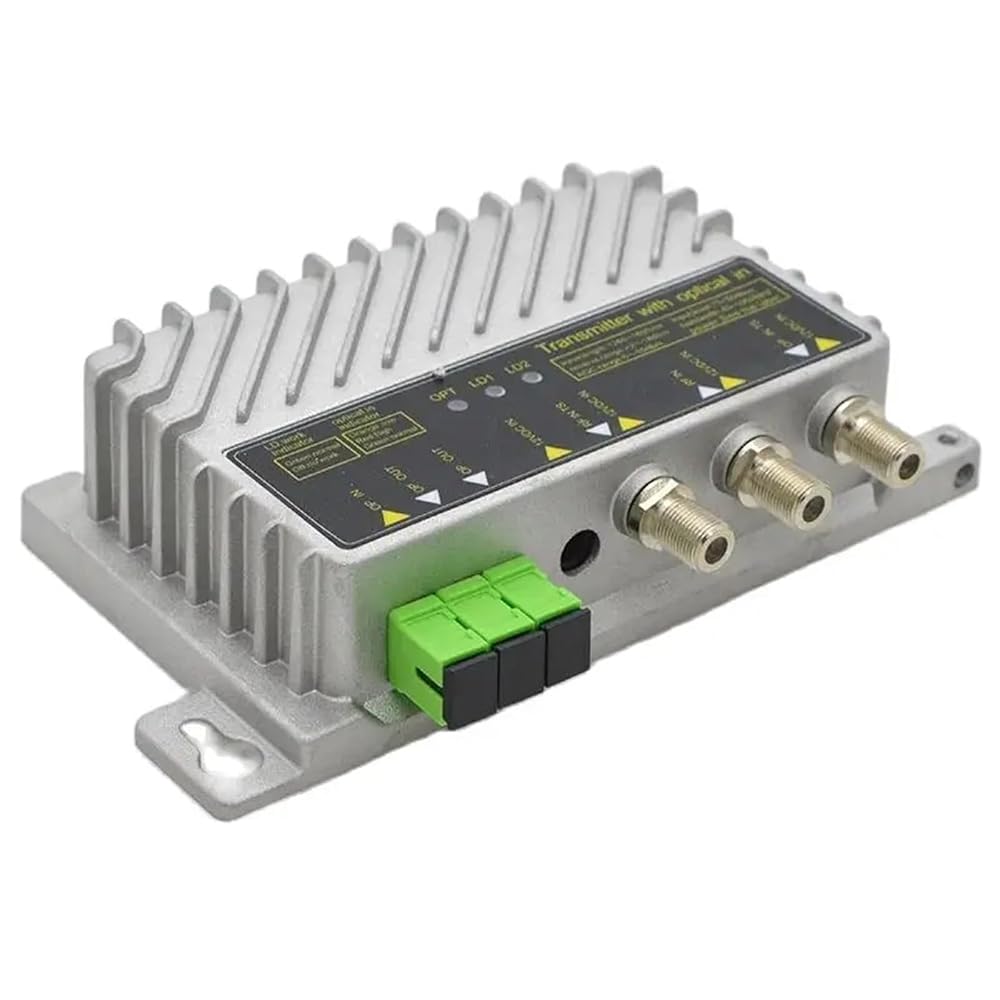

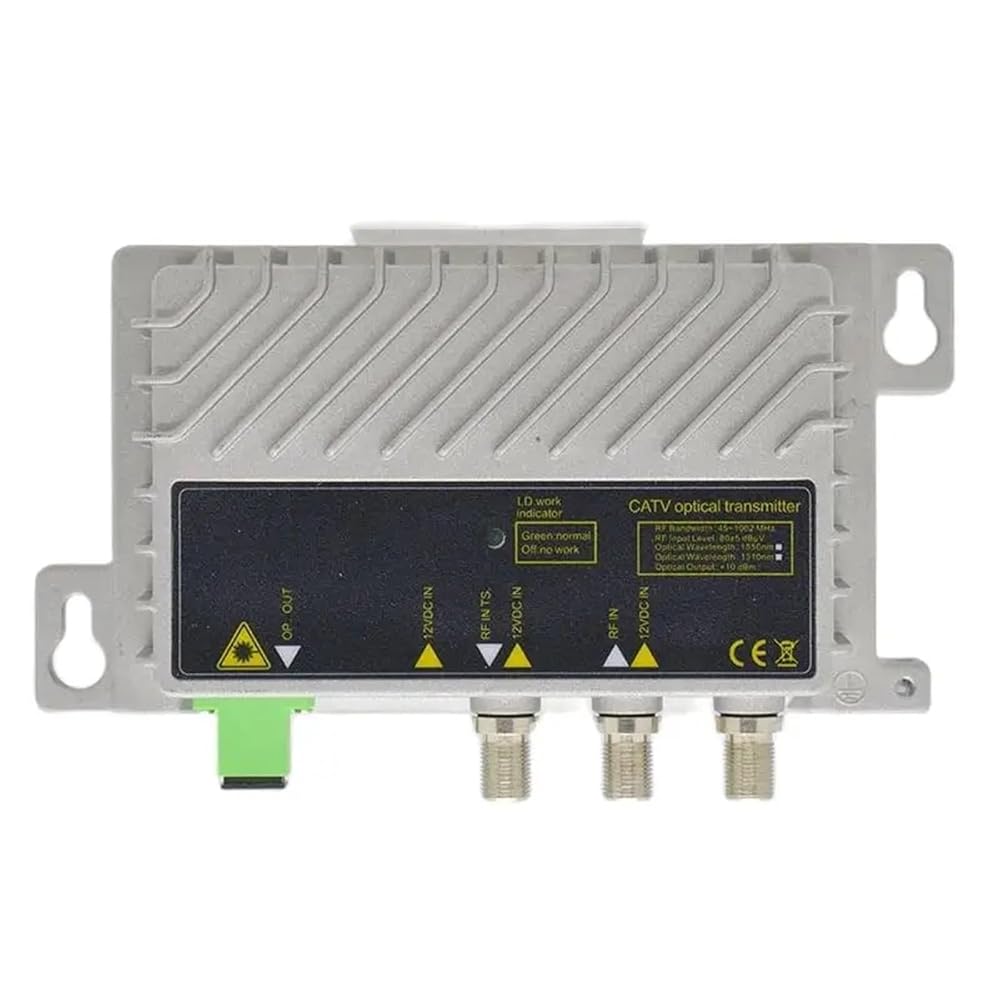

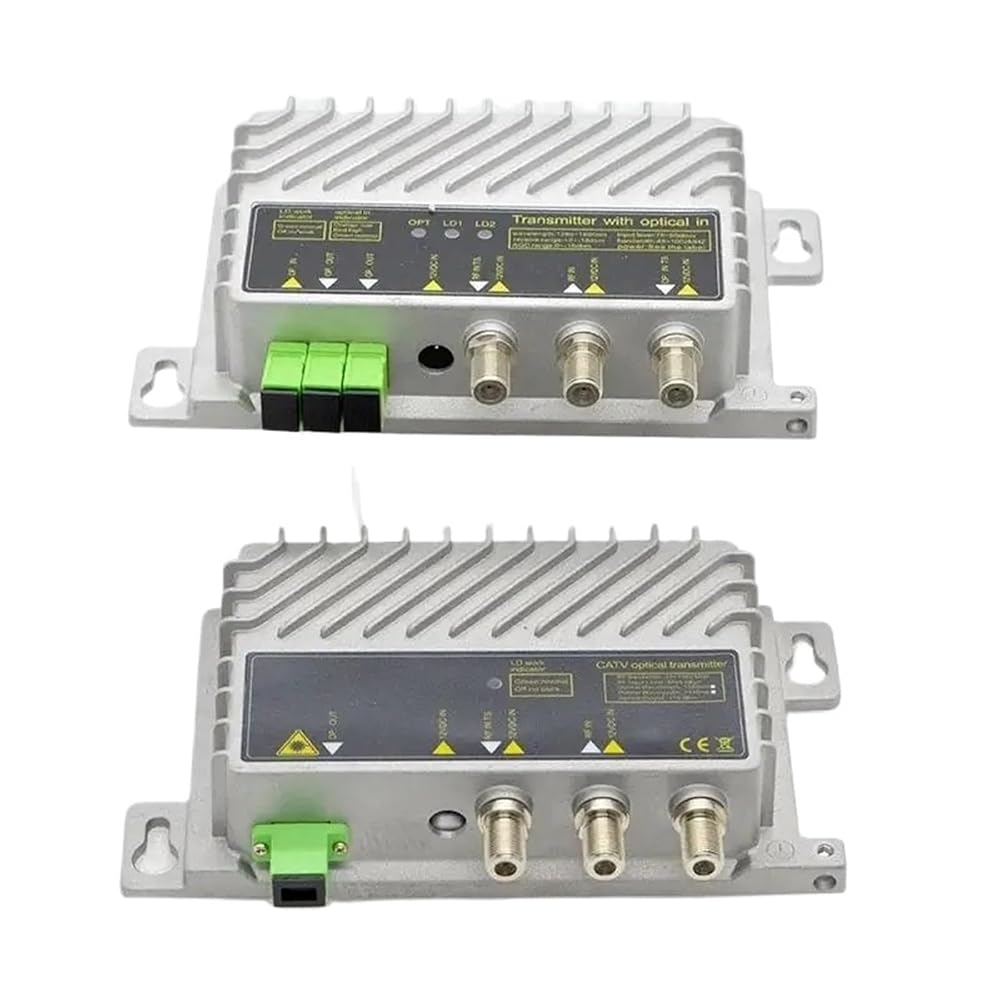

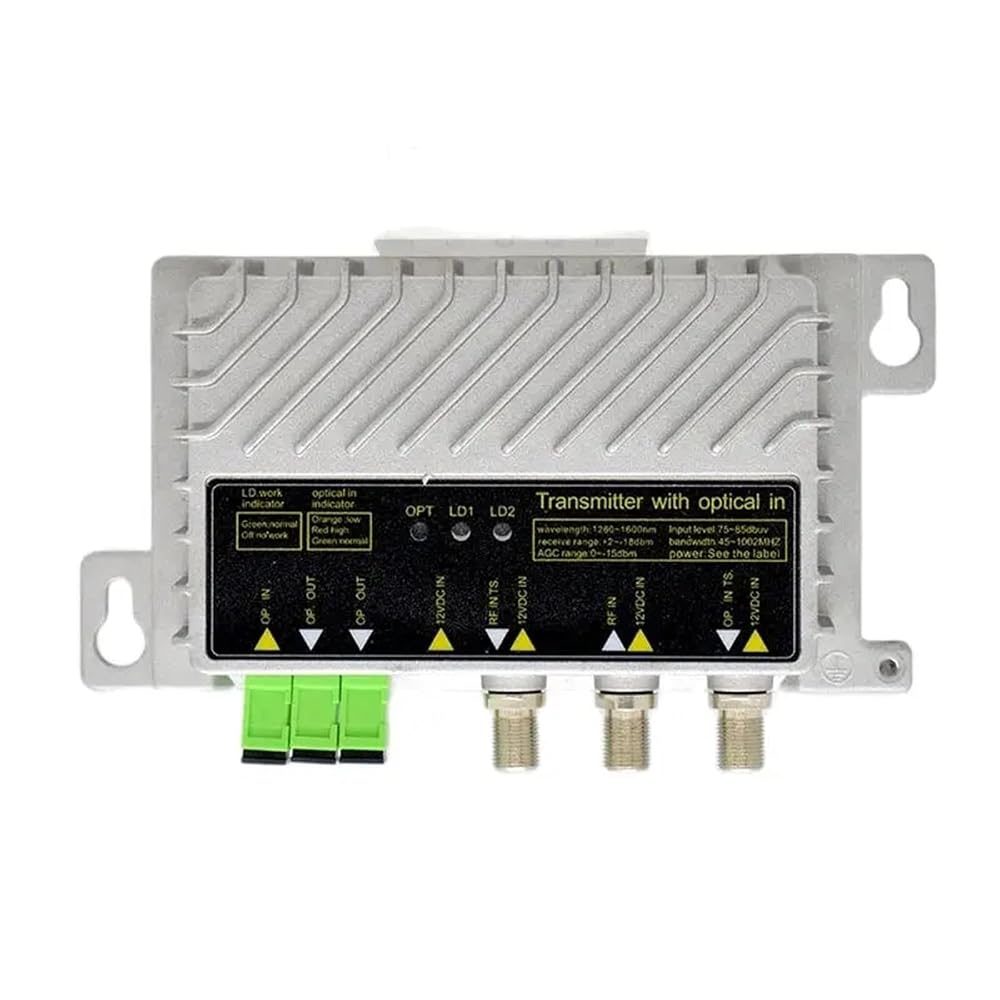

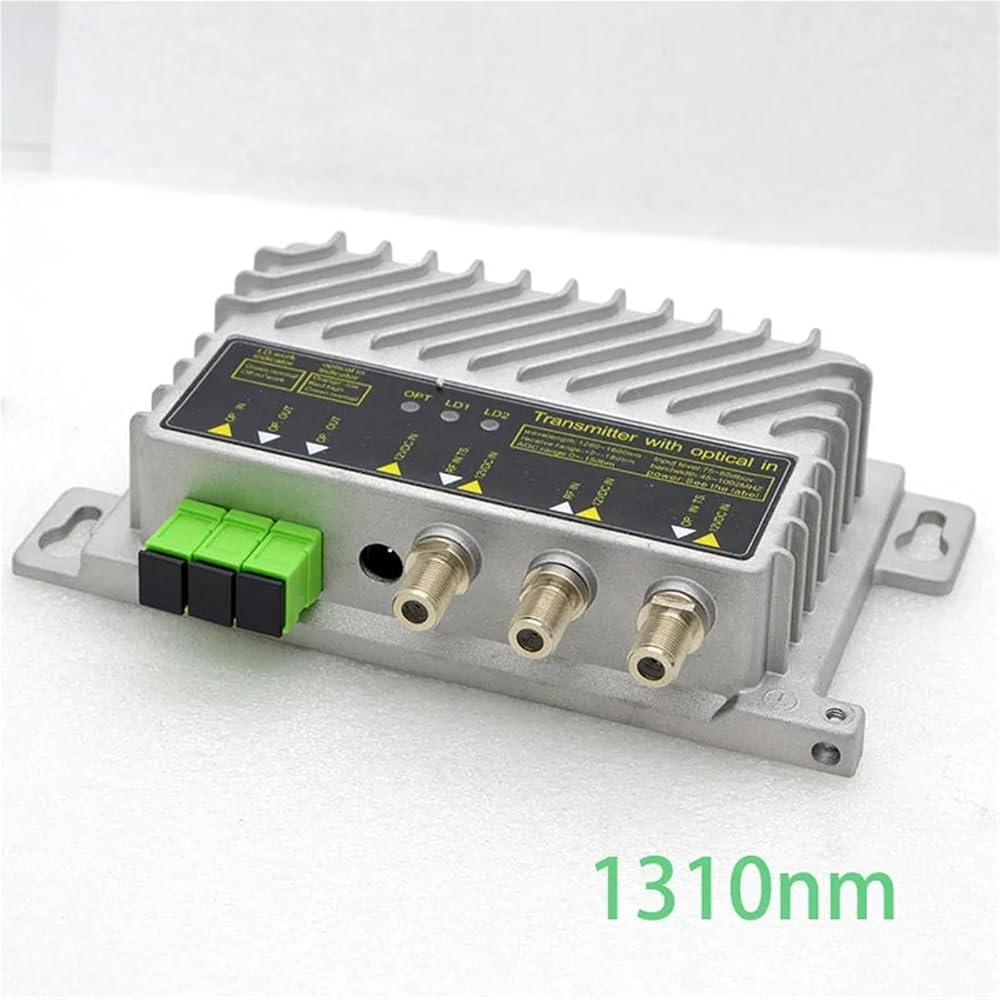

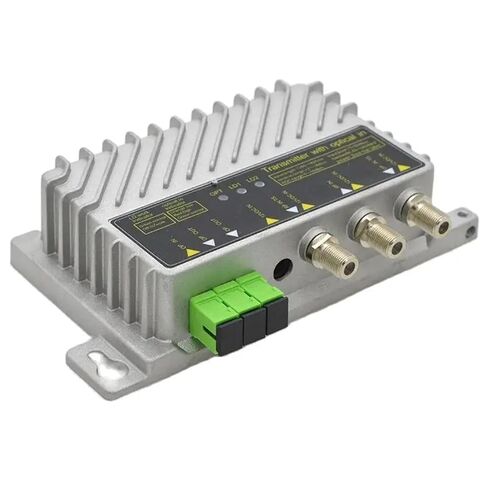

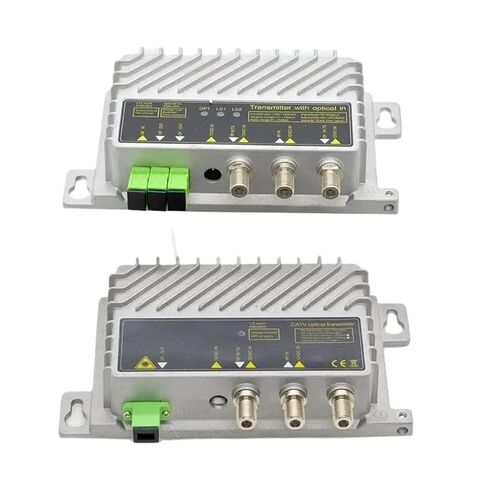

FTTH CATV 1550nm AGC Optical Transmitter 2 Way Output 10dBm Feed Working Band Optical Input Level 70dBuV Relay
Receiver output level : 70(dBmV)
Wavelength : 1550nm(nm)
Input optical power :+ 2~-23(dBm)
Optical connector type : SC/APC
RF output impedance : 75()
Output reflection loss : 16(dB)
power waste : 4(W)
Overall dimension : 178*88*40(mm)
Weight : 365(g)
1 Product description
OTP01 1550nm Transmitter With Optical In specifically designed for CATV FTTH network. Its main feature is low power consumption,double output optical signal, with optical input and rf input two ways,AGC optical constant level output, small Volume and high reliability. Adopting aluminum alloy shell, with optical control AGC circuit built in, compact structure and external modular power supply make the installation and debugging very convenient. It is an ideal product to build FTTH CATV network.
2. Product feature
1.Cast aluminum shell with good heat dispersion.
2. Adopts GaAs module as RF amplifying module, the optical receiving range can reach 0~-15dbm, The rf input range is 75~85dbuv.
3. Optical receiver module AGC control range 0~-15dBm, output level keeps unchanged.RF input module AGC control range 75~85dbuv,output level keeps unchanged.
4. Low consumption design and total consumption 4w, The power supply can be directly input or fed from the rf outlet. The voltage range of the input power is DC6~15V.
5. Realize the12v input port feeding way of power supply
==========
Wireless function : No
High-concerned chemical : None
Fiber Type : Single Mode
Connector Type : SC/APC
Item Length : 1m
