مميزات خاصة

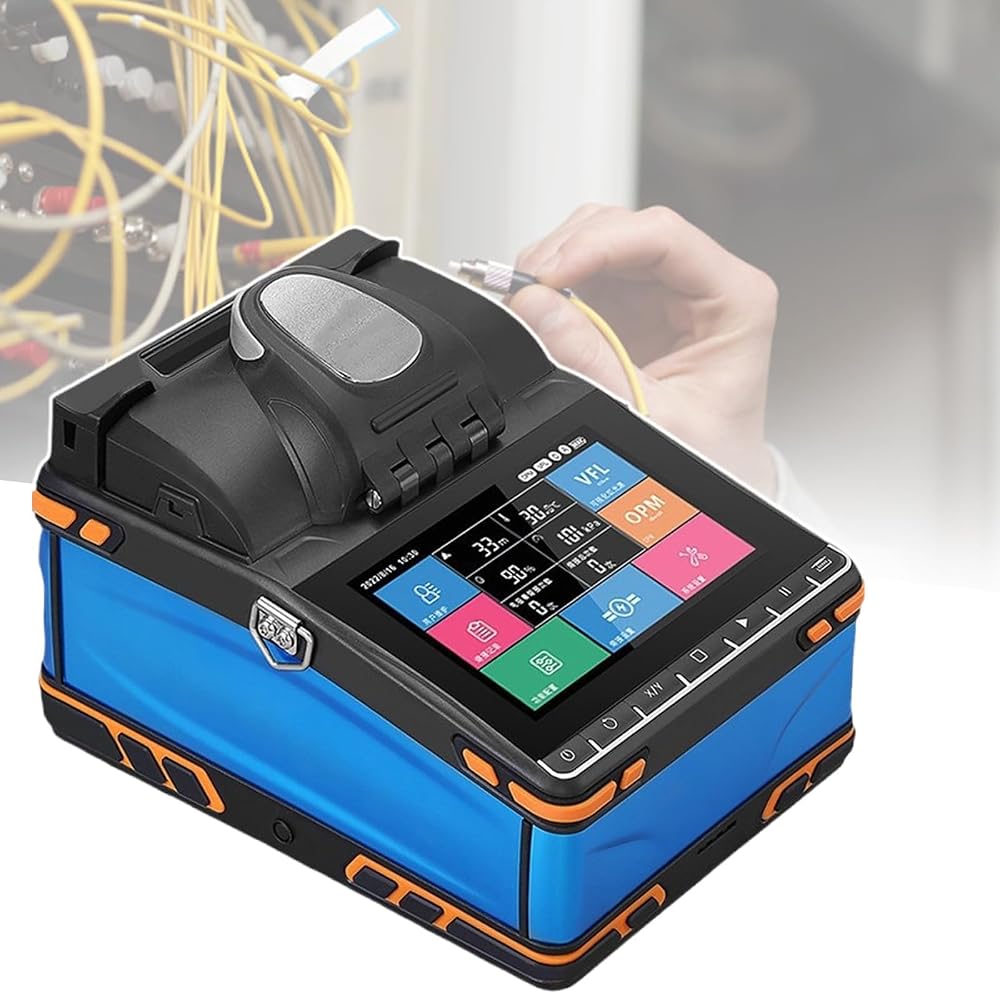

【FASTER SPLICING & HEATING】- The fusion splicing machine uses a powerful fast-speed motor that allows fast 8 second splice time and 18 second heat time, continuous splice and heats about 240 times. And it saving engineers time

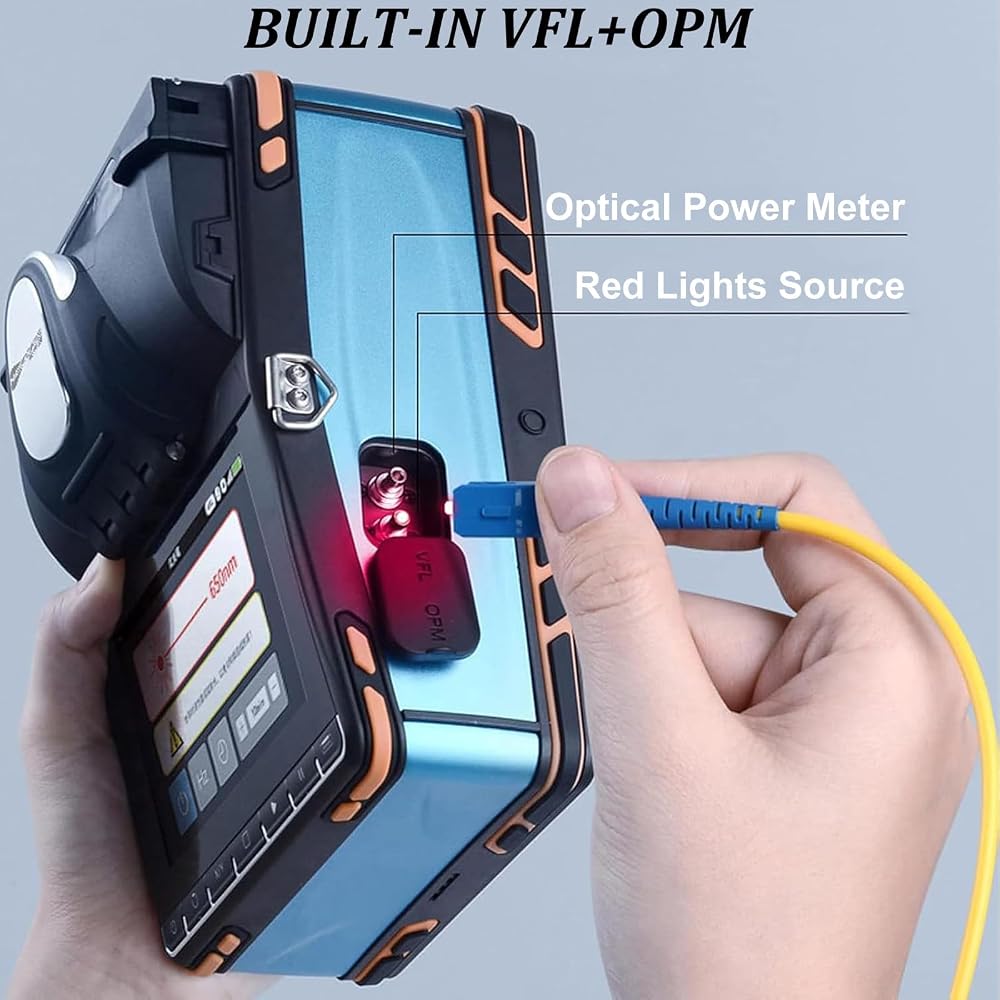

【BUILT-IN POWER METER & VFL】- This fiber termination kit using the latest core alignment technology. Built-in optical power meter and red light source, support 6 wavelengths, and the optical power meter supports self-calibration. Wavelength: 850nm-1625nm, red light (VFL) ≥ 10mW

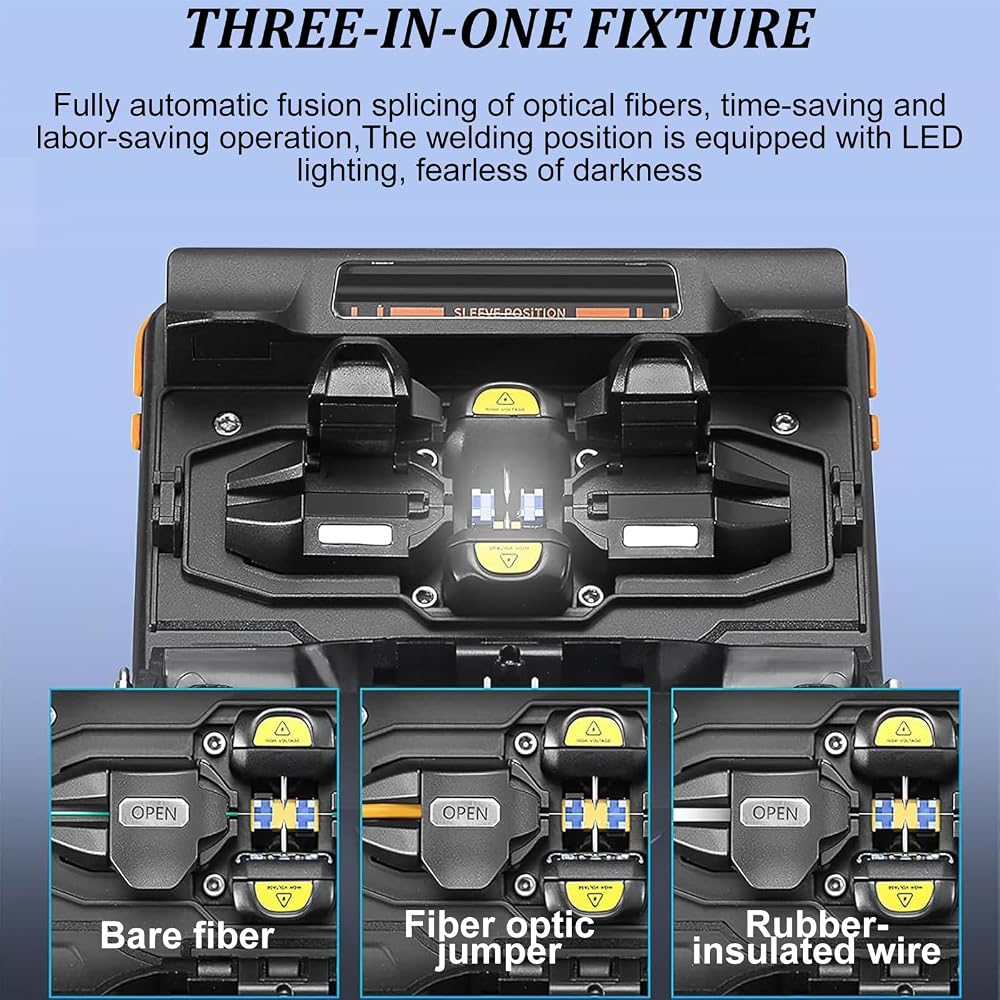

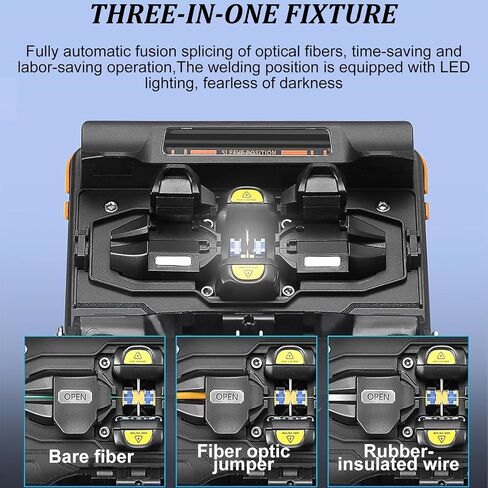

【MULTIFUNCTIONAL FIBER OPTIC BRACKET】- The fiber optic fusion splicer with 3 In 1 Fiber Holder suit for SMF(G. 652)、MMF (G. 651)、DSF(G. 653)、NZDSF(G. 655), bare fiber, pigtail, rubber-insulated, multi fiber cable; Splice Loss: 0.02dB(SMF) ,0.01dB(MMF), 0.04dB(DSF/NZDSF)

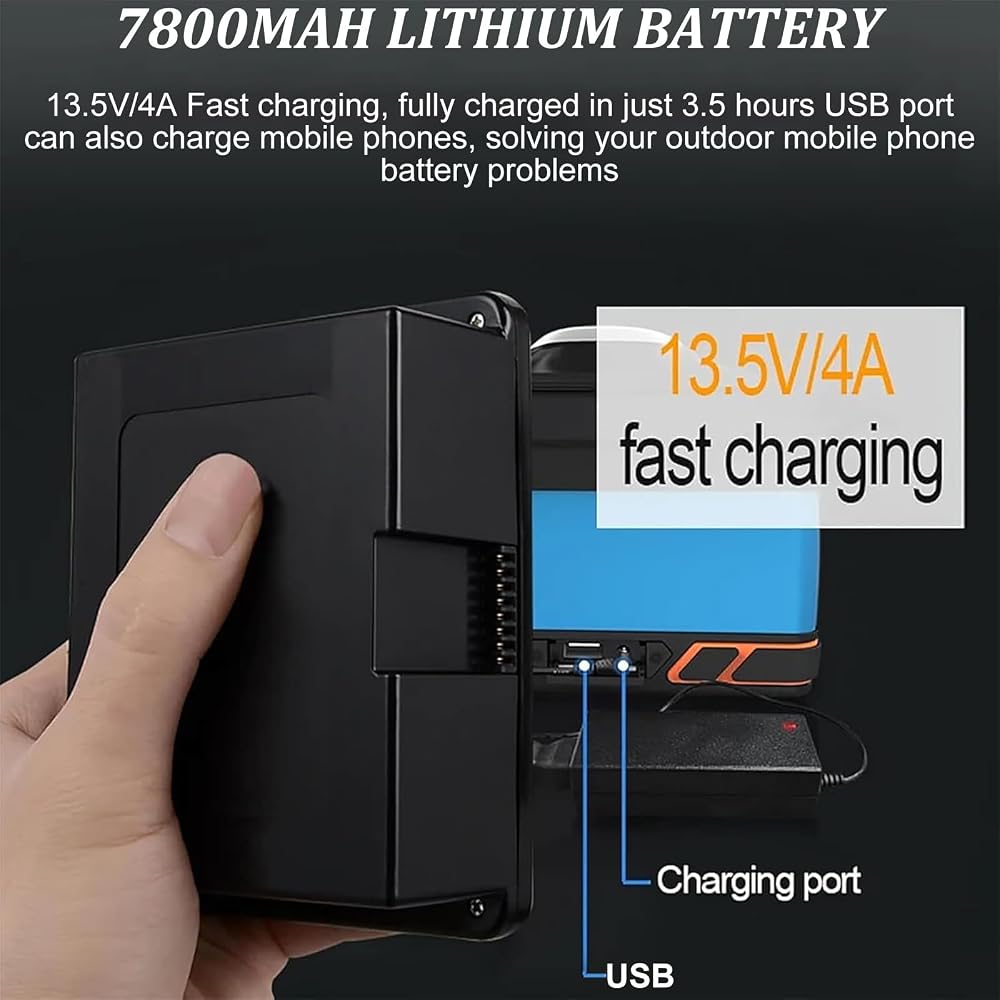

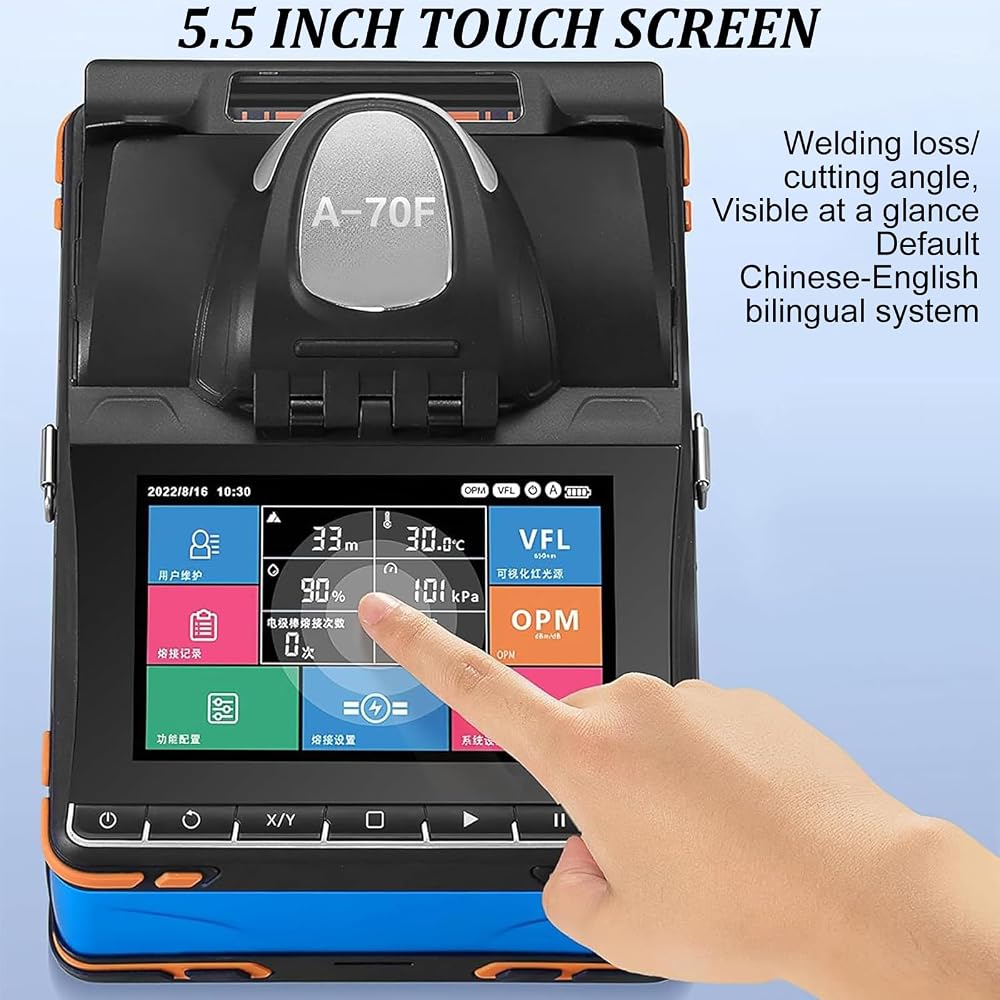

【CLEAR LCD & LONG TIME STANDBY】- Fusion cutter with 5.5-inch screen, it is up to 300 times the focus magnifications when X/Y displayed separately, 150 times focused magnifications when X and Y displayed simultaneously. 7800 mah large-capacity lithium cordless power supply, charging time ≤ 3.5 hours
【WIDE APPLICATION】- The fiber optic welding machine is suitable for fiber optic projects in telecommunication, broadcasting, railroad, petrochemical, electric power, public security and other communication fields

وصف

The alignment method uses core alignment and cladding alignment. This splicer ensures accurate results every time, reducing loss. It is especially useful for optical fiber and cable projects, maintenance, scientific research, electric power, and other communications.

· 3 in 1 clamp can clamp various leather wires, jumper, and bare fibers.
· fast 8 second splice time and 18 second heat time.

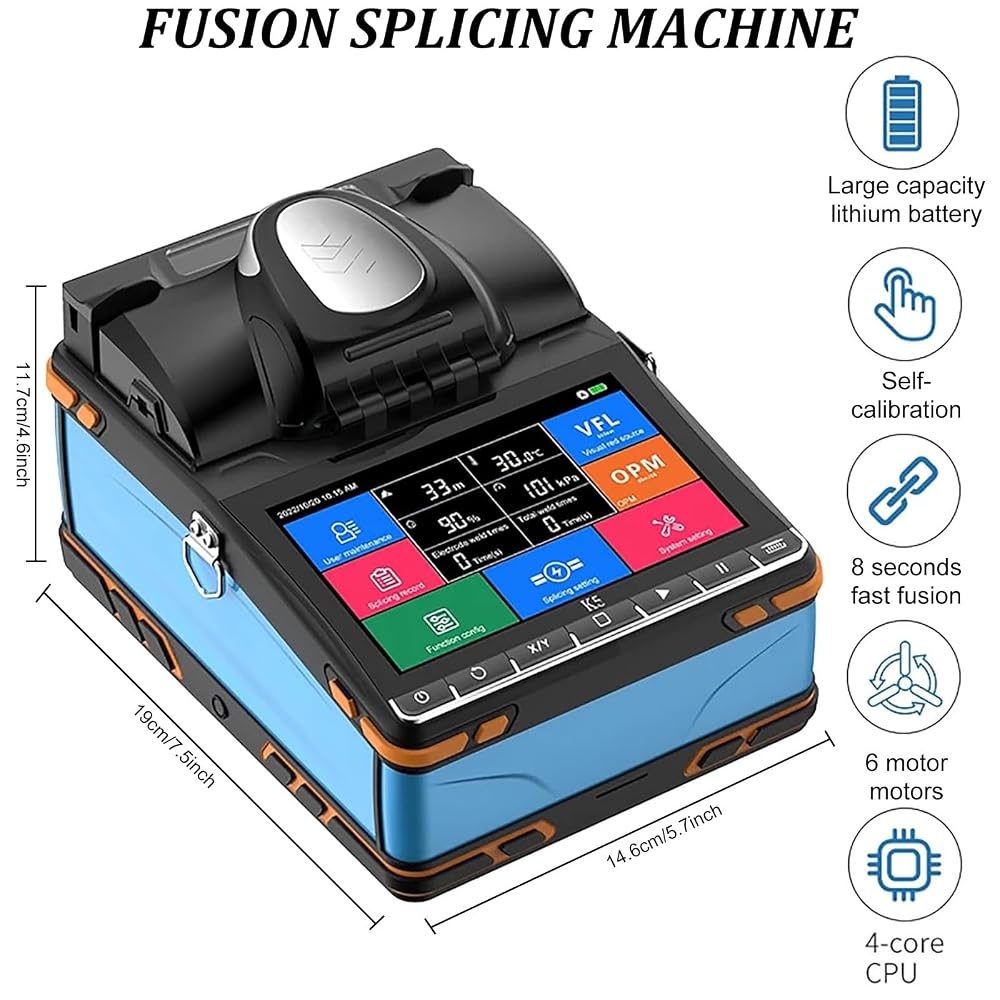

· The fusion machine with six motors precise positioning&5.5 in touchscreen display.

SPECIFICATIONS:

Product name: Optical Fiber Fusion Splicer
Fiber diameter: Cladding diameter 80~150um, coating layer diameter 0.01-0.3CM
Applicable fibers: SMF (G.652) / MMF (G.651) / DSF (G.653) / NZDSF (G.655)
Splicing loss: 0.02dB(SMF) / 0.01dB(MMF) / 0.04dB(DSF/NZDSF).
Splicing record: 1000 sets
Working environment:
Temperature:-15~+50C
humidity: maximum wind speed:15m/s
Storage adjustment:
Temperature:-40 ~ +80℃
humidity:0-95%
Cordless power supply temperature:-20℃ - +30℃
OPM: Range (dbm) -70~+3/can switch between wavelengths of 850nm-1625nm
Red light VFL: power ≥ 10mW

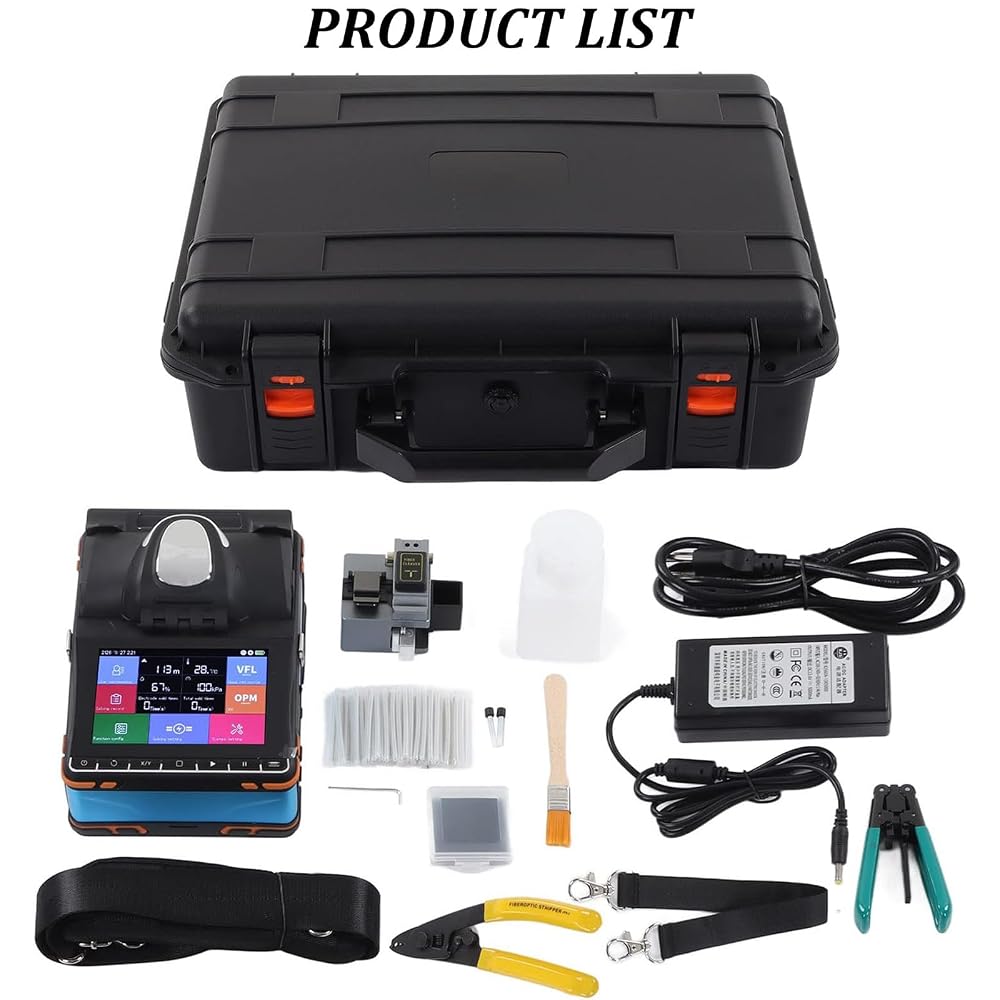

PRODUCT LIST:

Fiber Fusion Splicer * 1
Manual * 1
Other accessories
