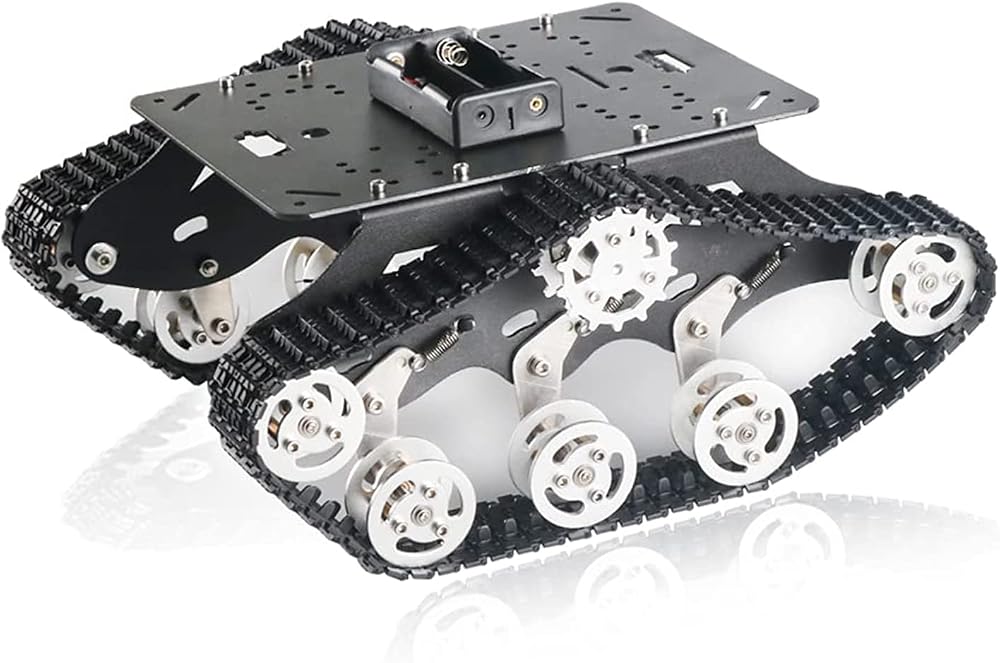

【Robot Tank Chassis】: You will get: a set of metal kit including 3 parts, 2pcs engineering plastic tracks, 2pcs high torque encoder DC motor, 2pcs driving wheels, 10pcs bearing wheels and screw kits. Note: It is unassembled for shipping convenience! It is not difficult to install, just need your patience by the help of the manual.
【Suspension System Design】: This robot tank car chassis is designed with shock absorption. Thus, this tank chassis can easily avoid some obstacles, e.g., crushed stones. So many people use this robot tank chassis (model: TS300) for VR/AR, video monitor, and other applications.
【High Torque DC Motor】: Motor is the core for the tank chassis. 2pcs high torque encoder DC motor is used for this robot tank car chassis TS300. One can get the speed feedback by the Arduino UNO R3 / Raspberry pie / Micro-bit programming.
【DIY RC Model】: This smart robot tank car chassis is very suitable for the maker, school students for robot learning, STEAM education, teaching, competition. One can DIY a robotic tank car model by PS2 or others. We provide the source code based on Arduino controller kit. This robot chassis is a research and learning kit for adult college students.
【Flexible Design】: This tank car chassis is exquisitely designed.. 1) The length of track can be adjustable by the requirements. Since different people needs different length of track or for the backup. We will provide much tracks. 2) The tank car chassis is metal, and the load wheel is equipped with bearings to reduce the friction.

وصف

Product Application
Competition;
Graduation design;
The engineering prototype;
Robot project;
DIY creations

TS300 Tank Chassis Parameters
Name: TS300 shock-absorbing tank chassis
Material: Aluminum alloy
Surface: sandblasted
Color: Black
Tracks: engineering plastics,
Drive wheel: aluminum alloy
Weighing wheel: aluminum alloy
Track width: 40mm/1.57in
Weight: 1.1kg/2.43lb
Size: about 269*258*111mm/ 10.6*10.16*4.37 in (length * width * height)
Designed load: 8kg/17.64lb
Independent shock absorption system

Motor Parameters
Name: 25mm gear motor
Output speed: 150±10%rpm
No_load current: 200mA (Max)
Stall current: 4500mA(max)
Stall torque: 9.5kgNaN
Rated speed: 100±10%rpm
Rated torque: 3000gNaN
Rated current: 1200mA (Max)
Noise: 56dB
Working voltage: 9-12V
Outside Shaft Length: 14.5mm
Shaft End Play: 0.05-0.50mm
Screw Size:M3.0
Dia. Of Shaft phi 4mm, D3.5

Encoder Parameters
Type: AB-phase incremental Hall encoder
Line speed: 150 (measured by reducer output shaft)
Supply voltage: 5V
Interface type: PH2.0 (standard motor cable)

Shipping List
Metal part: 1set
Bearing wheel: 10pcs
Driving wheel: 2pcs
Plastic track: 2pcs
Encoder DC motor: 2pcs
Screws kit: 1set
Others: several
