Application:

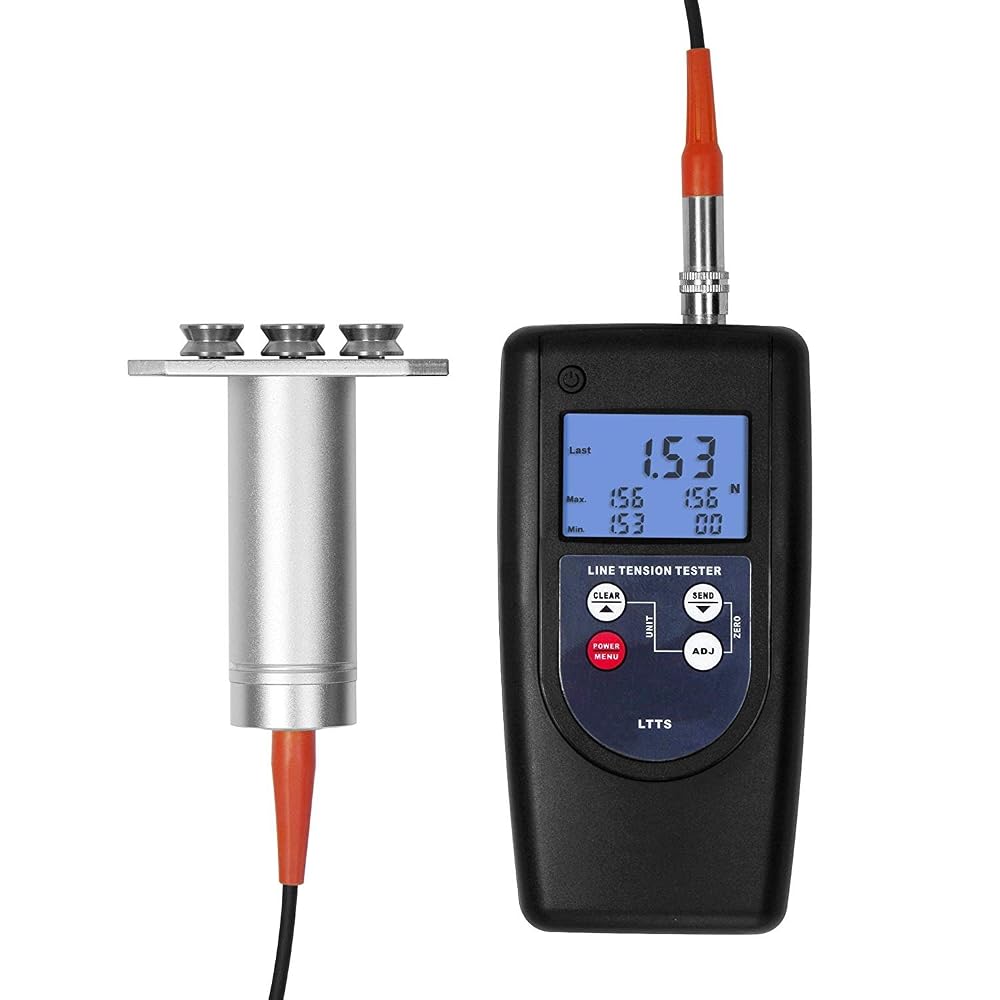

The LTTS series digital tension meter is a hand-held device which accurately measures the running as well as static
tensions of a wide variety of process materials including yarns, fibers, wires, optical fibers, etc.

Specification:
Tension Range: 0~50.0kgf/0~490N/0~110Lbf
Resolution: 0.01kgf/0.1N/0.01Lbf
Accuracy: ±1.5% or better
Unit: Kgf , gf , N , Lbf
Measuring Principle: Strain gauge
Measuring Frequency: 16 msec (62.5 samples / sec)
Sensing Roller: Deflection of Sensing Roller ( max. ) 0.2 mm
Overload Capacity: 150 % of Full Scale
Temperature Coefficient: Zero : less than ±0.3% FS/ °C Span : less than ±0.01% FS/ °C
Display: Blue Back light LCD
Display Update Rate: 0.5 , 1.0 , 2.0 or 4.0 seconds , selectable
Memory System: Current Value , Max. Value , Peak Value , Min Value
Overrange Indicator: Buzzer Alarm
Power Off: 10 Minutes Auto , Manual
Data Output: USB , Bluetooth
Roller Material: Stainless Steel ( Standard ) Plastic ( Optional )
Maximum Speed: 2000 m/min
Power Supply: 4 x 1.5 AAA( UM-4 ) Battery
Operation Temperature: 0 ~ 40 °C
Operation Humidity: Weight: 400 g
Size: Main Unit : 149 x 70 x 30 mm Sensor : 102 x 81 x 34 mm
