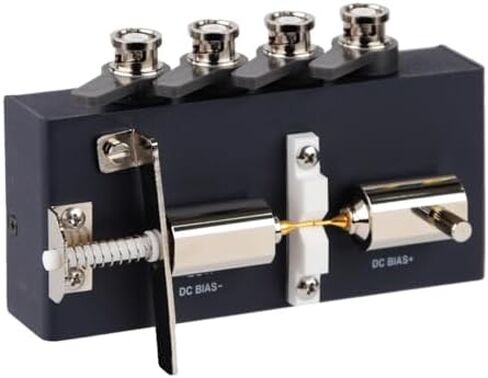

SMD Digital Bridge Test Fixture, High Precision Capacitance Test Fixture, Frequency Range DC-30MHz, for 0201-1812 SMD Component, Benchtop LCR Meter

Features:
1. The Adjustable Digital Bridge Test Fixture ensures precise SMT/SMD measurement.
2. This High Precision Capacitance Test Fixture offers portable accuracy.
3. The SMD Digital Bridge Test Fixture covers DC-30MHz, meeting diverse demands for effective electronic component analysis.
4. Compact and lightweight, the Adjustable Digital Bridge Test Fixture enhances mobility.

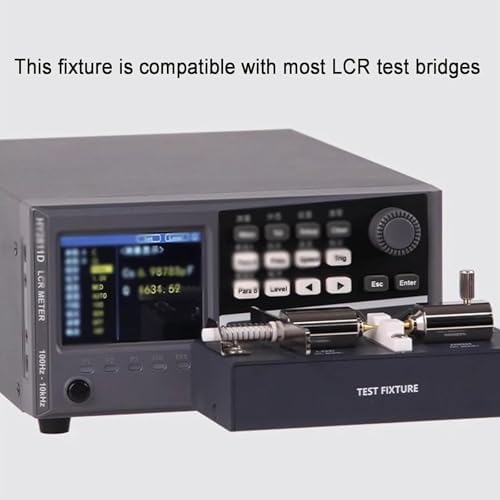

5. Compatible with SMT/SMD testers, this High Precision Capacitance Test Fixture streamlines workflows.

Specifications:
Product Name: SMD Digital Bridge Test Fixture
Frequency Range: DC-30MHz
Maximum DC Bias: DC ±24V

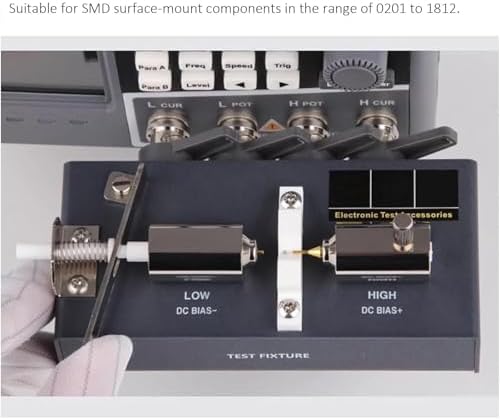

Applicable SMD Component Range: 0201-1812

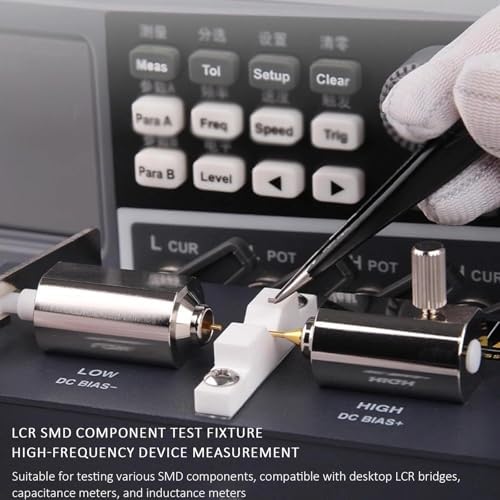

Product Use: SMD component test fixture, especially for high-frequency small capacitors or inductors. This type of SMD fixture is suitable when the test frequency is ≥100kHz, capacitance ≤3pF, or inductance ≤1uH.

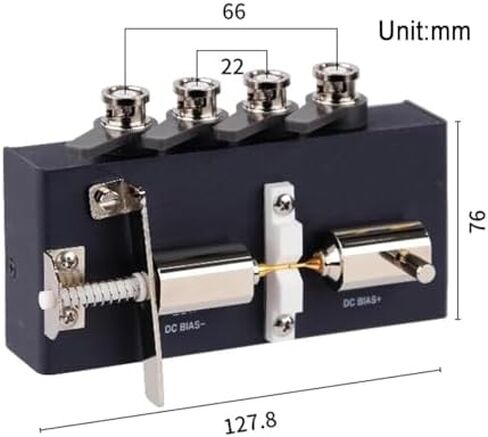

Product Dimensions: 127.8×76mm/5×3in
Package Dimensions: 22×12×5.8cm/8.7×4.7×2.3in
Gross Weight: 500g

Package List:
1 × SMD Digital Bridge Test Fixture

Notes:
1. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement.
2. If you have any questions please contact me and I will reply you within 24 hours.
