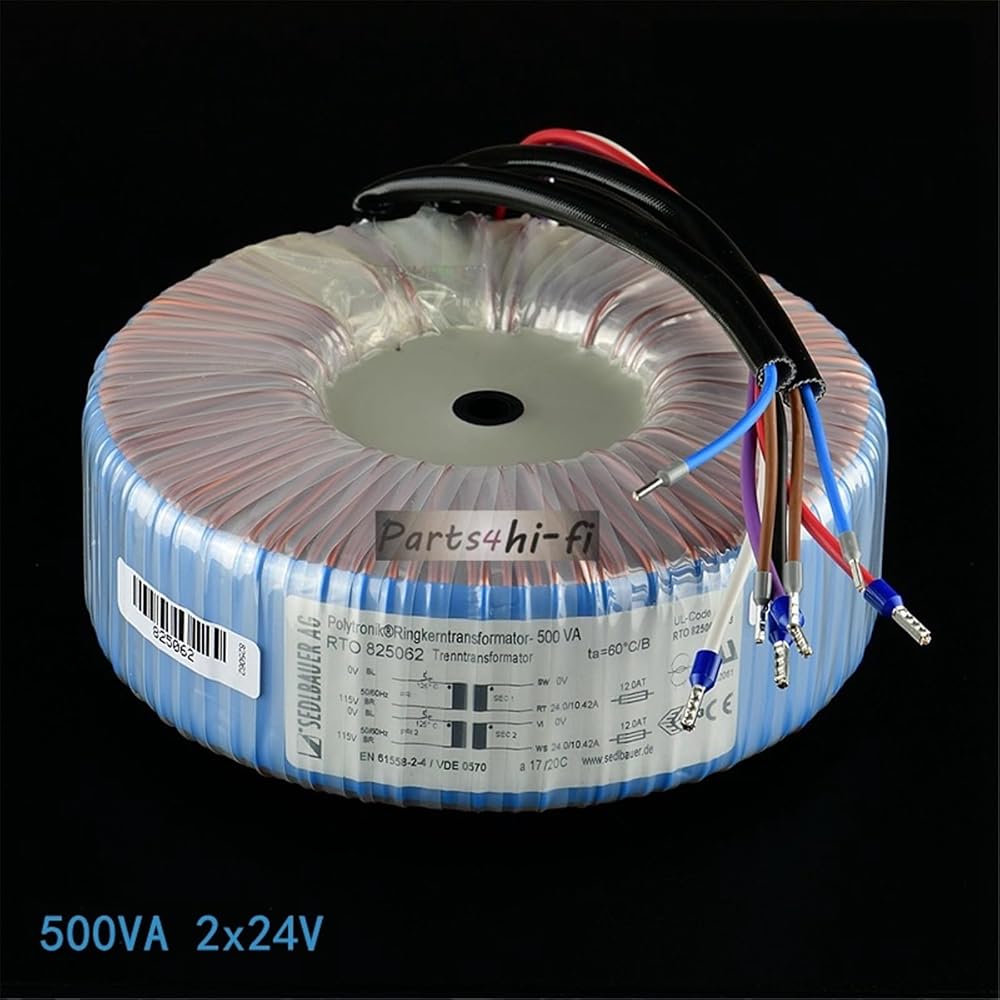

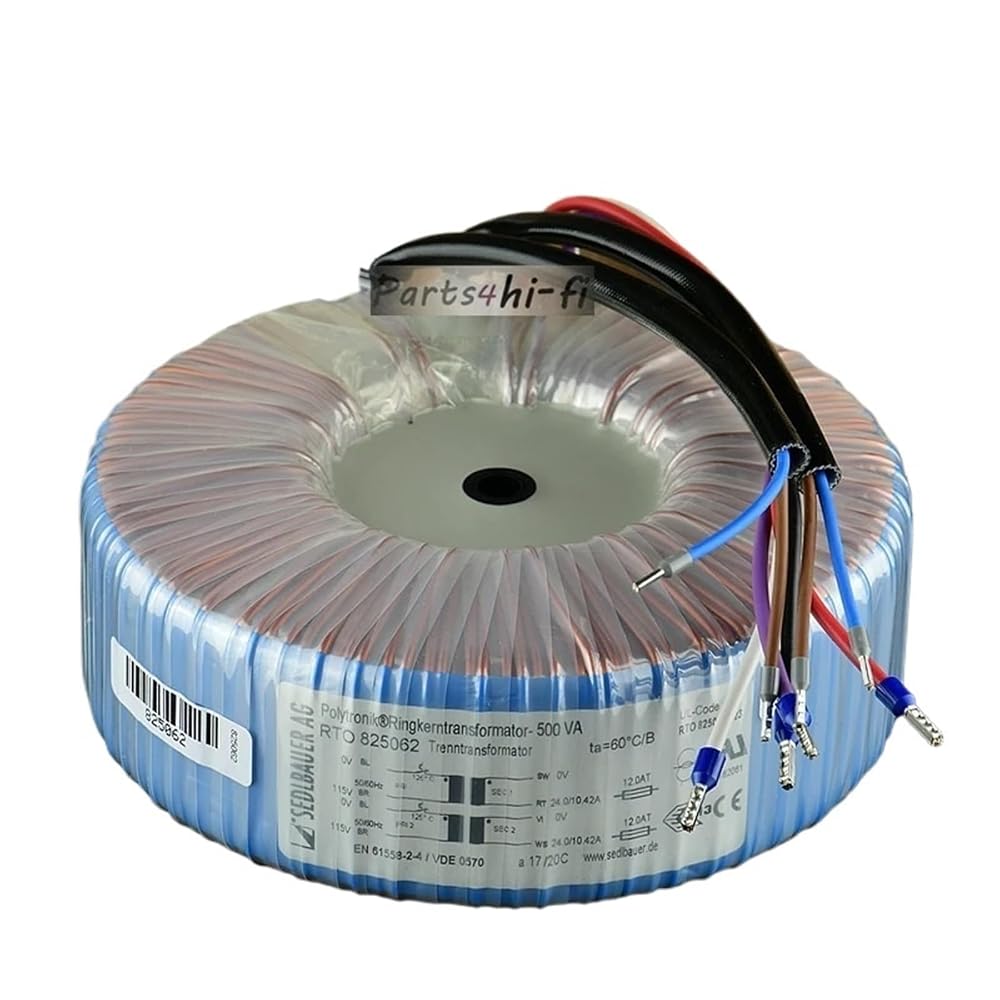

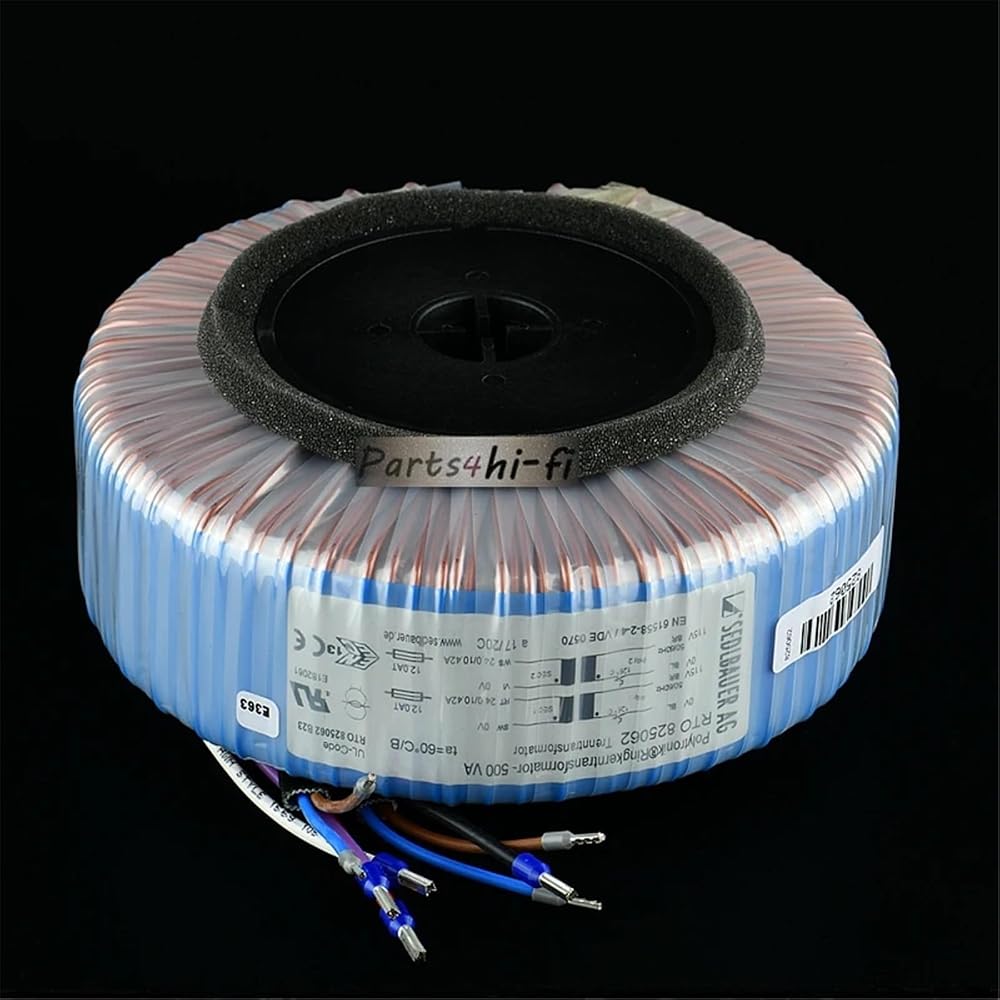

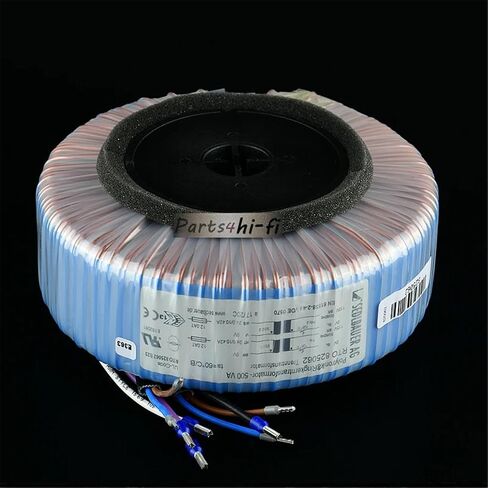

Material number: RTO 825062
Description: RKT 500VA/ 2x115V1 2x24V 2x10.42A
Safety isolation standard: EN 61558-2-4 1 VDE 0570
Power [VA]: 500
Input voltage [AC]: 2x 115 V +-10%
Output voltage [AC]: 2x 24.00 V
Output current [AC]: 2x 10.42A
Frequency [Hz]: 50/60
Dielectric strength PRI-SEC [AC]: 4400V
Conversion efficiency[%]:94
No-load power loss [W]: 2.86
Maximum ambient temperature ta [C]: 60
Temperature class: B (130*C)
Temperature switch: 125'C (auto reset)
Connection method: parallel 115V = blue + blue, brown + brown
Primary 1, Secondary 2: Series 230V = brown + blue
Secondary 1, Secondary 2: Parallel 24.0V120.84A = black + purple, red +
Series 48.0V110.42A = red + purple
Certification marks: ; ENEC; UL508 (E182061)
Lead wire: primary and secondary lead wire length 200mm, the end of the lead wire has been installed with a sleeve
Installation method: embedded mounting plate + 8.1mm diameter through hole
Anti-shock level: prepared for class II
Protection class: IP 00
Fuse recommendation:
Primary: 8.00 AT/4.00AT (115V 1 230V) (IEC60127-2-5)
Secondary 1 12.00 AT(IEC60127-2-3)
Secondary 2 12.00 AT(IEC60127-2-3)
size:
Outer diameter: 156mm
Height: 62 mm
Weight: about 4.78 kg
