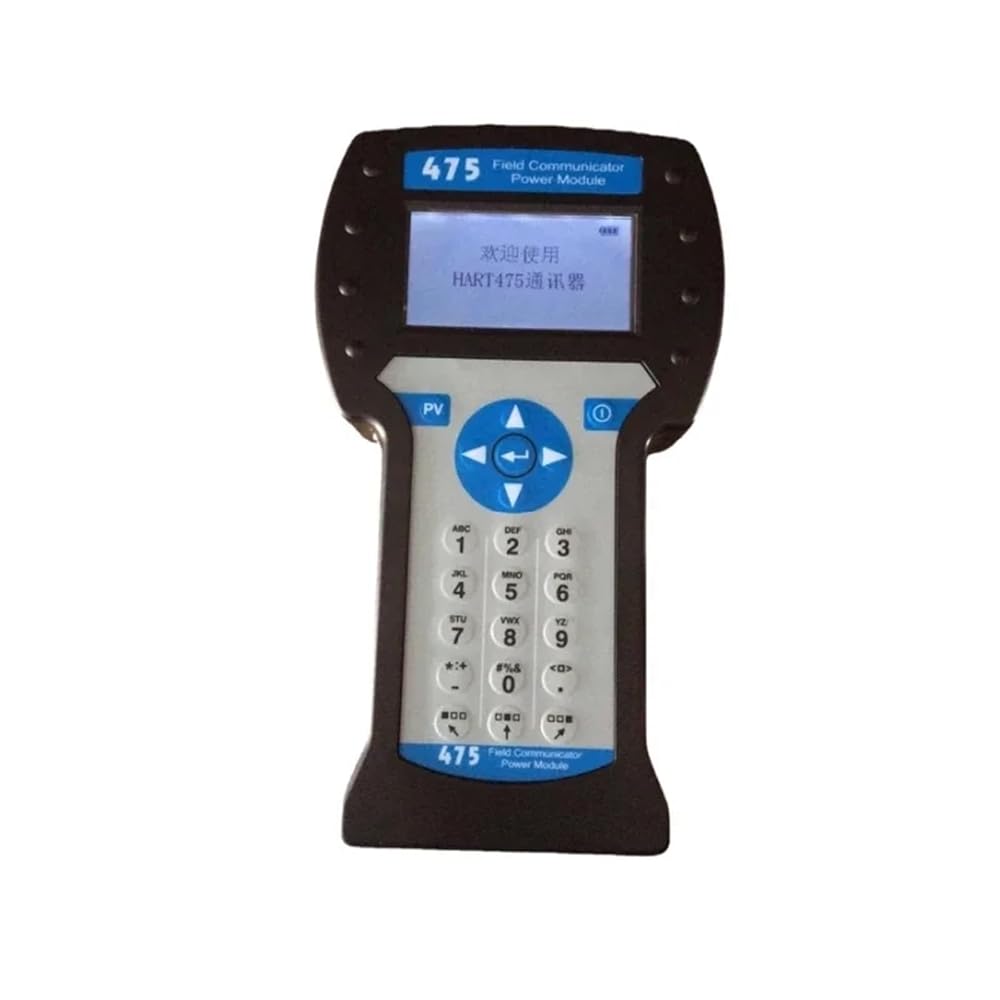

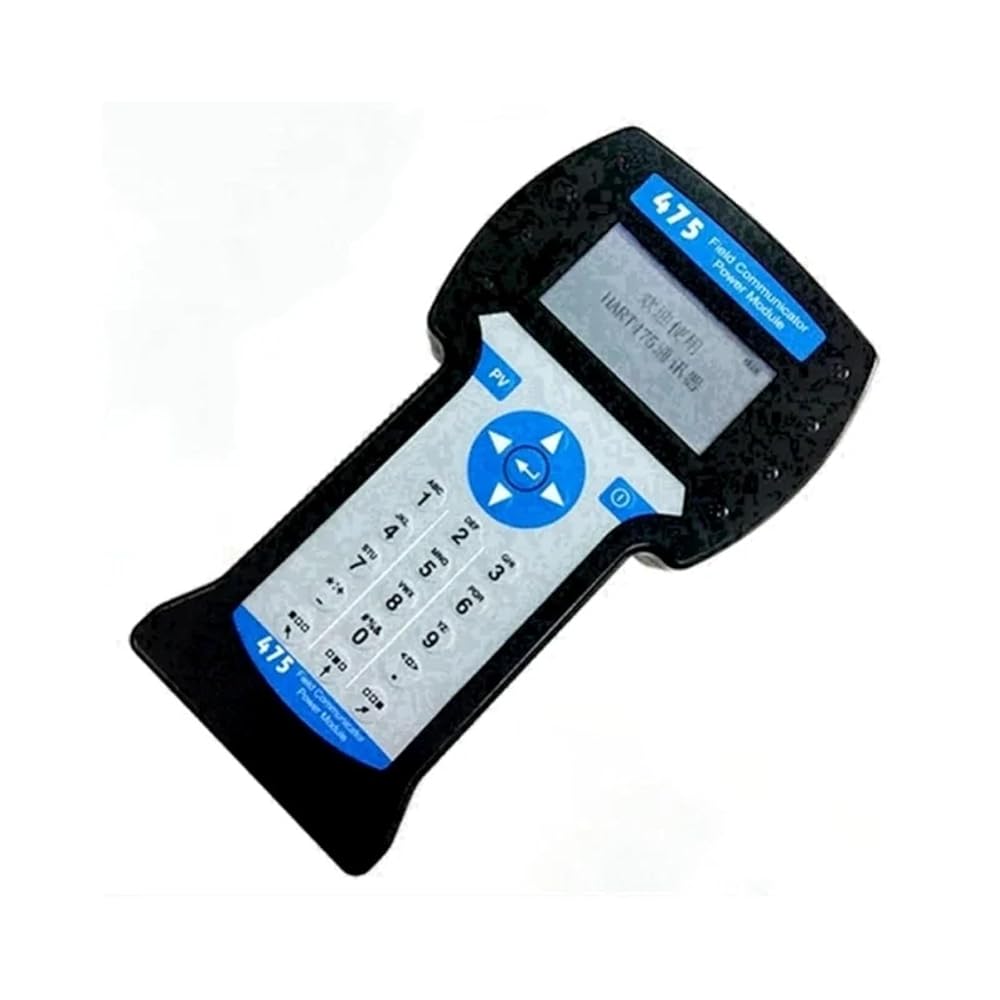

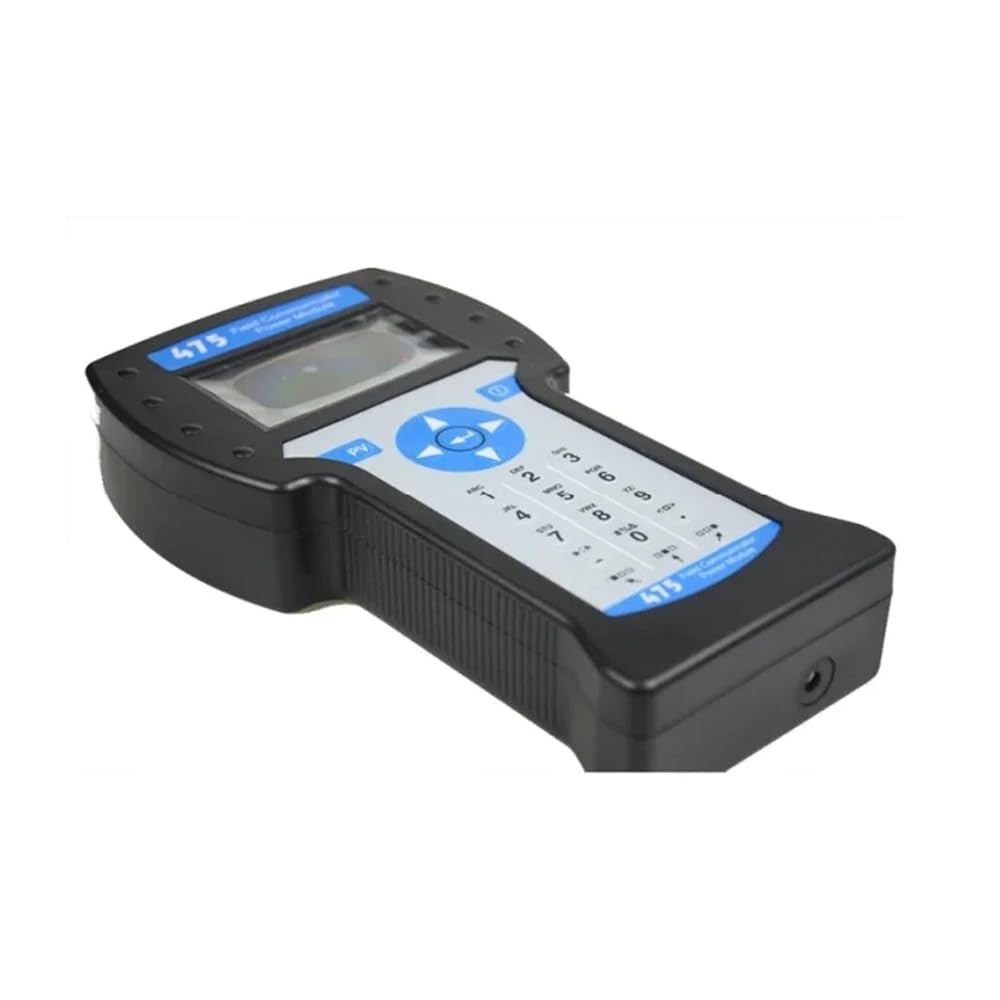

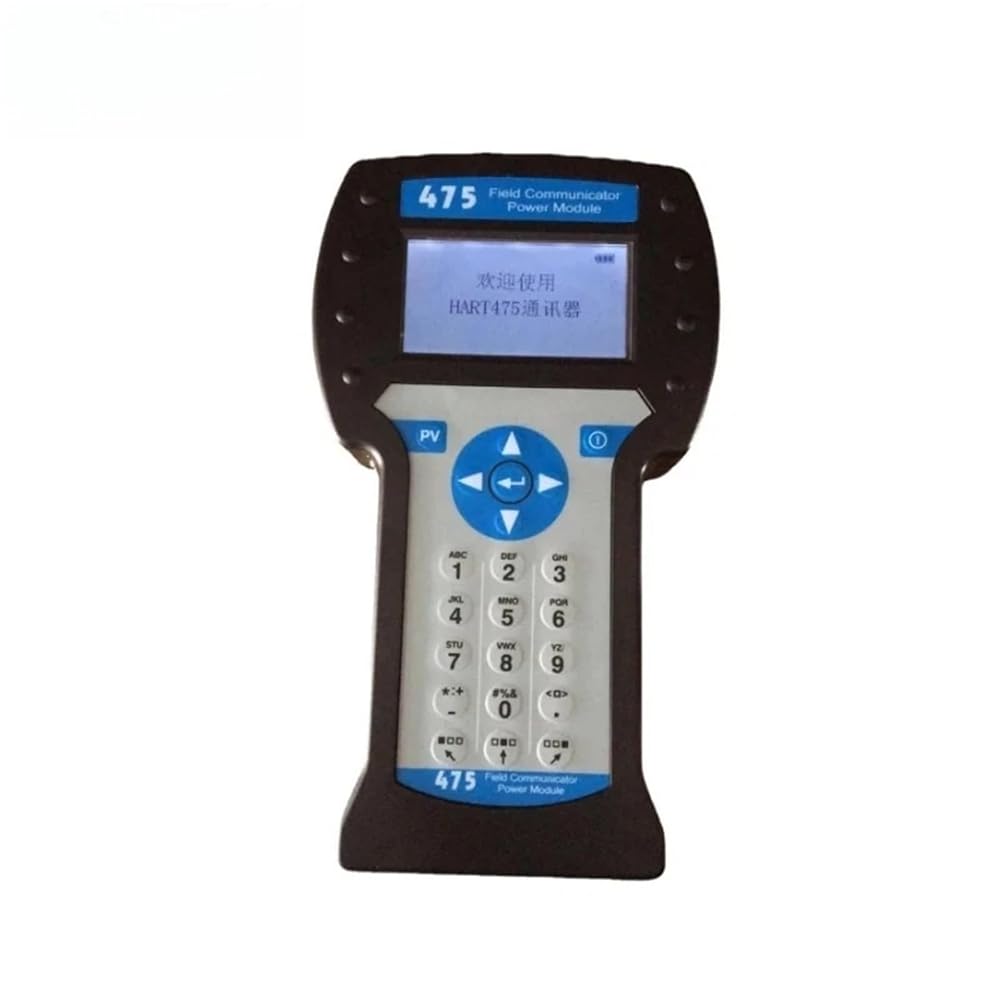

Description of Hart 475 Communicator handheld 475 Field Communicator
The hart475 handheld communicator is an upgraded version of the HART375 handheld communicator. It is used with instruments that adopt the HART communication protocol to set, change and display them. It can monitor input/output values and self-diagnosis results. Set constant current output and zero adjustment. When the system is started or maintained in operation, it can be used as long as the HART communicator is connected to the 4~20mA communication signal line. This communicator is suitable for the communication operation of HART protocol smart transmitters. It is compatible with HART275, HART375 and HART475 handheld communicators. It has excellent compatibility and can communicate with 1151, 3051, EJA, ABB and other imported instruments with HART protocol. It is completely It is compatible with various domestic intelligent pressure (temperature) transmitters. At the same time, it can also communicate with electromagnetic flowmeters, V-cone flowmeters, target flowmeters, vortex flowmeters and other flowmeters that support the HART protocol.
Details Images
Specification
Item
Hart 475 Communicator handheld 475 Field Communicator
Version
Hart 475 C
Application
Hart 275/375/475
Communicate object
hart protocol pressure transmitter, flow meter, temperature transmitter
Power supply
Built-in lithium battery
Package
With Carry bag
Features
Detailed Instruction
Related Products
MF5700 air mass flowmeter
80mm Digital pressure gauge
Humidity & temperature transmitter
Micro differential pressure transmitter
Ceramic pressure sensor packard
Diffuse silicon pressure transmitter
RC5 Temperature data logger
Micro differential pressure gauge
TUF2000H Ultrasonic flowmeter
==========
High-concerned chemical : None
Electronic : No
DIY Supplies : Electrical
Name : Hart 475 Communicator handheld 475 Field Communicator
Protocol : Hart 475 C/B
Compatible version : hart 275/ hart 375/ hart 475
Communicate object : EJA, ABB instrument and other hart 475 communicator instrument
Power supply : Built-in lithium battery
Packing : Carry bag
Accessories : Test leads, alligator clips, 250 resistor
Version : English
Weight : 2.5kg
