مميزات خاصة

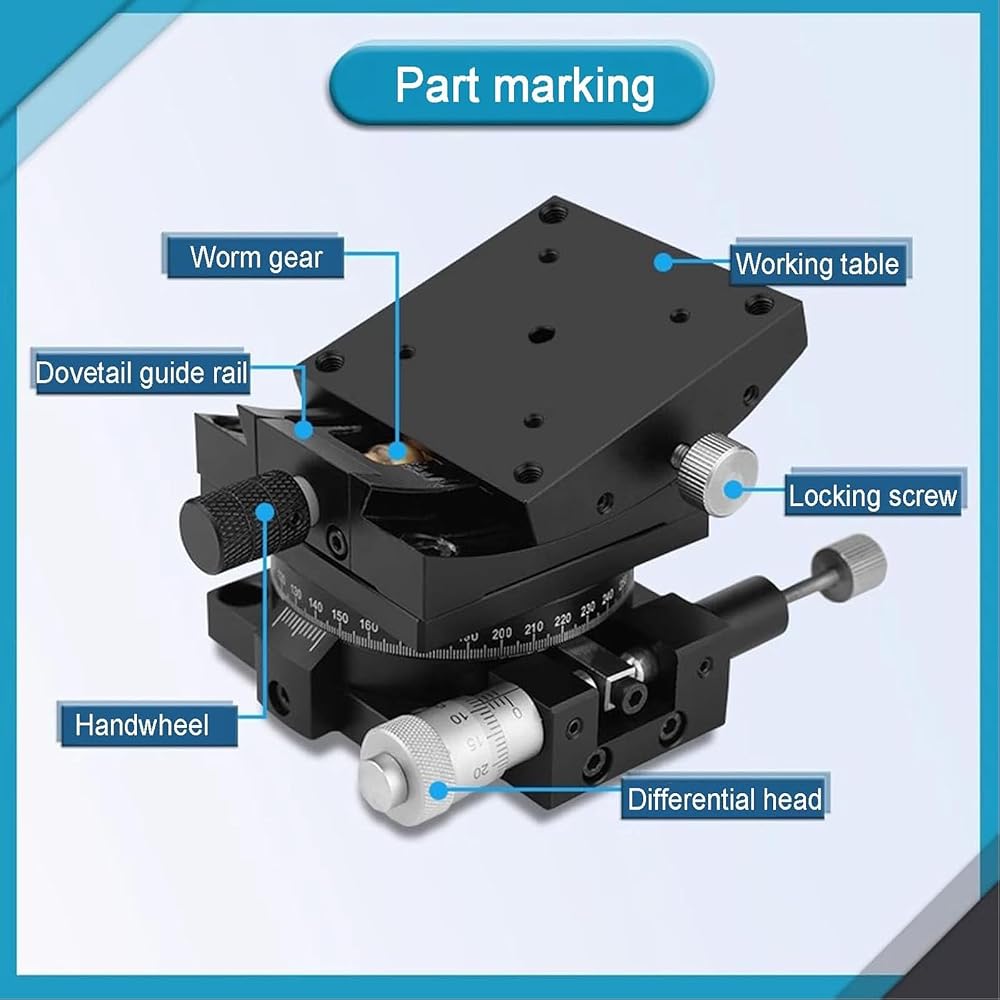

【High Precision】High precision and more reliable: central worm gear drive, precision adjustable dovetail guide rail. Smooth movement, small deflection and tilt. Stroke: 20°; Minimum reading scale: 1°; Table size 60×60mm

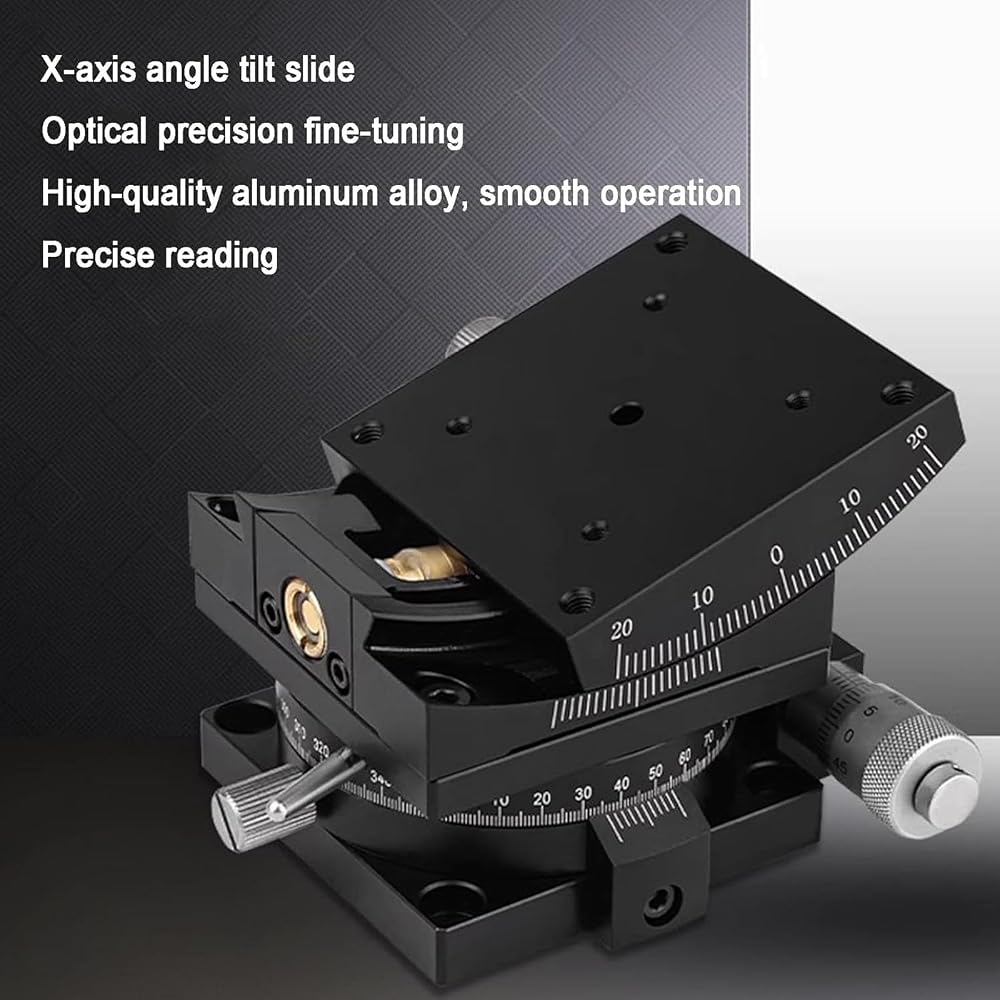

【Durable Aluminum Construction】Constructed from hard aluminum alloy with an anodized black surface treatment. Enhances durability and effectively prevents light reflection, especially suitable for optical applications
【Safe R-Corner Protection】The 60×60mm worm gear dovetail groove fine-tuning platform is designed with R-corner protection to remove edge burrs, reducing the risk of bumps and injuries during use

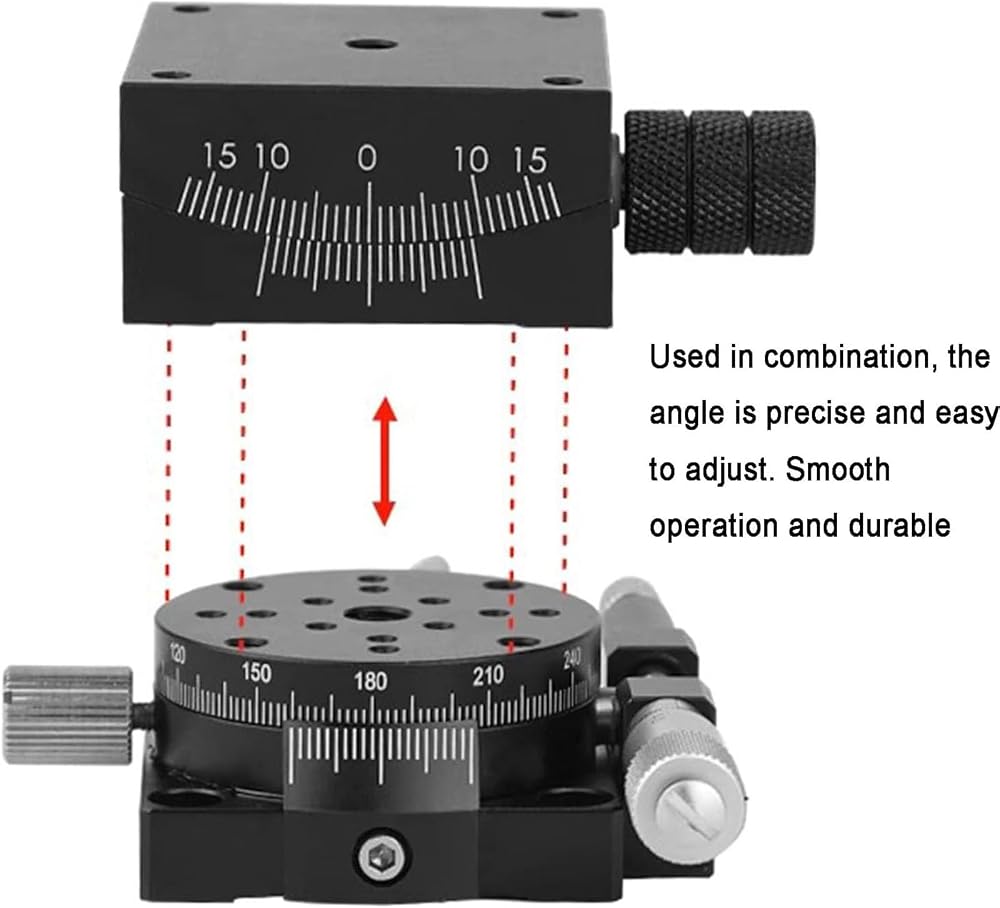

【Multi-dimensional Stage Combination】Extended handwheel for easier adjustment. Porous design allows combination with other stages through standard hole spacing connecting holes
【Wide Range of Applications】Applicable to optical equipment, measuring instruments, semiconductor manufacturing equipment, testing machines, microscopes, photographic equipment, and more

وصف

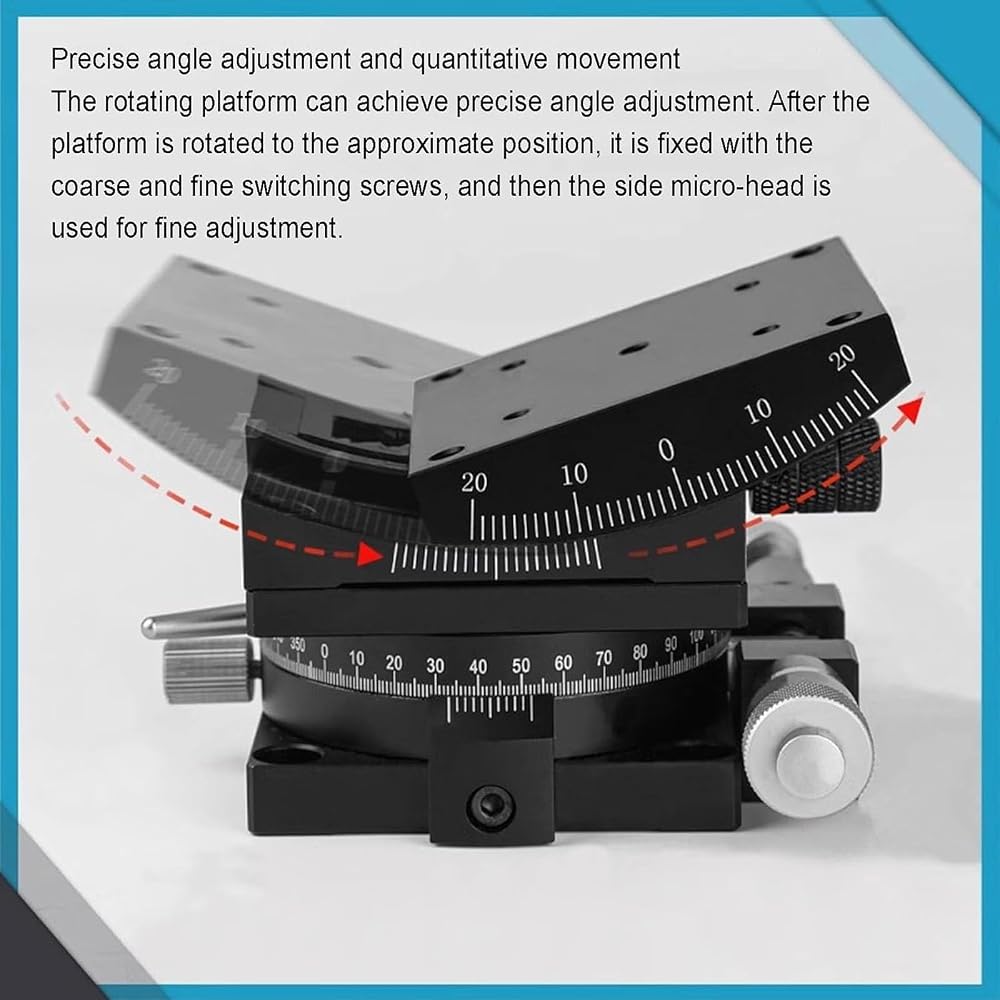

Linear platform supports precise angle adjustment and quantitative movement. The dovetail guide provides high accuracy, smooth motion, excellent load resistance, and stable operation.

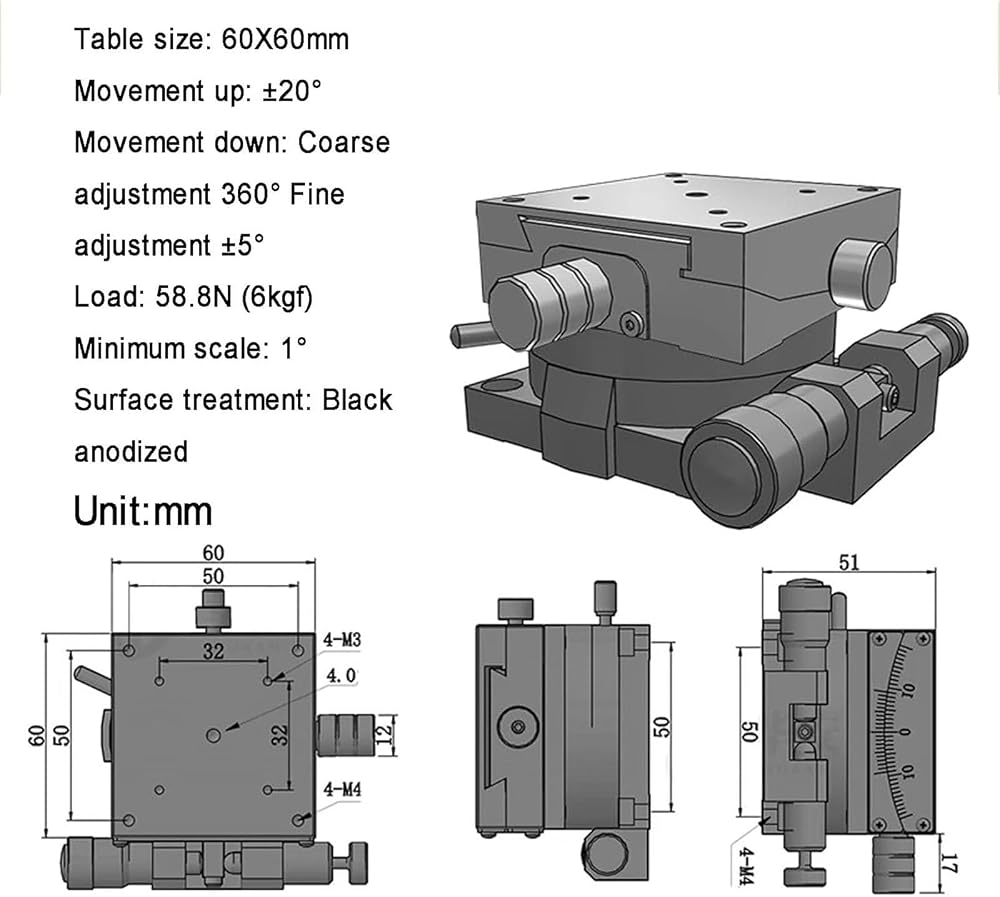

Specifications:

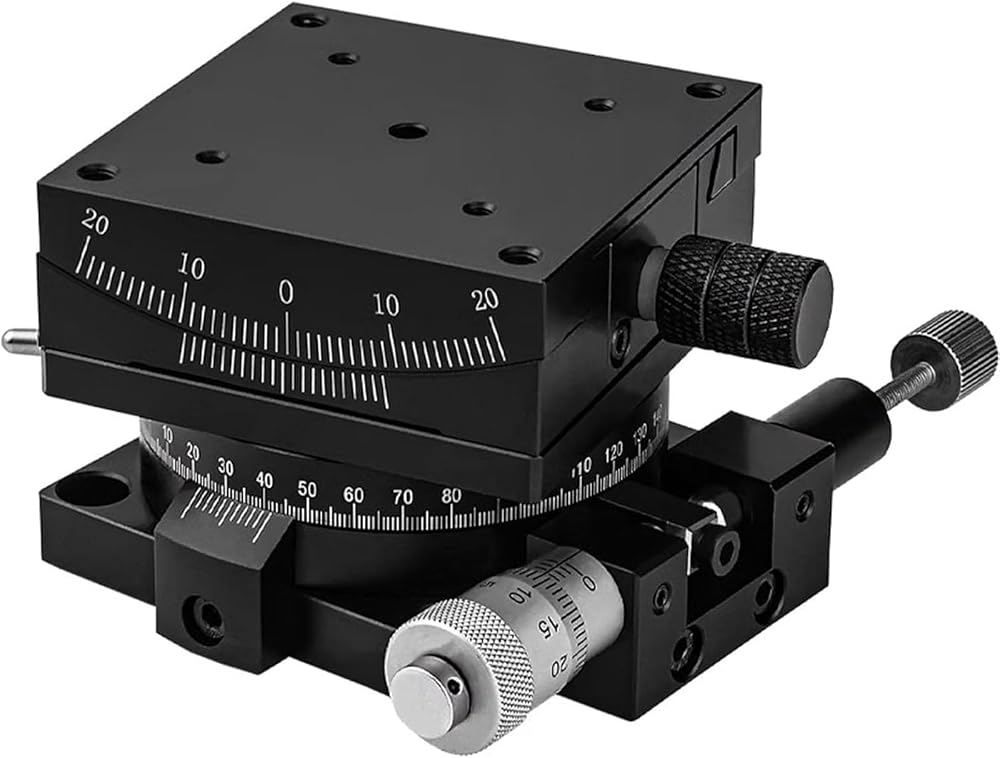

Product Name: Manual Linear Stage
Material: Aluminum Alloy
Surface Treatment: Black Anodized
Table Size: 60 × 60 mm
Movement Range: ±20°
Fine/Coarse Adjustment: Coarse 360°, Fine ±5°
Maximum Load: 58.8 N (6 kgf)
Minimum Scale: 1°
Weight: 0.86 kg

Package Includes:
1 × Manual Linear Stage

مرحبًا،

بحث

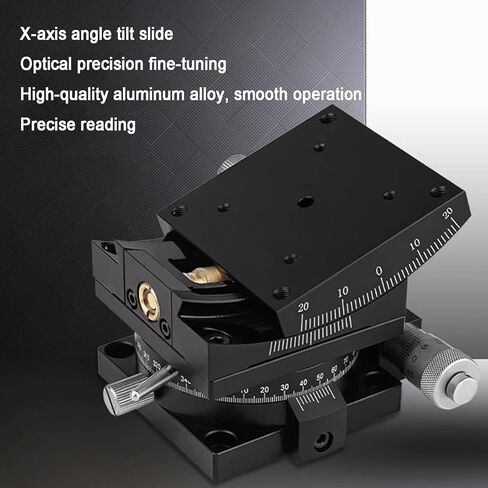

المرحلة الخطية اليدوية، مرحلة مقياس الزوايا الدقيقة 60 × 60 مم مع تعديل الميل ±20 درجة، طاولة تحديد المواقع البصرية مع مسطرة مقياس ومنصة متوافقة للمعدات البصرية
