مميزات خاصة

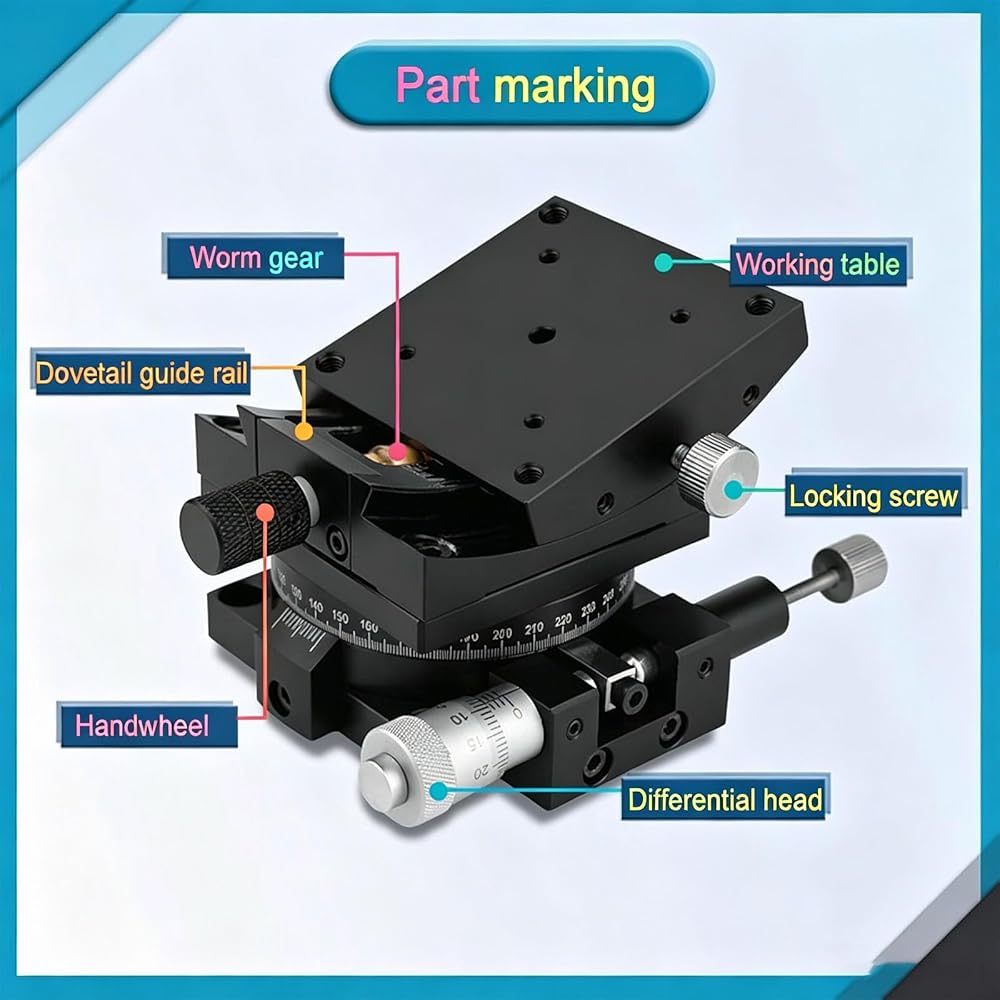

【High Precision Adjustment】Features central worm gear drive and precision adjustable dovetail guide rail delivering smooth movement low deflection and accurate positioning with 20° stroke and 1° minimum reading scale

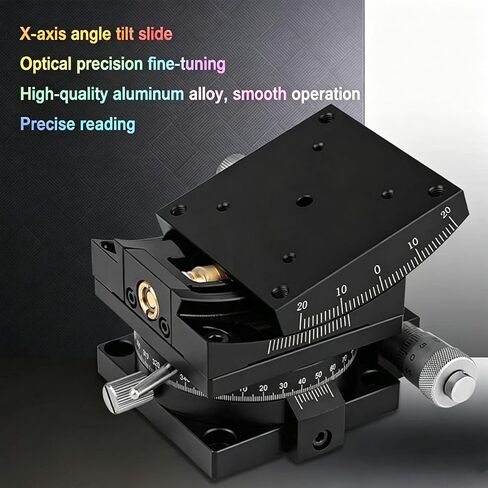

【Durable Aluminum Alloy Construction】Made from hard aluminium alloy with anodized black surface treatment effectively reducing light reflection and making it highly suitable for optical applications
【R Corner Protection Design】Designed with rounded corner protection to remove sharp edge burrs helping improve operational safety and prevent accidental bumps during use

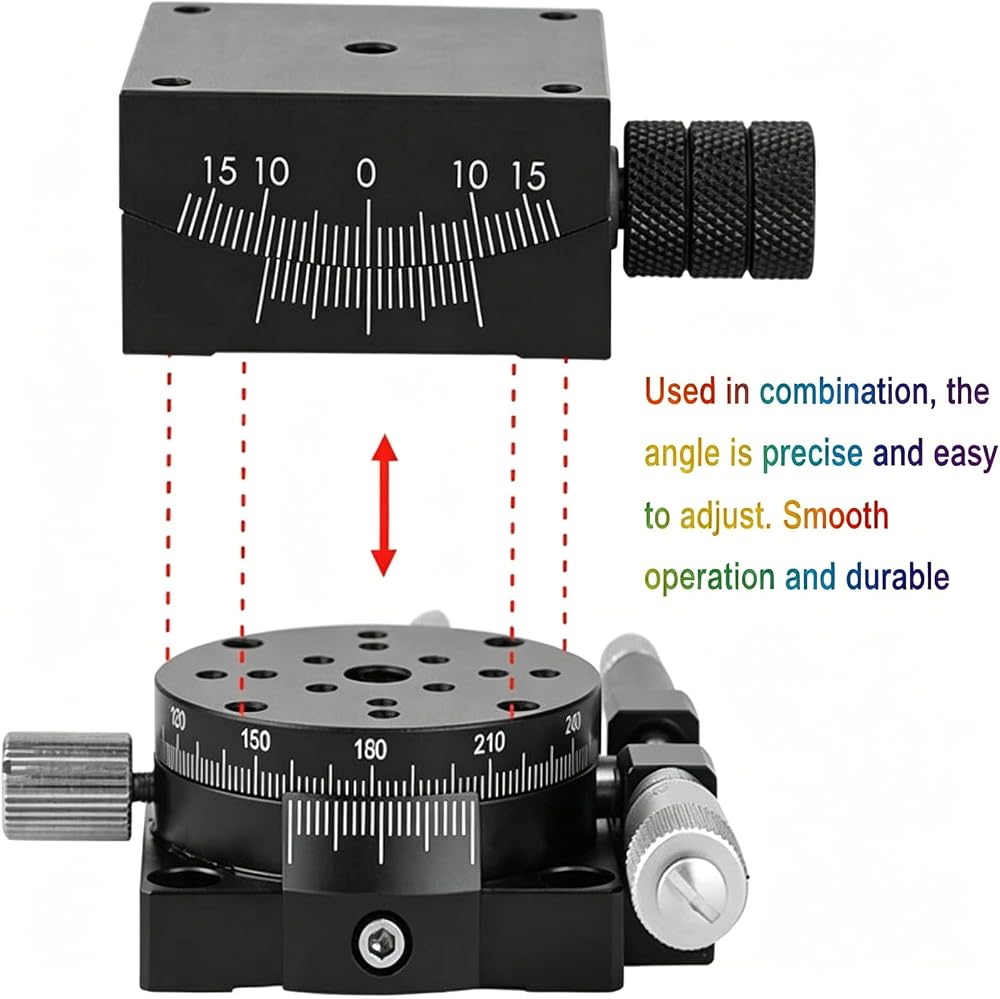

【Multi Dimensional Stage Compatibility】Porous mounting structure with standard hole spacing allows easy combination with other stages for building multi dimensional precision positioning systems
【Wide Equipment Application】Suitable for optical equipment measuring instruments semiconductor manufacturing testing machines microscopes photographic equipment and various precision positioning applications

وصف

Product Description

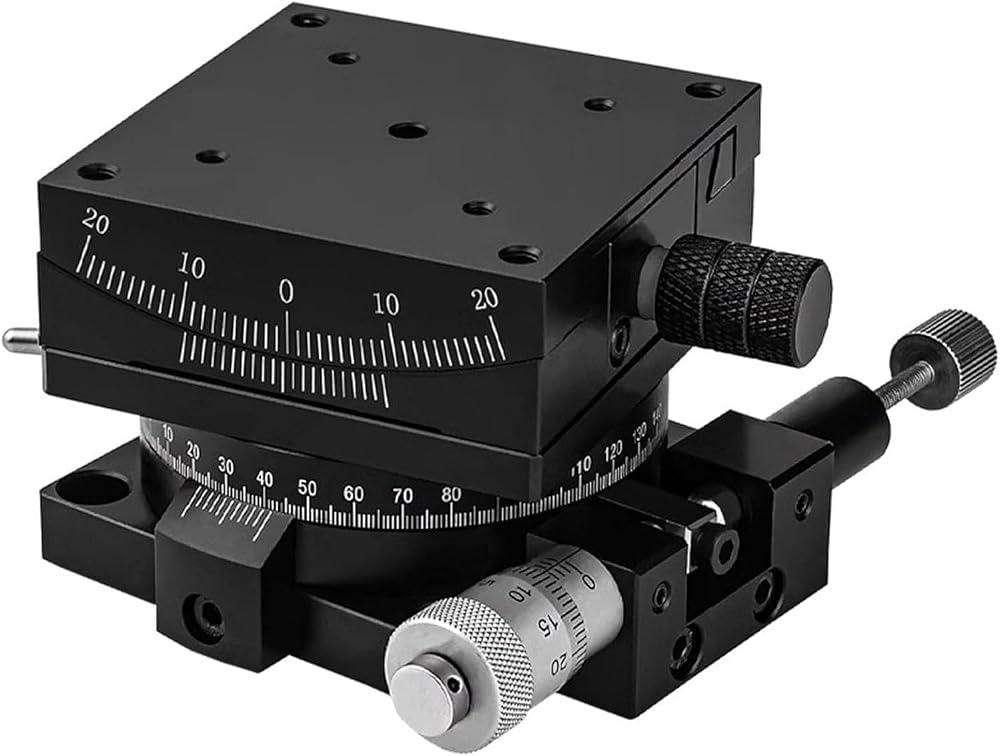

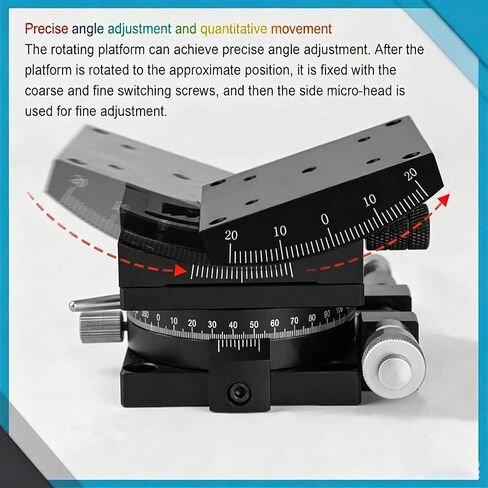

This manual linear stage is designed for precise angle adjustment and stable positioning in optical laboratory and mechanical applications The dovetail guide structure provides high accuracy smooth movement and strong load resistance for reliable operation during positioning tasks The platform supports upward adjustment of ±20° and coarse 360° rotation with fine adjustment of ±5° allowing accurate quantitative movement control Made from durable aluminum alloy with black anodized surface treatment it offers wear resistance and stable long term performance The compact 60 × 60mm table size is suitable for optical equipment positioning measurement systems and precision experimental setups

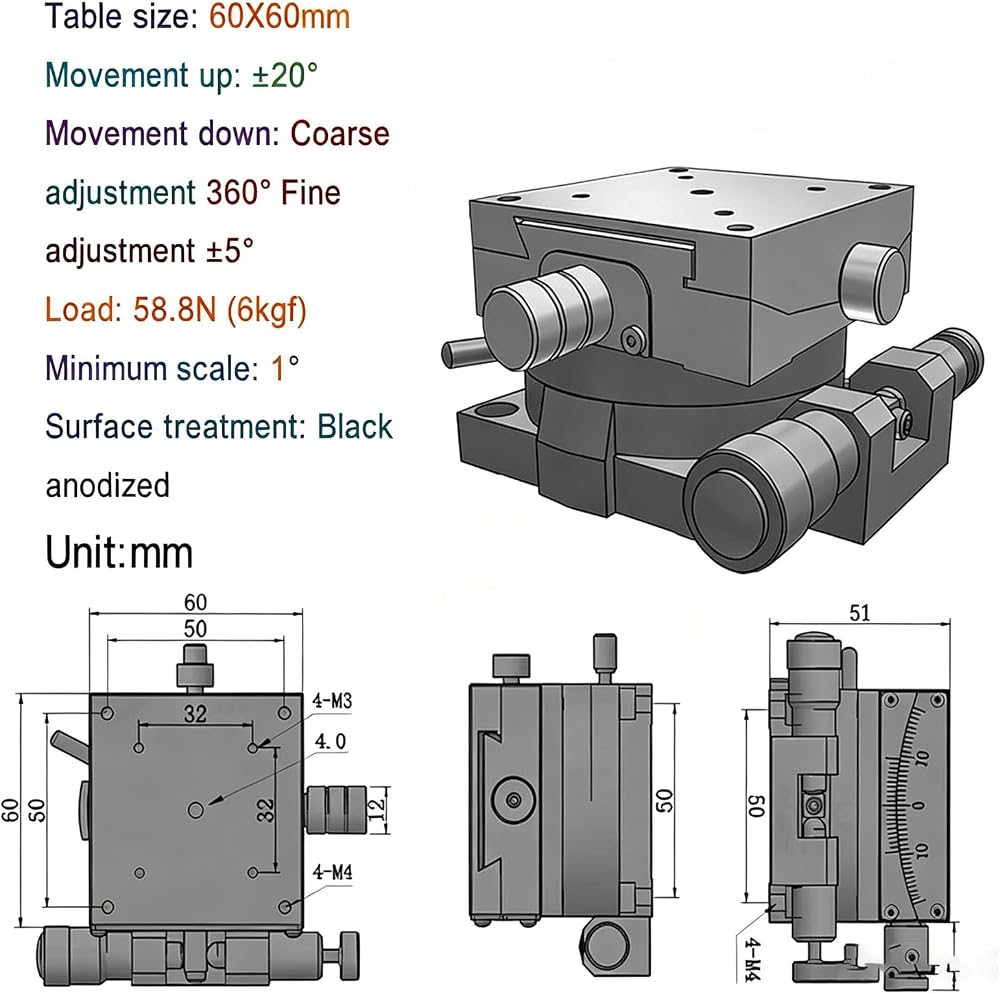

Product Specifications
♥ Product Name Manual Linear Stage
♥ Material Aluminum Alloy
♥ Surface Treatment Black Anodized
♥ Table Size 60 × 60mm
♥ Upward Movement ±20°
♥ Downward Movement Coarse 360° Fine ±5°
♥ Load Capacity 58.8N 6kgf
♥ Minimum Scale 1°
♥ Feature Dovetail Guide Precision Adjustment Stable Movement
Packing List
♥ Manual Linear Stage ×1
