مميزات خاصة

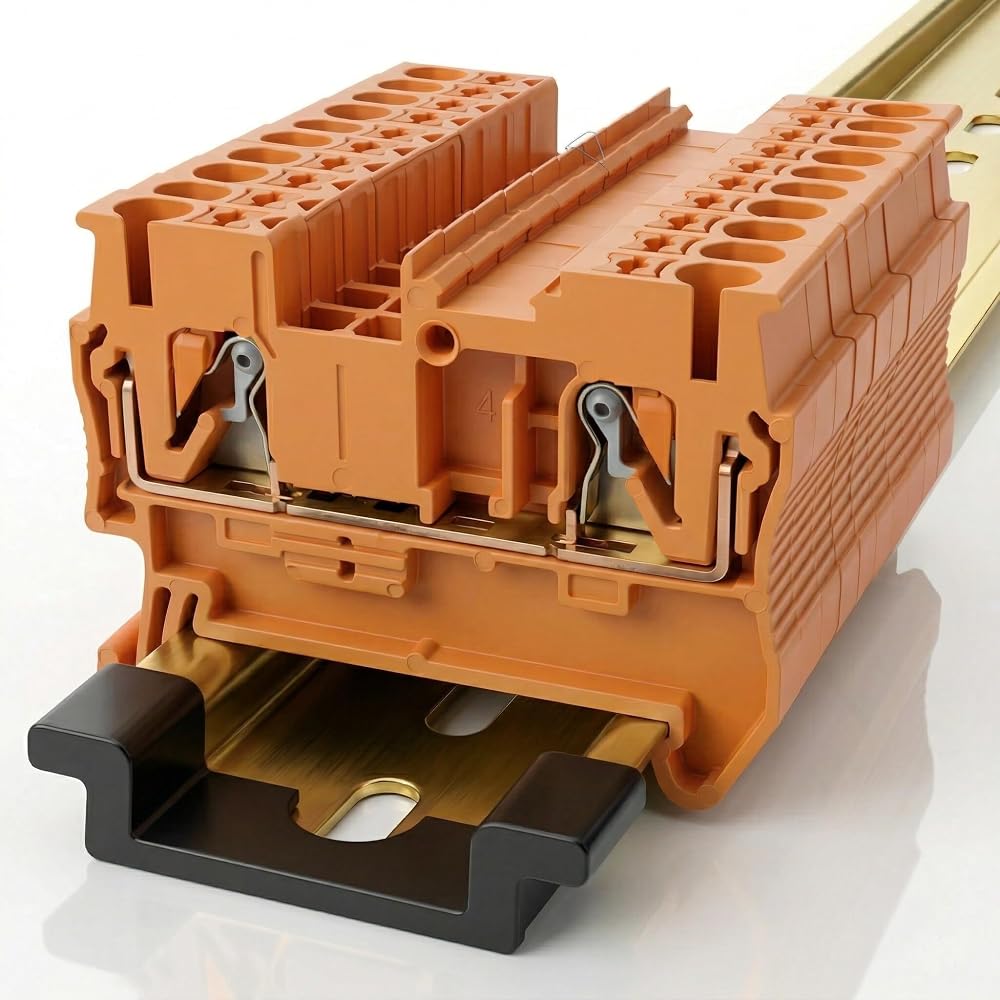

【FAST PUSH-IN WIRING DESIGN】Unlike traditional screw terminal blocks that require time-consuming tightening and retightening, our PT 2.5 push-in terminal blocks feature advanced spring cage technology that allows tool-free wiring in just 1 second per connection. Simply strip the wire (8-10mm) and push it in firmly to create a secure, gas-tight connection. This revolutionary design saves electricians and installers up to 70% of wiring time, significantly reducing labor costs for large-scale projects.
【INDUSTRIAL LEVEL ELECTRICAL PERFORMANCE FOR SAFE AND STABLE OPERATION】Engineered for demanding industrial environments, these feed-through terminal blocks deliver exceptional electrical performance with a rated voltage of 800V and rated current of 32A. They accommodate a wide range of wire sizes from 0.14mm² to 4mm² (AWG 26-12), including both solid and stranded conductors with ferrules. The high-quality copper conductive parts ensure low contact resistance and stable current transmission, preventing overheating and electrical failures.
【STANDARD DIN RAIL MOUNTING, FLEXIBLE MODULAR DESIGN】Designed for universal compatibility, our PT 2.5 terminal blocks mount easily on standard NS 35/7.5 and NS 35/15 DIN rails, the most common mounting systems in industrial control panels. The modular design allows you to stack multiple blocks side by side to create custom wiring configurations of any length. Each block features a compact 5.2mm width, maximizing space utilization in crowded electrical enclosures and control cabinets.
【UL94 V0 FLAME RETARDANT MATERIAL, MULTIPLE SAFETY CERTIFICATIONS】Safety is our top priority. These terminal blocks are constructed from high-grade PA66 insulating material with a UL94 V0 flammability rating, ensuring they self-extinguish in case of fire and prevent the spread of flames. They have passed rigorous safety tests and comply with international standards including IEC 60947-7-1, CE, and RoHS. The integrated finger-safe design provides protection against accidental electric shock, making them safe for installation and maintenance.
【WIDE INDUSTRIAL APPLICATION, LONG-LASTING DURABLE QUALITY】Our PT 2.5 push-in terminal blocks are the ideal solution for a wide range of industrial applications including machine building, plant engineering, process industry, railway systems, automation control systems, and power distribution. They operate reliably in extreme temperatures from -50°C to 100°C and are resistant to vibration, shock, and corrosion. The durable spring cage mechanism maintains constant contact pressure over the entire service life, ensuring long-term performance without maintenance.

وصف

Upgrade your electrical wiring system with the PT2.5 Push in Terminal Block, designed for fast, safe, and efficient DIN rail connections. Featuring a screwless spring cage structure, this feed through terminal block enables quick wire insertion while maintaining secure and stable electrical conductivity.

Compatible with standard 35mm DIN rails, the PT2.5 DIN rail terminal is ideal for industrial automation equipment, electrical control panels, PLC systems, distribution cabinets, and machinery wiring applications. The compact design helps save installation space while simplifying maintenance and troubleshooting.

Constructed from durable flame-retardant insulating materials and high-conductivity metal components, this terminal block delivers reliable electrical performance, vibration resistance, and long service life even in harsh industrial environments.

Whether used in factory automation, electrical engineering, or control cabinet assembly, the PT2.5 spring cage terminal block provides a professional and efficient wiring solution for industrial electrical connections.
