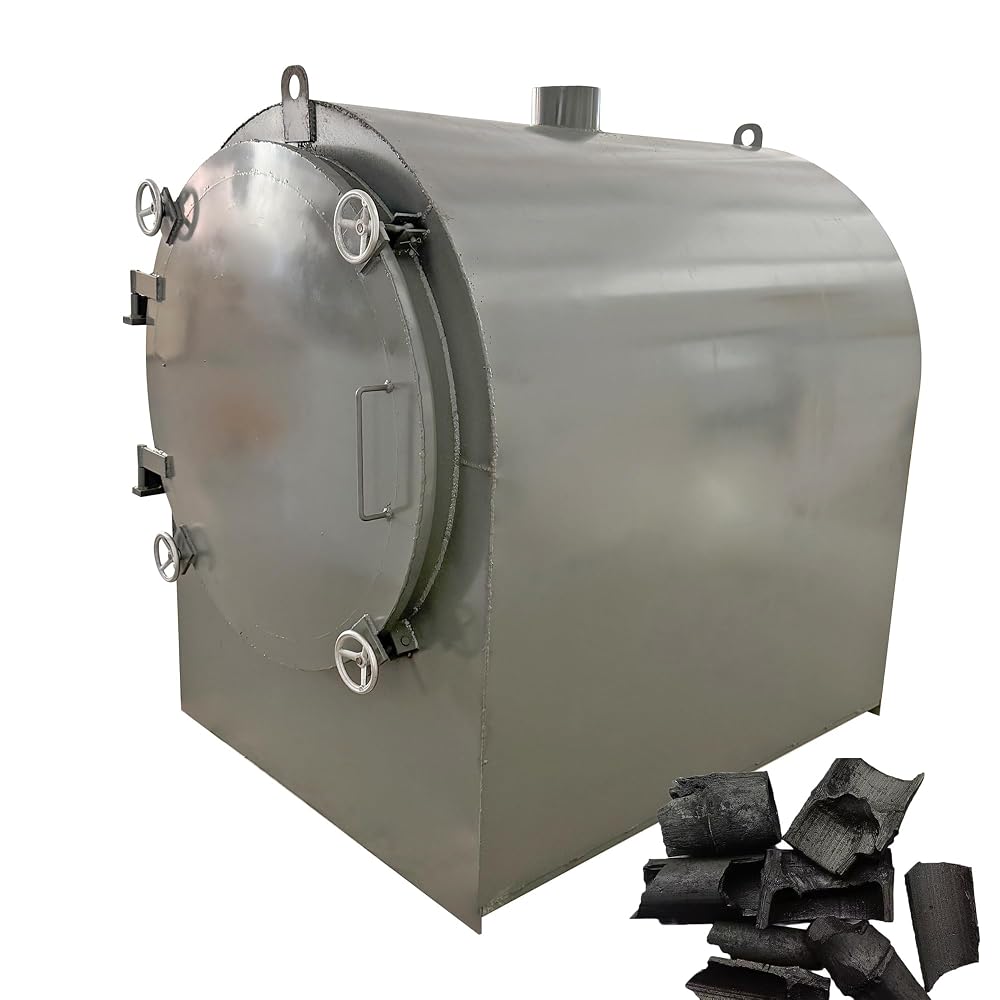

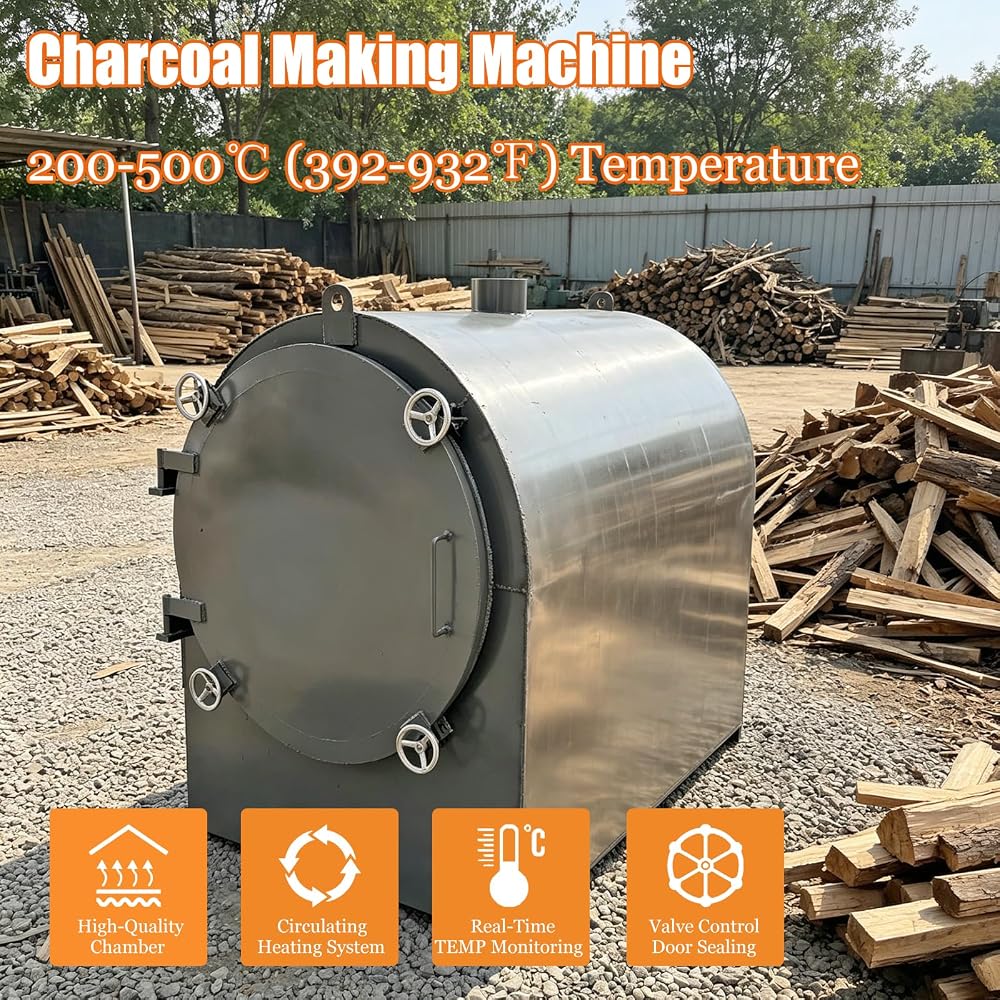

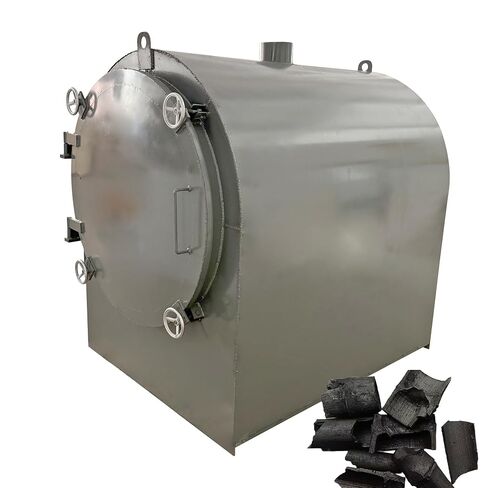

آلة صنع الفحم، آلة فحم الخيزران، فرن كربنة القشرة للخشب الخام والفحم المصنوع آليًا، 200-500 درجة مئوية (392-932 درجة فهرنهايت)، غرفة Φ1.0×1.5m (3.28 * 4.92ft)

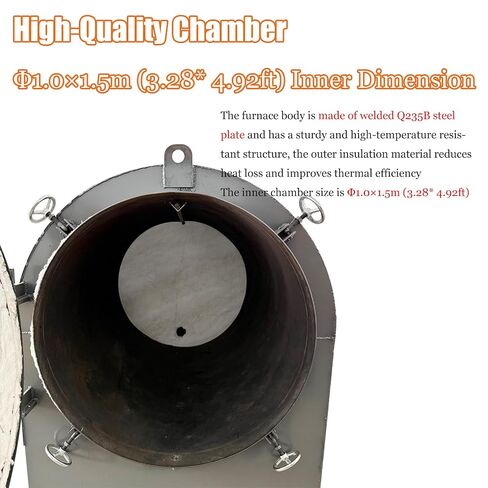

High-Quality Chamber: The furnace body is made of welded Q235B steel plate and has a sturdy and high-temperature resistant structure, the outer insulation material effectively reduces heat loss and improves thermal efficiency, the horizontal furnace facilitates easy loading and unloading, the material filling is more uniform, the furnace can be compatible with carts and other tools for mechanized loading, the inner chamber size is Φ1.0×1.5m (3.28* 4.92ft)

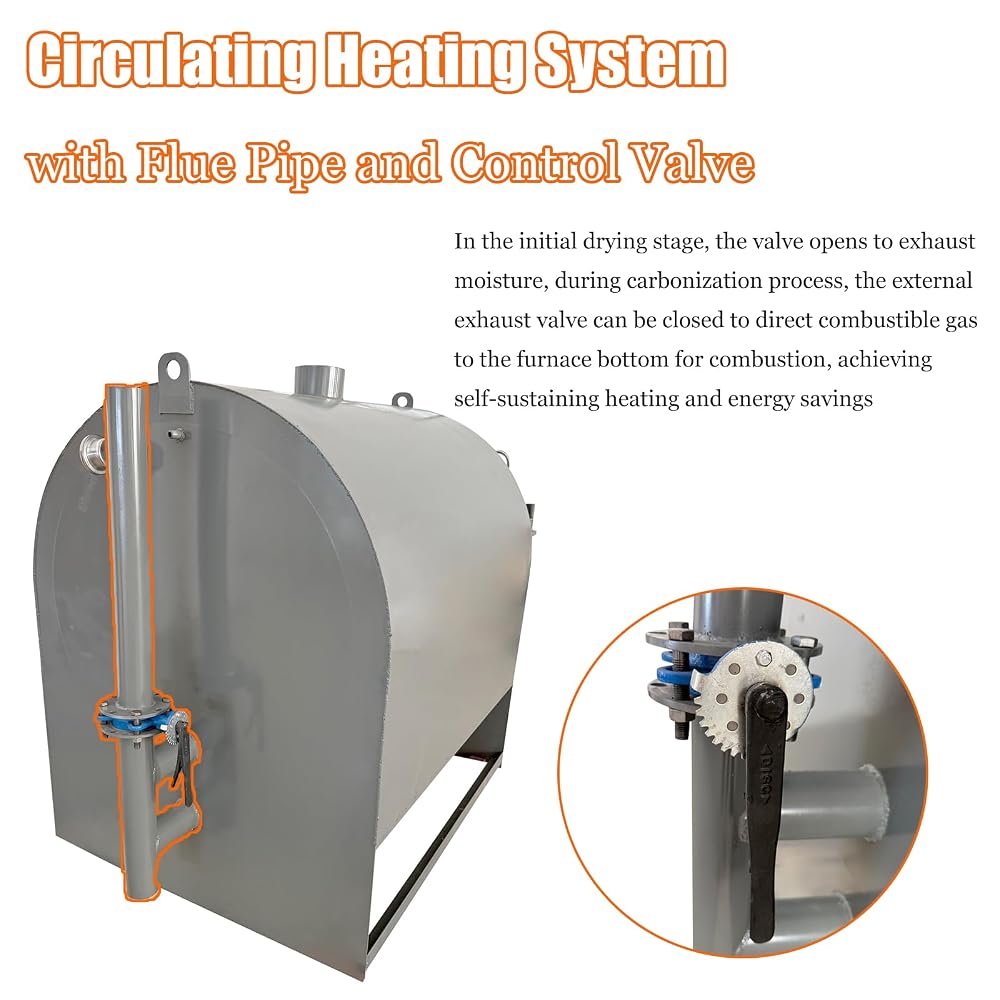

Circulating Heating System: The charcoal making machine is equipped with flue pipe and control valve, in the initial drying stage, the valve opens to exhaust moisture, during carbonization process, the external exhaust valve can be closed to direct combustible gas to the furnace bottom for combustion, achieving self-sustaining heating and energy savings

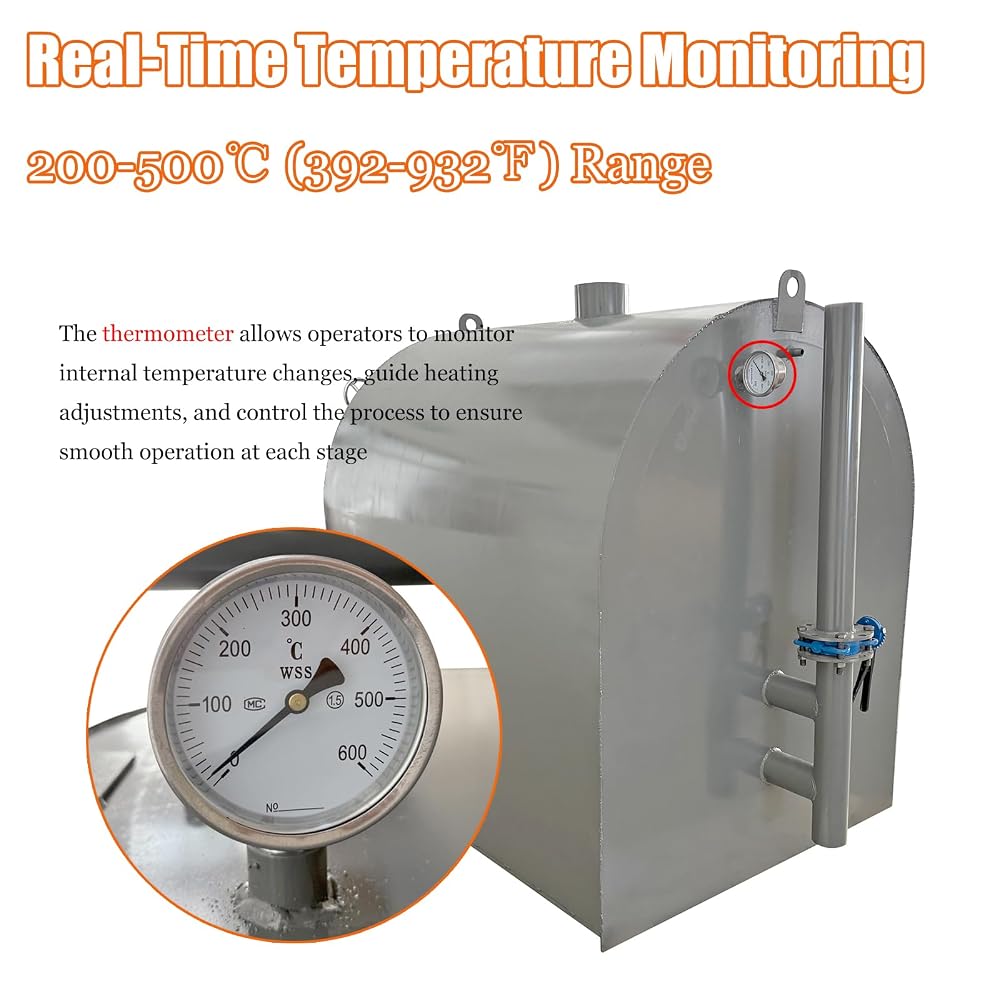

Real-Time Temperature Monitoring: The thermometer allows operators to monitor internal temperature changes, guide heating adjustments, and control the process to ensure smooth operation at each stage

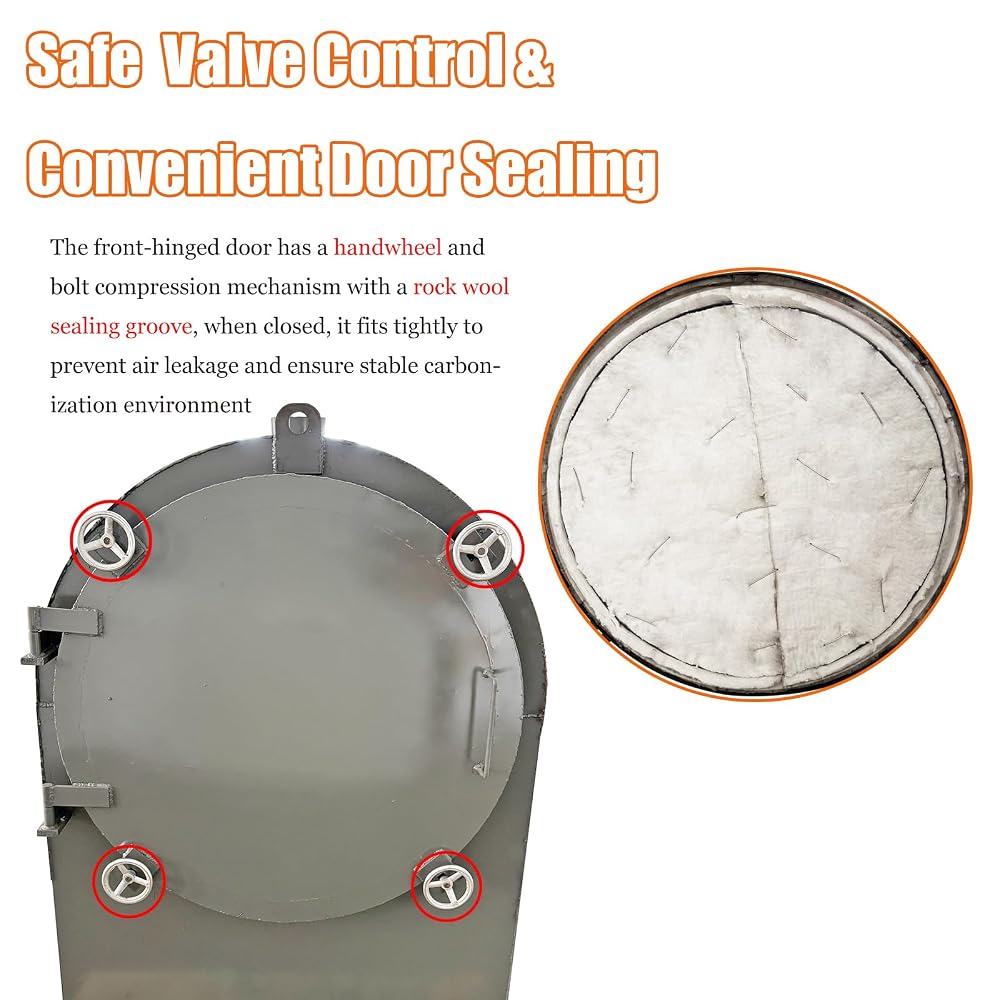

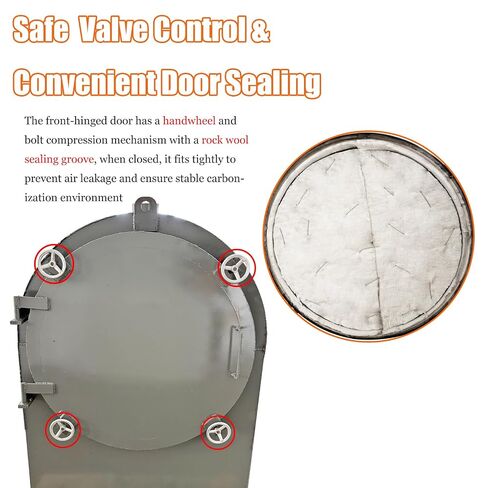

Smart Valve Control & Convenient Door Sealing: The intelligent valve system includes moisture removal valve and combustible gas recirculation valve, the operator can adjust the gas flow path according to the carbonization stage to optimize the combustion and carbonization process, the front-hinged door has a handwheel and bolt compression mechanism with a rock wool sealing groove, when closed, it fits tightly to prevent air leakage and ensure stable carbonization environment

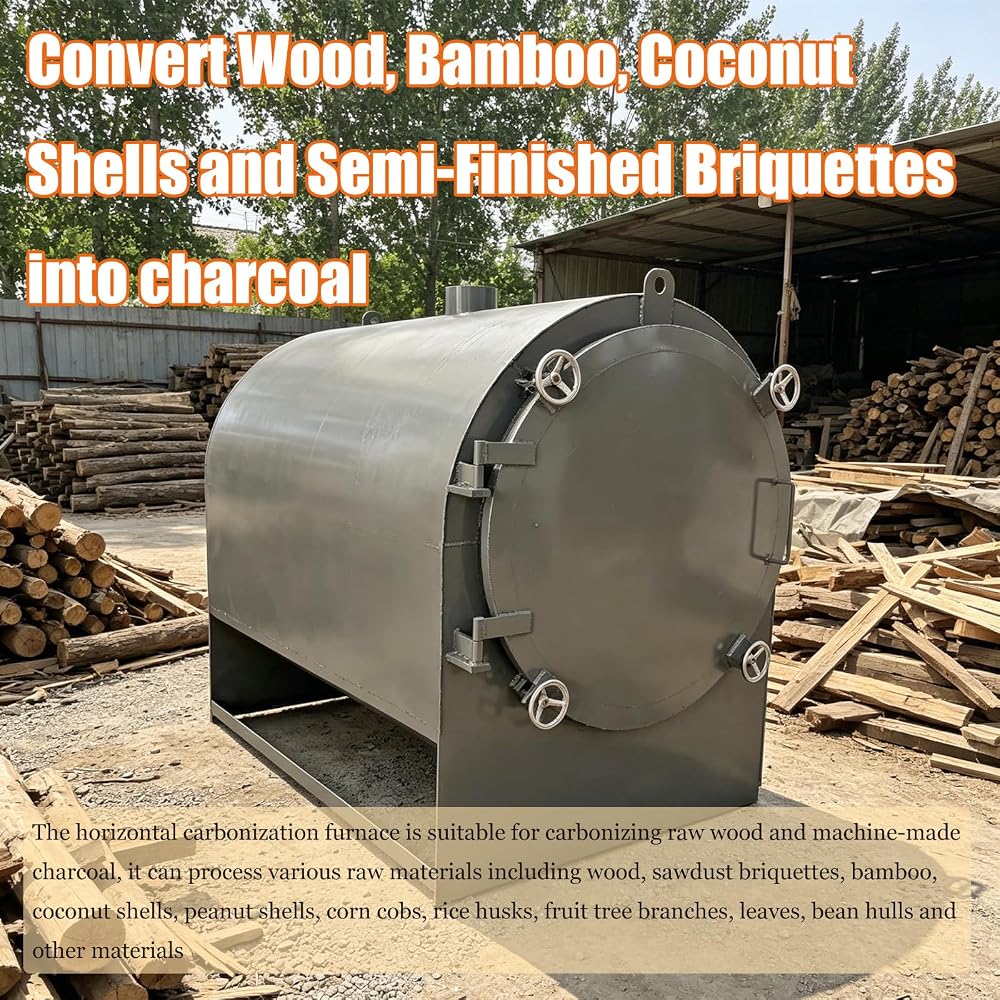

Main Main Purpose: The horizontal carbonization furnace can convert wood, bamboo, coconut shells and semi-finished briquettes into charcoal, it's suitable for carbonizing raw wood and machine-made charcoal, it can process various raw materials including wood, sawdust briquettes, bamboo, coconut shells, peanut shells, corn cobs, rice husks, fruit tree branches, leaves, bean hulls and other materials
وصف

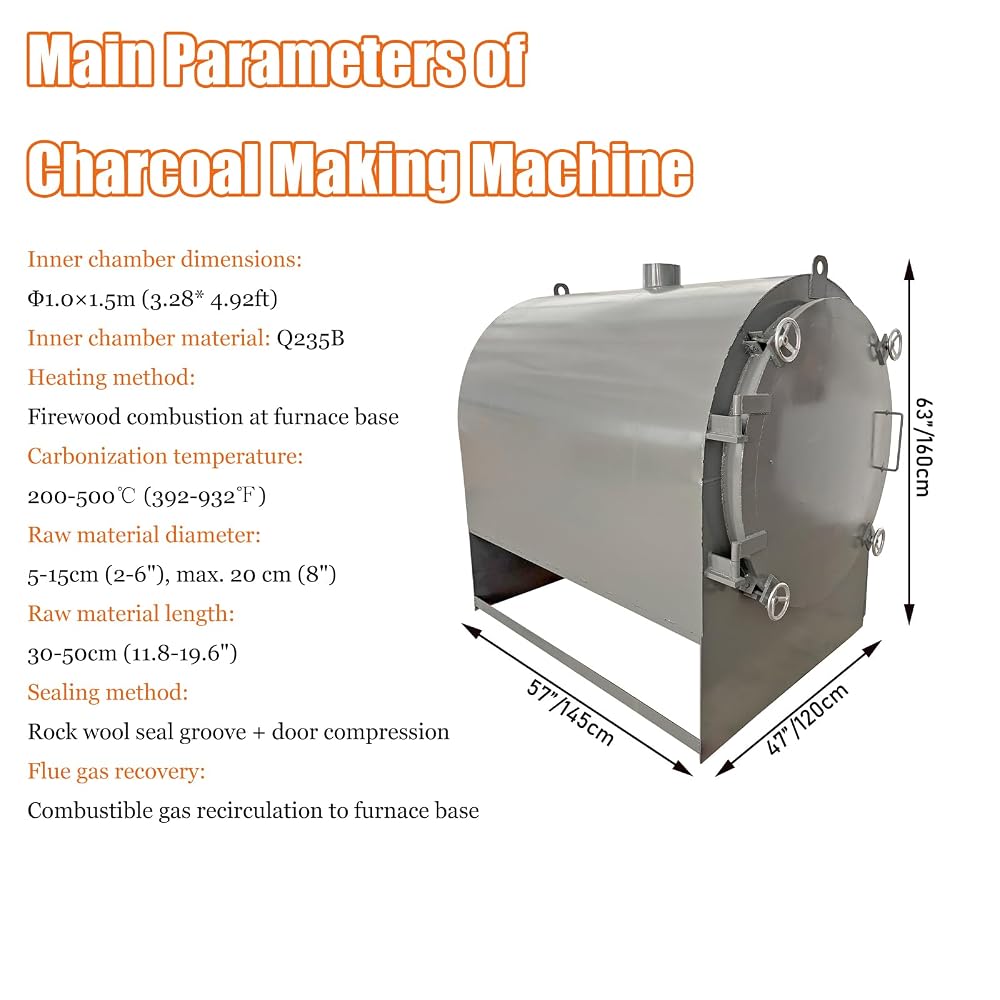

Product Parameters
Inner chamber dimensions: Φ1.0×1.5m (3.28* 4.92ft)
Inner chamber material: Q235B
Heating method: Firewood combustion at furnace base
Carbonization temperature: 200-500℃ (392-932℉)
Applicable raw materials: Wood, bamboo, coconut shell, peanut shell, corn cob, rice husk, etc.
Raw material diameter: 5-15cm (2-6"), max. 20 cm (8")
Raw material length: 30-50cm (11.8-19.6")
Sealing method: Rock wool seal groove + door compression
Flue gas recovery: Combustible gas recirculation to furnace base
Machine size: 57*47*63" (145×120×160cm)
Package size: 79.9*51.5*68.9" (203×131×175cm)
Net weight / Gross weight: 966.7lbs(438.5kg) / 1214.7lbs(551kg)
One package includes
Charcoal Making Machine *1
