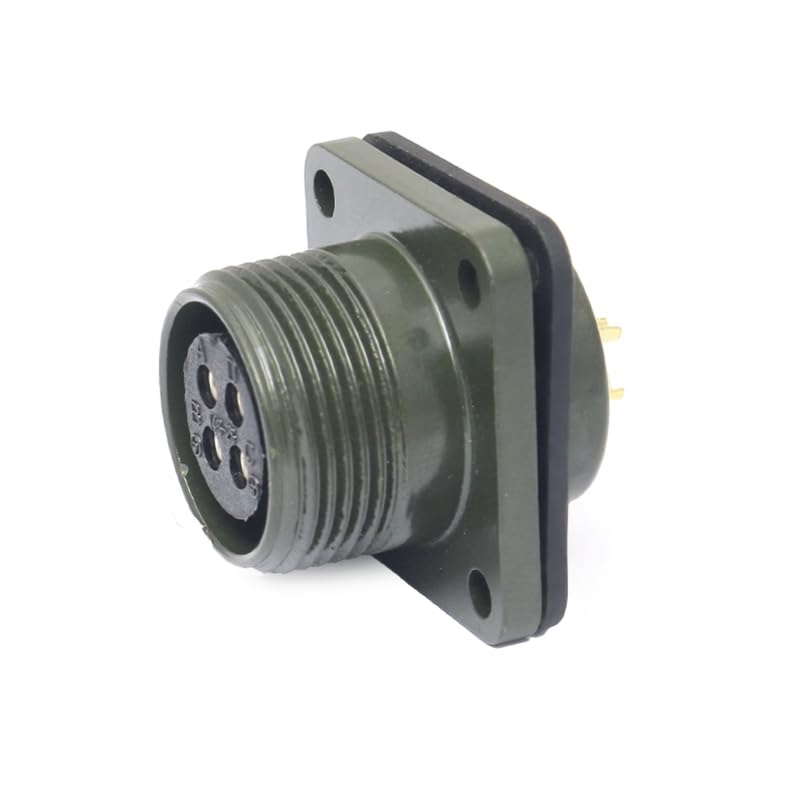

مجموعة واحدة من الموصلات الصناعية الدائرية MS3102A-14S-2S+MS3106A-14S-2P، 4 دبابيس أنثى وذكر، مستقيمة، سلسلة MIL-DTL-5015 موصلات مقابس الطيران المقاومة للماء للطيران والبيئات الصناعية in Kuwait

MS3102A14S-2S

KWD 12.500
اللونMS3102A14S-2S
– 1 +

مميزات خاصة

  • MS3102A-14S-2S+MS3106A-14S-2P Connector:4 Contacts,Female&Male,Straight Plug,Shell Size:14S,IP67 Waterproof,Solder Diameter:1.7mm,Contact Size:4×16#,Rated Current:13A,Voltage:500V,Contact Resistance:≤6mΩ
  • Circular Thread Connector Material:MIL-DTL-5015 series industrial connectors are made of aluminum alloy die-casting parts and aluminum alloy materials,Green electrophoretic coating,insulated with heat-resistant rubber,and the contact material is copper,for harsh environments
  • Easy to Use:The waterproof connector adopts threaded connection,which is easy to connect and has good sealing and waterproof performance.It is widely used in industrial machinery and railway equipment
  • Locking Method:Circular Thread Connector,thread tightening;Wiring method:welding;Temprature range:-55 °C~+125 °C;Installation method:Cable Mount
  • Model description:The MS3102 panel installation (flange fixation) comes with an installation flange and is suitable for cabinets and control boxes.MS3106 cable termination (straight type) with stress relief tail clips,anti-vibration,suitable for cable terminals of mobile devices.The MS3108 90° elbow lead-out saves installation space and features an anti-kinking design,making it suitable for space-constrained applications

وصف

Product Description:
Product:MS3102A-14S-2S+MS3106A-14S-2P Circular Industrial Connectors
Contacts:4 Pin,Male&Female
Shell Size:14S
Waterproof Rating:IP67 Waterproof
Solder Cup Diameter:1.7mm
Contact Size:4×16#
Rated Current:13A
Voltage:500V（-20°C - 85°C）
Contact Resistance:≤6mΩ
Package Includes:
1 × MS3102A-14S-2S+MS3106A-14S-2P Circular Industrial Connectors
