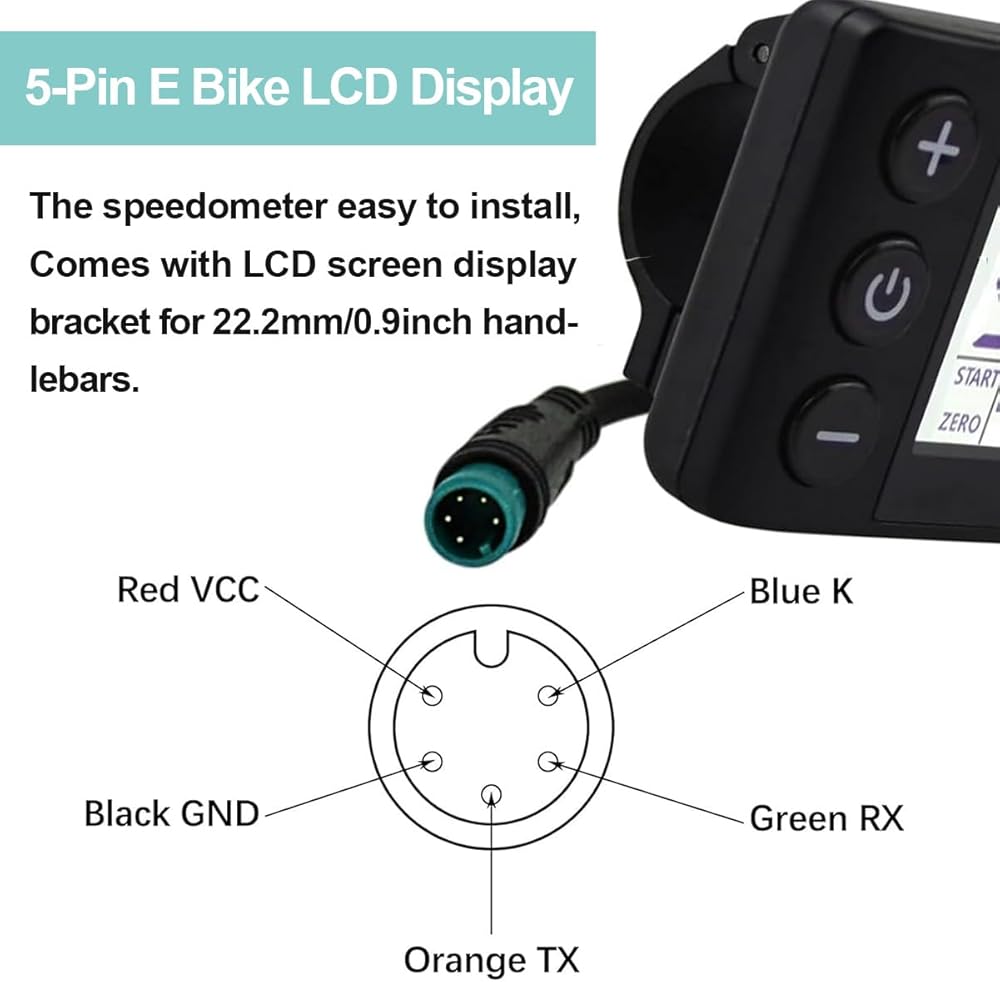

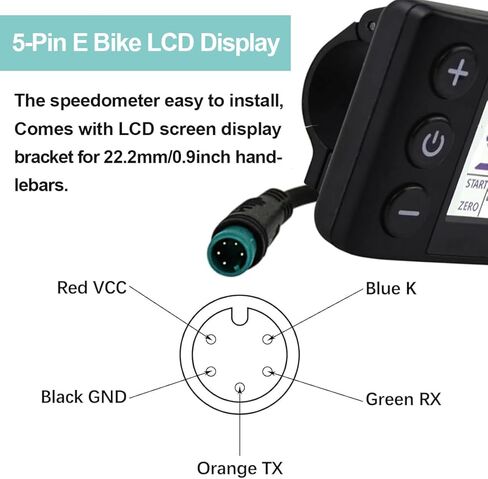

NOTE: The Bike LCD Display Meter must work in accordance with the corresponding row, that is, the controller line must be consistent with the function of the meter, please install the meter according to the wiring diagram on the picture.
IF THE METER DOES NOT WORK, THE FOLLOWING CONDITIONS MAY OCCUR 1. The plug is not plugged in tightly: if it does not work, please check whether the plug is plugged in tightly, if it is not plugged in tightly, it will not work 2. The line sequence is different: When purchasing the meter, please check whether the line sequence of the meter is the same as that of the controller used, if not, it will not work.
Please Note: The default compatibility of our electric bike meter is the No. 2 protocol controller, 5-core waterproof wiring. For the specific connection method, please check our wiring diagram. This product also supports 5S/J protocol setting through P20, but the line position function must be correct, the instrument power supply and signal reception and transmission must be normal (special protocols such as KT are not applicable)

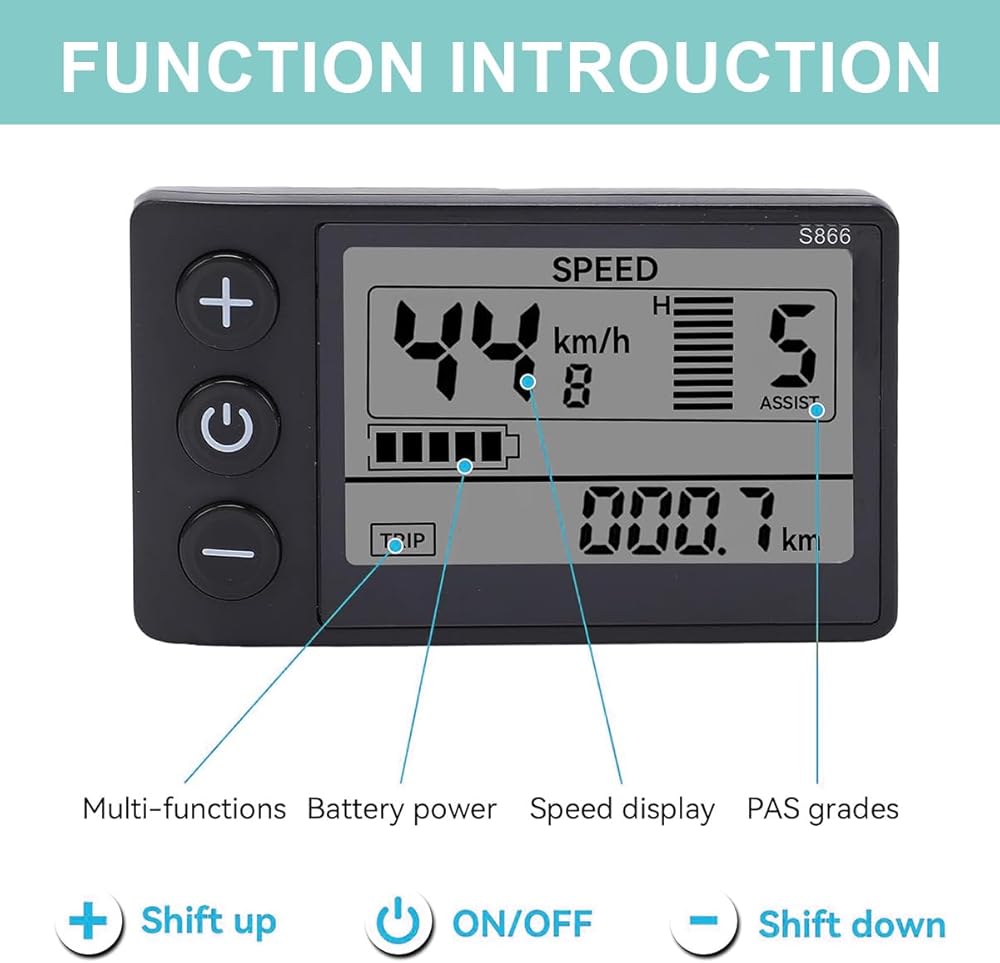

[Multi-Function Display] - The LCD display on the electric bike meter makes for you track speed, mileage, PAS levels, and trip data at a glance, making riding more convenient. The backlight allows you to see the screen clearly even in the dark environment, and the key is fast and convenient
[ABS Materials] - Electric Bike LCD Display 5-Pin Waterproof design, durable ABS material, lightweight and strong to withstand daily use. The cable length is 25cm, which meets the requirements.

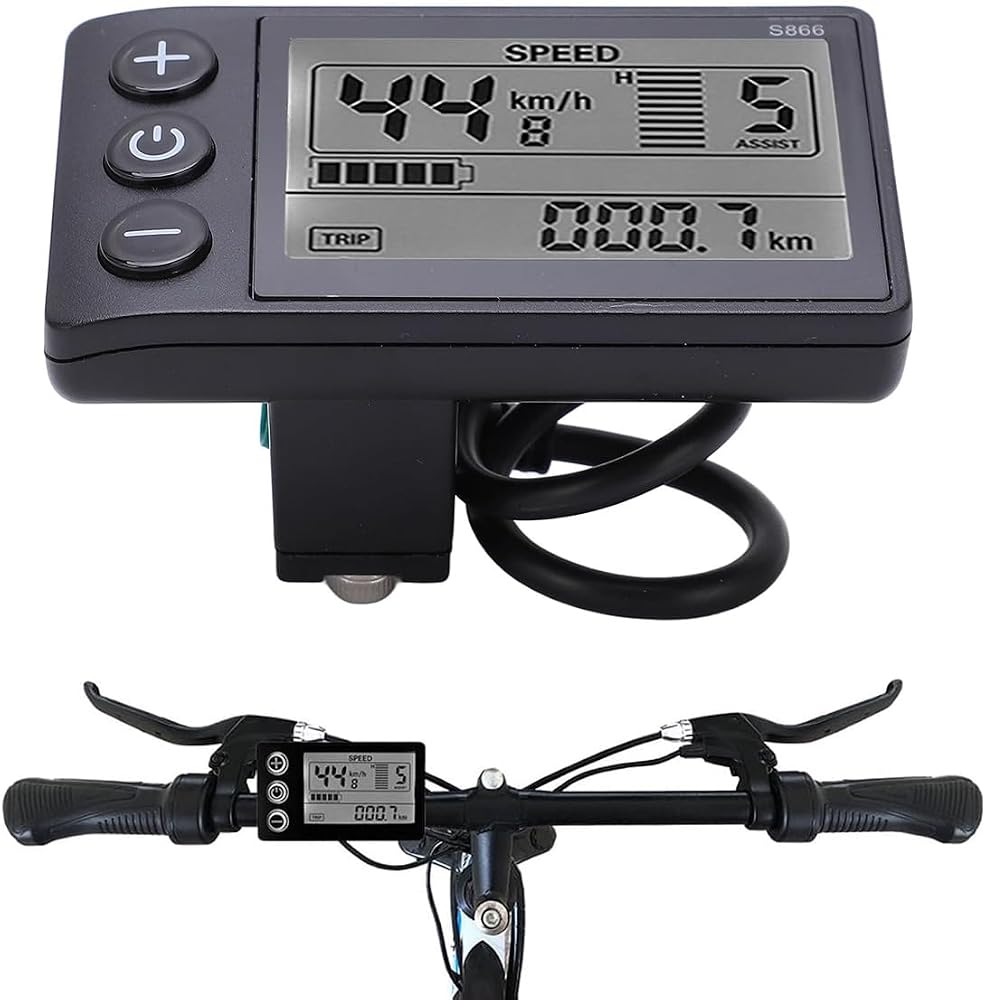

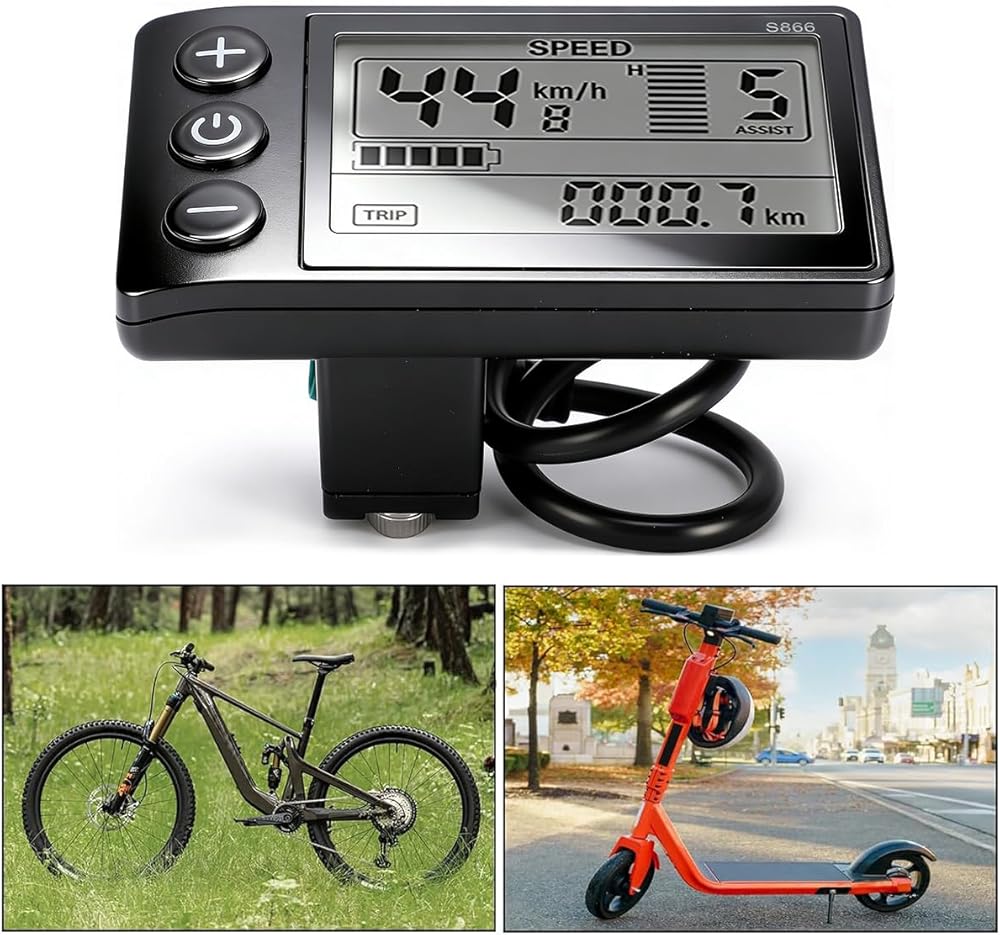

[Wide Application] - Comes with LCD screen display bracket, suitable for 22.2mm/0.9in handlebars, cycling speedometer and odometer is used for electric bike, road , mountain bikes, scooters, etc.

وصف

Feature:

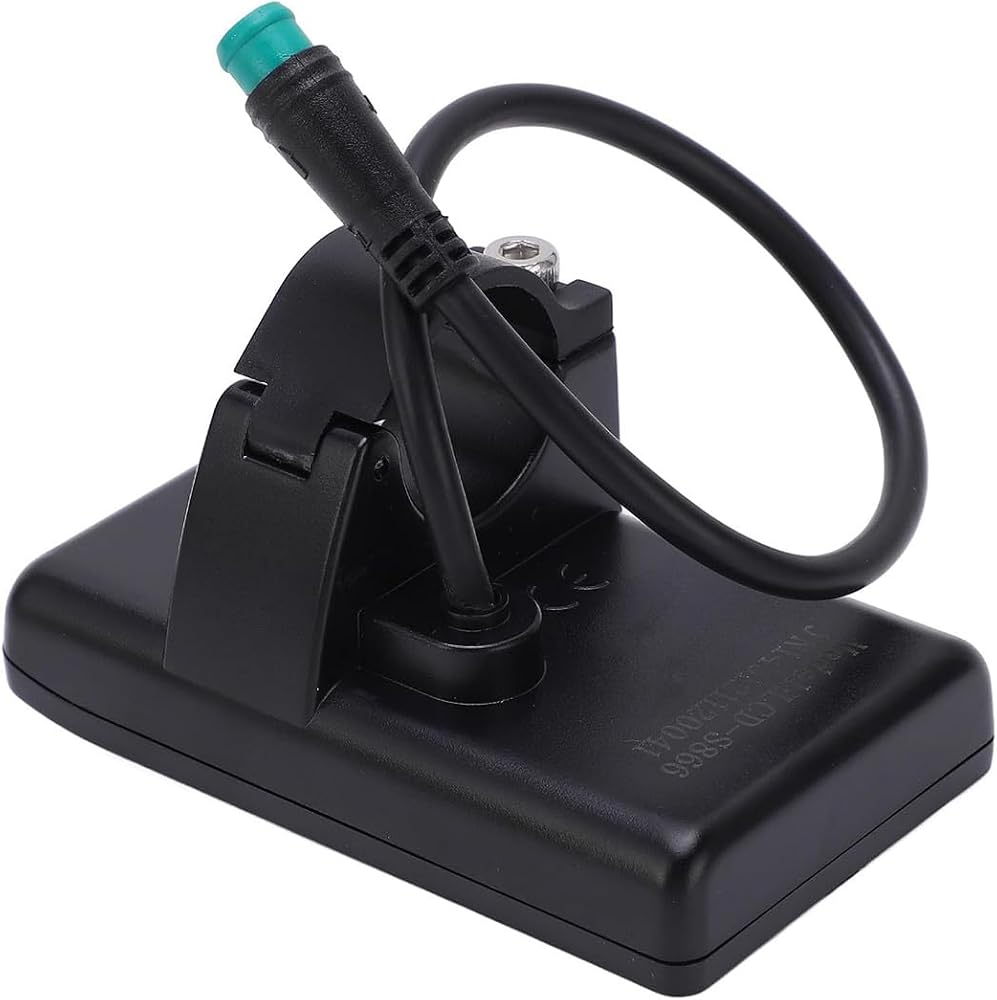

1. Bracket Diameter - Easy to install and use, comes with LCD screen display bracket, suitable for 22.2mm/0.9in handlebars.
2. Simple to Replace - Can be installed and disassembled quickly and effortlessly, no tools are needed, to meet your various need.
3. Material - LCD display is made of ABS material and is lightweight, and , and long service life.
4. See Clearly - The backlight allows you to see the screen clearly even in the dark environment, and the key is fast and convenient.
5. Large Screen - LCD display makes it easier for you to view the data on the panel, and the status is displayed on the large screen more intuitively.

Specification:

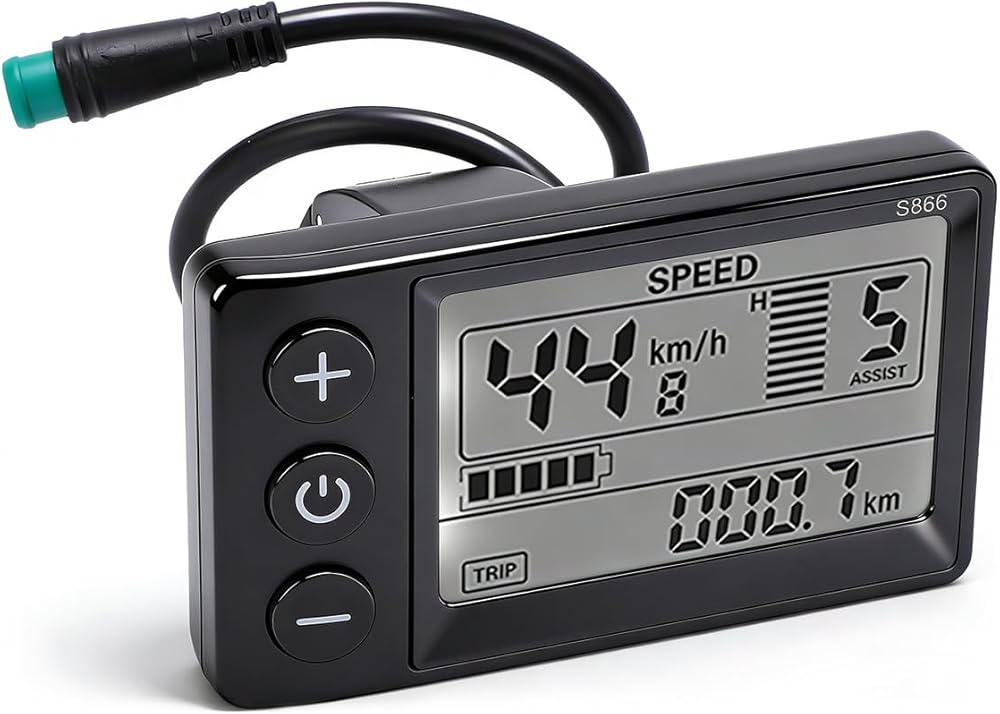

Item Type: S866 LCD Display
Material: ABS
Color: As Pictures Shown
Waterproof Grade: IP65
Communication Protocol: UART
Matching Voltage: 24V 36V 48V
Weight: Approx.138g/4.9oz

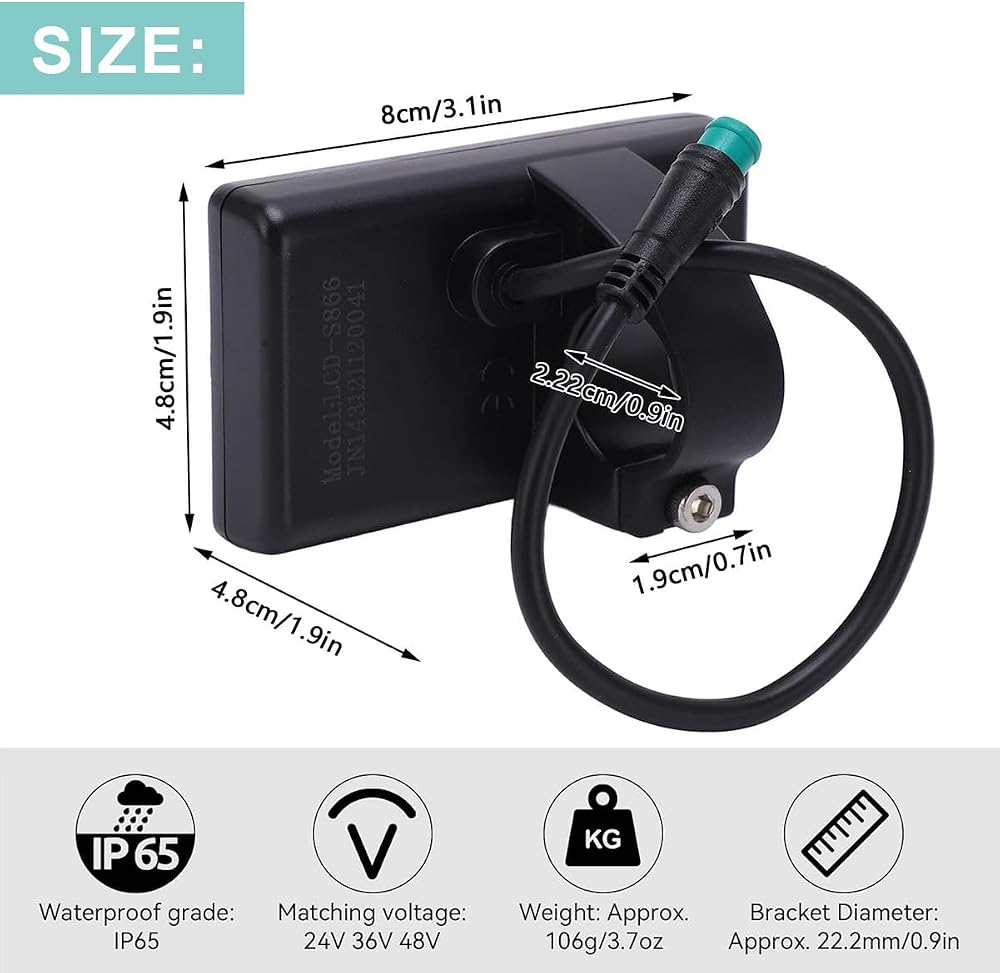

Bracket Diameter: Approx. 22.2mm/0.9inch
Plug: Plug (Ordinary Plug)

Package List:
1 x S866 LCD Display
1 x Manual

Note: Please check whether the communication agreement is the same before purchasing.
