1. NOTEDue to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.
Default Configuration Includes:
Display: LED
Pressure Range: -0.160 MPa (Customizable)
Power Supply: 1632 VDC
Output Signal: 420mA (Default); Optional: 010V, 05V, RS485
Diaphragm Material: 316L Stainless Steel
Connection Type: G1/4 (Optional: G1/2, 1/2NPT, Flange)
Temperature Range: -10°C to 70°C
Optional Configurations Include:
Display:(Customizable: LCD)
Pressure Range: Customizable (e.g., -0.1-60MPa)
Output Signal: Customizable (e.g., 420mA, 05V, 010V, RS485)
Diaphragm Material: Customizable (e.g., 316L Stainless Steel)
Connection Type: Customizable (e.g., G1/4, G1/2, 1/2NPT, Flange)
Temperature Range: Customizable (e.g., -10°C300°C)
Please confirm pressure range, output signal, connection type, and power supply before placing your order.
For customization or further assistance, please feel free to contact us.
2. PARAMETERS
Specification
Details

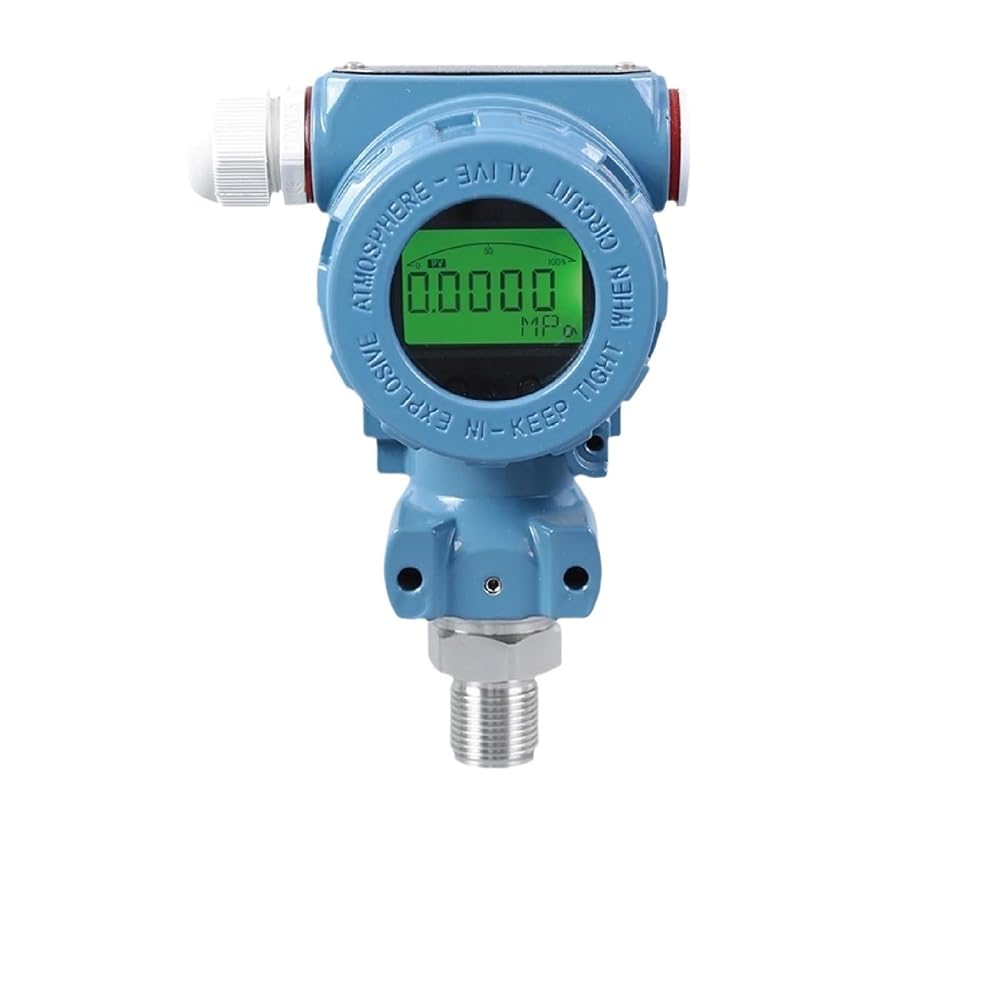

Model
2088 Series
Display
LED Digital Display (Customizable: LCD Liquid Crystal Display)
Range
-0.1 to 60 MPa
Power Supply
16-32 VDC
Temperature Resistance
-10°C to 70°C (Customizable up to 300°C)
Signal Output
4-20 mA (Customizable: 0-5 V, 0-10 V, RS485)
Diaphragm Material
316L Stainless Steel (Customizable: other materials)
Connection Type
G1/4 Thread Connection (Customizable: G1/2, 1/2NPT, 1/4NPT, or flange connection)
Protection Level
IP65
3. APPLICATION
Widely used for measuring water pressure, oil pressure, gas pressure, and hydraulic pressure.
Ideal for industrial automation and control systems.
Applicable to harsh environments requiring high durability.
4. FEATURES
High precision with LCD digital display for clear readings.
Compact and durable design with IP65 protection level.
Flexible customization options for signal output, materials, and connections.
Suitable for a wide temperature range with extended customization up to 300°C.
==========
Hign-concerned Chemical : None
Origin : Mainland China
Model : 2088 Series
Display : LED Digital Display (Customizable: LCD Liquid Crystal Display)
Range : -0.1 to 60 MPa
Power Supply : 16-32 VDC
Temperature Resistance : -10°C to 70°C (Customizable up to 300°C)
Signal Output : 4-20 mA (Customizable: 0-5 V, 0-10 V, RS485)
Diaphragm Material : 316L Stainless Steel (Customizable: other materials)
Connection Type : G1/4 Thread Connection (Customizable: G1/2, 1/2NPT, 1/4NPT, or flange connection)
Protection Level : IP65
