1.NOTE

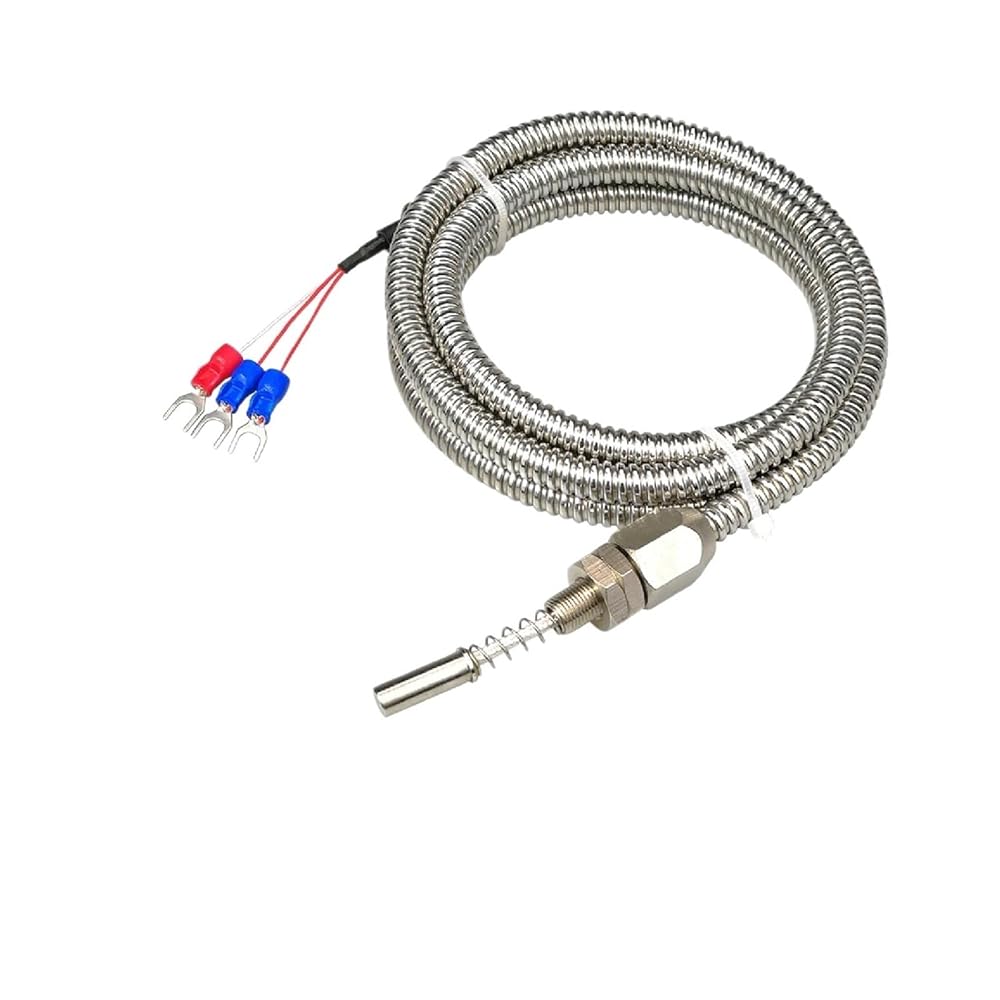

Default package includes:
Model: PT100
Temperature Range: -50°C to 200°C
Probe Size: 6*18mm
Thread: M8*0.75
Connection: U-type terminal, three-wire system
Due to page limitations, some configurations may not be listed. Please contact us for customization requests.
Optional Parameters:Resistance Type: PT1000
Probe Diameter: 6mm, 8mm, 10mm
Probe Length: 20mm, 50mm, 100mm
Thread Size: Customizable(M10*1, M16*1.5)
Cable Length: Customizable 10m, 20m, 30m
Connection Options: Terminal options include plug pins, aviation plugs (e.g., XH series), and matching connectors
2.Parameter
Parameter
Description
Sensor Type
PT100 (default) / PT1000 optional
Temperature Range
-50°C to +200°C
Probe Size
6×18mm (default); customizable sizes
Thread
M8×0.75 (default); customizable threads
Probe Material
304 Stainless Steel
Wire Length
0.5m, 1m, 1.5m, up to 30m (customizable)
Wire Type
3-core silver-plated PTFE shielded wire
Terminal Options
U-terminal (default), pin, aviation plug
3.Features
Customizable Specifications:Fully customizable probe diameter, length, and thread size to fit diverse industrial requirements.
High Durability:Constructed with 304 stainless steel and equipped with a flexible metal hose for enhanced resistance to bending and pulling.
Fast Thermal Response:Pure copper tube ensures quicker heat conduction for accurate temperature readings.
Wide Compatibility:Compatible with temperature controllers and sensors for broader applications.
Flexible Wiring Options:Available with multiple terminal types (U-terminal, aviation plug, etc.) and customizable wire lengths.
4.Applications
Industrial motors and bearings temperature monitoring.
Precision measurement in manufacturing processes.
HVAC systems and temperature control setups.
==========
Hign-concerned Chemical : None
Origin : Mainland China
Sensor Type : PT100 (default) / PT1000 optional
Probe Size : 6 18mm (default)customizable sizes
Thread : M8 0.75 (default)customizable threads
Probe Material : 304 Stainless Steel
