1. NOTE
Due to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.
Default Configuration Includes:
Power Supply: DC1632V
Pressure Range: -10kPa to 100MPa (Optional)
Thread Type: G1/4 (Default) (Customizable: G1/2, 1/2NPT, M20×1.5, 1/4NPT)
Output Signal: 420mA (Default) (Customizable: 010V, 05V, RS485)
Operating Temperature: -10°C to 70°C
Cable Length: 1m
Optional Configurations Include:
Pressure Range: Customizable (e.g., -100kPa10MPa, -0.1MPa100MPa)
Thread Type: Customizable (e.g., G1/4, G1/2, 1/2NPT, M20×1.5, 1/4NPT)
Output Signal: Customizable (e.g., 420mA, 05V, 010V, RS485)
Operating Temperature: Customizable (e.g., -10°C300°C)
Cable Length: Customizable (e.g., 2m, 5m, 10m)
Pre-Purchase Confirmation: Please confirm the pressure range, temperature resistance, thread type, and cable length before placing an order.
For customization, please contact us.
2.PARAMETERS
Parameter
Details
Style

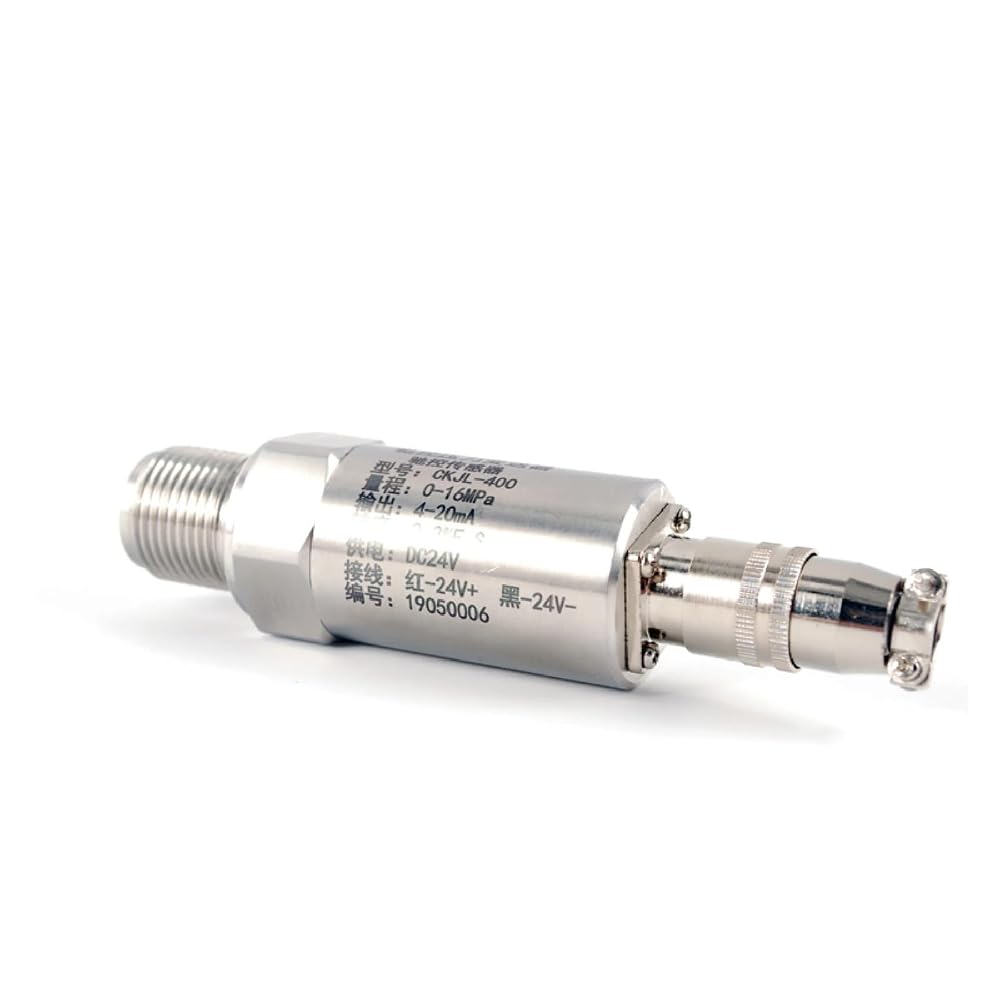

Aviation Plug Pressure Transmitter
Power Supply
DC16-32V
Installation
G1/4 (Default); Optional: G1/2, 1/2NPT, M20*1.5, 1/4NPT
Accuracy
0.5% (Default); Optional: 0.2%, 0.3%, etc.
Measured Medium
Gas, liquid, water, oil, etc.
Stability
±0.1%FS/year; Temperature Drift: ±0.01%FS/°C
Output Signal
4-20mA (Default); Optional: 0-10V, 0-5V, RS485
Measuring Range
-100kPa~100MPa
Protection Level
IP65
Humidity Range
0~80%
Medium Temperature
-10~70 (MAX 300)
Included Cable
1m (Customizable)
3. APPLICATION
Ideal for use in oil, water resources, chemical, metallurgy, electricity, and scientific research industries.
Suitable for various harsh environments and corrosive fluids.
Supports 24/7 operation under extreme conditions.
4. FEATURES
Robust Design:Aviation plug connection with IP65 protection for tough conditions.
High Precision:Accuracy up to 0.5%, customizable for specific needs.
Wide Compatibility:Standard signal output supports PLC, digital displays, etc.
Durable Build:304 stainless steel housing with glue sealing technology.
5. FAQ
Q1: Can I customize the thread type and signal output?
A1: Yes, we offer customization for thread types, signal outputs, and accuracy levels. Please contact us for details.
Q2: What is the recommended pressure range for selection?
A2: We recommend selecting a pressure range 1.5 times higher than the normal operating pressure for optimal performance.
Q3: Can I get a cable length longer than 1 meter?
A3: Yes, cable lengths can be customized based on your requirements.
==========
Hign-concerned Chemical : None
Origin : Mainland China
