1. NOTEDue to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.
Default Configuration Includes:
Sensor Type: PT100
Probe Size: 4×30mm
Cable Length: 0.55m
Temperature Range: -50°C to 200°C
Probe Material: SS304
Wiring Type: Three-wire System

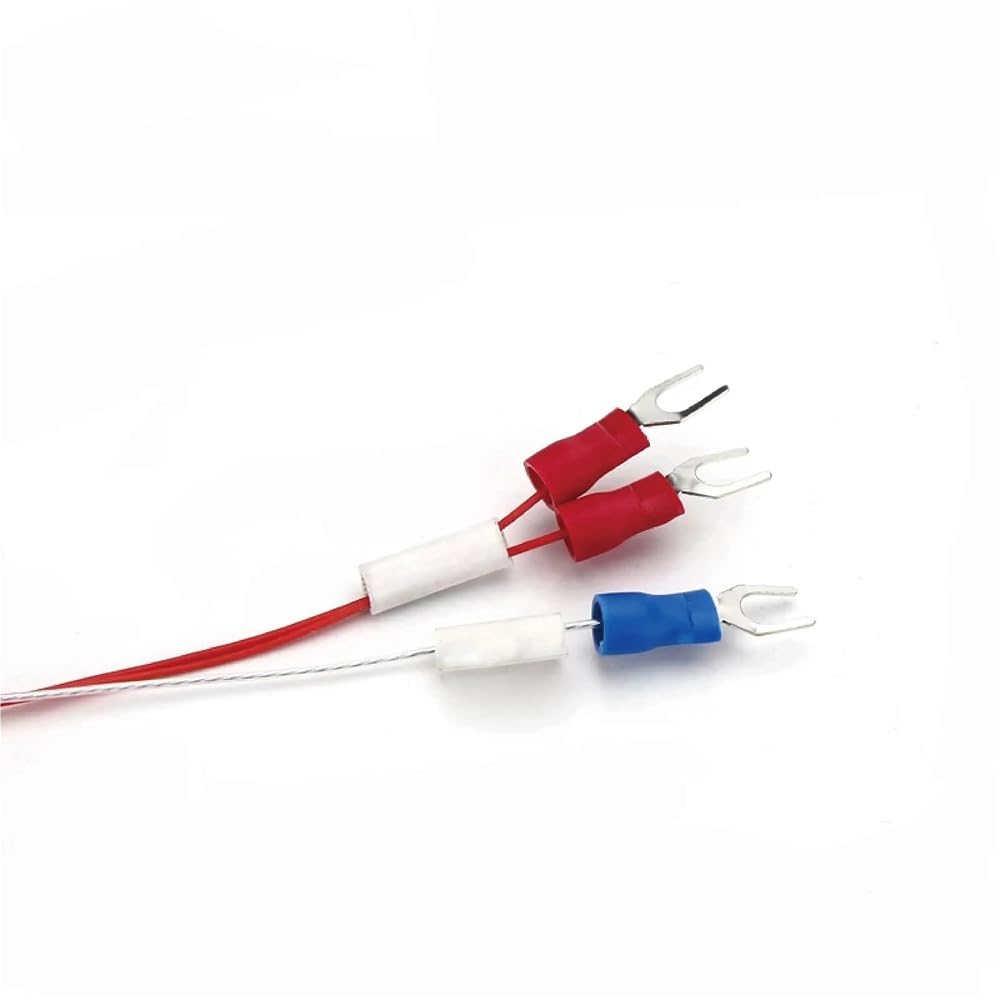

Terminal Type: U-shaped Terminal
Optional Configurations Include:
Probe Diameter: 3mm, 6mm, 8mm (Customizable)
Probe Length: 50mm500mm (Customizable)
Cable Length: Customizable (e.g., 10m, 20m, 30m, 40m, 50m)
Wiring Type: 2-wire/4-wire
Terminal Type: U-shaped Terminal (Default) / Custom: Pin, Aviation
For customization, please contact us.
2. PARAMETERS
Product Name
Pt100 Temperature Sensor
Model
Pt100 (default) / K / E / J / T / Pt1000, etc.
Probe Material
304 Stainless Steel (default) / 316 or custom
Measuring Range
-50-200°C (K) / 0-200°C (K)/0-200(E))
Probe Diameter
4mm (default) / Optional: 3mm, 5mm, 6mm, etc.
Probe Length
30mm (default) / Optional: 10-200mm
Cable Type
Silver-plated Teflon Shielded Wire, 3-core
Cable Length
0.5m / 1m / 1.5m / 2m / 3m / Customizable
Connector Type
U-shaped terminal (default) / Custom: Pin, Aviation
3. APPLICATIONS
Suitable for packaging machinery, food machinery, temperature controllers, injection molding machines, and dispensing machines.
Widely used across industries requiring reliable and accurate temperature monitoring.
4. FEATURES
Fast temperature response due to thin-film resistance chip.
Superior sealing ensures waterproof and oil-resistant performance.
Highly precise measurements with advanced industrial-grade assembly.
Factory-direct pricing ensures exceptional value.
5. FAQ
Q: Can the probe length and material be customized?
A: Yes, we offer customization for both length and material to fit specific applications.
Q: Is the temperature controller included?
A: No, the default purchase includes only the sensor. Temperature controllers must be purchased separately.
Q: What connector options are available?
A: U-shaped terminals are default. Options like pin connectors, aviation plugs, and others are available upon request.
==========
Hign-concerned Chemical : None
Theory : Thermometer Hygrometer
Origin : Mainland China
Product Name : Pt100 Temperature Sensor
Model : Pt100 (default) / K / E / J / T / Pt1000, etc.
Probe Material : 304 Stainless Steel (default) / 316 or custom
Measuring Range : -50 to 200°C / 0 to 200°C / 0 to 200°C
Probe Diameter : 4mm (default) / Optional: 3mm, 5mm, 6mm, etc.
Probe Length : 30mm (default) / Optional: 10-200mm
Cable Type : Silver-plated Teflon Shielded Wire, 3-core
Cable Length : 0.5m / 1m / 1.5m / 2m / 3m / Customizable
Connector Type : U-shaped terminal (default) / Custom: Pin, Aviation
