1.NOTE
Due to page limitations, some configurations may not be listed. Please contact us for special requests.
The default configuration includes:
5*30mm 304 stainless steel probe
Three-core silicone shielded cable
U-type terminal
Measurement range of -50°C to 200°C
Optional features include:
Custom probe diameter (2mm, 3mm, 4mm, 6mm)
Length customization for both probe and cable
Alternative terminal types (pin terminals, aviation plugs, XH connectors, etc.)
Material upgrades to 316 stainless steel or other alloys
Please note: Orders include only the temperature sensor. Temperature controllers must be purchased separately.
2. Parameters
Parameter
Description

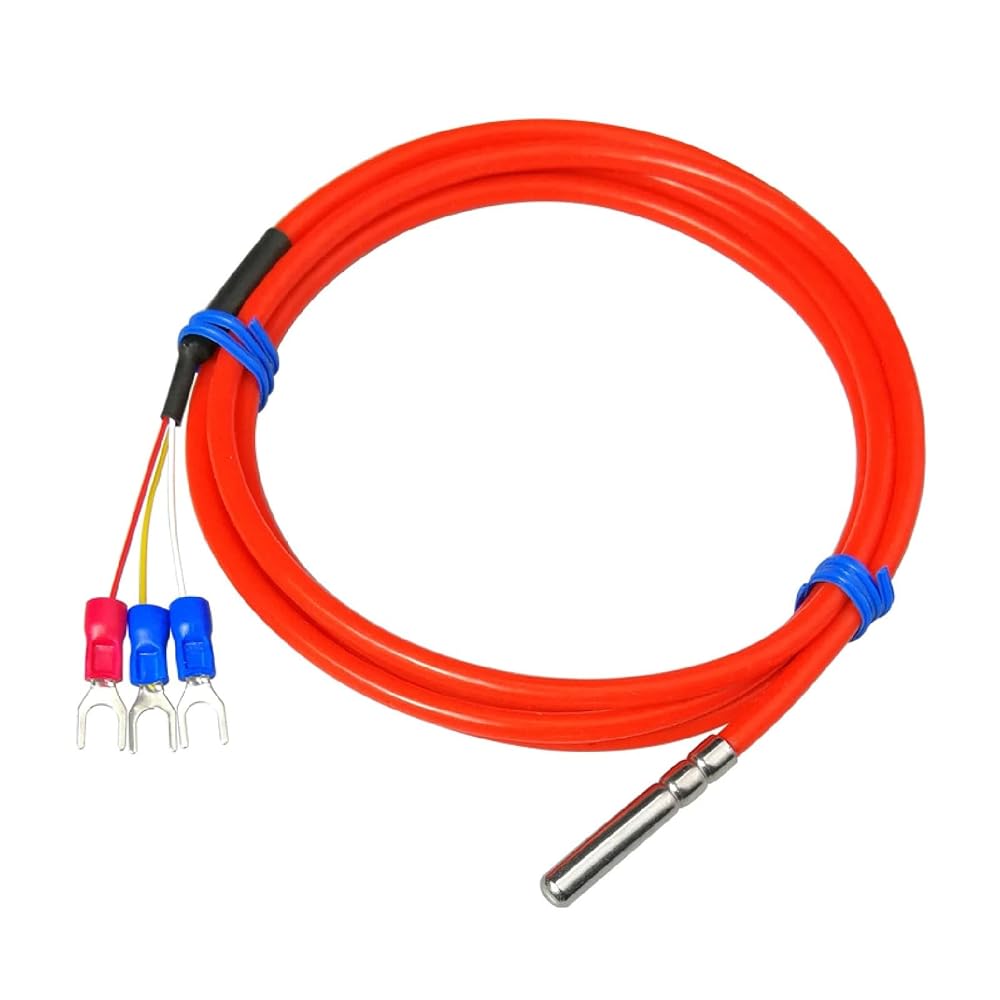

Product Name
Pt100 Silicone Waterproof Temperature Sensor
Resistance Type
1/3B, A, B, 2B grade optional
Measurement Range
-50°C to +200°C (default)
Protection Tube Diameter
5mm (default) / 3mm, 6mm customizable
Protection Tube Length
30mm (default) / other lengths available
Cable Type
3-core silicone shielded cable
Connector Type
U-terminal (default) / customizable options
Material
304 stainless steel (default) / 316 customizable
3. Features
Durable Stainless-Steel Probe
Ensures resistance to corrosion and long-term reliability, ideal for demanding industrial environments.
High-Precision Sensing Chip
Thin-film resistance chip delivers fast and accurate temperature readings, meeting critical application needs.
Flexible Silicone Cable
Offers strength, waterproofing, and oil resistance for enhanced usability and durability.
Customizable Options
Available in various diameters, lengths, and connector types to accommodate diverse industrial applications.
4. Applications
Perfect for use in packaging machinery, food processing equipment, temperature controllers, injection molding machines, and dispensing systems.
5. FAQs
Q1: Can the probe be customized for different lengths and diameters?
A1: Yes, the probe length and diameter can be tailored to your specific requirements.
Q2: What type of connector is included by default?
A2: The default connector is a U-terminal, but other options such as aviation plugs and pin connectors are available upon request.
Q3: Is the sensor compatible with all temperature controllers?
A3: The sensor is compatible with most standard temperature controllers, but it is recommended to verify specifications for compatibility.
==========
Hign-concerned Chemical : None
Origin : Mainland China
Product Name : Pt100 Silicone Waterproof Temperature Sensor
Resistance Type : 1/3B, A, B, 2B grade optional
Measurement Range : -50°C to +200°C (default)
Protection Tube Diameter : 5mm (default) / 3mm, 6mm customizable
Protection Tube Length : 30mm (default) / other lengths available
Cable Type : 3-core silicone shielded cable
Connector Type : U-terminal (default) / customizable options
Material : 304 stainless steel (default) / 316 customizable
