مميزات خاصة

Compact size, easy to instal for the sensor.
Measuring the bearing and machine Reciprocating motion.
The linear displacement measurement device, can be used in industries such as cylinders and testing machines.
Compact size and a light weight as well, easy to install, and can be put into use quickly.
Colours may vary slightly due to different displays and conditions when taking photos.

وصف

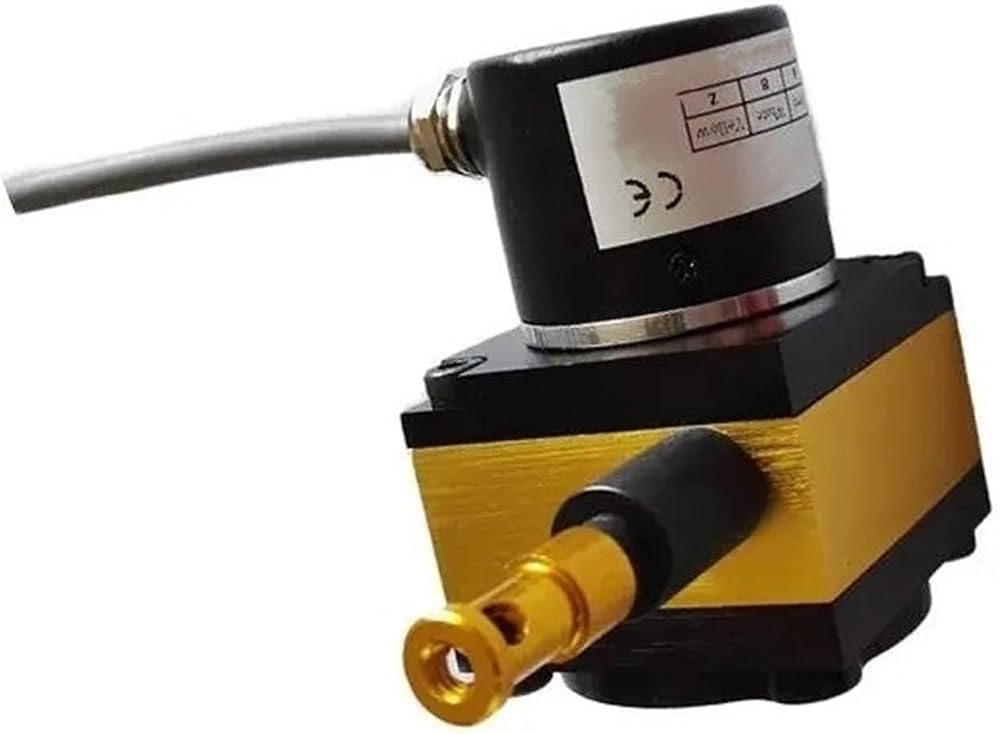

Measuring Range :0~1000mm
Detection method : Incremental encoder
Revolution:0.1mm/pulse Rope :wire rope 1mm, Plastic coated wire rope ,rope maximum load: 16KG
Supply Voltage :24V Dc
Signals output : Pushpull with A B Z 3 channels
Wiring
Red=VCC, Black = 0V, Green = A, White = B, Yellow = Z

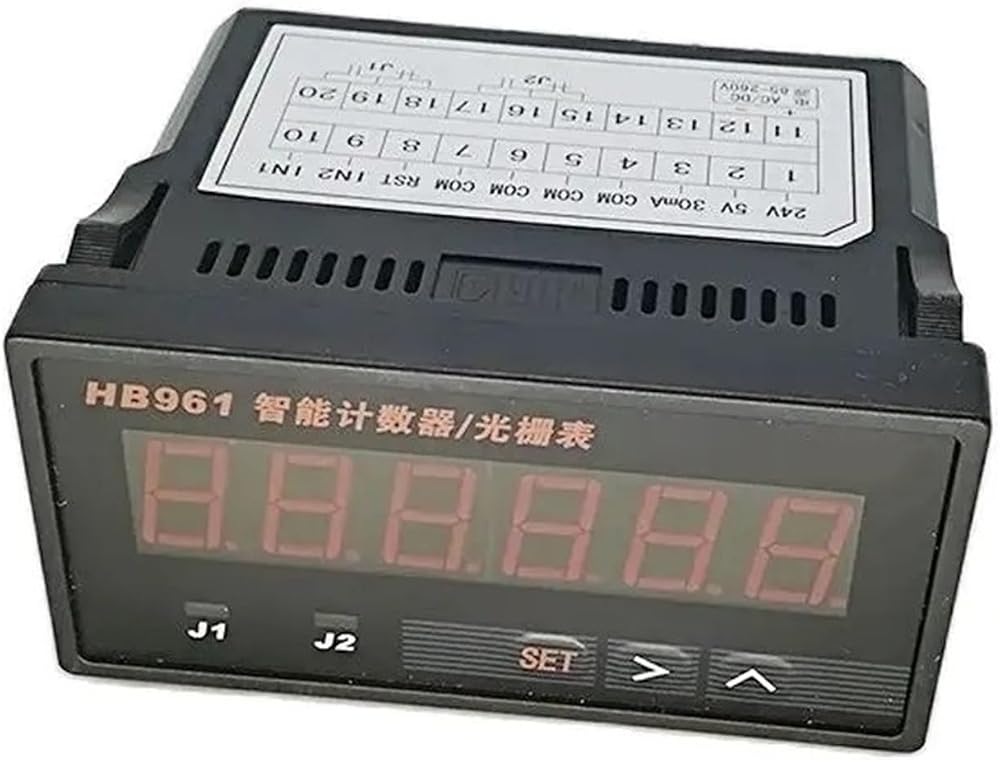

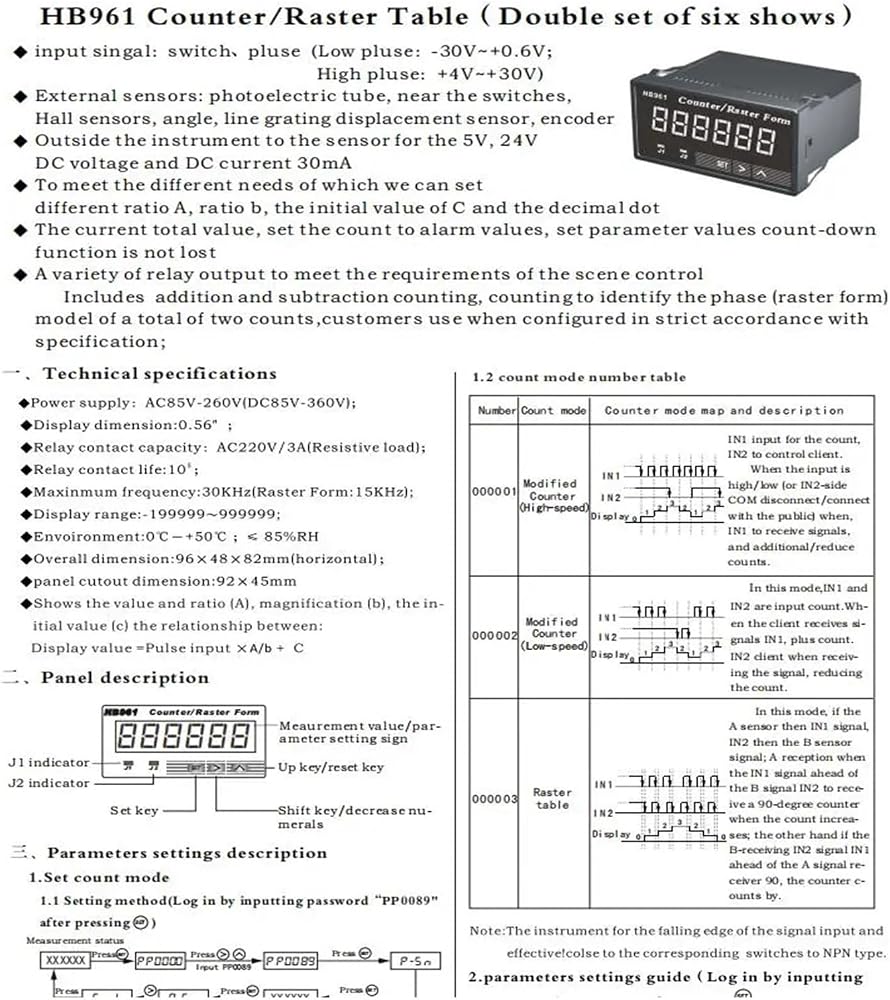

The counter display
standard 96 × 48 × 82mm, 0 .56 inches 6 digitals display
Enter the 5V, 24V DC voltage and DC current 30mAsignals.

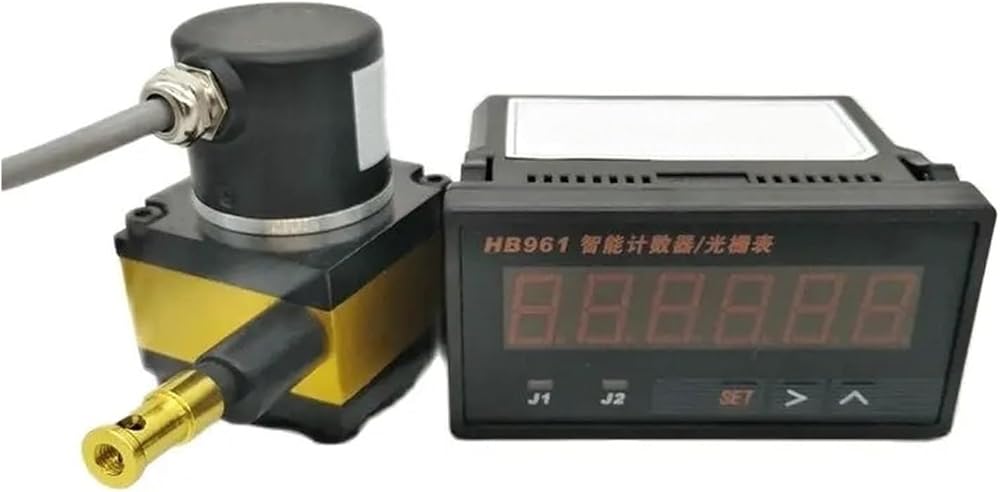

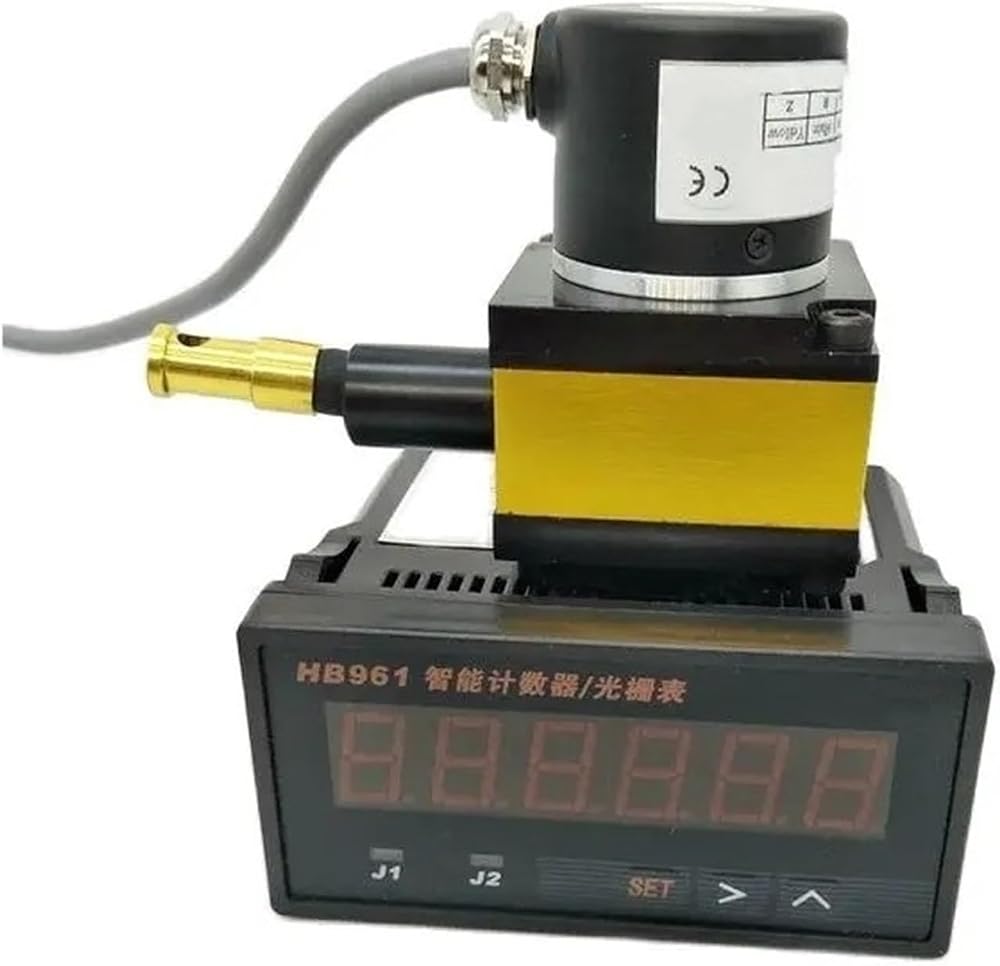

Model Number : CESI-S1000P/HB961
Display Size : 5.0 - 6.9 Inches
Stroke range : 1000mm
Resolution : 0.1mm/pulse
type : draw wire sensor encoder type
output signals : Pushpull output
counter dimension : 96* 48 *115mm
Display range : -199999 to 999999
